Brand:Siemens Item No.:6AG1135-4FB01-2AB0 Product Origin:Germany Product Dimensions:15 × 81 × 52 mm Product Weight:0.04 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

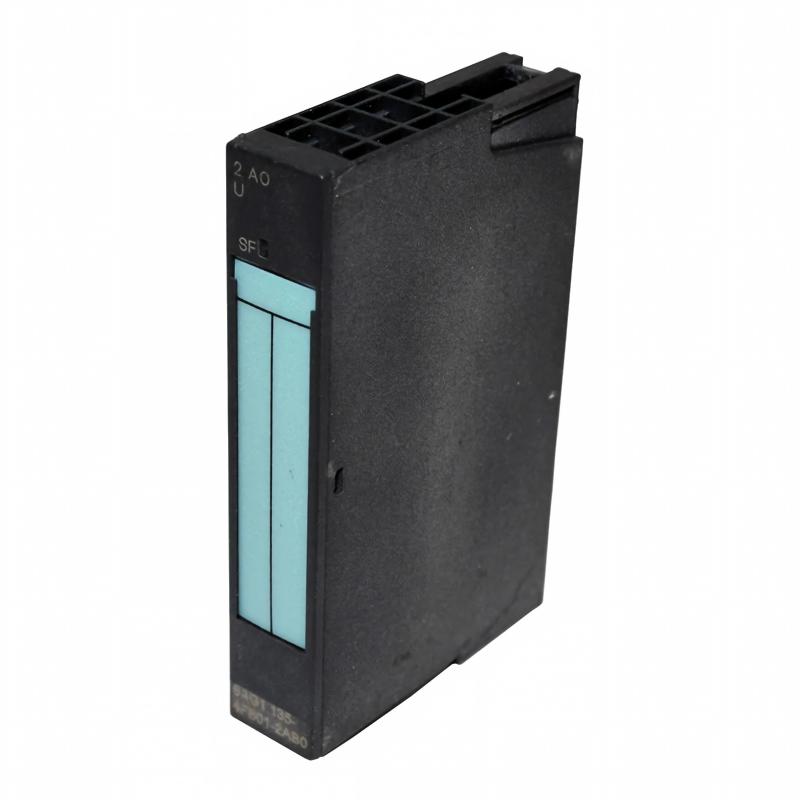

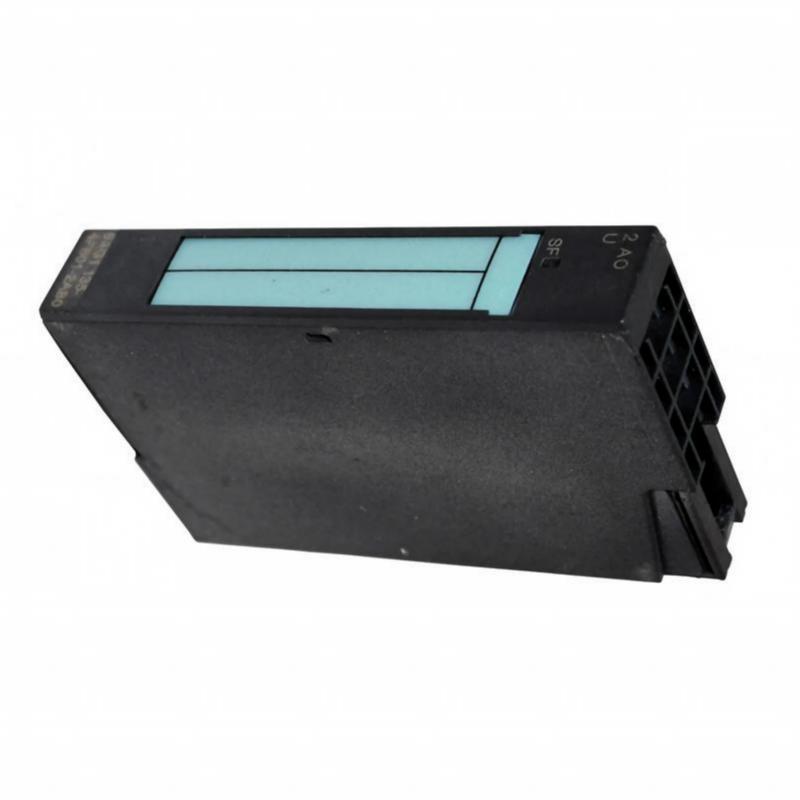

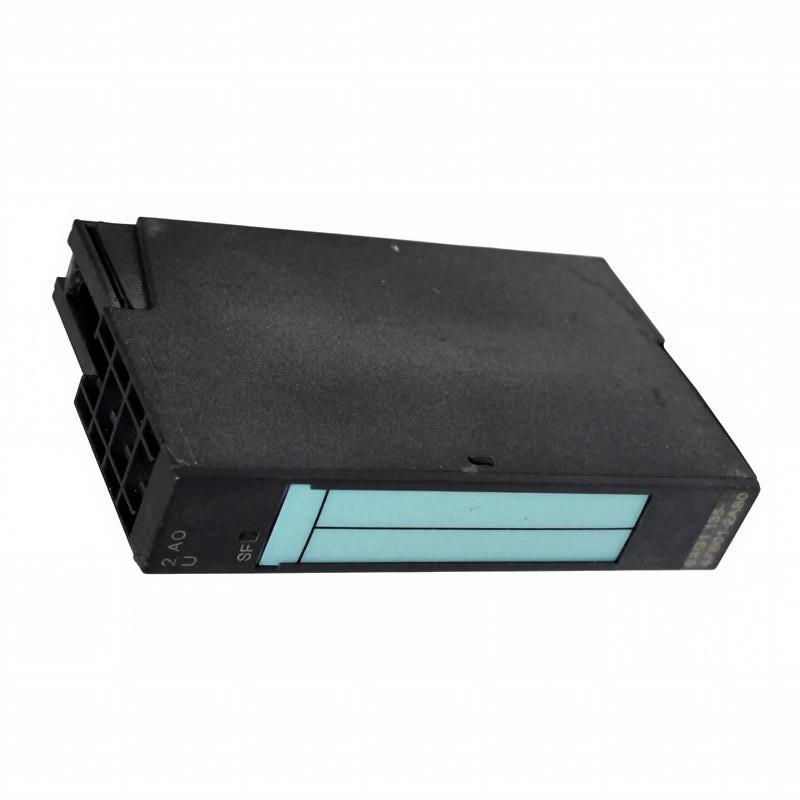

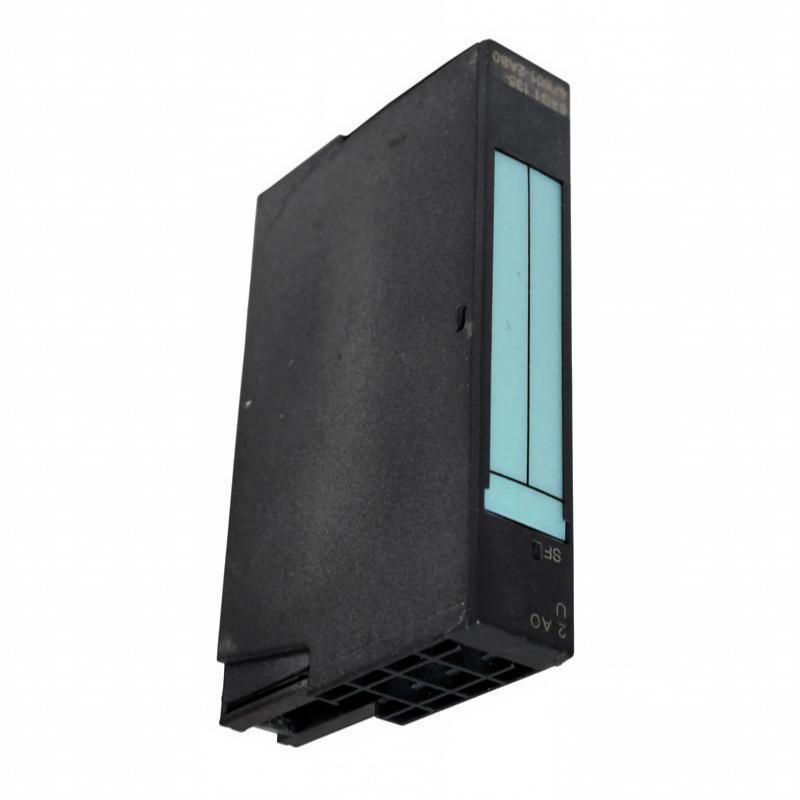

The Siemens 6AG1135-4FB01-2AB0 Analog Output Module provides a practical interface for sending variable control signals from an industrial automation system to compatible field equipment.
The distinction between digital and analog control is important in real-world automation. A digital output can generally command a device between defined states, while an analog output can provide a changing reference that allows equipment to operate at different levels.
This capability is useful for applications such as speed references, proportional valve control, actuator positioning, and process regulation. When combined with appropriate feedback and control logic, analog output hardware can become an important part of a closed-loop automation strategy.
The 6AG1135-4FB01-2AB0 has supplied dimensions of 15 × 81 × 52 mm, giving it a compact footprint for automation cabinets and machine-control assemblies.
When an analog-controlled device fails to respond correctly, the fault should be approached from the complete command path. First confirm what the PLC is requesting, then verify the output channel, electrical signal, wiring, terminals, and connected equipment. This approach helps distinguish software and configuration problems from genuine hardware failures.
For maintenance and replacement work, the complete Siemens order number should be verified before installation. Selecting the correct output configuration is particularly important because similar-looking analog output modules may have different electrical characteristics.
For OEMs, system integrators, and plant maintenance teams, the 6AG1135-4FB01-2AB0 offers a compact solution for integrating variable output control into compatible Siemens automation systems.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1135-4FB01-2AB0
Product Type
Analog Output Module
Module Function
Analog Signal Output
Application
Industrial Automation
Signal Direction
Output
System Integration
Siemens Automation / I/O System
Dimensions
15 × 81 × 52 mm
Weight
0.04 kg (0.09 lb)
Dimensions: 15 × 81 × 52 mm Weight: 0.04 kg (0.09 lb)
Before commissioning, verify the connected device's required signal characteristics, output scaling, wiring, terminal assignment, and PLC configuration. Perform output testing under controlled operating conditions to prevent unintended equipment movement.
Recommended Related Models
Model
Product Type
Application Relationship
6AG1135-4FB01-2AB0
Analog Output Module
Primary model
6AG1134-6TD00-2CA1
Analog Input Module
Related analog I/O hardware
6AG1134-6JF00-2CA1
Analog Input Module
Related Siemens analog input module
6AG1134-6JD00-2CA1
Analog Input Module
Related analog acquisition hardware
6AG1134-6PA20-7BD0
Analog Input Module
Related analog I/O configuration
The related modules may perform input rather than output functions and can have different electrical characteristics. Confirm the required I/O function and complete order number before selecting replacement hardware.
Popular Related Models
Siemens 6AG1134-6TD00-2CA1 — Analog Input Module
Siemens 6AG1134-6JF00-2CA1 — Analog Input Module
Siemens 6AG1134-6JD00-2CA1 — Analog Input Module
Siemens 6AG1134-6PA20-7BD0 — Analog Input Module
Siemens 6AG1134-6HB00-2CA1 — Analog Input Module
For replacement and retrofit projects, verify the complete Siemens order number, analog signal requirements, output configuration, field wiring, PLC parameters, and connected equipment compatibility before installation and commissioning.
Analog Output Applications in Industrial Control
The Siemens 6AG1135-4FB01-2AB0 Analog Output Module is designed for automation systems that need to send continuously variable control signals from the PLC or controller to compatible field devices.
Analog outputs are commonly used when a machine or process requires proportional control rather than a simple ON/OFF command. Depending on the application and supported signal configuration, an analog output can be used to influence drives, control valves, actuators, regulators, and other equipment requiring an analog reference.
Typical applications include:
Variable-speed drive reference signals
Process valve control
Actuator positioning
Temperature regulation
Pressure control
Flow regulation
Machine automation
Closed-loop process control
Industrial equipment control
Process instrumentation systems
A stable analog output provides the field device with a predictable command value, allowing the automation system to regulate equipment more precisely.
Control Performance and Integration Advantages
Precise variable control
The 6AG1135-4FB01-2AB0 is intended for applications where a continuously variable output signal is required instead of a basic digital command.
Suitable for proportional control
Analog output signals can be used to control equipment according to changing process requirements, supporting smoother and more responsive automation.
Compact installation footprint
With dimensions of 15 × 81 × 52 mm, the module can fit into compact automation assemblies where panel space is limited.
Useful for closed-loop applications
When combined with suitable feedback, an analog output can allow the controller to continuously adjust a process toward a defined target.
Straightforward troubleshooting path
An abnormal field response can be investigated by checking the PLC command, output channel, wiring, terminals, configuration, and connected device in sequence.
Practical for machine builders
The compact design can be beneficial for OEM control panels and machine automation projects where efficient I/O arrangement is important.
Clear replacement identification
The complete order number 6AG1135-4FB01-2AB0 should be used when sourcing replacement hardware to avoid confusion with similar Siemens output modules.
Professional automation integration
Reliable analog output performance helps maintain stable actuator commands and contributes to consistent machine and process behavior.
Technical FAQs
1. What is the primary function of the Siemens 6AG1135-4FB01-2AB0?
It is an analog output module used to provide compatible variable control signals from an automation system to connected field equipment.
2. What types of equipment commonly use analog outputs?
Typical applications include variable-speed drives, proportional valves, actuators, regulators, and other equipment that accepts an appropriate analog reference signal.
3. Why is correct output configuration important?
The controller and output hardware must use the correct signal characteristics and scaling. Incorrect configuration can cause the field device to receive an incorrect command value.
4. What could cause an output to remain at zero?
Possible causes include incorrect PLC logic, disabled output conditions, configuration errors, wiring problems, terminal faults, or a malfunctioning output channel.
5. Why might a connected actuator respond incorrectly to an analog command?
Potential causes include incorrect scaling, unsuitable signal configuration, wiring errors, grounding problems, an incorrectly configured actuator, or a fault in the output channel.
6. How can an analog output fault be isolated?
Compare the commanded PLC value with the actual electrical output, then inspect the field wiring, terminals, connected device, configuration, and module diagnostics.
7. Can grounding problems affect analog output signals?
Yes. Poor grounding or unsuitable wiring arrangements can introduce unwanted electrical disturbances and affect signal quality. Installation practices should be selected according to the overall system design.
8. What should be checked before replacing the output module?
Verify the PLC program and commanded value, output configuration, field wiring, terminal connections, connected device, and available diagnostics before replacing hardware.
9. How should a newly installed analog output be commissioned?
Verify the signal requirements, wiring, channel configuration, and scaling. Then apply controlled output values and confirm that the connected field device responds as expected.
10. Can a standard analog output directly perform a safety function?
A standard analog output should not automatically be considered safety-rated. Safety-related functions require appropriate certified hardware, architecture, diagnostics, and engineering procedures.
