Brand:Siemens Item No.:6AG1136-6DC00-2CA0 Product Origin:Germany Product Dimensions:15 × 73 × 58 mm Product Weight:0.048 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

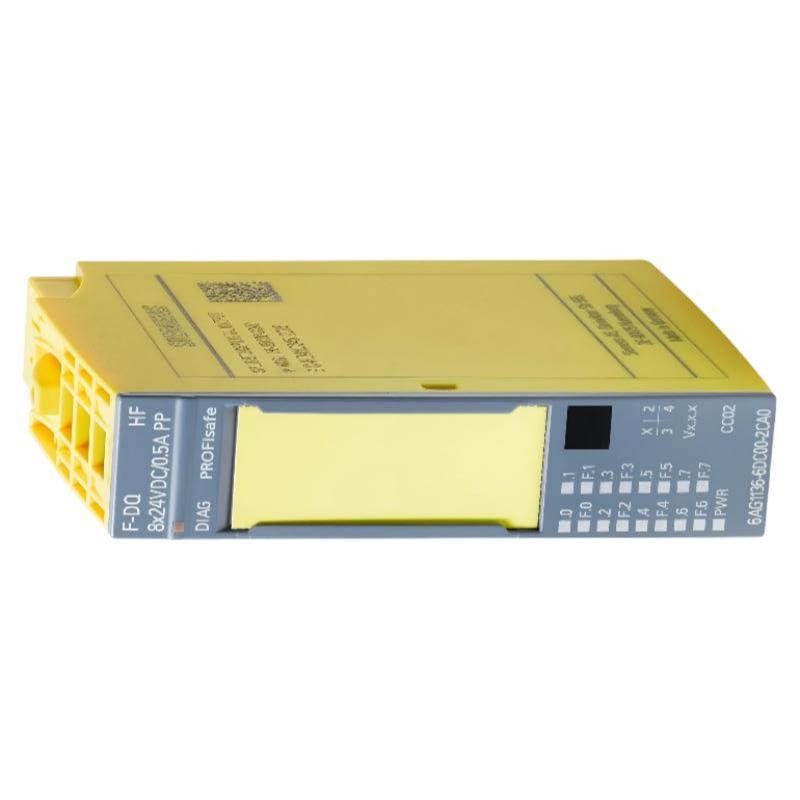

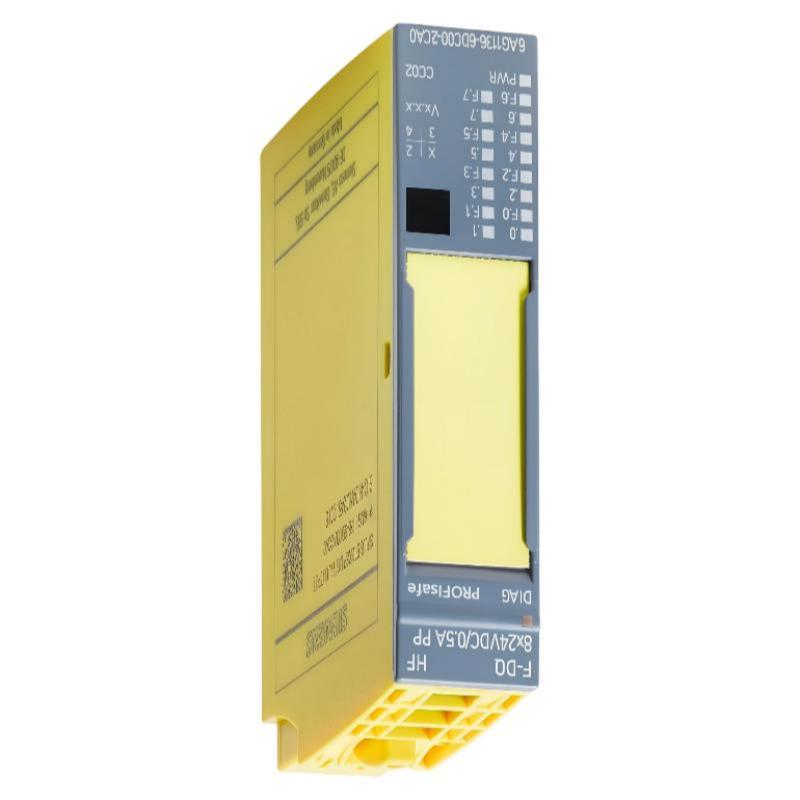

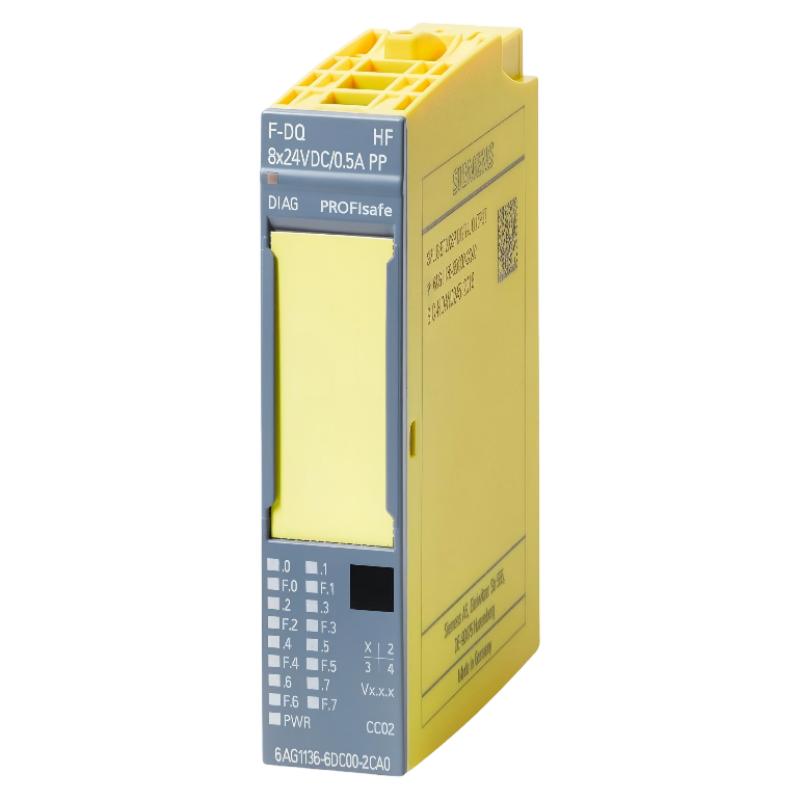

The Siemens 6AG1136-6DC00-2CA0 Digital Output Module is a compact interface component for sending discrete commands from a Siemens automation system to field-level equipment.
Digital output signals are among the most basic building blocks of industrial control. A PLC may need to energize a solenoid, switch a relay, activate an indicator, command a valve, or initiate another discrete machine action. The output module provides the physical interface through which this control logic reaches the field.
The 6AG1136-6DC00-2CA0 is therefore suited to automation applications where dependable discrete switching is required. It can participate in machine sequences, process-control routines, equipment interlocking, signaling, and automated production operations.
Its supplied dimensions of 15 × 73 × 58 mm provide a compact installation profile. For machine builders working with restricted cabinet space, a compact I/O solution can make panel organization easier while leaving room for other automation components.
When troubleshooting a digital output, it is important to distinguish between a software command problem and a physical output problem. If the PLC logic is not requesting the output, replacing the module will not correct the issue. Conversely, if the controller clearly commands the output but the field equipment does not respond, wiring, terminals, supply conditions, load characteristics, and the output channel should be investigated systematically.
Inductive loads deserve particular attention because switching coils and similar devices can produce electrical transients. Proper circuit protection and suitable installation practices help protect the output interface and improve long-term reliability.
For replacement applications, always identify the complete Siemens order number 6AG1136-6DC00-2CA0 rather than relying only on the general product category. Accurate identification helps reduce configuration errors and commissioning delays.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1136-6DC00-2CA0
Product Type
Digital Output Module
Module Function
Digital Signal Output
Application
Industrial Automation
Signal Direction
Output
Signal Type
Digital / Discrete
System Integration
Siemens Automation / I/O System
Dimensions
15 × 73 × 58 mm
Weight
0.05 kg (0.11 lb)
Dimensions: 15 × 73 × 58 mm Weight: 0.05 kg (0.11 lb)
Before commissioning, verify the connected load, output circuit requirements, wiring, terminal assignments, PLC configuration, and applicable protection measures. Output testing should be performed under controlled conditions, particularly when actuators or moving machinery are connected.
Recommended Related Models
Model
Product Type
Application Relationship
6AG1136-6DC00-2CA0
Digital Output Module
Primary model
6AG1135-4FB01-2AB0
Analog Output Module
Related output hardware
6AG1134-6TD00-2CA1
Analog Input Module
Related Siemens I/O hardware
6AG1134-6JF00-2CA1
Analog Input Module
Related signal acquisition module
6AG1134-6JD00-2CA1
Analog Input Module
Related analog input hardware
The related models provide different I/O functions and should not be treated as direct substitutes. Confirm the required signal type, electrical characteristics, system configuration, and application requirements before selecting an alternative.
Popular Related Models
Siemens 6AG1135-4FB01-2AB0 — Analog Output Module
Siemens 6AG1134-6TD00-2CA1 — Analog Input Module
Siemens 6AG1134-6JF00-2CA1 — Analog Input Module
Siemens 6AG1134-6JD00-2CA1 — Analog Input Module
Siemens 6AG1134-6PA20-7BD0 — Analog Input Module
For replacement and retrofit projects, verify the complete Siemens order number, output characteristics, connected load, field wiring, PLC configuration, and system compatibility before installation and commissioning.
