Brand:Siemens Item No.:6AG1136-6PA00-2BC0 Product Origin:Germany Product Dimensions:20 × 72 × 55 mm Product Weight:0.07 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

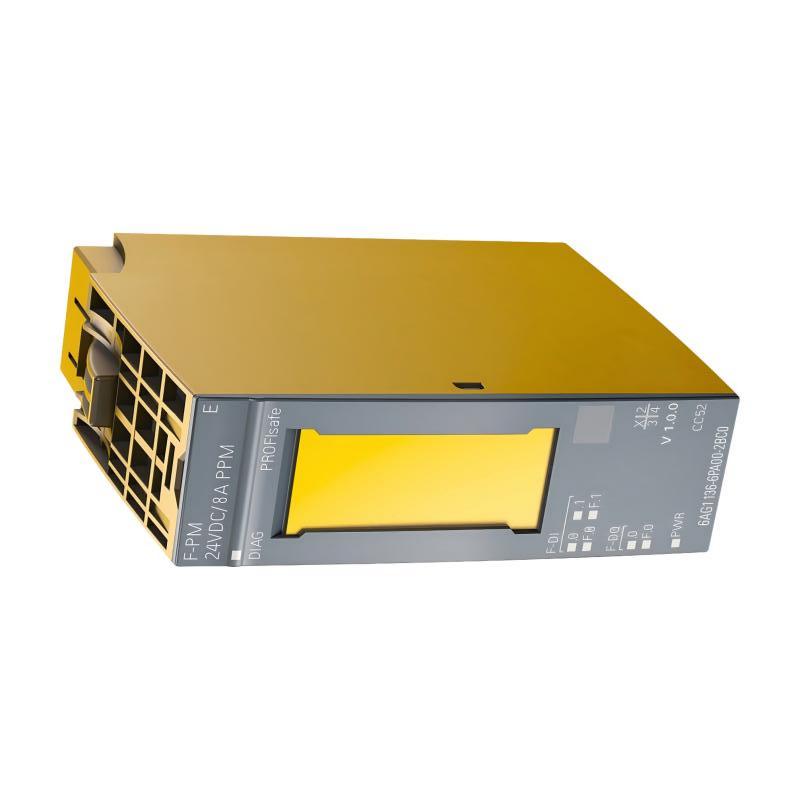

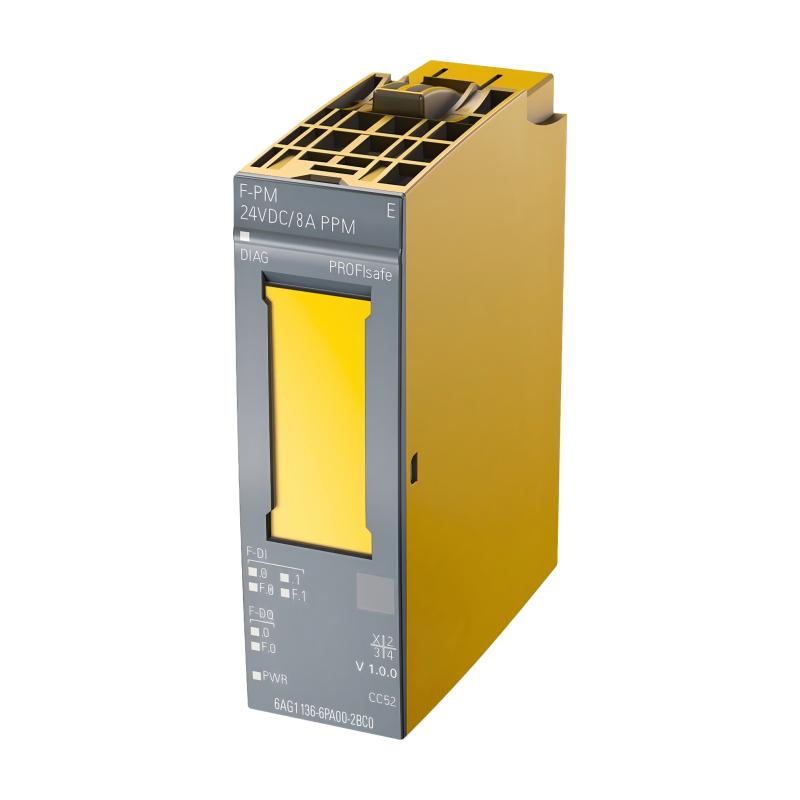

The Siemens 6AG1136-6PA00-2BC0 Power Module is a compact power-management component for compatible Siemens industrial automation systems.
In a modular control architecture, reliable power distribution is just as important as signal processing. Controllers and I/O modules may be capable of performing their assigned functions, but unstable or incorrectly distributed power can prevent the system from operating consistently.
The 6AG1136-6PA00-2BC0 is intended to form part of this supporting electrical infrastructure. Its role is particularly valuable in installations where automation components are arranged as a structured modular system.
With dimensions of 20 × 72 × 55 mm, the module provides a compact footprint for control cabinets. This can be useful for OEM machine builders and system integrators working with limited panel space.
From a troubleshooting perspective, power-related faults can sometimes be identified by their scope. If an entire group of connected I/O components becomes unavailable simultaneously, technicians should investigate the common supply path before assuming that multiple modules have failed independently.
A disciplined commissioning process should include verification of the incoming power, terminal connections, module installation, system recognition, and associated diagnostic information.
For maintenance and procurement purposes, the complete Siemens order number 6AG1136-6PA00-2BC0 should be matched carefully with the existing system configuration. This is especially important when several Siemens modules have similar physical appearances but different electrical or system functions.
For industrial automation projects requiring compact and organized power management, the 6AG1136-6PA00-2BC0 provides a practical solution for compatible modular control-system installations.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1136-6PA00-2BC0
Product Type
Power Module
Module Function
Power Management / Distribution
Application
Industrial Automation
System Integration
Siemens Modular Automation System
Installation
Control Cabinet / I/O Assembly
Dimensions
20 × 72 × 55 mm
Weight
0.07 kg (0.15 lb)
Dimensions: 20 × 72 × 55 mm Weight: 0.07 kg (0.15 lb)
Before installation, verify the applicable supply requirements, wiring arrangement, protective measures, system configuration, and compatibility with the associated Siemens automation hardware.
Recommended Related Models
Model
Product Type
Application Relationship
6AG1136-6PA00-2BC0
Power Module
Primary model
6AG1136-6DC00-2CA0
Digital Output Module
Related Siemens I/O hardware
6AG1135-4FB01-2AB0
Analog Output Module
Related output module
6AG1134-6PA20-7BD0
Analog Input Module
Related analog I/O hardware
6AG1134-6JF00-2CA1
Analog Input Module
Related Siemens input module
These models perform different functions within an automation system. A power module should not be replaced with an I/O module simply because the devices have similar physical dimensions. Verify the complete system architecture and electrical requirements before selecting replacement hardware.
Popular Related Models
Siemens 6AG1136-6DC00-2CA0 — Digital Output Module
Siemens 6AG1135-4FB01-2AB0 — Analog Output Module
Siemens 6AG1134-6PA20-7BD0 — Analog Input Module
Siemens 6AG1134-6JF00-2CA1 — Analog Input Module
Siemens 6AG1134-6JD00-2CA1 — Analog Input Module
For replacement and retrofit work, verify the complete Siemens order number, power requirements, wiring configuration, system compatibility, and associated I/O architecture before installation and commissioning.
Power Distribution Applications
The Siemens 6AG1136-6PA00-2BC0 Power Module is designed for industrial automation installations where dependable power management is required within a modular I/O or control architecture.
Power modules play an important role in automation systems by supporting the electrical supply arrangement for associated I/O components. A stable power infrastructure helps maintain consistent operation of sensors, actuators, communication interfaces, and control electronics throughout an automated machine or process.
Typical application areas include:
Industrial PLC systems
Modular I/O installations
Factory automation
Machine control cabinets
Process automation
Distributed control architectures
Production equipment
Packaging machinery
Material handling systems
Control-system expansion projects
Why It Matters in a Modular Automation System
Stable power infrastructure
The 6AG1136-6PA00-2BC0 provides a dedicated power-module solution for compatible Siemens automation architectures, helping establish an organized supply arrangement for associated system components.
Compact cabinet integration
Measuring 20 × 72 × 55 mm, the module occupies limited installation space and is suitable for compact control cabinets.
Supports modular system design
A dedicated power module allows the automation installation to separate power-management functions from signal-processing and control functions.
Useful for system expansion
When additional I/O or automation components are incorporated into an existing installation, correctly selected power hardware helps maintain an organized electrical architecture.
Simplifies maintenance analysis
When several connected modules become unavailable at the same time, checking the power module and associated supply path provides an important diagnostic step.
Suitable for industrial control environments
The compact form factor makes the module practical for machinery, production systems, and structured automation installations.
Accurate replacement identification
The complete order number 6AG1136-6PA00-2BC0 should be used when purchasing or replacing the module to avoid confusion with similarly classified Siemens hardware.
Technical FAQs
1. What is the primary purpose of the Siemens 6AG1136-6PA00-2BC0?
It is a power module intended to support the power distribution requirements of a compatible Siemens modular automation system.
2. Why is a dedicated power module important in a modular I/O system?
A dedicated power module helps establish an organized supply structure for associated system components and separates power-management functions from signal-processing functions.
3. What symptoms may indicate a power-module problem?
Possible symptoms include loss of operation in associated modules, unexpected system diagnostics, unavailable I/O sections, or simultaneous loss of multiple connected functions.
4. Why should multiple failed I/O modules be investigated as a possible power problem?
If several modules stop operating simultaneously, a common supply path can be a more likely cause than several independent hardware failures occurring at the same time.
5. What should be checked if the connected I/O system loses power?
Check the incoming supply, protective devices, wiring, terminal connections, module status, and power distribution path while following applicable electrical safety procedures.
6. Can a loose terminal cause intermittent system operation?
Yes. A poor electrical connection can create voltage interruptions or unstable supply conditions, potentially resulting in intermittent communication, I/O faults, or unexpected controller behavior.
7. What should be considered when replacing a power module?
Verify the complete order number, system compatibility, supply requirements, wiring arrangement, and installation procedure before replacing the hardware.
8. How can a power-related fault be distinguished from an I/O module fault?
Check whether the problem affects one module or several connected modules. A wider system failure may indicate a common power or communication issue, while a single affected module may require localized investigation.
9. Should power wiring be inspected before replacing the module?
Yes. Incoming supply conditions, terminals, protective devices, and wiring should be verified first. Replacing the module without checking the supply path may leave the actual fault unresolved.
10. What should be verified after installing a replacement power module?
Confirm the physical installation, wiring, supply conditions, module recognition, system diagnostics, and operation of associated I/O components before returning the equipment to normal production.
