Brand:Siemens Item No.:6AG1136-6RA00-2BF0 Product Origin:Germany Product Dimensions:20 × 73 × 58 mm Product Weight:0.09 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

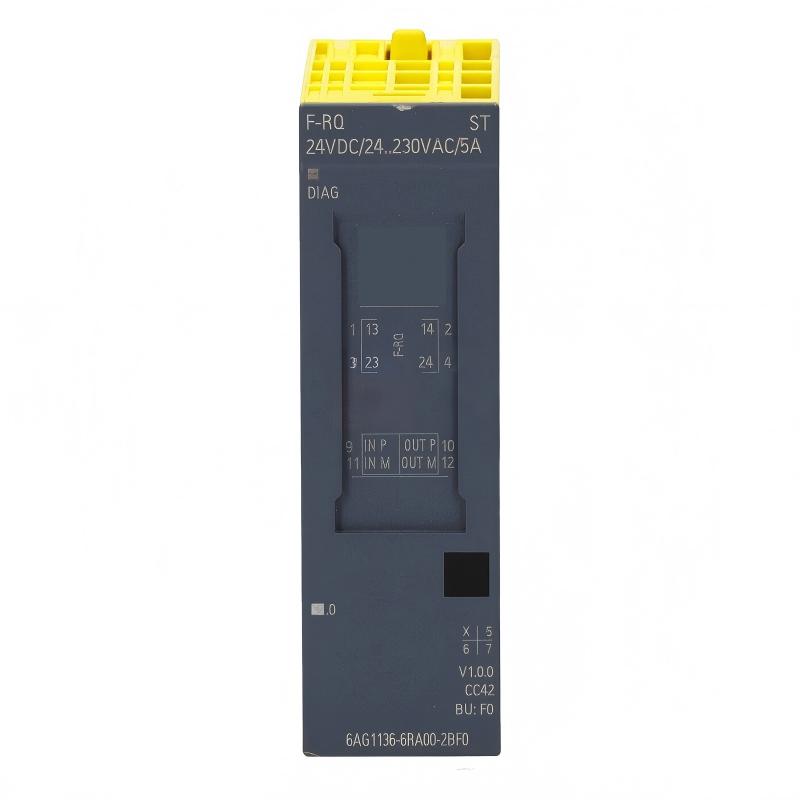

The Siemens 6AG1136-6RA00-2BF0 Relay Output Module is a SIPLUS ET 200SP component developed for applications requiring relay-based output switching within a modular automation system.
Unlike a conventional transistor output, a relay output uses physical contacts to switch an external circuit. This characteristic makes relay modules attractive for applications involving compatible AC or DC loads and situations where the switching interface needs to be clearly separated from the controller electronics.
The 6AG1136-6RA00-2BF0 provides one relay output with two normally open contacts. Its specified load capability includes 24 V DC and 24 to 230 V AC, while the total output current is specified at 5 A.
The module is particularly useful in industrial applications involving contactors, actuators, valves, motor enable circuits, and other controlled loads. For safety-related systems, it can be integrated into a suitable fail-safe architecture, but the complete system design must be evaluated rather than treating the module as an independent safety device.
Its 20 × 73 × 58 mm dimensions make it well suited to compact modular control cabinets. The SIPLUS design also makes it attractive for installations where greater environmental robustness is required.
When diagnosing a relay output problem, the fastest approach is usually to divide the system into sections. First establish whether the controller is issuing the expected command. Then check module status and diagnostics. If the relay responds correctly, move to the external load circuit and verify the supply, wiring, terminals, and connected equipment.
This structured method helps avoid unnecessary module replacement and can significantly reduce maintenance downtime.
For procurement and retrofit work, always verify the complete product number 6AG1136-6RA00-2BF0 against the existing system configuration before installation.
Technical Specifications
Parameter
Specification
Brand
Siemens
Model
6AG1136-6RA00-2BF0
Product Type
Relay Output Module
Product Family
SIPLUS ET 200SP
Output Type
Relay
Relay Outputs
1
Relay Contacts
2 Normally Open (NO)
Rated Supply Voltage
24 V DC
Load Voltage
24 V DC / 24–230 V AC
Total Output Current
5 A
Application
Industrial Automation
Environmental Design
SIPLUS Industrial Version
Dimensions
20 × 73 × 58 mm
Weight
0.09 kg (0.20 lb)
Dimensions: 20 × 73 × 58 mm Weight: 0.09 kg (0.20 lb)
Before commissioning, verify the applicable supply requirements, relay contact loading, external protection, field wiring, BaseUnit configuration, and automation-system parameters. For safety-related applications, the complete safety architecture must also be validated.
Recommended Related Models
Model
Product Type
Application Relationship
6AG1136-6RA00-2BF0
Relay Output Module
Primary model
6AG1136-6DB00-2CA0
Fail-Safe Digital Output Module
Related fail-safe control hardware
6AG1136-6DC00-2CA0
Digital Output Module
Related digital output hardware
6AG1136-6PA00-2BC0
Power Module
Related power-management hardware
6AG1135-4FB01-2AB0
Analog Output Module
Related output module
The related models provide different functions and should not be treated as direct substitutes. Check the required output technology, electrical characteristics, system architecture, and application requirements before selecting an alternative.
Popular Related Models
Siemens 6AG1136-6DB00-2CA0 — Fail-Safe Digital Output Module
Siemens 6AG1136-6DC00-2CA0 — Digital Output Module
Siemens 6AG1136-6PA00-2BC0 — Power Module
Siemens 6AG1135-4FB01-2AB0 — Analog Output Module
Siemens 6AG1134-6PA20-7BD0 — Analog Input Module
For replacement and retrofit projects, verify the complete Siemens order number, output function, relay contact requirements, load characteristics, BaseUnit, field wiring, and system configuration before installation and commissioning.
Relay Switching Applications
The Siemens 6AG1136-6RA00-2BF0 Relay Output Module is a compact SIPLUS ET 200SP relay output component designed for industrial automation systems that require controlled switching of external electrical loads.
Relay outputs are valuable when a control system needs to switch external AC or DC circuits while maintaining a clear separation between the controller-side electronics and the load circuit. This makes the module suitable for machinery, process equipment, actuator control, and applications where relay contacts are preferred.
Typical applications include:
Industrial machine control
Actuator enable circuits
Contactor control
Valve switching
Motor control circuits
Process automation
Production machinery
Industrial control panels
Distributed I/O systems
Safety-oriented automation architectures
The module provides one relay output with two normally open contacts, making it a practical choice for controlled switching in compatible automation systems.
Engineering Advantages and Practical Value
Relay-based switching
The 6AG1136-6RA00-2BF0 uses mechanical relay contacts to provide a flexible interface between the automation system and compatible external loads.
AC and DC load compatibility
The module is designed for compatible 24 V DC and 24 to 230 V AC load circuits, offering useful flexibility for industrial control applications.
5 A output capability
The specified total output current is 5 A, subject to the applicable electrical, thermal, and installation conditions.
Fail-safe system integration
The module can form part of an appropriately engineered fail-safe architecture when used with suitable control hardware and application logic.
Compact ET 200SP design
With dimensions of 20 × 73 × 58 mm, the module fits efficiently into modular control-system installations where cabinet space matters.
SIPLUS environmental design
The SIPLUS construction is intended for demanding industrial environments and provides additional environmental robustness compared with conventional automation hardware.
Useful diagnostic structure
Module and system diagnostics can help maintenance engineers distinguish between control-side problems, module faults, and external load-circuit issues.
Practical replacement option
The complete order number 6AG1136-6RA00-2BF0 provides a clear identification point when purchasing replacement hardware or planning a retrofit.
Technical FAQs
1. What is the Siemens 6AG1136-6RA00-2BF0 used for?
It is a relay output module used to switch compatible external AC or DC load circuits within a suitable Siemens automation architecture.
2. How many relay outputs are available?
The module provides one relay output with two normally open contacts.
3. What load voltage range is supported?
The module is designed for compatible 24 V DC and 24 to 230 V AC load circuits.
4. What is the specified output current?
The specified total output current is 5 A. Actual application limits must be evaluated according to the connected load and operating conditions.
5. Can the module be incorporated into a safety-related application?
Yes, it can be used as part of an appropriately engineered fail-safe architecture. The complete safety function, rather than the relay module alone, determines the achievable safety performance.
6. What can cause the relay output to remain inactive?
Possible causes include an incorrect control signal, supply problems, configuration errors, wiring faults, diagnostic conditions, or an output-channel malfunction.
7. What should be checked if the relay operates but the load does not respond?
Inspect the load-side supply, external wiring, terminal connections, protective components, and connected equipment. The relay contact circuit should also be checked.
8. Why should inductive loads be evaluated carefully?
Contactors, solenoids, and other inductive loads can produce voltage transients during switching. Appropriate suppression and protection should be considered for the specific load.
9. What should technicians check before replacing the module?
Verify the control signal, supply voltage, module diagnostics, BaseUnit, wiring, load circuit, and configuration before concluding that the relay module has failed.
10. What should be tested after installation?
Confirm module recognition, wiring, control behavior, diagnostic status, relay operation, and the response of the connected load under controlled conditions.
