Brand:Siemens Item No.:6AG1055-1MB00-7BA2 Product Origin:Germany Product Dimensions:35.5 x 90 x 58 mm Product Weight:0.167 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

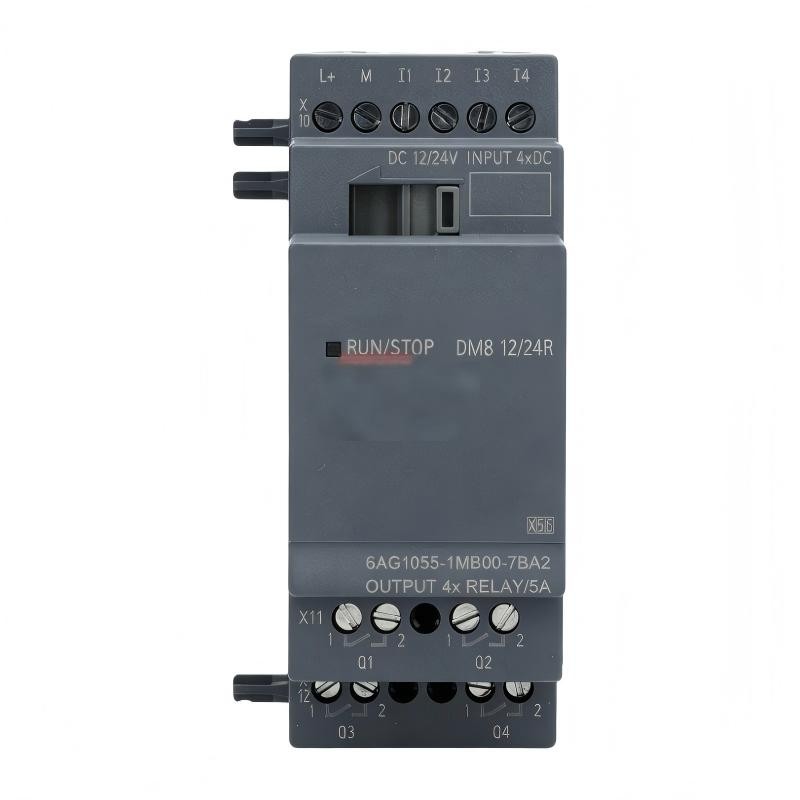

The Siemens 6AG1055-1MB00-7BA2 SIPLUS LOGO! Extension Module provides a compact approach to expanding a compatible LOGO! automation system.
LOGO! controllers are widely suited to smaller automation tasks because they provide a compact control architecture for machines, utilities, building systems, and standalone equipment. When an application expands, replacing the complete control system is not always necessary. A compatible extension module can provide a more efficient path to additional system capability.
This approach is particularly valuable for OEM applications. Machine builders can develop a standardized control platform and add compatible expansion hardware according to the requirements of different machine versions. This can simplify cabinet design, maintenance procedures, and spare-parts planning.
The 6AG1055-1MB00-7BA2 is a SIPLUS version, making it suitable for applications where greater environmental robustness is desirable. Its supplied 35.5 × 90 × 58 mm dimensions provide a compact footprint for industrial control installations.
During installation, the first priority should be system compatibility. The controller generation, expansion architecture, electrical requirements, and supported configuration should all be confirmed before connecting the module.
Once installed, commissioning should proceed systematically. The controller should recognize the extension module correctly, the configured system structure should match the physical hardware, and each additional control point should be checked against its intended field device.
If a newly installed module is not recognized, replacing it immediately is rarely the best diagnostic approach. Engineers should first check the physical connection, system compatibility, configuration, power conditions, and controller diagnostics. If the module is recognized but individual signals behave incorrectly, attention should move toward I/O assignment, program logic, and field wiring.
This structured approach can reduce unnecessary replacement costs and shorten troubleshooting time.
For procurement and maintenance, the complete Siemens order number 6AG1055-1MB00-7BA2 should be used when identifying the product. This is especially important when several LOGO! extension modules have similar physical dimensions or descriptions.
With its compact construction and SIPLUS design, this extension module is a useful option for compatible LOGO! applications requiring additional system capability without unnecessarily increasing cabinet complexity.
