Product Introduction

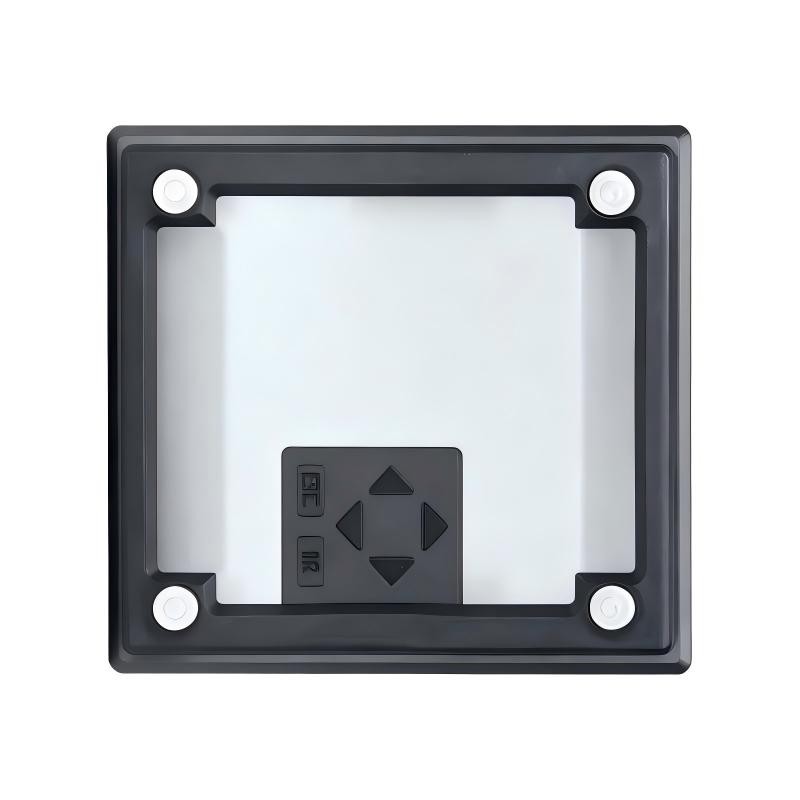

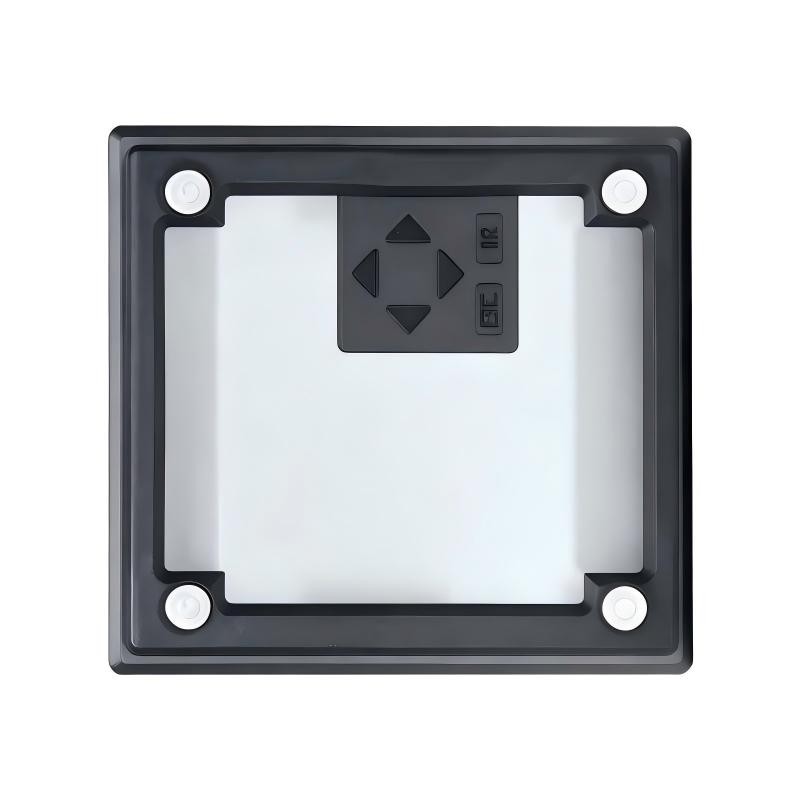

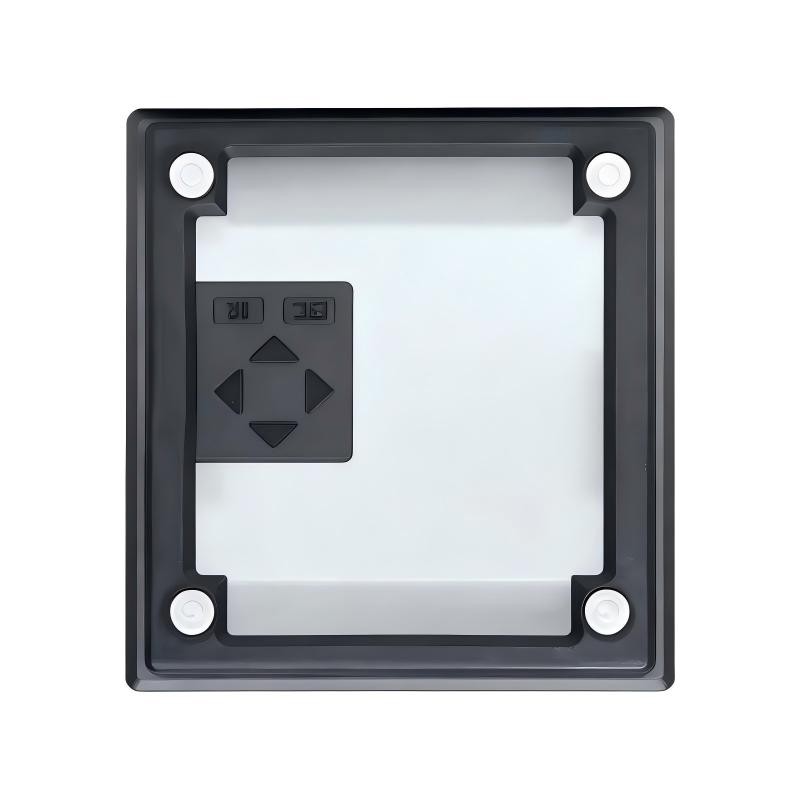

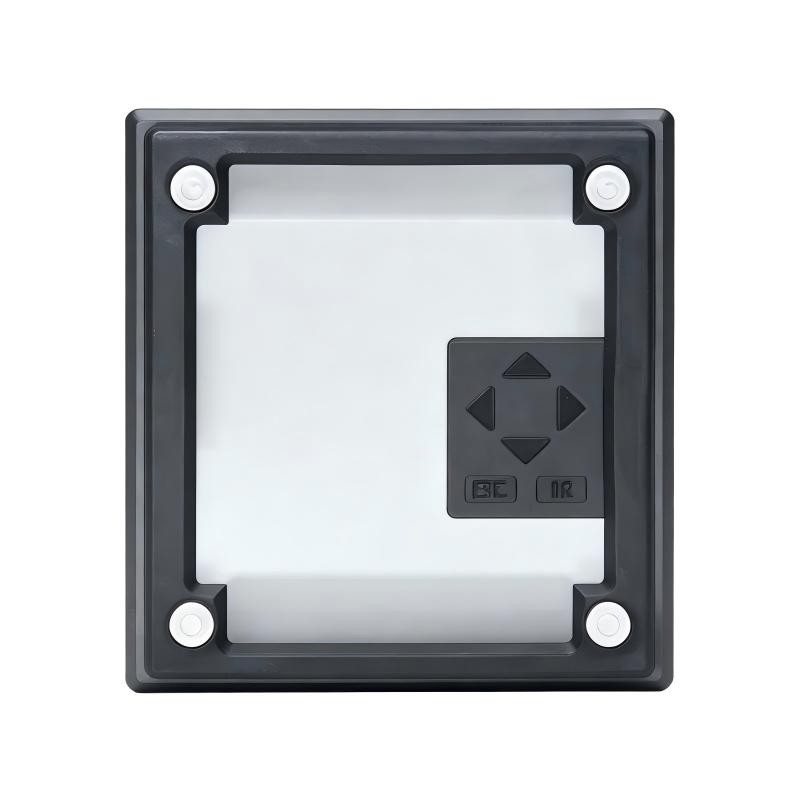

The Siemens 6AG1057-1AA00-0AA3 SIPLUS LOGO! Front Panel Mount Kit 4TE is designed to provide a structured mechanical mounting solution for compatible LOGO! installations.
Control-panel design involves more than selecting the correct controller and I/O hardware. The physical installation must also provide secure mounting, accessible operation, appropriate wiring clearance, and a layout that can be serviced efficiently. A dedicated front-panel mounting kit helps address these requirements in a compact format.
The 4TE configuration is particularly attractive for applications where every millimeter of cabinet space matters. With supplied dimensions of 106 × 57 mm, the mounting accessory can be incorporated into compact machine panels and control enclosures.
For OEM machine builders, standardized mounting hardware can provide a significant practical advantage. Once the panel opening, mounting arrangement, and surrounding clearances have been established, the same design can be reproduced across multiple machines. This reduces unnecessary mechanical variation and makes production assembly more predictable.
Front-panel mounting also provides easier access to equipment that may need operator interaction or maintenance inspection. However, the front opening should not be considered in isolation. The space behind the panel must also accommodate wiring, connectors, adjacent components, and service access.
During installation, verify the exact LOGO! equipment compatibility and prepare the panel according to the required mounting dimensions. Avoid forcing the equipment into an incorrectly prepared opening, as excessive mechanical pressure can damage the mounting arrangement or connected hardware.
After installation, check that the assembly is firmly secured and correctly aligned. Wiring should be routed without applying unnecessary mechanical force to the mounted equipment.
If the mounted unit later becomes loose, the problem should be investigated mechanically before electrical troubleshooting begins. Inspect fastening points, panel condition, mounting hardware, and cable tension.
For retrofit projects, this mounting kit can provide a convenient way to reorganize an existing LOGO! control cabinet and create a more accessible front-facing installation.
The complete order number 6AG1057-1AA00-0AA3 should be used when purchasing or replacing the accessory. This is especially important because the LOGO! product family contains mounting solutions with different dimensional formats.
For compact machine panels requiring a 4TE front-panel mounting solution, the 6AG1057-1AA00-0AA3 offers a practical and professional approach to integrating compatible LOGO! equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Siemens |
| Model | 6AG1057-1AA00-0AA3 |
| Product Type | SIPLUS LOGO! Front Panel Mount Kit |
| Mounting Format | 4TE |
| Application | Front Panel Installation |
| Product Family | SIPLUS LOGO! |
| Function | Mechanical Mounting Accessory |
| Dimensions | 106 × 57 mm |
| Weight | 0.15 kg (0.33 lb) |
Dimensions: 106 × 57 mm
Weight: 0.15 kg (0.33 lb)
Before installation, confirm the 4TE mounting requirement, compatible LOGO! equipment, panel cutout, panel thickness, rear clearance, fastening arrangement, and surrounding enclosure layout.
Recommended Related Models
| Model | Product Type | Application Relationship |
|---|---|---|
| 6AG1057-1AA00-0AA3 | SIPLUS LOGO! Front Panel Mount Kit | Primary model |
| 6AG1057-1AA00-0AA2 | SIPLUS LOGO! Front Panel Mount Kit | Related 8TE mounting accessory |
| 6AG1055-1MA00-7BA2 | SIPLUS LOGO! Extension Module | Related LOGO! expansion hardware |
| 6AG1055-1MB00-7BA2 | SIPLUS LOGO! Extension Module | Related LOGO! expansion hardware |
| 6AG1055-1MD00-7BA2 | SIPLUS LOGO! Extension Module | Related LOGO! expansion hardware |
The extension modules listed above provide electronic system functions and are not mechanical replacements for the front-panel mounting kit. Verify the complete equipment and mounting requirements before selecting related products.
Popular Related Models
- Siemens 6AG1057-1AA00-0AA2 — SIPLUS LOGO! Front Panel Mount Kit 8TE
- Siemens 6AG1055-1MA00-7BA2 — SIPLUS LOGO! Extension Module
- Siemens 6AG1055-1MB00-7BA2 — SIPLUS LOGO! Extension Module
- Siemens 6AG1055-1MD00-7BA2 — SIPLUS LOGO! Extension Module
- Siemens 6AG1055-1MM00-7BA2 — SIPLUS LOGO! Extension Module
For replacement and panel retrofit work, verify the complete Siemens order number, 4TE mounting format, compatible LOGO! equipment, panel cutout, mechanical clearances, fastening arrangement, and final enclosure layout before installation.
