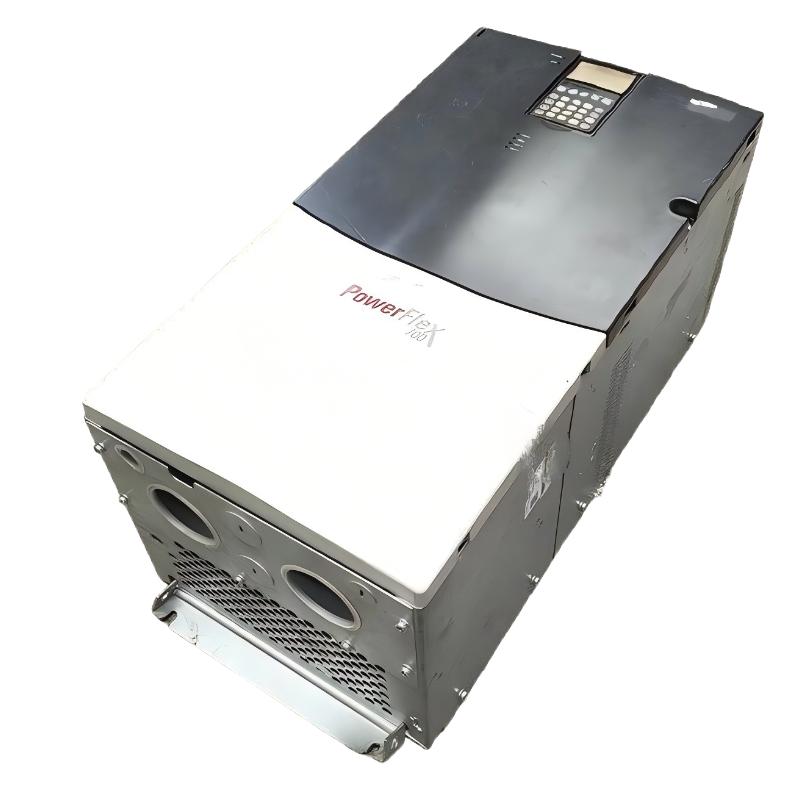

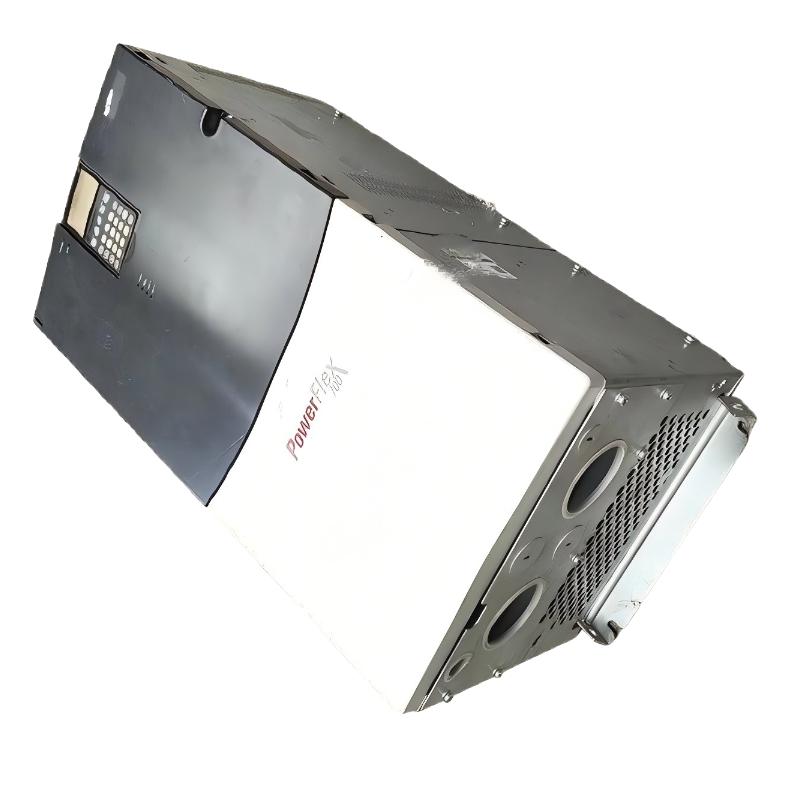

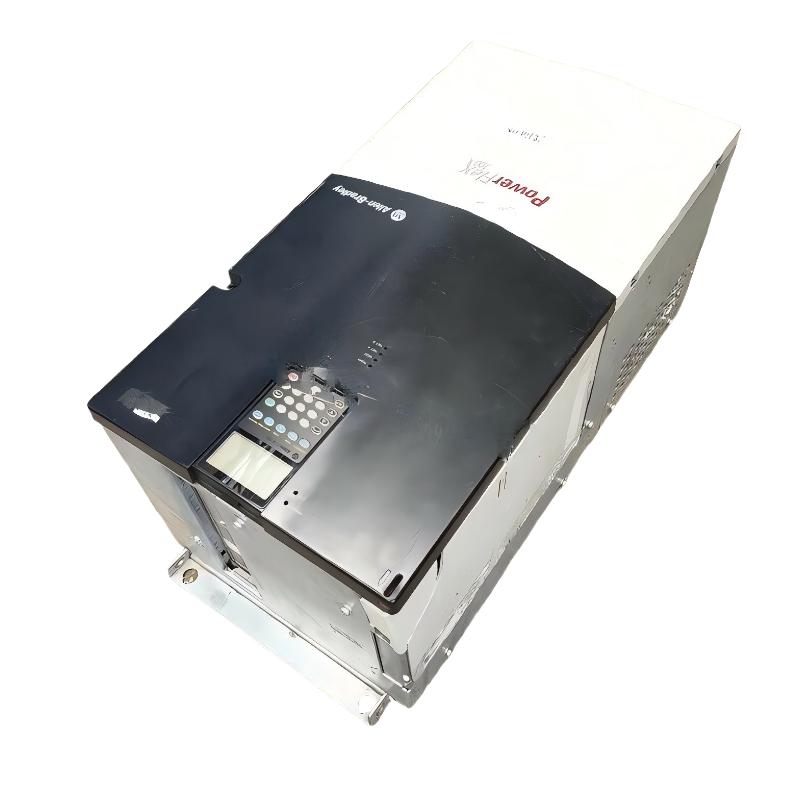

Allen Bradley 20BC105A0ANNANC0 PowerFlex 700 AC Drive

Industrial Applications and Automation Integration

The Allen Bradley 20BC105A0ANNANC0 PowerFlex 700 AC Drive is a robust variable frequency drive designed for industrial motor control applications requiring high reliability, flexible operation, and precise speed management. As part of the PowerFlex 700 series, this drive provides advanced control capabilities for improving motor performance across a wide range of automation environments.

Engineered for demanding production systems, the 20BC105A0ANNANC0 supports efficient operation of motor-driven equipment while offering convenient configuration and diagnostic functions. It is widely selected by machine builders and industrial users who need dependable drive performance, scalable automation integration, and reduced maintenance complexity.

Typical applications include:

• Heavy-duty conveyor systems
• Manufacturing and processing equipment
• Industrial pumps and fans
• Material handling machinery
• Automated production lines
• Large machine control systems

With reliable motor regulation and flexible system compatibility, this PowerFlex 700 drive helps maintain consistent production performance while supporting modern industrial automation requirements.

Technical Advantages and Operational Benefits

High-Capacity Motor Control Performance
The PowerFlex 700 architecture provides accurate control of motor speed and torque, making it suitable for applications with demanding load conditions and continuous operation requirements.

Flexible Industrial Automation Compatibility
The drive integrates effectively with Allen Bradley control platforms, allowing engineers to create coordinated solutions between PLC systems, communication networks, and motor equipment.

Improved Energy Utilization
Variable speed operation allows motors to run according to actual process requirements, helping reduce unnecessary energy consumption and improve equipment efficiency.

Advanced Fault Monitoring Functions
The drive provides detailed operating information and fault records, helping maintenance teams identify issues faster and improve system availability.

Reliable Industrial Construction
Designed for factory environments, the PowerFlex 700 series delivers stable performance in applications requiring long service life and consistent operation.

Technical FAQs and Engineering Troubleshooting Guide

Q1: What is the primary purpose of Allen Bradley 20BC105A0ANNANC0?
A: It is a PowerFlex 700 AC Drive used to control industrial AC motors by adjusting operating speed, frequency, and torque.

Q2: Which applications are suitable for this PowerFlex 700 model?
A: It is suitable for conveyors, pumps, fans, processing machinery, and other industrial motor-driven systems.

Q3: How should the drive parameters be configured before commissioning?
A: Engineers should enter correct motor information, configure control modes, set acceleration and deceleration values, and verify protection parameters.

Q4: What causes an AC drive to trip during acceleration?
A: Possible causes include excessive load torque, incorrect acceleration settings, motor parameter errors, wiring issues, or insufficient power supply capacity.

Q5: How can a motor overspeed condition be diagnosed?
A: Check the speed reference source, frequency limits, controller commands, parameter settings, and feedback configuration.

Q6: Does the PowerFlex 700 support communication with industrial controllers?
A: Yes. It can communicate with Allen Bradley automation systems through compatible communication interfaces and network options.

Q7: What should be checked when the drive cannot receive a start command?
A: Verify control wiring, digital input configuration, enable signals, controller outputs, and drive command settings.

Q8: How can drive overheating issues be reduced?
A: Ensure proper ventilation, maintain cooling airflow, avoid excessive loading, and inspect the installation environment.

Q9: Why should drive parameters be backed up after commissioning?
A: Parameter backups simplify replacement procedures and reduce downtime during maintenance activities.

Q10: What are common reasons for communication interruptions?
A: Common causes include incorrect network settings, damaged communication cables, configuration mismatches, or faulty communication modules.
