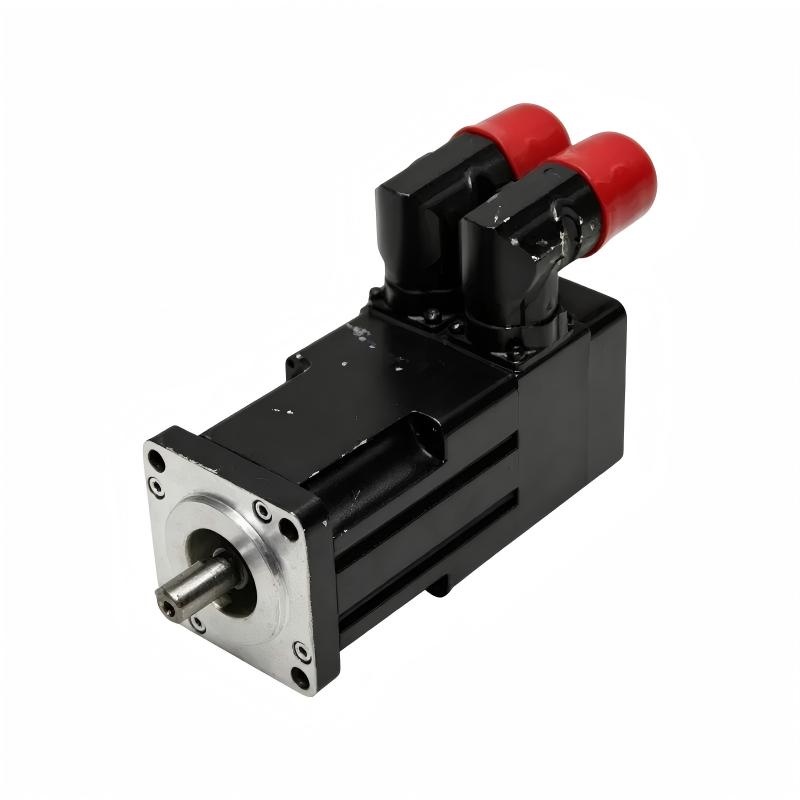

Allen Bradley MPL-A1520U-EJ42AA Servo Motor

Industrial Applications and Motion Control Deployment

The Allen Bradley MPL-A1520U-EJ42AA Servo Motor is a compact and efficient motion control solution developed for industrial automation applications that require accurate positioning, reliable speed control, and responsive machine performance. As part of the Allen Bradley MP-Series low-inertia servo motor family, this motor provides excellent dynamic characteristics for automated equipment where precision and repeatability are essential.

Designed for machine builders, system integrators, and industrial automation engineers, the MPL-A1520U-EJ42AA delivers smooth motion performance with a compact mechanical design. Its low-inertia construction allows quick acceleration and deceleration, helping improve machine cycle efficiency while maintaining consistent positioning accuracy.

Typical application fields include:

• Automated assembly equipment
• Packaging and filling machinery
• Robotic handling systems
• Precision inspection equipment
• Semiconductor production machines
• CNC positioning platforms

The servo motor provides a reliable foundation for advanced motion systems, helping manufacturers improve productivity, enhance machine accuracy, and maintain stable operation in demanding production environments.

Engineering Advantages and Performance Features

Accurate Motion Response
The MPL-Series servo motor provides precise control of speed and position, supporting applications where movement accuracy directly affects production quality.

Low-Inertia Servo Design
The motor’s low-inertia characteristics enable fast acceleration and deceleration, allowing machines to achieve shorter operating cycles.

Compact Industrial Construction
The 63 mm frame size provides a space-saving solution for equipment designs requiring efficient component integration.

Reliable Closed-Loop Operation
When paired with compatible servo drives and controllers, the motor supports feedback-based control for improved positioning performance.

Enhanced Machine Efficiency
The servo motor helps optimize automated processes by delivering stable movement, reduced mechanical stress, and consistent operation.

Technical FAQs and Servo Motor Troubleshooting Guide

Q1: What is the main function of Allen Bradley MPL-A1520U-EJ42AA?
A: It is an MP-Series servo motor designed to provide accurate speed and position control for industrial automation equipment.

Q2: Which applications are suitable for this servo motor?
A: It is suitable for packaging systems, robotic machinery, automated assembly equipment, and precision positioning applications.

Q3: What should be completed before installing the servo motor?
A: Verify motor compatibility, wiring connections, feedback configuration, drive settings, and controller parameters before startup.

Q4: Why does the servo motor produce unstable movement?
A: Possible causes include incorrect tuning, feedback errors, mechanical vibration, load mismatch, or improper motion settings.

Q5: What causes servo positioning deviation?
A: Position errors may result from incorrect calibration, mechanical backlash, feedback problems, or inaccurate motion parameters.

Q6: Can the MPL-A1520U-EJ42AA work with Allen Bradley Kinetix systems?
A: Yes. It is designed for integration with compatible Allen Bradley servo drives and motion controllers.

Q7: Why does the servo system trigger an overload fault?
A: Common causes include excessive mechanical load, rapid acceleration settings, incorrect sizing, or mechanical restrictions.

Q8: How can servo motor performance be improved?
A: Optimize tuning parameters, verify feedback signals, adjust motion profiles, and ensure proper mechanical installation.

Q9: What should be checked when the motor fails to rotate?
A: Inspect power connections, drive enable status, command signals, feedback wiring, and active diagnostic information.

Q10: What maintenance is recommended for this servo motor?
A: Regular checks of connectors, cables, mounting conditions, operating temperature, and system performance help maintain reliability.
