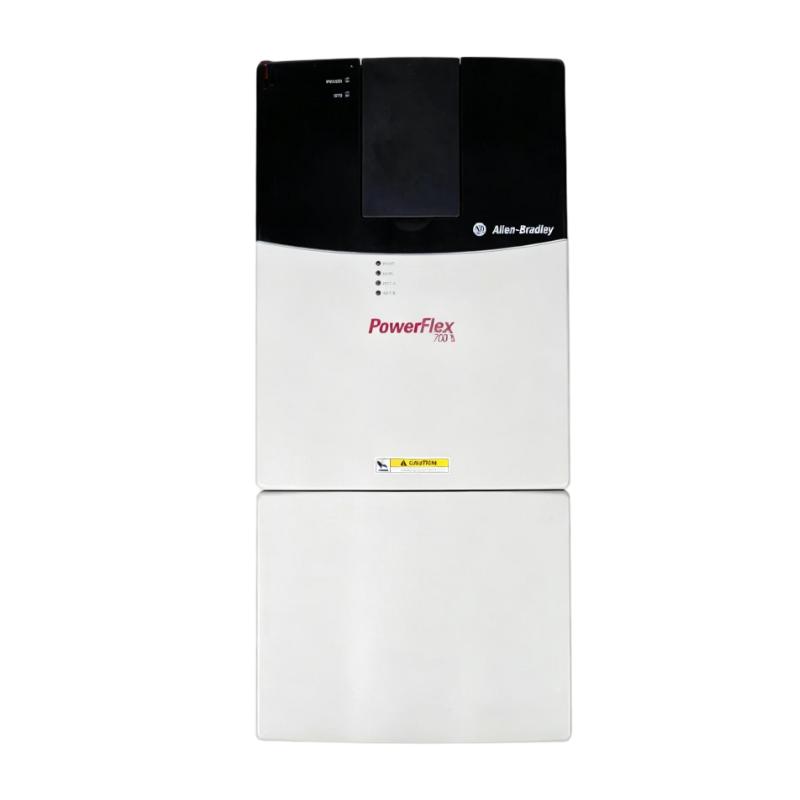

Allen Bradley 20BR535U0ANNNND0 PowerFlex 700 AC Drive

Industrial Applications and High-Power Drive System Deployment

The Allen Bradley 20BR535U0ANNNND0 PowerFlex 700 AC Drive is a high-power variable frequency drive designed for industrial applications that require dependable motor control, precise speed adjustment, and efficient system integration. As part of the PowerFlex 700 series, this drive provides a reliable solution for controlling large AC motors used in demanding production environments.

Engineered for heavy industrial operations, the 20BR535U0ANNNND0 delivers stable motor performance while helping improve process control and equipment efficiency. Its advanced drive technology enables accurate management of motor speed and torque, making it suitable for applications where operational reliability and productivity are essential.

Typical application areas include:

• Industrial manufacturing systems
• Large conveyor equipment
• Material handling machinery
• Processing and production equipment
• Pump and fan control systems
• Automated industrial facilities

The PowerFlex 700 AC Drive supports modern industrial automation requirements by providing reliable motor control, flexible configuration, and long-term operational stability.

Key Advantages and Industrial Performance Benefits

High-Power Motor Regulation
The PowerFlex 700 platform provides accurate control of motor speed, frequency, and torque for demanding industrial applications.

Reliable Heavy-Duty Operation
The 20BR535U0ANNNND0 is designed to support continuous industrial operation where system availability and performance consistency are important.

Flexible Application Setup
Engineers can configure drive parameters according to different motor characteristics, mechanical loads, and production requirements.

Enhanced Diagnostic Capability
Built-in monitoring functions provide valuable information for fault analysis and preventive maintenance planning.

Efficient Industrial Integration
The drive can be integrated into automation architectures, allowing coordinated control with PLC systems, HMIs, and other industrial devices.

Technical FAQs and Troubleshooting Guide

Q1: What is Allen Bradley 20BR535U0ANNNND0 mainly used for?
A: It is a PowerFlex 700 AC Drive designed to control high-power industrial AC motors with adjustable speed and torque functions.

Q2: What types of equipment can use this PowerFlex 700 drive?
A: It is suitable for conveyors, processing machinery, pumps, fans, and other industrial systems requiring reliable variable speed control.

Q3: What parameters should be configured before commissioning?
A: Motor nameplate information, control mode, acceleration and deceleration settings, protection parameters, and communication settings should be configured.

Q4: Why does the drive trip during motor startup?
A: Possible causes include excessive starting current, incorrect motor data, mechanical overload, wiring problems, or unsuitable acceleration settings.

Q5: What causes unstable motor speed or torque output?
A: Incorrect tuning, inaccurate motor parameters, load changes, feedback issues, or communication problems may affect motor stability.

Q6: How can communication faults with the controller be corrected?
A: Check network settings, communication wiring, controller configuration, installed interfaces, and drive communication parameters.

Q7: Why does the drive show a DC bus overvoltage fault?
A: Possible causes include rapid deceleration, regenerative energy, unstable incoming power, or incorrect braking configuration.

Q8: How can the operating efficiency of the drive system be improved?
A: Proper motor tuning, optimized operating profiles, correct parameter settings, and regular inspection can improve efficiency.

Q9: What should be checked if the motor does not respond to a start command?
A: Verify enable signals, control inputs, safety circuits, motor connections, drive status, and active fault messages.

Q10: Why is scheduled maintenance necessary for PowerFlex 700 drives?
A: Regular maintenance helps maintain reliable operation, prevent unexpected failures, and extend the service life of industrial automation equipment.
