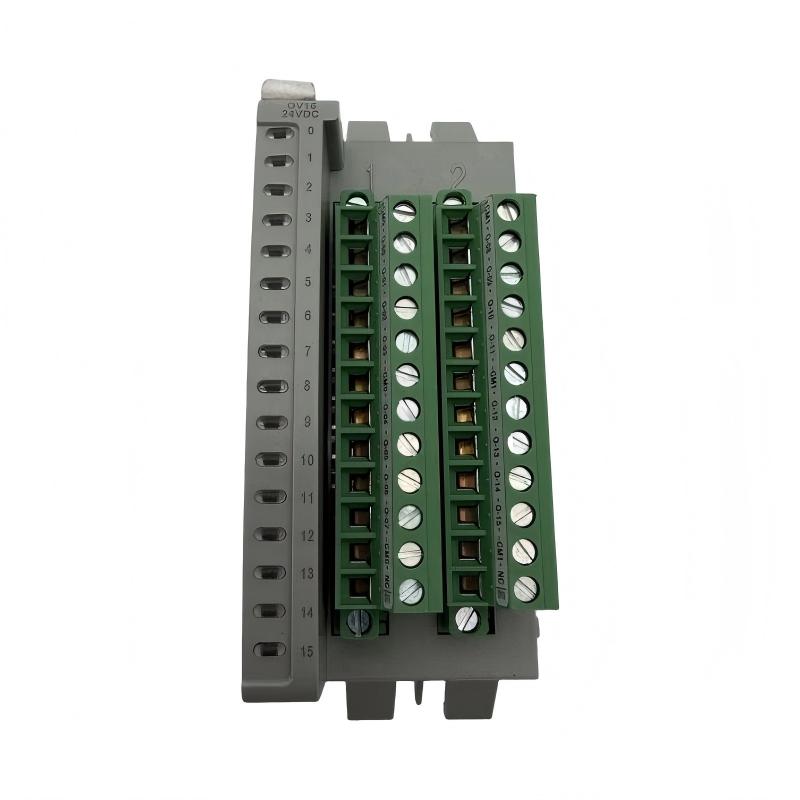

Allen Bradley 2085-OV16 Micro800 16-Point Sink Current Output Module

Industrial Applications and Compact Output Expansion Solutions

The Allen Bradley 2085-OV16 Micro800 16-Point Sink Current Output Module is a compact digital output expansion module designed to increase the output capability of Micro800 controller systems. It provides 16 sink current output points for controlling industrial loads such as actuators, relays, indicators, and other field devices in automated equipment.

Designed for machine builders and compact automation applications, the 2085-OV16 enables flexible system expansion while maintaining a small installation footprint. It helps engineers create efficient control panels with reliable output switching performance and simplified machine integration.

Typical application areas include:

• OEM machine automation
• Packaging and assembly equipment
• Conveyor control systems
• Small production machines
• Automated inspection equipment
• Compact industrial control panels

The Micro800 16-Point Sink Current Output Module provides a practical solution for expanding machine control capability while maintaining dependable operation and efficient system design.

Key Advantages and Control Performance Benefits

Expanded Output Control Capability
The 2085-OV16 adds 16 digital sink current output channels, allowing Micro800 controllers to operate additional field devices within compact automation systems.

Space-Saving Industrial Design
Its compact structure helps optimize control cabinet layouts, making it suitable for applications where installation space is limited.

Reliable Switching Performance
The module provides stable output control for industrial loads, supporting consistent machine operation and improved system reliability.

Flexible Automation Expansion
The module allows users to extend Micro800 controller functionality without redesigning the complete control architecture.

Efficient Machine Building Solution
The 2085-OV16 supports cost-effective automation development for OEM applications requiring dependable digital output control.

Technical FAQs and Troubleshooting Guide

Q1: What is the main function of Allen Bradley 2085-OV16?
A: The 2085-OV16 is a Micro800 expansion module that provides 16 sink current digital output points for controlling external devices.

Q2: What types of devices can be controlled using this output module?
A: It can control compatible DC loads such as relays, indicators, solenoids, and other industrial actuating devices.

Q3: Why does an output point fail to activate?
A: Possible causes include incorrect program logic, wiring problems, insufficient power supply, configuration errors, or damaged field devices.

Q4: What should be checked when the output indicator does not respond?
A: Verify controller logic, module configuration, output addressing, field wiring, and connected load conditions.

Q5: Why does an output device operate intermittently?
A: Possible causes include loose connections, unstable power, excessive electrical noise, or an improperly matched load.

Q6: How can output reliability be improved?
A: Proper wiring, suitable protection components, correct load selection, and regular inspection can improve system stability.

Q7: What causes the module to stop communicating with the controller?
A: Possible causes include incorrect expansion configuration, connection issues, controller faults, or module hardware problems.

Q8: How can a failed output channel be diagnosed?
A: Test the connected device, verify program commands, check wiring continuity, and compare operation with other output channels.

Q9: Can the 2085-OV16 be installed in an existing Micro800 system?
A: Yes, it can be added to compatible Micro800 controller configurations when additional output capacity is required.

Q10: Why is preventive maintenance important for output modules?
A: Regular inspection helps prevent unexpected machine downtime, maintain reliable switching performance, and extend system service life.
