Introduction

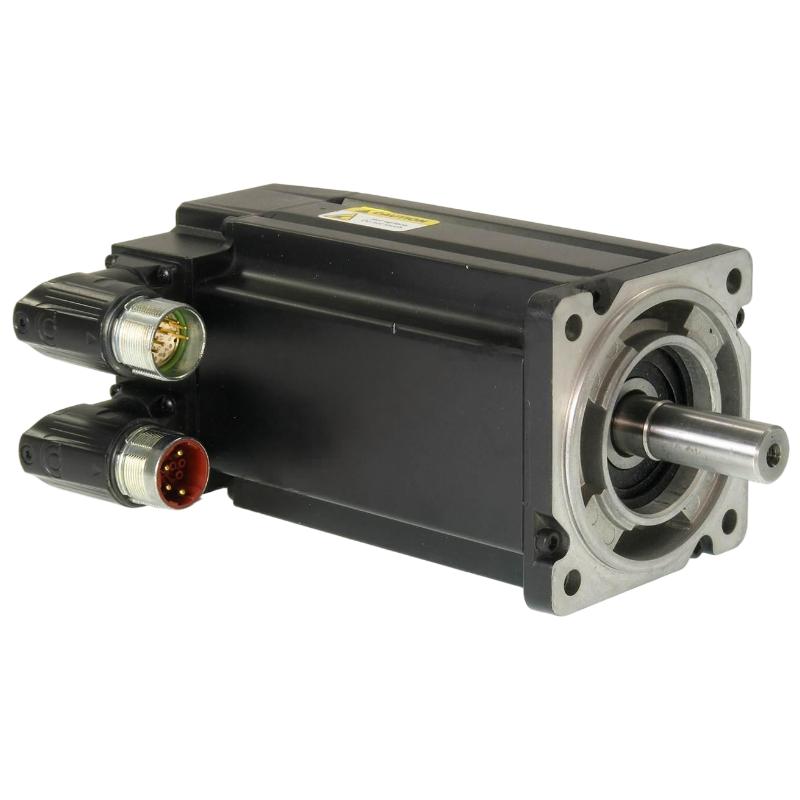

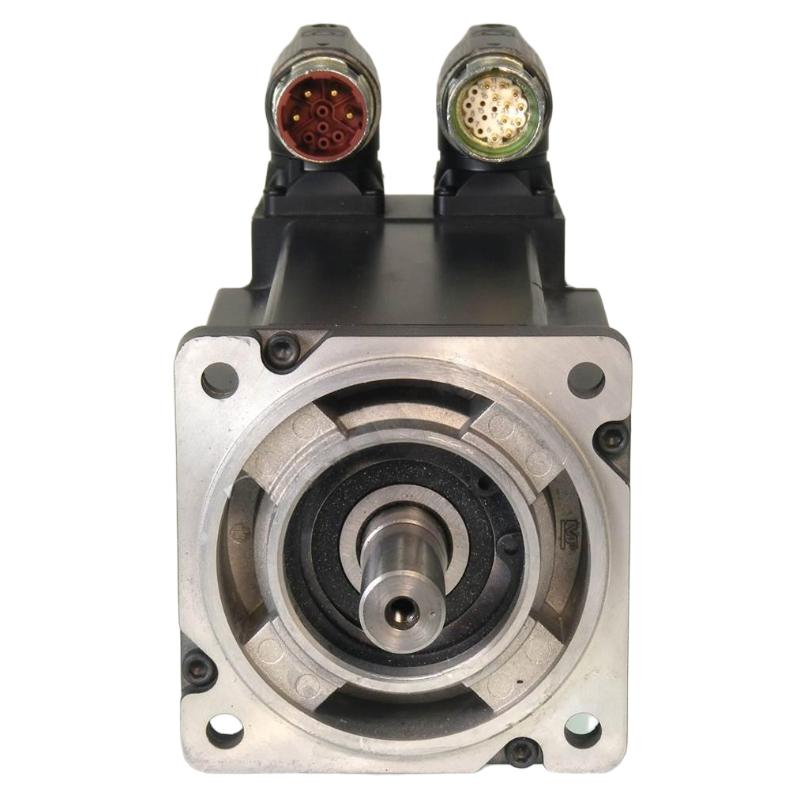

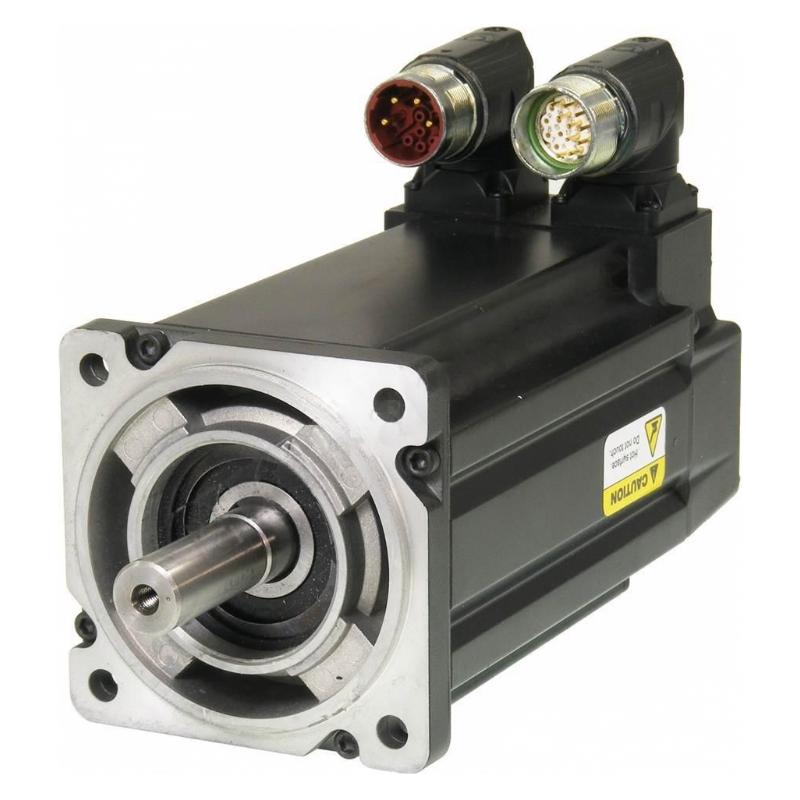

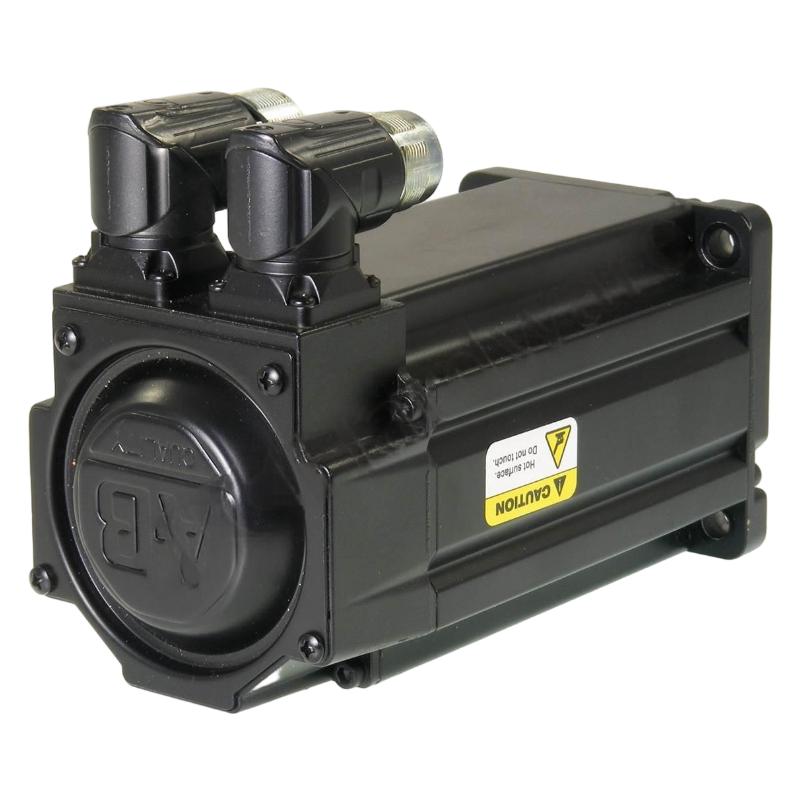

The Allen Bradley MPL-A320P-SK74AA Servo Motor is an industrial motion component designed for automation applications requiring accurate movement, repeatable positioning, and dependable long-term operation.

Modern production equipment relies heavily on precision motion technology. Assembly systems require consistent positioning, packaging machinery depends on synchronized movement, and robotic applications require smooth acceleration and controlled stopping. Servo motors provide the control capability needed for these advanced processes.

The MPL-A320P-SK74AA features a 100 mm frame size, offering a compact solution for machine builders who need to optimize installation space while maintaining reliable servo performance. Its design supports integration into modular automation equipment and precision motion platforms.

This servo motor operates as part of a complete motion-control system. The motor, servo drive, controller, feedback device, and mechanical components must be properly matched to achieve stable and accurate operation.

For replacement projects, accurate identification of the servo motor is essential. Different MP-Series models may vary in configuration, feedback options, and mechanical characteristics. The complete MPL-A320P-SK74AA catalog number should be verified before installation or system modification.

With its compact construction and industrial motion capability, the MPL-A320P-SK74AA provides a reliable solution for automation systems requiring precise and repeatable servo movement.

Technical Specifications

Parameter	Specification
Brand	Allen Bradley
Model / Catalog Number	MPL-A320P-SK74AA
Product Family	MP-Series
Product Type	Servo Motor
Motor Type	Low-Inertia Brushless Servo Motor
Frame Size	100 mm
Application	Industrial Motion Control
Feedback System	Encoder Feedback
Design Feature	Compact Servo Construction
Weight	3.70 kg (8.16 lb)

The Allen Bradley MPL-A320P-SK74AA Servo Motor features a 100 mm frame size and weighs 3.70 kg (8.16 lb). Its compact construction allows integration into automated machinery where precise motion, efficient installation, and reliable operation are required.

Recommended Related Models

The following Allen Bradley MP-Series servo motors may be considered for related applications:

Model	Product Type
Allen Bradley MPL-A320P-SK72AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SK72AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SK74AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SJ72AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SJ74AA	MP-Series Servo Motor

These related models should be evaluated according to application requirements, including drive compatibility, feedback configuration, mechanical mounting, load conditions, and required motion performance.

Popular Related Models

Model	Product Type
Allen Bradley MPL-A320P-SK74AA	MP-Series Servo Motor
Allen Bradley MPL-A320P-SK72AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SK74AA	MP-Series Servo Motor
Allen Bradley MPL-A320H-SJ74AA	MP-Series Servo Motor
Allen Bradley MPL-A430P-HJ72AA	MP-Series Servo Motor

Industrial Applications

The Allen Bradley MPL-A320P-SK74AA Servo Motor is a compact industrial servo solution designed for automation systems that demand accurate positioning, smooth motion response, and reliable operation. As part of the MP-Series servo motor family, it is developed for applications where consistent motion control is essential for machine performance and production efficiency.

With a 100 mm frame size, the MPL-A320P-SK74AA provides a practical balance between installation flexibility and servo performance. Its compact mechanical design makes it suitable for equipment where available space is limited but precise motion capability is still required.

This servo motor can be applied across various industrial automation environments, including assembly machines, packaging systems, robotic equipment, indexing mechanisms, and other production machinery requiring coordinated movement.

For OEM machine builders, the MPL-A320P-SK74AA offers a dependable motion component for developing automated systems. For maintenance teams, it provides a suitable replacement option for compatible Allen Bradley MP-Series servo installations.

Typical application areas include:

Automated assembly equipment
Packaging and processing machines
Precision indexing systems
Robotic positioning platforms
Material-handling equipment
Machine tools
Electronics manufacturing systems
Printing and converting machinery
Multi-axis automation applications
Industrial production lines

Advanced Motion Control Benefits

The MPL-A320P-SK74AA Servo Motor is designed for applications where positioning accuracy, motion repeatability, and dynamic response are important factors. Servo motors provide precise control by operating together with a compatible drive and feedback system, allowing machines to execute complex movement sequences.

Its compact 100 mm frame size helps engineers create efficient machine designs without sacrificing motion performance. This makes it suitable for modular automation equipment where several controlled axes must operate within limited mechanical space.

The motor is well suited for applications involving frequent acceleration, deceleration, and directional changes. With proper system configuration, it can support stable operation and consistent motion performance throughout demanding production cycles.

Key advantages include:

Compact 100 mm frame design
Precision motion-control capability
Reliable positioning accuracy
Suitable for high-frequency motion cycles
Efficient use of machine space
Supports synchronized multi-axis systems
Designed for industrial automation
Practical for OEM equipment development
Suitable for retrofit and replacement applications
Helps improve machine flexibility and performance

Technical FAQs

1. What is the Allen Bradley MPL-A320P-SK74AA Servo Motor?
The MPL-A320P-SK74AA is an MP-Series servo motor designed for industrial automation systems requiring accurate and repeatable motion control.

2. Why are servo motors used instead of standard motors in automation?
Servo motors provide closed-loop control capabilities, allowing precise adjustment of position, speed, and torque for complex machine movements.

3. What applications are suitable for the MPL-A320P-SK74AA?
It is suitable for packaging equipment, assembly machinery, robotics, indexing systems, and other precision automation applications.

4. What components are required for servo motor operation?
A compatible servo drive, motion controller, feedback system, and properly designed mechanical connection are required for complete operation.

5. What should be checked before installing this servo motor?
Confirm the motor catalog number, drive compatibility, feedback configuration, mechanical mounting, shaft connection, cabling, and machine requirements.

6. What can cause inaccurate servo positioning?
Possible causes include improper tuning, mechanical backlash, coupling problems, excessive load, feedback errors, vibration, or incorrect motion parameters.

7. Why does servo tuning affect machine performance?
Tuning adjusts the response characteristics of the servo system, helping achieve stable movement, accurate positioning, and reduced vibration.

8. What causes servo motor overheating during operation?
Possible causes include excessive load, incorrect parameter settings, insufficient cooling, continuous operation beyond design conditions, or mechanical resistance.

9. How can servo system reliability be improved?
Correct installation, proper configuration, suitable operating conditions, and regular inspection of mechanical and electrical connections help improve reliability.

10. Why is the exact model number important when selecting a replacement?
MP-Series servo motors include different configurations and options. Confirming the complete model number ensures proper compatibility with the existing system.
