Brand:Invensys Triconex Item No.:3625 Product Origin:USA Product Dimensions:115 x 230 x 50 mm Product Weight:0.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

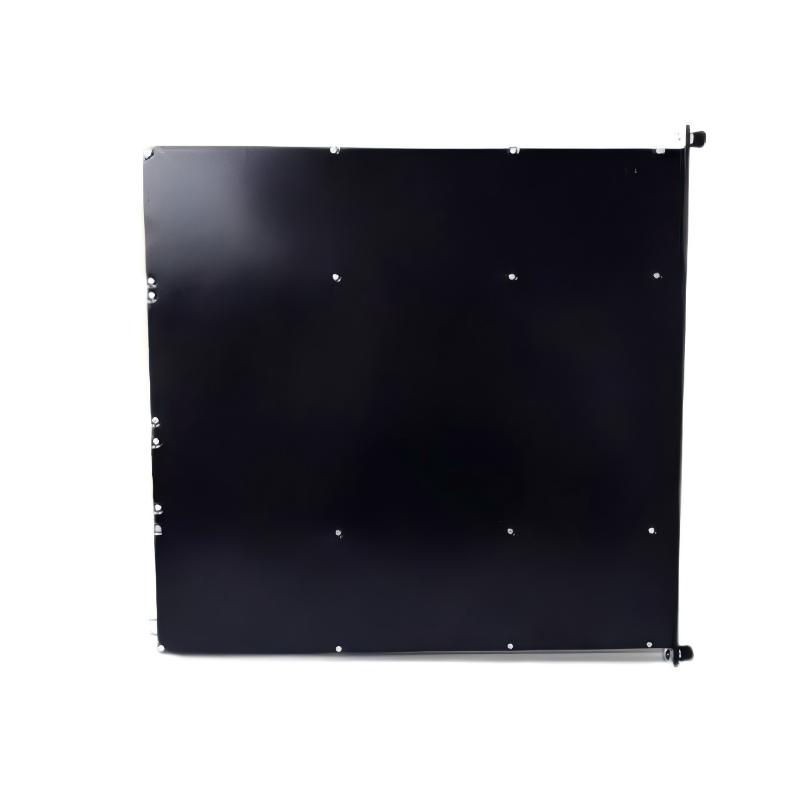

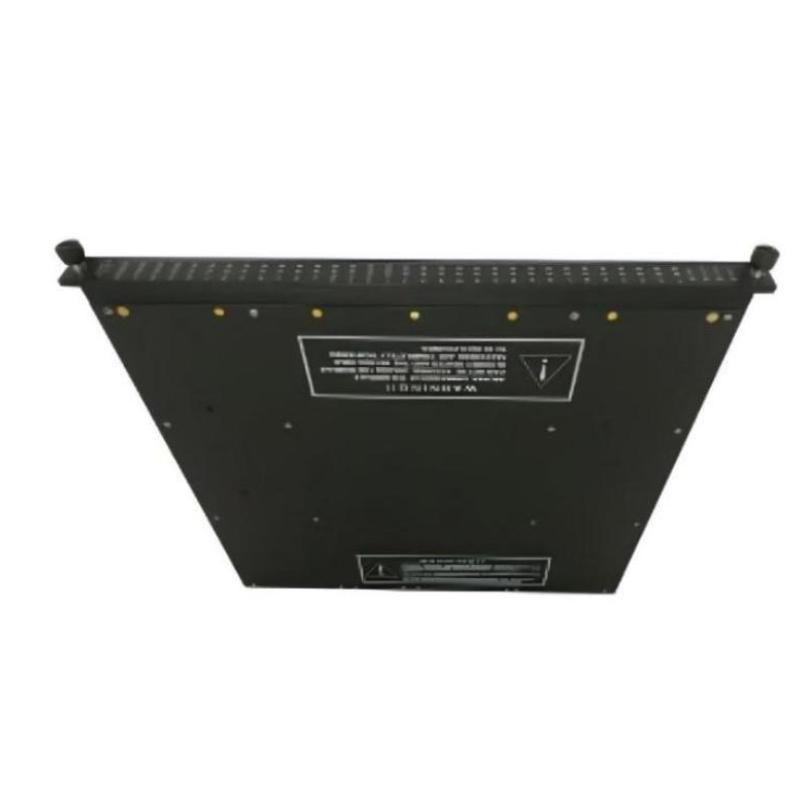

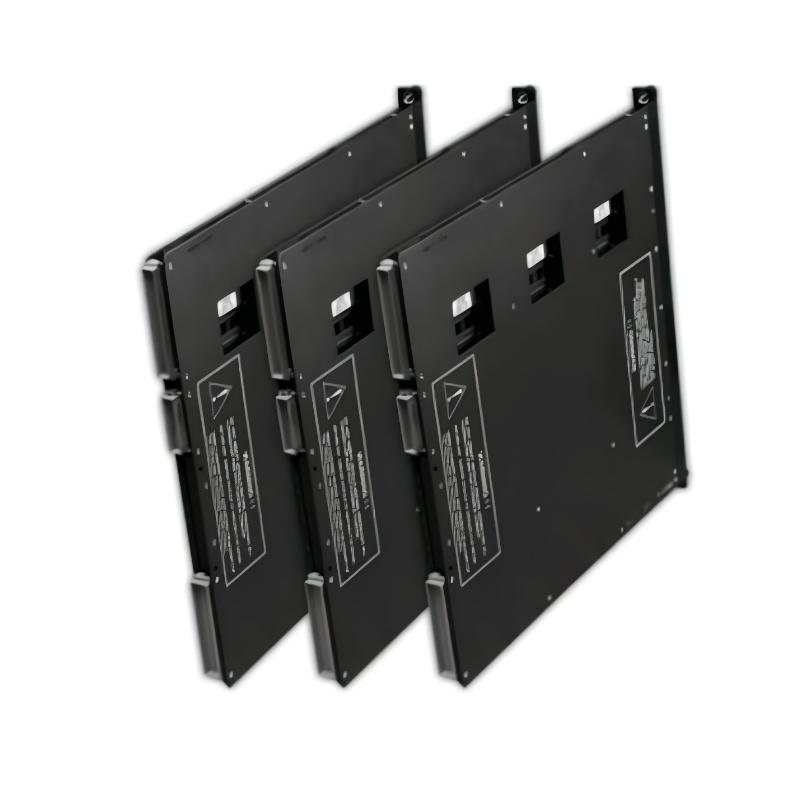

The Triconex 3625 Digital Output Module is a high-integrity, safety-focused solution for industrial digital control applications. Its triple-modular-redundant design provides 32 supervised outputs with comprehensive fault detection for both internal circuits and field wiring. Self-protected switches, hot-swap capability, and high isolation make it ideal for harsh industrial environments, ensuring dependable operation in safety-critical systems.
Technical Specifications
Specification
Details
Model
3625
Module Type
TMR Digital Output Module
Output Channels
32 commoned outputs
Nominal Voltage
24 VDC
Voltage Range
16–32 VDC (max 36 VDC)
Current Rating per Channel
1.7 A continuous
Surge Capacity
~5–7 A for short durations
Minimum Load
10 mA
Isolation (System-to-Field)
≥1,500 VDC
Output Protection
Self-protected switches
Diagnostics
Output switch health, field circuit monitoring, load presence, short/open detection, power status
Redundancy
Triple-Modular-Redundancy (TMR) with voting logic
Mounting
Standard Tricon chassis/backplane
Dimensions
115 x 230 x 50 mm
Weight
0.8 kg
Recommended Related Modules
Triconex External Termination Panels (ETP) for field device connections
Triconex digital input modules for complementary control logic
Triconex analog I/O modules for mixed-signal systems
Triconex power supplies and system chassis compatible with 3625 module
Popular Related Modules
Triconex 3621 Digital Input Module
Triconex 3620 Analog Output Module
Triconex 3630 Analog Input Module
Applications
The Invensys Triconex 3625 Digital Output Module is designed to deliver precise and reliable digital signals to actuators, relays, and other field devices within Triconex safety and automation systems.
It is widely used in industries including oil & gas, chemical, power generation, and petrochemical facilities. The module ensures accurate, timely digital control signals, supporting safe and dependable operation in mission-critical automation applications.
Advantages
Reliable Digital Output: Provides consistent and precise digital signals for field device control.
Industrial-Grade Durability: Built to withstand vibration, temperature extremes, and electromagnetic interference.
Seamless Integration: Fully compatible with Triconex controllers and I/O modules for flexible deployment.
Redundant System Support: Functions reliably within redundant architectures to maintain continuous operation.
Maintenance Friendly: Modular design allows for easy installation, inspection, and replacement.
Technical FAQs
What is the primary function of the 3625 Digital Output Module?
To deliver accurate and reliable digital signals to field devices in Triconex systems.
Is it compatible with all Triconex controllers and I/O modules?
Yes, designed for standard Triconex safety and automation systems.
Can it operate in harsh industrial environments?
Yes, engineered to tolerate vibration, EMI, and temperature variations.
Does it support redundant system configurations?
Yes, fully compatible with Triconex redundant architectures.
Are diagnostics included?
Yes, LED indicators provide feedback on module operation and output status.
Is installation straightforward?
Yes, modular design simplifies placement into racks or cabinets.
Which industries commonly use this module?
Oil & gas, chemical, power generation, and petrochemical facilities.
Does it ensure precise and timely digital output control?
Yes, designed for high-accuracy digital signal delivery.
Does it include protection mechanisms?
Yes, safeguards prevent overcurrent and electrical faults.
Does it require special configuration software?
Standard Triconex engineering and monitoring tools are used for setup and diagnostics.
