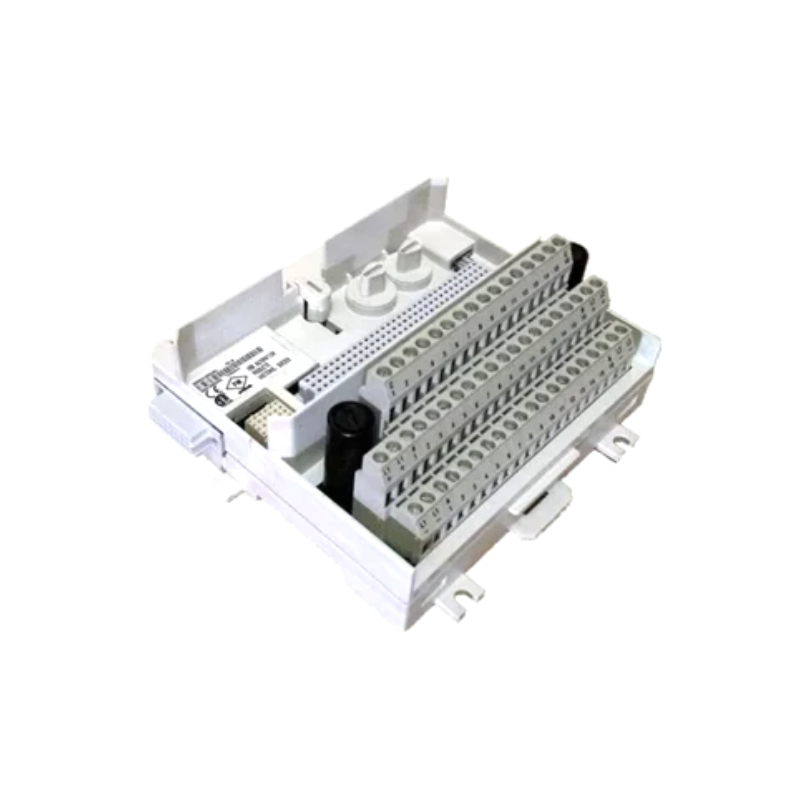

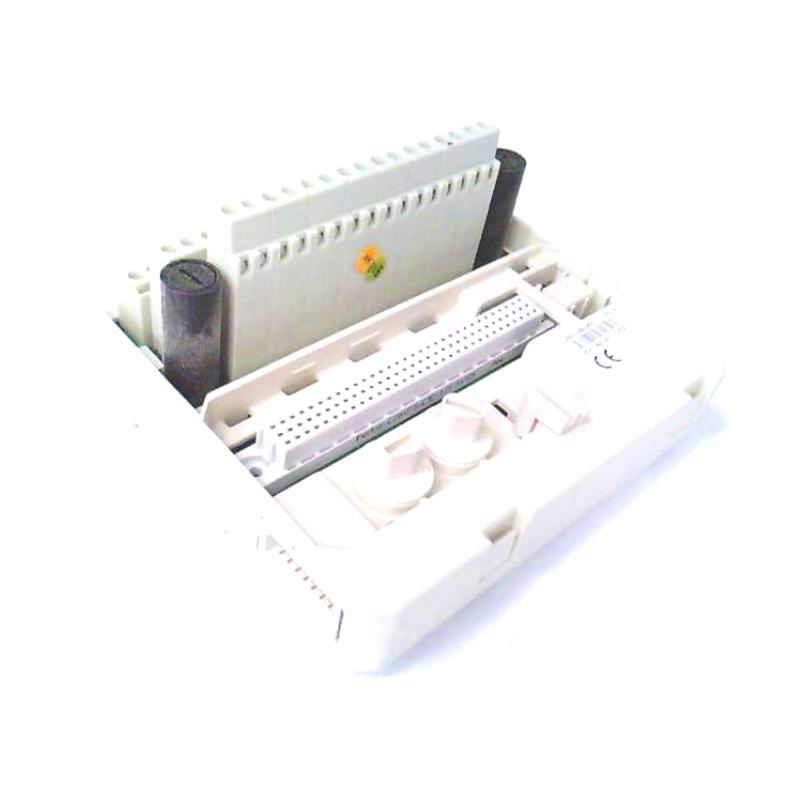

The ABB TU830 Power Supply Module is a high-performance 24V DC power supply designed for demanding industrial applications. With its 30A output, the TU830 provides a reliable and stable power source for large-scale automation systems, PLCs, sensors, actuators, and other essential control components. Whether you're powering complex manufacturing processes, material handling systems, or industrial automation equipment, the TU830 is engineered to meet the power needs of modern industrial environments.

With a high efficiency of up to 95%, the ABB TU830 reduces energy consumption, minimizes heat output, and helps lower operational costs. In addition, it features advanced protection mechanisms, ensuring that both the power supply module and connected equipment are protected from electrical faults, extending the lifespan of the entire system.

Technical Specifications

Specification	Details
Model	TU830 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	30A
Efficiency	95% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	6.0 kg (13.23 lbs)
Dimensions (W x H x D)	300 x 200 x 150 mm (11.81 x 7.87 x 5.91 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

For various system requirements, ABB offers several complementary power supply modules that provide different output capacities or additional features:

ABB TU510: A 40A power supply solution for systems requiring a higher output and continuous, stable power.
ABB TU532: A 32A power supply designed for medium to large industrial systems that need reliable power with flexible installation options.
ABB TP850: A 120A power supply module ideal for very large automation systems with high power demands.
ABB TU515: A 15A power supply for smaller systems that require reliable and efficient 24V DC output.
ABB DCS 800 Series: A modular power supply solution that provides scalability and flexibility for large industrial systems.

Popular ABB Models

ABB’s portfolio of industrial automation products includes various solutions that can be integrated with the TU830 for a seamless system. Popular models include:

ABB ACS580: A variable frequency drive (VFD) designed to optimize motor control, improve energy efficiency, and reduce operational costs.
ABB IRB 6700: A high-precision industrial robot used for applications such as assembly, welding, and material handling.
ABB SD880: A powerful 24V DC power supply module that ensures reliable power for complex automation systems.
ABB PPM500: A power protection module that safeguards sensitive industrial equipment against electrical faults, improving system longevity.
ABB MNS 3.0: A modular and flexible power distribution system that provides adaptable power management in large industrial facilities.

Applications

The ABB TU830 Power Supply Module is ideal for a wide range of industrial applications that require continuous, stable 24V DC power. Some of its key applications include:

Industrial Automation: Provides stable power to PLCs, sensors, actuators, and controllers in large-scale automation systems, ensuring efficient and uninterrupted operations.
Manufacturing: Powers machinery like CNC machines, robotic arms, automated assembly lines, and other manufacturing equipment, improving productivity and system reliability.
Material Handling: Supplies power to material handling systems such as conveyors, sorters, and Automated Storage and Retrieval Systems (ASRS) in large distribution centers and warehouses.
HVAC Systems: Powers HVAC systems in large commercial buildings and industrial facilities, providing effective climate control and energy management.
Energy Management: Suitable for use in renewable energy systems, smart grids, and power distribution networks, where reliable power management is essential for system stability.

Advantages

High Output Capacity: The 30A output of the TU830 ensures reliable power for larger systems requiring substantial 24V DC output without compromising performance.
Energy Efficiency: With 95% efficiency, the TU830 minimizes energy consumption, helps reduce operational costs, and generates less heat, improving overall system efficiency.
Comprehensive Protection: The TU830 is equipped with multiple protection features including overvoltage, overcurrent, thermal overload, short-circuit, and surge protection, safeguarding both the power supply and connected equipment.
Long-Term Reliability: Designed for durability, the TU830 is built to perform in tough industrial environments, ensuring long-term reliability with minimal maintenance needs.
Wide Temperature Range: The TU830 operates in temperatures from -10°C to 70°C (14°F to 158°F), making it suitable for a broad range of industrial environments, from cold storage facilities to high-temperature factories.
Global Compatibility: With an 85-265 VAC input voltage range, the TU830 is compatible with a variety of international electrical standards, making it ideal for global industrial deployments.
Easy Installation: The DIN rail mounting system simplifies installation, allowing the TU830 to be easily mounted in control panels or electrical enclosures, reducing setup time.

Technical FAQs

What input voltage range does the ABB TU830 support?
- The TU830 supports an input voltage range of 85-265 VAC, compatible with most global power standards.
What is the efficiency of the ABB TU830?
- The TU830 operates at an impressive 95% efficiency, ensuring minimal energy loss and helping to lower operational costs.
What protection features are included in the TU830?
- The TU830 includes overvoltage, overcurrent, short-circuit, thermal overload, and surge protection, ensuring the safety of both the power supply and connected equipment.
How much current can the TU830 supply?
- The TU830 provides a continuous 30A of 24V DC power, making it ideal for larger industrial applications that require more power.
Can the TU830 be used outdoors?
- The TU830 is designed for indoor use but can be used outdoors if installed in a suitable protective enclosure to shield it from environmental factors.
What is the operating temperature range for the TU830?
- The TU830 operates in a temperature range of -10°C to 70°C (14°F to 158°F), ensuring reliable operation in diverse industrial environments.
How is the ABB TU830 mounted?
- The TU830 is designed for DIN rail mounting, which provides an easy and secure installation in control panels and electrical enclosures.
What are the dimensions and weight of the ABB TU830?
- The TU830 has dimensions of 300 x 200 x 150 mm (11.81 x 7.87 x 5.91 inches) and weighs 6.0 kg (13.23 lbs).
Is the TU830 suitable for larger systems?
- For very large systems with higher power needs, ABB offers the TP820 (100A) or TP850 (120A) power supply modules that can meet these demands.
Can the TU830 be integrated with other ABB products?
- Yes, the TU830 integrates seamlessly with other ABB industrial automation products, making it easy to incorporate into your existing or new system.
