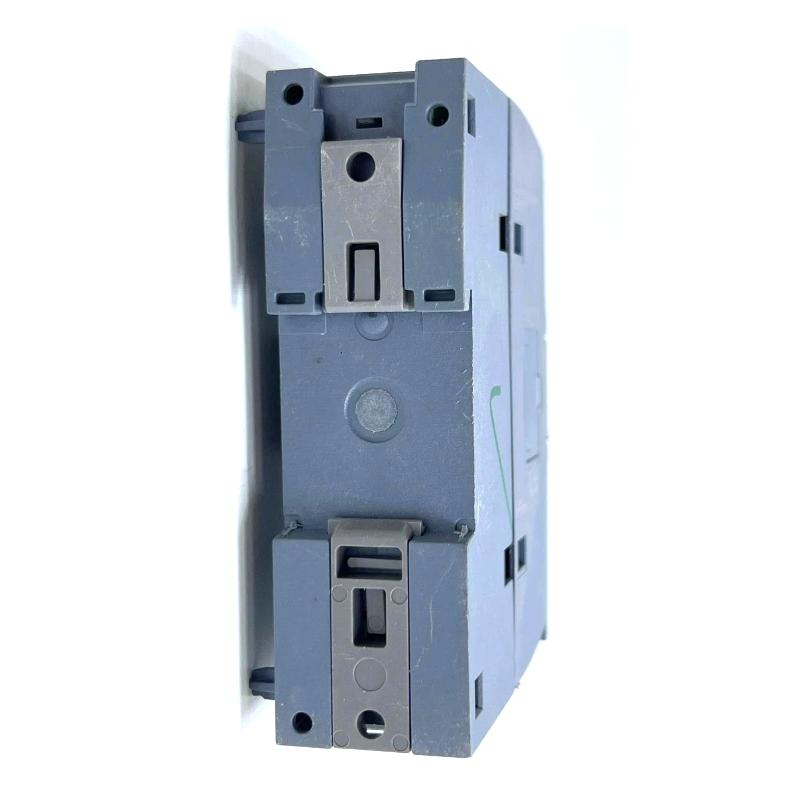

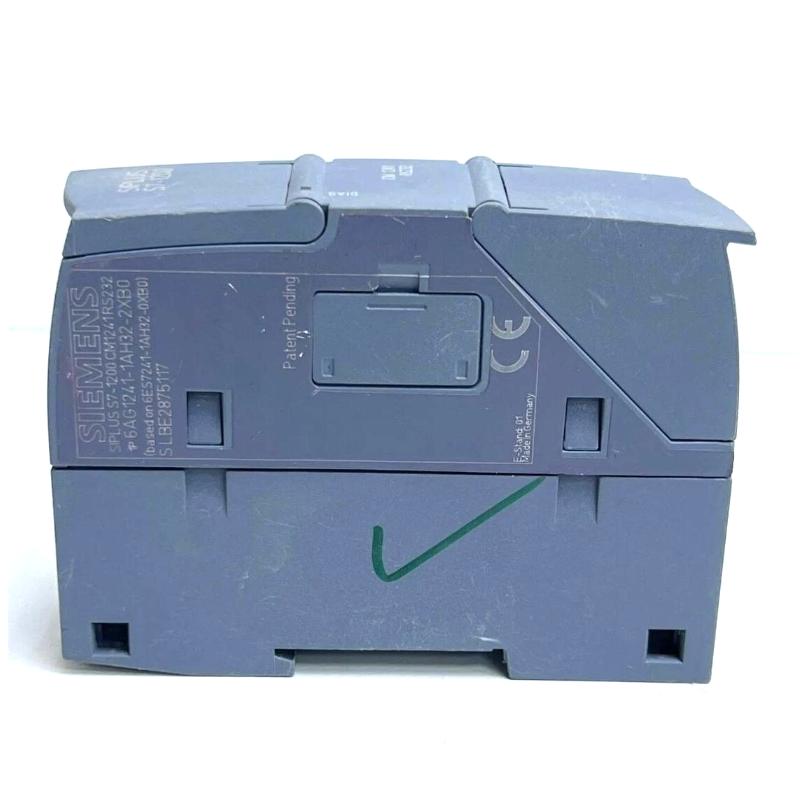

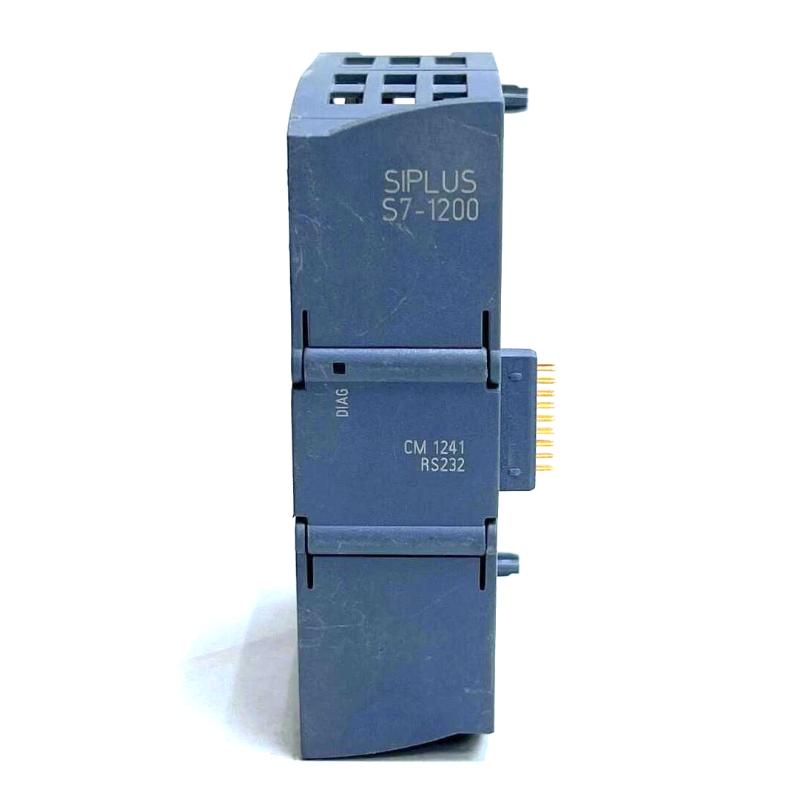

Siemens 6AG1241-1AH32-2XB0 Communication Module

Applications

The Siemens 6AG1241-1AH32-2XB0 is a SIPLUS S7-1200 CM 1241 RS-232 communication module designed for serial point-to-point communication between an S7-1200 PLC and external devices. It is based on the standard 6ES7241-1AH32-0XB0 and features conformal coating with an operating temperature range of -40 to +70 °C.

The module provides one RS-232C interface with a 9-pin D-sub connector and supports several serial communication methods, including Freeport, ASCII, Modbus RTU, and 3964(R).

PLC Serial Communication

The 6AG1241-1AH32-2XB0 adds an RS-232 communication channel to an S7-1200 control system, allowing the PLC to exchange data with compatible serial devices.

Barcode Scanners and Printers

The RS-232 interface makes the module suitable for connecting barcode readers, label printers, serial printers, and similar industrial peripherals.

Weighing and Measurement Equipment

Industrial weighing instruments, meters, analyzers, and other measurement devices that provide RS-232 communication can be integrated with an S7-1200 PLC through this module.

Modems and Serial Devices

The communication module can be used to connect compatible serial modems and other RS-232 equipment where point-to-point communication is required.

Modbus RTU Applications

The module supports Modbus RTU Master and Modbus RTU Device functions, allowing S7-1200 controllers to exchange register and status information with compatible Modbus equipment.

Freeport Communication

Freeport communication provides flexibility for applications that use proprietary or customized serial telegrams. Engineers can configure the communication parameters and process telegrams within the PLC application.

Industrial Equipment Modernization

The module is useful when integrating legacy RS-232 equipment into newer S7-1200 control systems without replacing the existing serial device.

Harsh Industrial Environments

The SIPLUS version is designed with conformal coating and an extended temperature range, making it suitable for industrial installations where environmental conditions are more demanding.

Advantages

Dedicated RS-232 Interface

The module provides a dedicated RS-232C communication interface, allowing an S7-1200 CPU to communicate with serial devices without requiring an external serial converter.

Multiple Communication Protocols

The CM 1241 platform supports Freeport, ASCII, Modbus RTU, and 3964(R) communication functions, giving system integrators considerable flexibility.

Modbus RTU Master and Device Functions

The module can operate as a Modbus RTU Master or Device, making it useful for connecting drives, meters, sensors, controllers, and other Modbus-capable equipment.

Freeport Support

Freeport mode allows engineers to implement customized communication telegrams when the connected device does not use one of the standard supported protocols.

SIPLUS Conformal Coating

The conformal-coated construction provides enhanced environmental protection compared with the corresponding standard S7-1200 communication module.

Extended Temperature Range

The module supports an operating temperature range of -40 to +70 °C, with startup possible from -25 °C.

Compact S7-1200 Architecture

The CM 1241 is designed specifically for the S7-1200 platform and integrates into the controller system without requiring a separate communication gateway.

Easy STEP 7 Configuration

Communication parameters and protocol settings can be configured through the Siemens engineering environment, simplifying commissioning and maintenance.

Technical FAQs

1. What is the Siemens 6AG1241-1AH32-2XB0?

The 6AG1241-1AH32-2XB0 is a SIPLUS S7-1200 CM 1241 RS-232 communication module used to provide serial communication between an S7-1200 PLC and external RS-232 devices.

2. What standard Siemens module is it based on?

The SIPLUS module is based on the standard 6ES7241-1AH32-0XB0 CM 1241 RS-232 communication module.

3. What communication interface does the module provide?

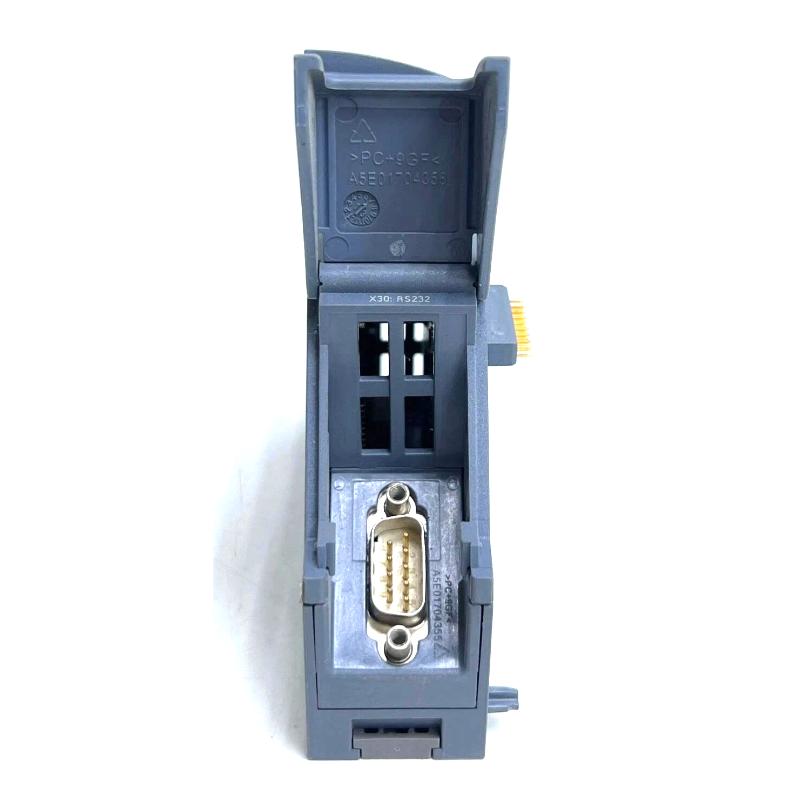

It provides one RS-232C (V.24) interface through a 9-pin D-sub connector.

4. What is the maximum RS-232 cable length?

The specified maximum cable length for the point-to-point RS-232 connection is 10 meters.

5. Does the module support Modbus RTU?

Yes. The module supports both Modbus RTU Master and Modbus RTU Device functions.

6. Does the 6AG1241-1AH32-2XB0 support Freeport communication?

Yes. Freeport is supported, allowing the module to communicate using customized serial telegram structures.

7. Can the module communicate using ASCII?

Yes. The CM 1241 RS-232 supports ASCII communication, which can be useful for connecting devices that use simple character-based serial protocols.

8. What power supply does the module use?

The module operates from the S7-1200 system and has a rated supply voltage of 24 V DC. The permissible supply range is 20.4 to 28.8 V DC.

9. What is the operating temperature range?

The SIPLUS 6AG1241-1AH32-2XB0 is specified for -40 to +70 °C operation, with startup permitted at -25 °C.

10. Is the 6AG1241-1AH32-2XB0 compatible with RS-485 devices?

No. This model is specifically an RS-232 communication module. RS-485/RS-422 applications require the corresponding CM 1241 RS-422/485 model.
