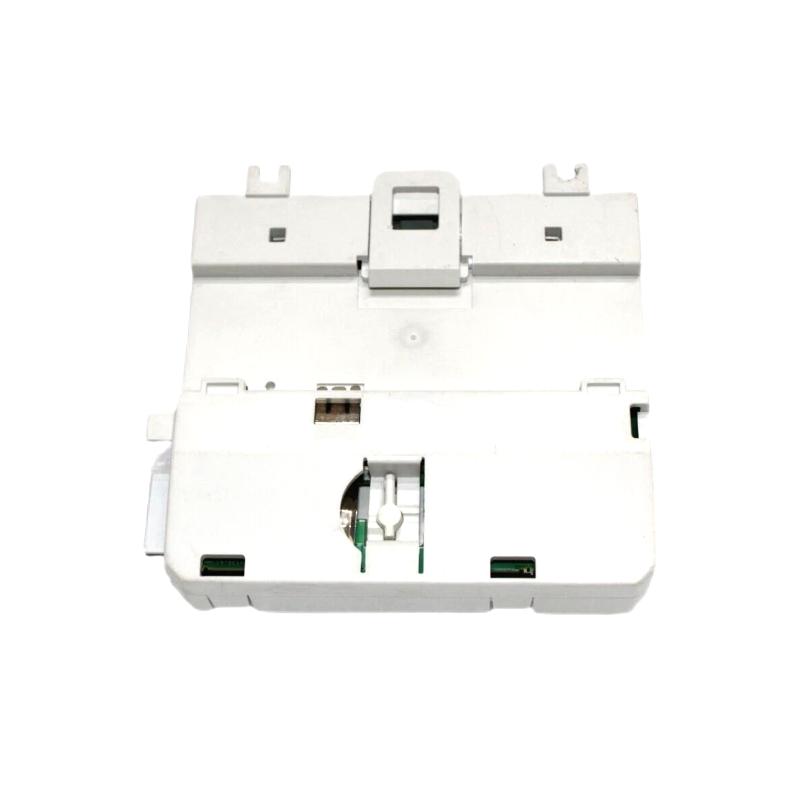

TU834 3BSE040364R1 TU834 3BSE040364R1 4 TU834 3BSE040364R1 3

The ABB TU834 Power Supply Module is a 24V DC power supply solution designed to meet the demanding needs of modern industrial automation systems. With an impressive 34A output, the TU834 ensures stable and reliable power for large-scale applications such as PLCs, sensors, actuators, and other essential industrial control equipment. The TU834 is designed to perform under heavy loads, offering robust protection, high energy efficiency, and an extended operational life, making it an ideal choice for critical industrial applications.

Operating with an efficiency of up to 96%, the ABB TU834 reduces energy consumption and heat output, helping to lower operational costs while enhancing overall system performance. Equipped with advanced protection features, the TU834 ensures safe operation, minimizing the risk of electrical faults and ensuring long-term reliability.

Technical Specifications

Specification	Details
Model	TU834 Power Supply Module
Input Voltage	85-265 VAC, 47-63 Hz
Output Voltage	24V DC ±1%
Nominal Output Current	34A
Efficiency	96% (at full load)
Operating Temperature	-10°C to 70°C (14°F to 158°F)
Weight	7.5 kg (16.53 lbs)
Dimensions (W x H x D)	300 x 200 x 150 mm (11.81 x 7.87 x 5.91 inches)
Cooling Type	Forced Air Cooling
Protection Features	Overvoltage, Overcurrent, Overtemperature, Short Circuit, Surge Protection
Mounting Type	DIN Rail Mounting
Certifications	CE, UL, RoHS

Recommended Related Models

To complement different system requirements, ABB offers various related power supply models suitable for different applications and output needs:

ABB TU850: A 100A power supply for large-scale industrial applications requiring continuous and high-output power.
ABB TU532: A 32A power supply ideal for medium to large systems, delivering stable and reliable 24V DC power.
ABB TU510: A 40A power supply for systems with higher current needs, providing robust and efficient performance.
ABB TU530: A 25A power supply solution for systems requiring a reliable and energy-efficient power source.
ABB TP820: A 100A power supply suitable for high-demand applications and large industrial automation systems.

Popular ABB Models

ABB’s extensive range of industrial automation and control products integrates seamlessly with the TU834 Power Supply Module, making it an excellent choice for diverse applications. Some popular models include:

ABB ACS580: A variable frequency drive (VFD) designed to optimize motor control and improve energy efficiency in industrial processes.
ABB IRB 6700: A high-performance industrial robot designed for precise assembly, welding, and material handling applications.
ABB SD880: A high-reliability 24V DC power supply module suitable for industrial automation systems with medium power needs.
ABB PPM500: A power protection module designed to safeguard critical equipment from electrical faults and improve system safety.
ABB MNS 3.0: A modular power distribution system designed for large facilities, offering scalable power management solutions.

Applications

The ABB TU834 Power Supply Module is designed for industrial environments that demand continuous and reliable 24V DC power. Some of the key applications include:

Industrial Automation: Powers PLCs, sensors, actuators, and other control systems in large-scale automation applications, ensuring efficient operation of manufacturing processes and systems.
Manufacturing: Suitable for powering machinery such as CNC machines, robotic arms, and automated assembly lines in manufacturing facilities, improving operational efficiency and uptime.
Material Handling: Powers material handling systems like conveyors, sorters, and Automated Storage and Retrieval Systems (ASRS) used in large distribution centers and warehouses.
HVAC Systems: Provides reliable power to HVAC systems in industrial and commercial facilities, ensuring efficient temperature and humidity control while reducing energy consumption.
Energy Management: Used in renewable energy systems, smart grids, and power distribution networks, the TU834 ensures efficient and stable energy management in large industrial and energy operations.

Advantages

High Output Capacity: The 34A output of the TU834 ensures a reliable and stable 24V DC power source for medium to large-scale systems, even under high-load conditions.
Energy Efficiency: With 96% efficiency, the TU834 minimizes energy losses, reduces heat generation, and helps lower operational costs by improving power usage.
Comprehensive Protection: The TU834 is equipped with overvoltage, overcurrent, short-circuit, thermal overload, and surge protection, ensuring the safety of both the power supply and connected equipment.
Long-Term Durability: Designed to withstand tough industrial conditions, the TU834 is built for longevity, providing reliable performance with minimal maintenance and downtime.
Wide Operating Temperature Range: The TU834 operates efficiently within a temperature range of -10°C to 70°C (14°F to 158°F), making it suitable for various industrial settings, from manufacturing plants to energy systems.
Global Compatibility: The 85-265 VAC input voltage range makes the TU834 compatible with electrical systems worldwide, making it ideal for global applications.
Easy Installation: The DIN rail mounting design ensures easy and secure installation in industrial control panels and electrical enclosures, saving time and reducing setup costs.

Technical FAQs

What input voltage range does the ABB TU834 support?
- The TU834 supports an input voltage range of 85-265 VAC, compatible with most international electrical systems.
What is the efficiency of the ABB TU834?
- The TU834 operates with 96% efficiency, reducing energy consumption and operational costs while improving overall system performance.
What protection features are included in the TU834?
- The TU834 includes protection features such as overvoltage, overcurrent, short-circuit, thermal overload, and surge protection, which safeguard both the power supply and connected equipment.
How much current can the TU834 supply?
- The TU834 can provide 34A of continuous 24V DC power, making it suitable for medium to large industrial systems.
Can the TU834 be used outdoors?
- The TU834 is designed for indoor use, but can be used outdoors if placed in a suitable protective enclosure to shield it from environmental factors.
What is the operating temperature range for the TU834?
- The TU834 operates in a temperature range of -10°C to 70°C (14°F to 158°F), making it ideal for use in a variety of industrial environments.
How is the ABB TU834 mounted?
- The TU834 is designed for DIN rail mounting, which simplifies installation in control panels and electrical enclosures.
What are the dimensions and weight of the ABB TU834?
- The TU834 has dimensions of 300 x 200 x 150 mm (11.81 x 7.87 x 5.91 inches) and weighs 7.5 kg (16.53 lbs).
Is the TU834 suitable for larger systems?
- The TU834 is ideal for medium to large systems. For even higher current needs, ABB offers models like the TU850 (100A) and TP820 (100A).
Can the TU834 be integrated with other ABB products?
- Yes, the TU834 can be integrated seamlessly with other ABB industrial automation and control products, including drives, robots, and power protection modules, for comprehensive automation solutions.
