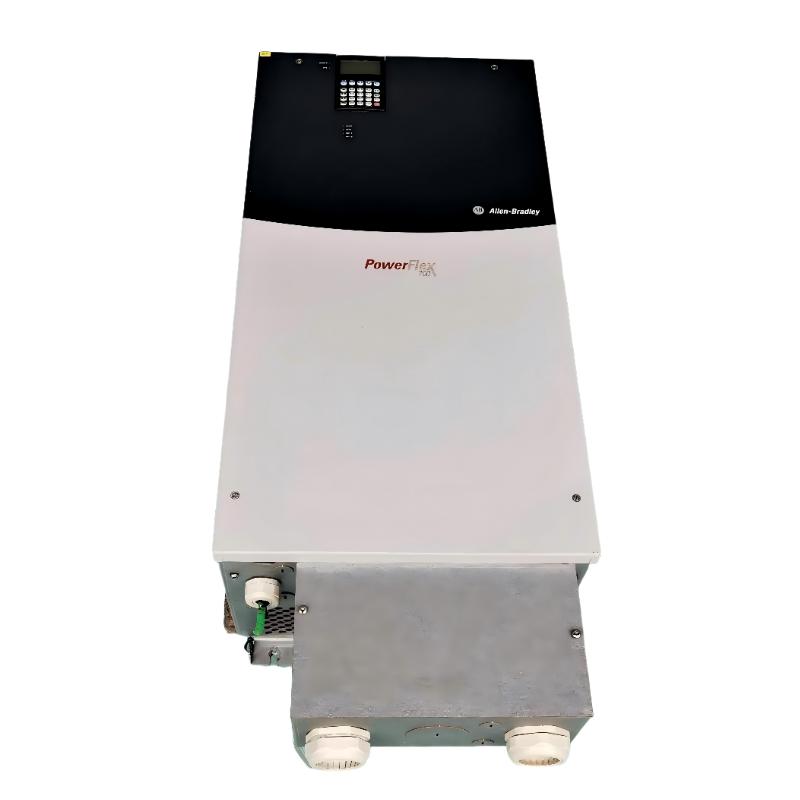

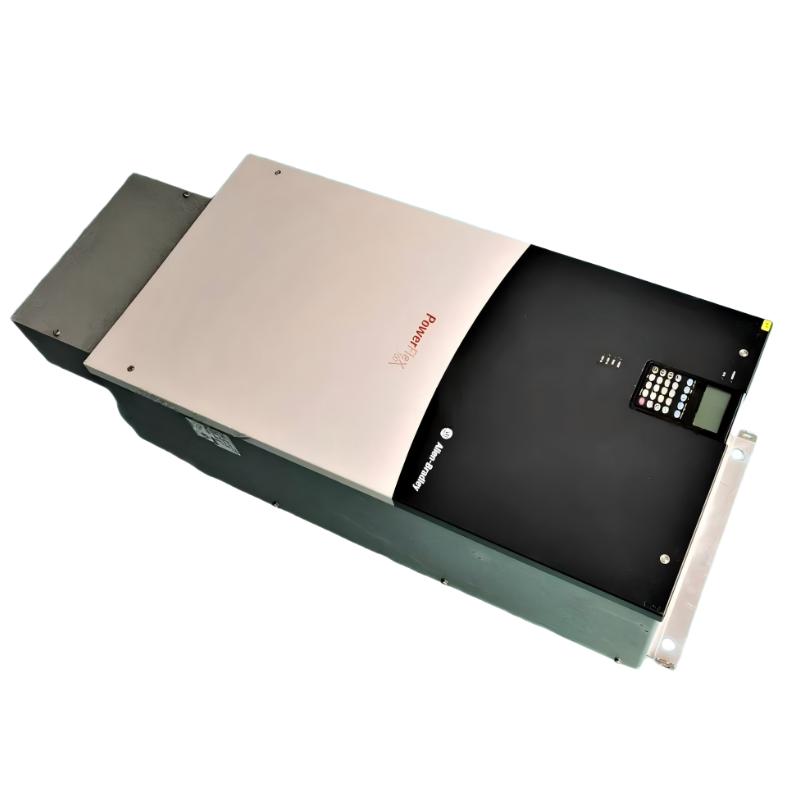

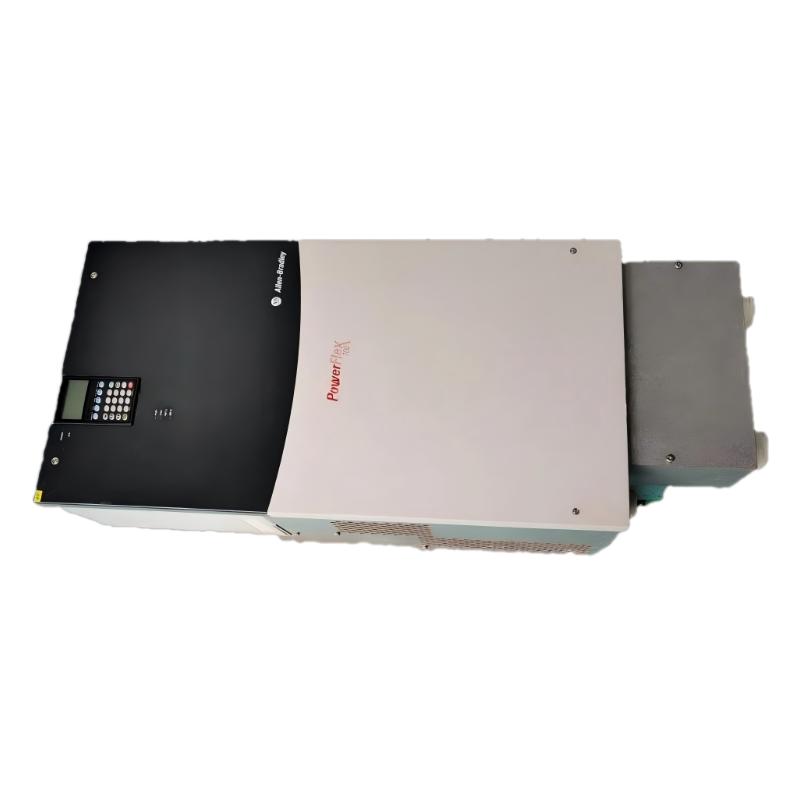

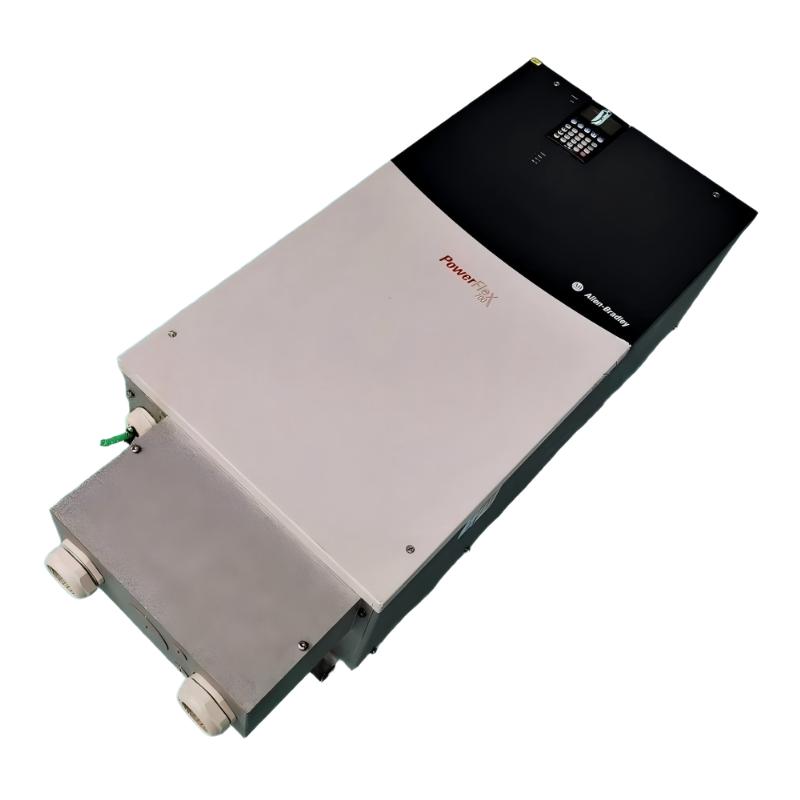

Allen Bradley 20BP260A0ANNANC0 PowerFlex 700 AC Drive

Applications

The Allen Bradley 20BP260A0ANNANC0 PowerFlex 700 AC Drive is designed for demanding industrial motor-control applications where stable speed regulation, controlled acceleration, and reliable integration with automation equipment are essential. As part of the PowerFlex 700 family, this AC drive is well suited to production machinery and process systems that require more sophisticated motor control than a conventional starter can provide.

Typical applications include conveyors, material handling systems, pumps, fans, mixers, packaging machinery, processing equipment, machine tools, and other industrial systems driven by AC motors. By allowing motor speed to be adjusted according to process requirements, the drive can help equipment operators achieve smoother machine operation and more consistent production performance.

In conveyor applications, controlled acceleration and deceleration can reduce mechanical shock during starting and stopping. For pumps and fans, adjustable motor speed can provide better process control while avoiding unnecessary full-speed operation. In manufacturing equipment, variable-speed control can also help coordinate machine movements with upstream and downstream production processes.

The 20BP260A0ANNANC0 can be particularly attractive for facilities already using Allen Bradley automation equipment. Maintaining a consistent PowerFlex architecture can simplify troubleshooting, spare-parts management, and technician training across a production site.

For system integrators and industrial maintenance teams, this model can also serve as a practical solution when maintaining an existing PowerFlex 700 installation. Instead of redesigning an entire motor-control system, users can evaluate the complete catalog number and application requirements to determine whether the drive is appropriate for the existing equipment.

Proper installation remains essential. Motor data, incoming power, grounding, control wiring, ventilation, protection settings, and drive parameters should all be reviewed before commissioning. When correctly specified and installed, the PowerFlex 700 platform provides a robust foundation for industrial variable-speed motor control.

Advantages

Reliable Industrial Motor Control

The PowerFlex 700 family is designed around industrial motor-control requirements. The 20BP260A0ANNANC0 provides a dedicated variable-frequency drive platform for applications where predictable motor operation and controlled speed are important.

Flexible Speed Regulation

Variable-frequency operation allows motor speed to be adjusted to the requirements of the machine. This is useful for production processes where a fixed motor speed cannot provide the desired operating performance.

Smooth Acceleration and Deceleration

Controlled acceleration and deceleration can reduce sudden mechanical loading on motors, gearboxes, couplings, belts, and other driven components. This makes variable-speed control valuable for machinery with frequent starts and stops.

Automation System Integration

PowerFlex 700 drives can be incorporated into industrial automation architectures and used alongside Allen Bradley control equipment. Depending on the system configuration and installed options, operating commands and drive information can be exchanged with the automation system.

Practical Maintenance Benefits

Using a drive from the same PowerFlex family as an existing installation can make maintenance planning easier. Technicians familiar with the PowerFlex platform can work with a consistent drive architecture, reducing unnecessary changes to established maintenance procedures.

Suitable for Large Industrial Equipment

The physical size and weight of the 20BP260A0ANNANC0 reflect its use in substantial industrial drive applications. Its installation should therefore include suitable cabinet space, mechanical support, ventilation, and service access.

Useful Replacement Option

For plants operating older PowerFlex 700 equipment, identifying an appropriate matching model can provide a practical path for equipment maintenance. Keeping the existing drive family can help reduce engineering changes and simplify the transition during equipment replacement.

Long-Term Industrial Serviceability

Industrial drives are often expected to remain in service for extended periods. Correct parameter documentation, preventive maintenance, cooling-system inspection, and proper storage of replacement equipment can significantly improve maintenance efficiency.

Technical FAQs

1. What is the primary function of the Allen Bradley 20BP260A0ANNANC0?

The 20BP260A0ANNANC0 is an Allen Bradley PowerFlex 700 AC Drive used to control the speed and operating behavior of an AC motor in industrial applications.

2. What information should be collected from the motor before commissioning?

Motor nameplate voltage, current, frequency, rated speed, power, and other applicable motor data should be recorded. Correct motor information should then be entered into the appropriate drive parameters.

3. Can this drive be incorporated into an Allen Bradley PLC-based system?

Yes. PowerFlex 700 drives are intended for integration into industrial automation systems. The exact communication method depends on the communication hardware and options installed in the particular drive.

4. What should be checked if the motor does not start after a start command?

Check the drive status, active fault or alarm conditions, enable and start signals, control source configuration, motor wiring, and relevant parameter settings. The control command source should also be verified.

5. Why might an AC drive trip during motor acceleration?

Possible causes include excessive load, an acceleration time that is too short, incorrect motor data, mechanical resistance, motor problems, or unsuitable drive settings. The displayed fault code should be examined before troubleshooting further.

6. What can cause an overvoltage condition during deceleration?

Rapid deceleration can cause the motor to return regenerative energy to the DC bus. Depending on the application, excessive regenerative energy can produce an overvoltage condition. Deceleration settings and the braking arrangement should therefore be evaluated.

7. Why is proper grounding important for a PowerFlex drive?

Proper grounding helps provide a suitable electrical reference and can reduce unwanted electrical interference. It also forms an important part of the overall safety and protection design of the installation.

8. How should a communication-related problem be approached?

First determine whether the problem is located in the drive, communication interface, network wiring, controller configuration, or network settings. Checking the drive status and communication-related diagnostics can help isolate the problem.

9. What should be inspected during preventive maintenance?

Technicians should inspect ventilation paths, cooling components, electrical connections, wiring, signs of overheating, contamination, and abnormal operating conditions. Parameter backups are also useful before performing major maintenance work.

10. Is the 20BP260A0ANNANC0 automatically interchangeable with another PowerFlex 700 model?

No. A model from the same family should not be assumed to be a direct replacement solely because it carries the PowerFlex 700 name. Voltage, current rating, control configuration, options, enclosure requirements, and application characteristics should all be compared.
