Brand:Siemens Item No.:6AG1193-4CA50-2AA0 Product Origin:Germany Product Dimensions:15 × 157 × 43 mm Product Weight:0.07 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

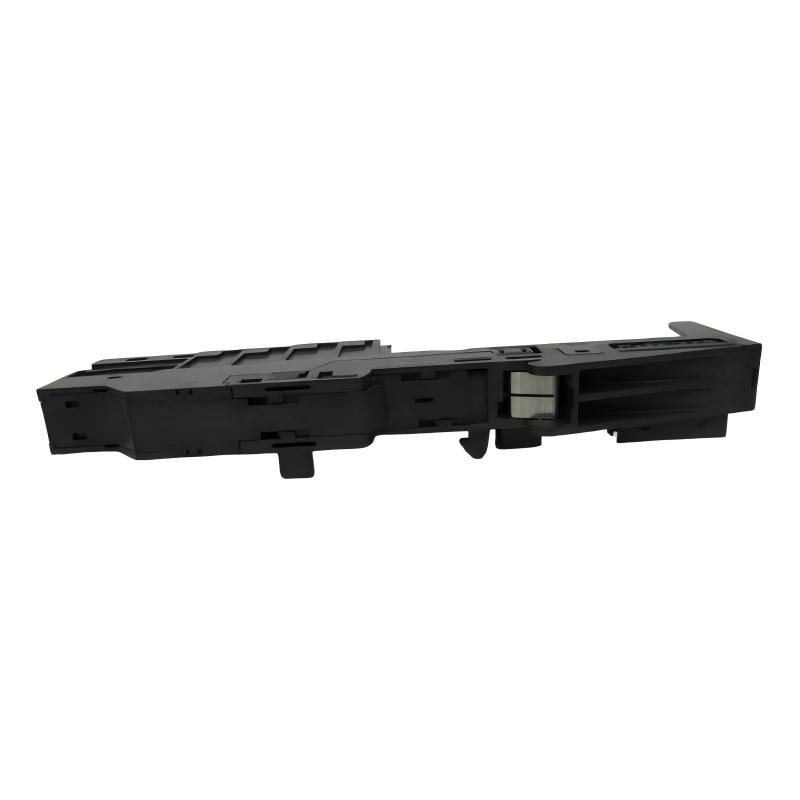

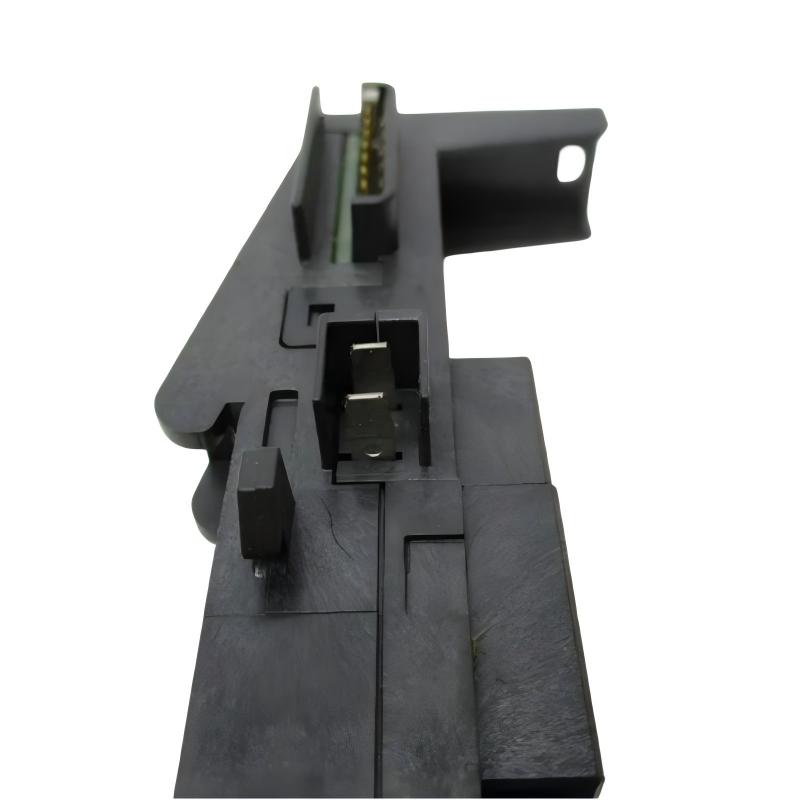

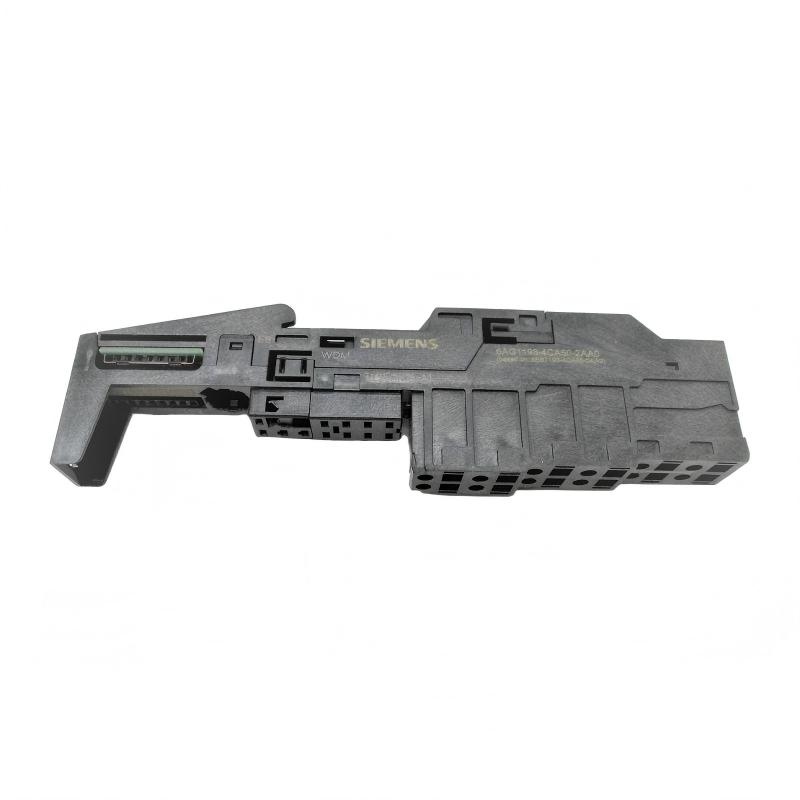

The Siemens 6AG1193-4CA50-2AA0 Terminal Module is a compact industrial automation connection component intended for Siemens distributed I/O architectures. Rather than functioning as a controller itself, the terminal module forms part of the hardware interface between field-level wiring and the associated electronic module.
In industrial control systems, the physical connection layer is just as important as the PLC program and I/O electronics. Poorly organized connections can make commissioning, inspection, and maintenance more difficult. A correctly matched terminal module provides a cleaner and more structured installation approach.
The 6AG1193-4CA50-2AA0 has a particularly compact mechanical profile, measuring 15 × 157 × 43 mm. This makes it suitable for applications where control cabinet space is constrained while still requiring a properly organized distributed I/O arrangement.
For machine builders, system integrators, and industrial maintenance teams, the main consideration is not simply whether a terminal module physically fits. The correct module must match the associated Siemens electronic I/O hardware and the intended station configuration. Engineers should therefore verify the complete hardware configuration before installation or replacement.
The module can be considered for new automation projects as well as maintenance work on established Siemens control systems where the original terminal interface needs to be replaced with the correct matching component.
Technical Specifications
Specification
Details
Brand
Siemens
Product Type
Terminal Module
Model
6AG1193-4CA50-2AA0
Product Family
SIPLUS ET 200
Application
Distributed I/O and Industrial Automation
Module Type
Terminal / Connection Module
Mounting Application
Industrial Control Cabinet / Automation System
Dimensions
15 × 157 × 43 mm
Dimensions in Inches
Approx. 0.59 × 6.18 × 1.69 in
Weight
0.07 kg / 0.15 lb
Installation Focus
Field Wiring and Module Interface
Typical Environment
Industrial Automation Systems
Integration
Compatible Siemens ET 200 Architecture, subject to module configuration
Primary Function
Electrical Connection and Terminal Interface
The very low weight of 0.07 kg makes the module easy to handle during cabinet assembly, service work, and replacement operations. Its 15 mm depth also helps minimize the amount of cabinet space occupied by the terminal interface.
Recommended Related Models
Model
Product Type
Relationship
6AG1193-4CA50-2AA0
Siemens Terminal Module
Main model
6AG1193-4CA20-2AA0
Siemens Terminal Module
Related SIPLUS ET 200 terminal module
6AG1193-4CA40-2AA0
Siemens Terminal Module
Related SIPLUS ET 200 terminal module
6AG1193-4CA70-2AA0
Siemens Terminal Module
Related SIPLUS ET 200 terminal module
6ES7193-4CA50-0AA0
Siemens Terminal Module
Related ET 200 terminal-module configuration
These models belong to related Siemens terminal-module product ranges, but they should not be treated as automatic substitutes. The electronic module, terminal assignment, mechanical arrangement, and complete station configuration should always be checked before ordering a replacement.
Popular Related Models
Model
Product Type
Typical Use
6ES7193-4CA50-0AA0
Siemens ET 200 Terminal Module
Distributed I/O connection
6ES7193-4CA20-0AA0
Siemens ET 200 Terminal Module
ET 200 module interface
6ES7193-4CA40-0AA0
Siemens ET 200 Terminal Module
Industrial I/O wiring
6ES7193-4CA70-0AA0
Siemens ET 200 Terminal Module
Distributed automation applications
6AG1193-4CA50-2AA0
Siemens SIPLUS Terminal Module
SIPLUS ET 200 applications

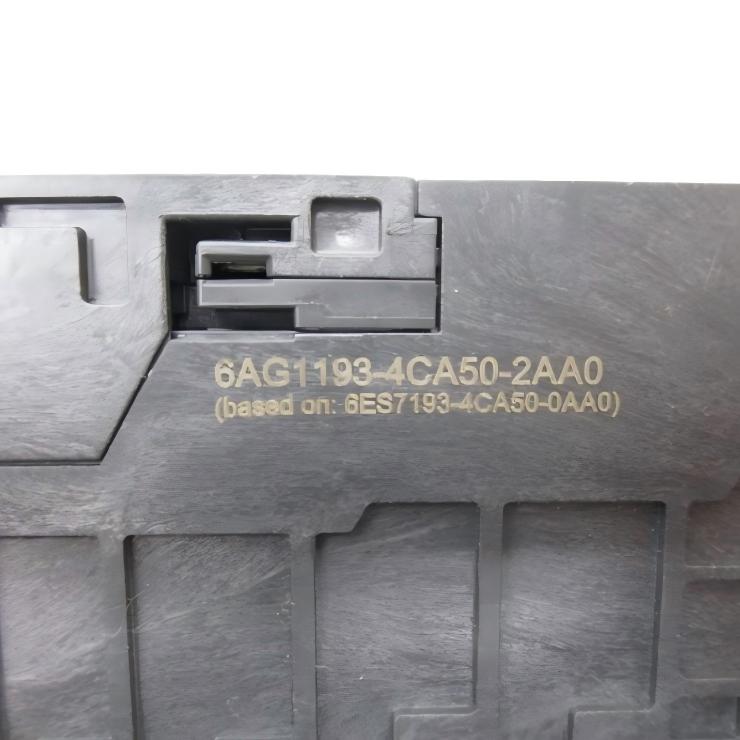

When sourcing a Siemens terminal module, the complete order number is important. Similar-looking terminal modules can have different electrical interfaces or mechanical configurations, so the exact part number should be matched against the existing automation system before purchase or replacement.
Applications
The Siemens 6AG1193-4CA50-2AA0 Terminal Module is designed for use within Siemens industrial automation architectures where reliable signal termination, organized wiring, and dependable module connectivity are important. As part of the Siemens SIPLUS ET 200 family, terminal modules such as this provide the physical interface needed to connect field wiring with the associated electronic module.
The compact design makes the 6AG1193-4CA50-2AA0 suitable for control cabinets and distributed I/O installations where available mounting space is limited. Its small footprint can help engineers maintain clear wiring routes while keeping terminal connections organized.
Typical applications include factory automation, machine control systems, process equipment, production lines, material-handling systems, and distributed control panels. It can also be useful when replacing or maintaining existing Siemens ET 200 installations where the terminal module must match the installed electronic module and system architecture.
For system integrators, correct module identification is important. The terminal module should be selected according to the corresponding Siemens I/O hardware, mechanical arrangement, wiring concept, and overall ET 200 configuration.
Advantages
Compact Installation Footprint
With dimensions of only 15 × 157 × 43 mm, the 6AG1193-4CA50-2AA0 occupies very little cabinet space. This is particularly useful in densely populated control panels where every millimeter of installation space matters.
Organized Field Wiring
A dedicated terminal module provides a structured point for field connections, helping engineers keep control wiring neat and easier to inspect during commissioning and maintenance.
Siemens Automation Compatibility
The module is intended for integration with Siemens industrial automation equipment. Using the correct terminal module helps maintain a consistent hardware architecture across distributed I/O installations.
Suitable for Distributed I/O Systems
Terminal modules are especially valuable in distributed automation applications because they provide a practical interface between electronic I/O components and external field wiring.
Simplified Maintenance
A well-organized terminal interface can make troubleshooting and replacement work easier. Technicians can identify wiring connections more efficiently without unnecessarily disturbing other cabinet components.
Space-Efficient Engineering
The compact dimensions are advantageous for machine builders and panel designers working with restricted enclosure dimensions or high-density I/O arrangements.
Industrial Automation Use
The 6AG1193-4CA50-2AA0 can be incorporated into a wide range of industrial control architectures, including machinery, manufacturing equipment, production cells, and automated material-handling systems.
Reliable Connection Architecture
Using a dedicated Siemens terminal module helps provide a structured connection between the field wiring and the corresponding automation electronics, reducing unnecessary wiring complexity.
Technical FAQs
1. What is the Siemens 6AG1193-4CA50-2AA0 used for?
The 6AG1193-4CA50-2AA0 is a terminal module used within Siemens industrial I/O architectures to provide the required physical connection interface between field wiring and compatible electronic modules.
2. Is the 6AG1193-4CA50-2AA0 an independent PLC?
No. It is a terminal module rather than a standalone PLC or CPU. Its function is related to the physical interfacing and connection of compatible automation modules.
3. Which Siemens automation family is associated with this terminal module?
The model belongs to the Siemens SIPLUS ET 200 product ecosystem. Compatibility should be checked against the exact electronic module and station configuration before installation.
4. Can the terminal module be used with any ET 200 module?
No. Terminal modules are hardware-specific. The electrical, mechanical, and connection requirements of the associated ET 200 module should be verified before selecting the 6AG1193-4CA50-2AA0.
5. What should be checked before replacing an existing terminal module?
Engineers should verify the complete Siemens part number, compatible electronic module, wiring arrangement, mechanical installation, terminal assignment, and system configuration. Matching only the general product family is not sufficient.
6. Does the terminal module process PLC signals?
The terminal module itself does not perform PLC logic processing. Signal processing is handled by the associated electronic I/O or automation module, while the terminal module provides the physical connection interface.
7. Can it be used in a machine control cabinet?
Yes, provided the associated Siemens automation modules and system architecture are compatible. Its compact form factor is particularly useful for control cabinets with limited available space.
8. How does a terminal module affect troubleshooting?
A properly installed terminal module provides an organized connection point, allowing technicians to inspect field wiring and module connections more systematically during fault diagnosis.
9. What is important when wiring a terminal module?
The wiring must follow the terminal assignment and electrical requirements of the associated Siemens module. Incorrect terminal connections can result in signal faults, incorrect I/O operation, or equipment damage.
10. What is the best way to confirm compatibility before installation?
Use the complete Siemens order number, 6AG1193-4CA50-2AA0, together with the part number of the electronic module and the existing ET 200 station configuration. This provides a much more reliable compatibility check than using the product description alone.
