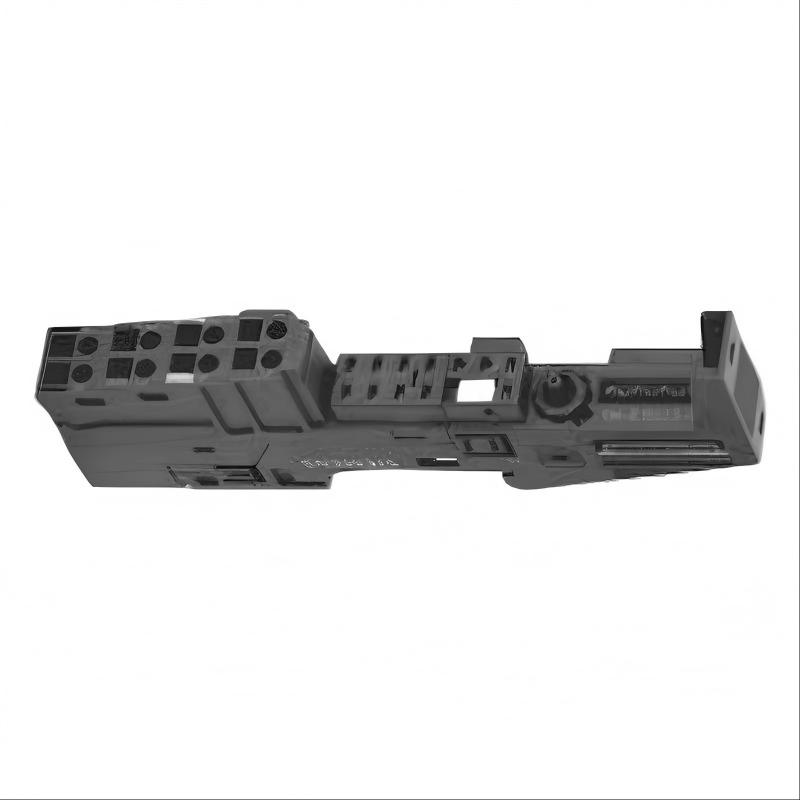

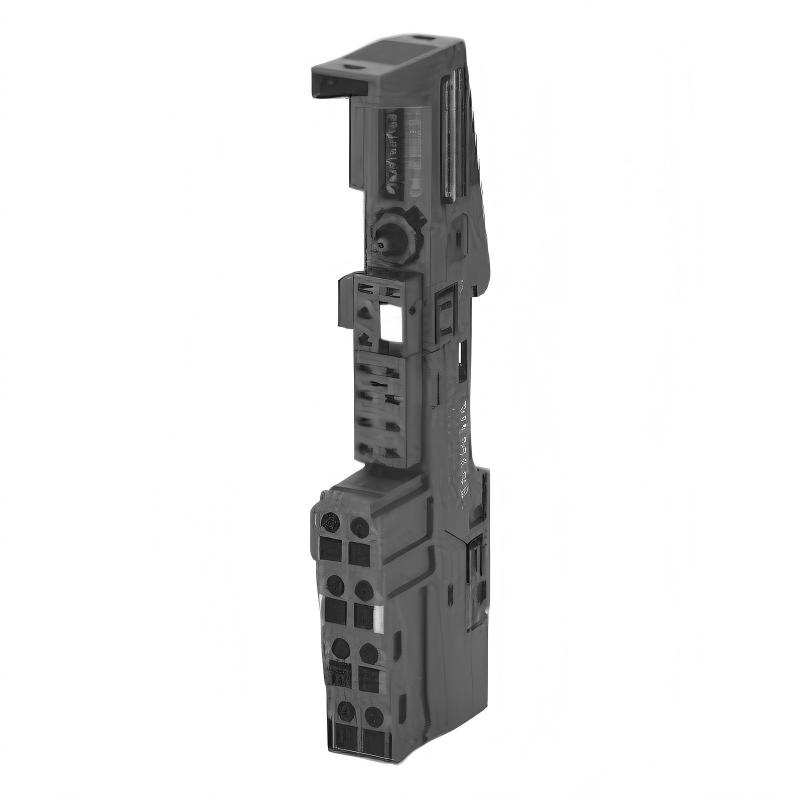

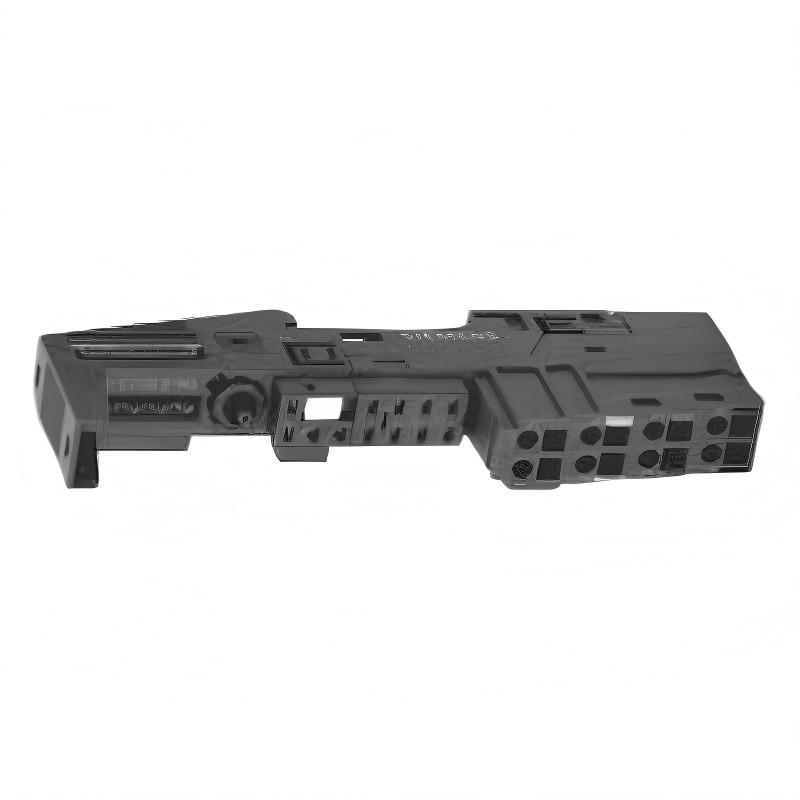

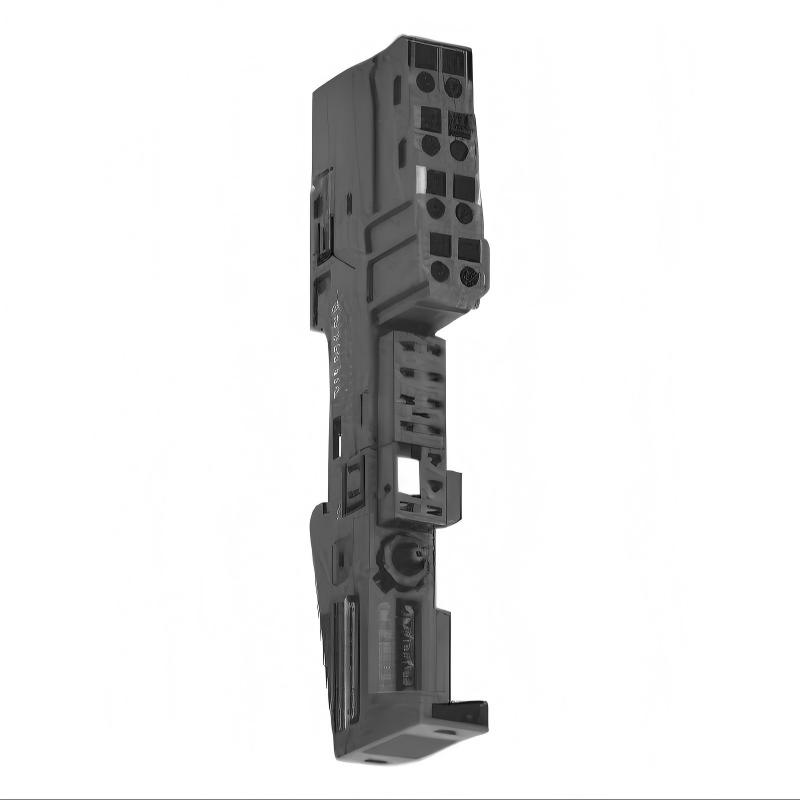

Siemens 6AG1193-4CB70-7AA0 Terminal Module

Applications

The Siemens 6AG1193-4CB70-7AA0 Terminal Module is a compact industrial automation component designed to provide a structured connection interface within Siemens distributed I/O systems. It is used as part of the physical connection architecture between compatible electronic modules and field-level wiring.

With dimensions of 15 × 162 × 43 mm, the terminal module is suitable for control cabinets and distributed automation stations where reliable connections and efficient space utilization are important. Its slim 15 mm profile allows multiple components to be arranged in a relatively dense installation.

Typical applications include factory automation, machine control, manufacturing lines, packaging machinery, material-handling equipment, production cells, and industrial process systems. It can also be useful for maintenance and retrofit projects involving Siemens SIPLUS or ET 200-based automation equipment.

The terminal module itself is not a PLC controller. Instead, it supports the physical installation and connection of the corresponding electronic automation hardware. The correct electronic module, terminal arrangement, and complete station configuration should therefore be confirmed before installation.

For replacement applications, matching the complete Siemens order number is especially important. Terminal modules that appear similar may have different connection arrangements and are not necessarily interchangeable.

Advantages

Compact 15 mm Width

The 6AG1193-4CB70-7AA0 has a narrow 15 mm profile, making it suitable for high-density control cabinets and distributed I/O installations where cabinet space is limited.

Extended 162 mm Length

Its 162 mm length provides a practical mounting footprint for the applicable terminal configuration while maintaining a relatively slim overall profile.

Organized Field Connections

The terminal module provides a defined connection interface between field wiring and compatible electronic modules, helping engineers maintain a structured cabinet wiring layout.

Suitable for Distributed I/O

The module can form part of Siemens distributed I/O architectures, allowing I/O hardware to be organized closer to machines and field devices.

Lightweight Design

At 0.072 kg, the component is easy to handle during panel assembly, installation, inspection, and maintenance.

Improved Serviceability

A clearly structured terminal arrangement can make it easier for maintenance technicians to identify connection points and inspect field wiring during troubleshooting.

Efficient Cabinet Engineering

The compact profile can help system integrators make better use of available panel space, particularly where many I/O components must be installed in a confined enclosure.

Industrial Automation Compatibility

The module is designed for Siemens automation environments and can be incorporated into appropriately configured machine-control and distributed-I/O systems.

Technical FAQs

1. What is the Siemens 6AG1193-4CB70-7AA0 Terminal Module used for?

The 6AG1193-4CB70-7AA0 is used as a terminal and connection interface within compatible Siemens industrial automation and distributed I/O configurations. It provides the physical connection structure required by the associated electronic module.

2. Is the 6AG1193-4CB70-7AA0 a PLC or I/O processor?

No. It is a terminal module rather than a CPU or I/O processor. Processing and control functions are performed by the appropriate Siemens controller and electronic I/O modules.

3. What should be verified before installing this terminal module?

The complete part number, compatible electronic module, mechanical arrangement, terminal assignment, and system configuration should be checked before installation.

4. Can any Siemens ET 200 electronic module be installed with this terminal module?

No. Terminal modules are configuration-specific. Compatibility should be confirmed using the exact electronic module and the intended Siemens station architecture.

5. Why should the full Siemens order number be matched during replacement?

Different terminal modules can have similar descriptions or dimensions but different interfaces. Matching the complete 6AG1193-4CB70-7AA0 order number helps avoid installing an unsuitable component.

6. Does the terminal module perform signal conditioning?

The terminal module primarily provides the physical connection interface. Signal processing and conditioning functions are handled by the corresponding electronic I/O module.

7. Can the module be used in a machine-control cabinet?

Yes, when paired with compatible Siemens automation hardware. Its narrow profile makes it suitable for control cabinets where installation space needs to be used efficiently.

8. How should a suspected connection fault be investigated?

Maintenance personnel should inspect wiring, terminal connections, the associated electronic module, power conditions, and controller diagnostics. Measurements should be performed according to the electrical requirements of the installed system.

9. Does the terminal module communicate directly with the PLC CPU?

The terminal module itself is not a communication controller. Data processing and system communication are performed by the associated electronic modules and the automation controller.

10. Can the 6AG1193-4CB70-7AA0 be used as a direct replacement for another terminal module?

Only after compatibility has been confirmed. The mechanical fit alone is not sufficient; the electronic module, terminal assignment, and complete I/O station configuration must also match.
