Siemens 6AG1193-4CD30-2AA0 Terminal Module

Applications

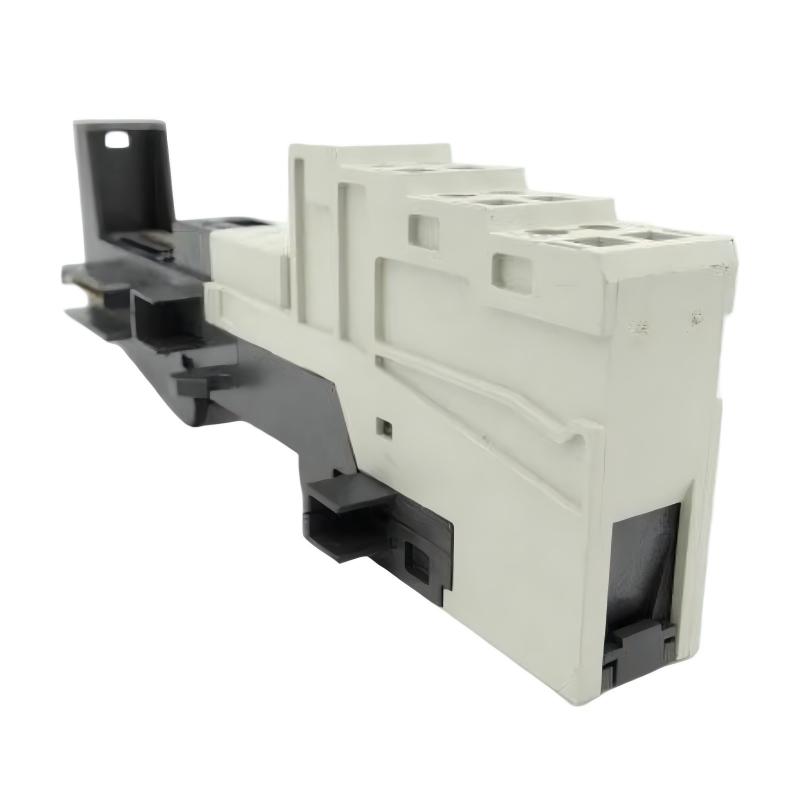

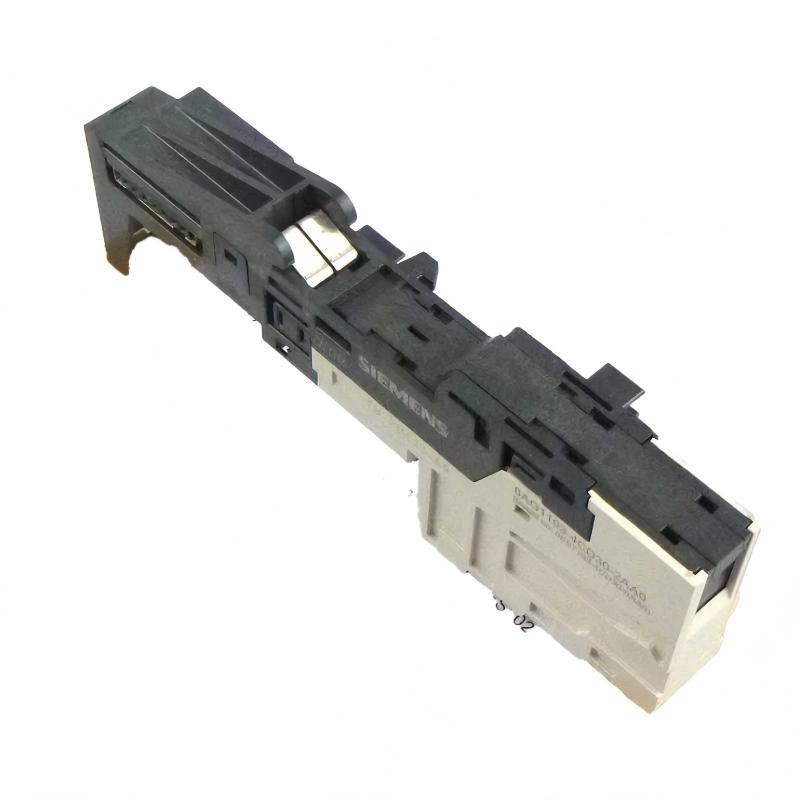

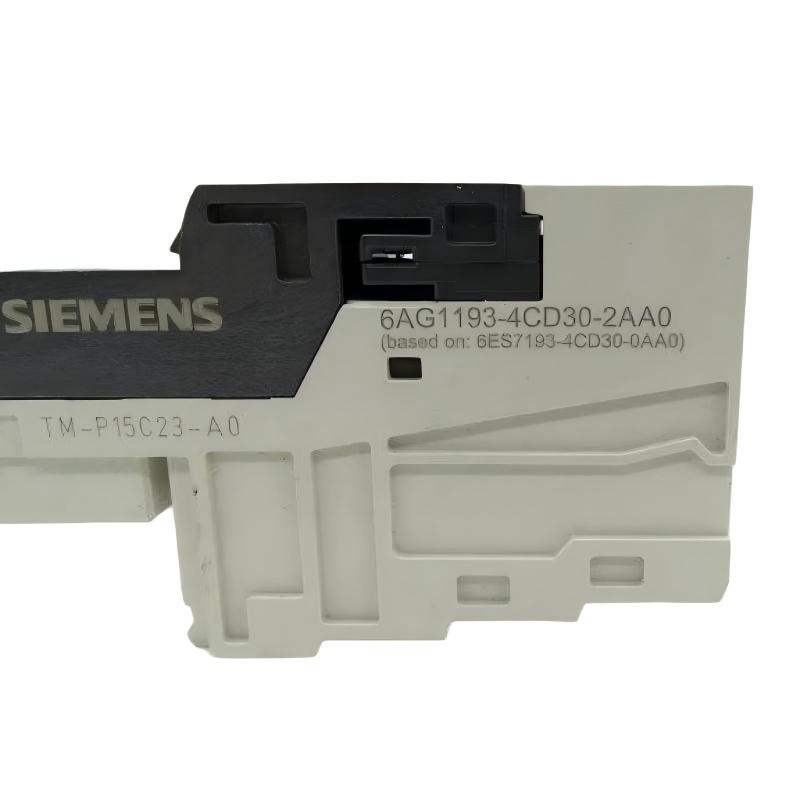

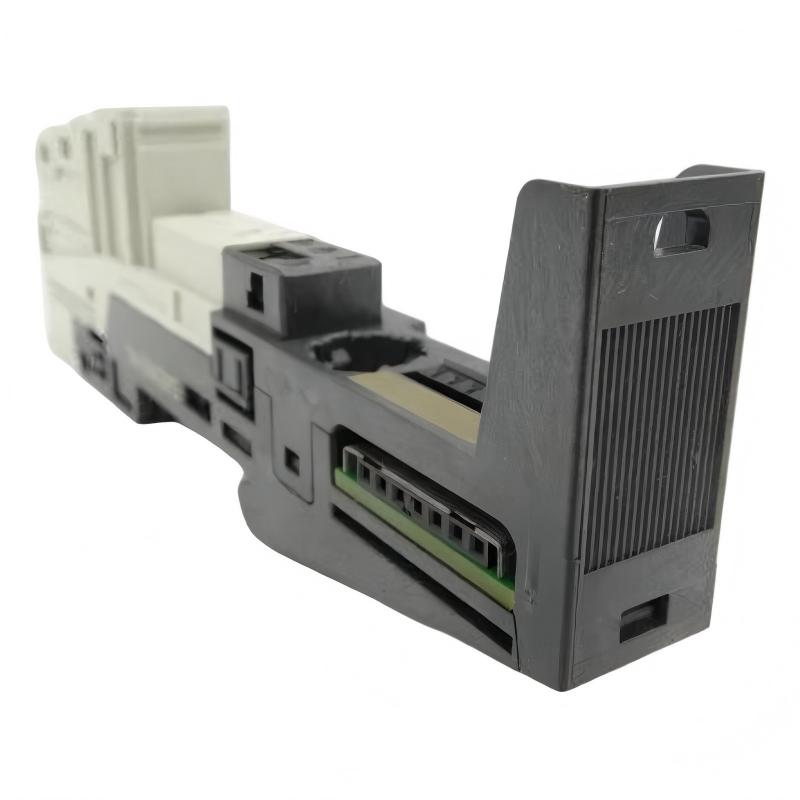

The Siemens 6AG1193-4CD30-2AA0 Terminal Module is a compact industrial automation component designed to provide a structured connection interface for compatible Siemens distributed I/O systems. It serves as part of the physical connection architecture between field wiring and the associated electronic module.

With a 15 × 132 × 43 mm form factor, the module is suitable for control cabinets and distributed I/O stations where efficient use of installation space is important. Its narrow profile allows automation components to be arranged closely while maintaining an organized cabinet layout.

Typical applications include machine automation, manufacturing equipment, packaging machinery, conveyor systems, production lines, material-handling equipment, and industrial control panels. The module can also be considered for maintenance and retrofit projects where an existing Siemens automation installation requires a matching terminal component.

In a distributed I/O architecture, the terminal module does not replace the PLC CPU or perform application logic. Instead, it supports the physical connection of compatible field wiring and electronic I/O hardware. For this reason, the exact associated electronic module and system configuration should be confirmed before installation.

Advantages

Compact 15 mm Profile

The 6AG1193-4CD30-2AA0 has a narrow 15 mm profile, helping engineers maximize available control cabinet space when building high-density automation systems.

Efficient Wiring Organization

The terminal module provides a defined interface for field connections, helping maintain orderly wiring and making individual connection points easier to identify during commissioning and service.

Distributed I/O Integration

The module is intended for use within compatible Siemens distributed I/O architectures, making it suitable for automation systems in which I/O components are located close to field devices.

Space-Efficient Design

Its 15 × 132 × 43 mm dimensions allow the module to fit into compact control-panel layouts without occupying unnecessary cabinet volume.

Lightweight Construction

At 0.065 kg, the module is easy to handle during cabinet assembly, installation, inspection, and replacement work.

Maintenance-Friendly Connection Architecture

A structured terminal interface can help technicians trace field wiring and inspect connections more efficiently when diagnosing I/O-related problems.

Suitable for Industrial Machinery

The module can support appropriately configured Siemens automation installations used in production machinery, packaging systems, material handling, and manufacturing equipment.

Practical Replacement Component

For existing Siemens installations, using the correct terminal module can allow maintenance teams to preserve the established wiring and I/O architecture instead of redesigning the entire station.

Technical FAQs

1. What is the Siemens 6AG1193-4CD30-2AA0 Terminal Module?

The 6AG1193-4CD30-2AA0 is a Siemens terminal module used as part of a compatible distributed I/O connection architecture. It provides the physical interface required between field wiring and the associated electronic module.

2. Does this module contain a PLC processor?

No. The 6AG1193-4CD30-2AA0 is a terminal module, not a PLC CPU. Control logic and signal processing are handled by the appropriate controller and electronic I/O hardware.

3. What is the role of a terminal module in an automation system?

Its primary role is to provide an organized physical connection interface for the compatible electronic module and field wiring. This helps establish a structured I/O installation.

4. Can this terminal module be connected to any Siemens ET 200 electronic module?

No. Compatibility depends on the exact electronic module and station configuration. The complete hardware arrangement should be checked before installation.

5. What should be checked before replacing an existing terminal module?

Verify the complete Siemens order number, compatible electronic module, terminal assignment, mechanical arrangement, wiring configuration, and overall distributed I/O station.

6. Does the terminal module process analog or digital signals?

The terminal module itself is primarily a physical connection component. The corresponding electronic I/O module performs the applicable signal processing.

7. Can the 6AG1193-4CD30-2AA0 be used in machine-control cabinets?

Yes, when the associated Siemens electronic hardware is compatible. Its compact dimensions make it useful for control cabinets with limited installation space.

8. What can cause problems at a terminal-module connection?

Potential causes include incorrect wiring, loose connections, damaged conductors, an unsuitable electronic module, or incorrect system configuration. Technicians should verify the complete connection path during troubleshooting.

9. Is the terminal module responsible for communication with the PLC?

No. The terminal module itself is not a PLC communication processor. Communication and control functions are provided by the applicable electronic modules and controller within the automation system.

10. Why should the complete model number be checked when purchasing this component?

Siemens terminal modules can differ in their connection and hardware configuration despite having similar descriptions. Matching the complete 6AG1193-4CD30-2AA0 number helps ensure that the selected component corresponds to the intended installation.
