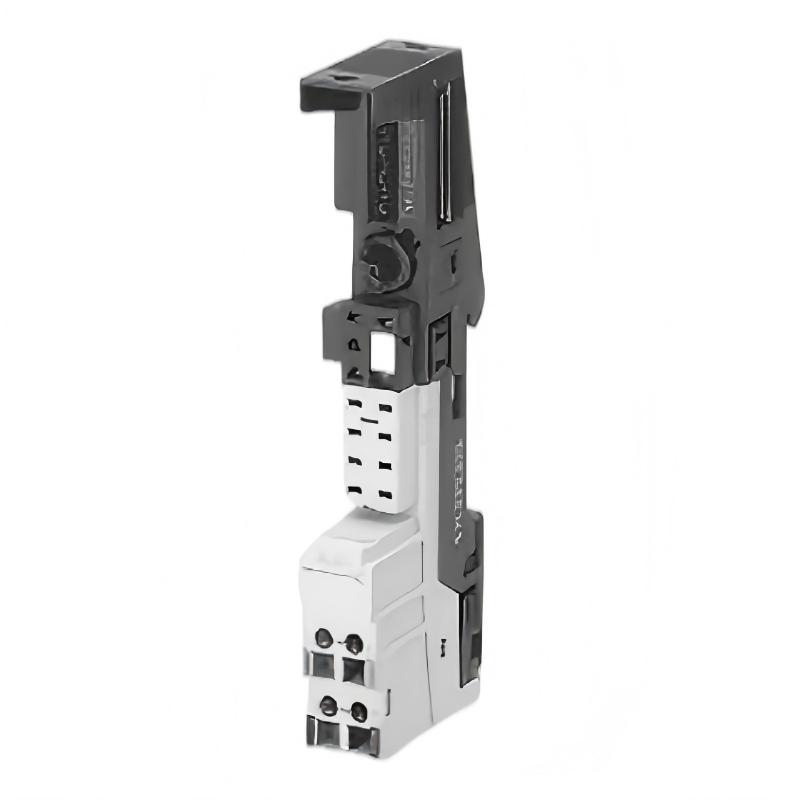

Siemens 6AG1193-4CE10-2AA0 Terminal Module

Applications

The Siemens 6AG1193-4CE10-2AA0 Terminal Module is a compact industrial automation component designed to support field-level connections within compatible Siemens distributed I/O systems. It provides the physical terminal interface between external wiring and the corresponding electronic module in the automation station.

With dimensions of 15 × 119.5 × 43 mm, this terminal module is particularly suitable for applications where control cabinet space is limited. Its narrow profile allows I/O components to be arranged efficiently while maintaining a structured wiring layout.

Typical applications include machine automation, manufacturing equipment, packaging machinery, production lines, conveyor systems, material-handling equipment, and industrial control cabinets. It can also be considered for replacement and retrofit projects involving compatible Siemens automation installations.

The 6AG1193-4CE10-2AA0 is a connection component rather than an independent PLC or signal-processing device. Its function should therefore be considered together with the electronic module and distributed I/O configuration in which it is installed.

For maintenance engineers and system integrators, the complete Siemens order number should be checked before installation. Terminal modules with similar dimensions or descriptions may have different connection arrangements and should not be assumed to be interchangeable.

Advantages

Compact Cabinet Design

With a width of only 15 mm, the 6AG1193-4CE10-2AA0 helps optimize available control-panel space. Its compact form is useful in high-density I/O installations.

Efficient Field-Wiring Interface

The terminal module provides a structured physical connection point between field wiring and compatible electronic hardware, helping maintain an orderly cabinet arrangement.

Suitable for Distributed I/O

The module can be incorporated into compatible Siemens distributed I/O architectures used in machine and factory automation applications.

Space-Efficient Dimensions

At 15 × 119.5 × 43 mm, the module provides a relatively small installation footprint, which can be beneficial when control cabinets have strict dimensional limitations.

Lightweight Construction

The supplied weight of 0.055 kg makes the component easy to handle during panel assembly, commissioning, maintenance, and replacement.

Maintenance-Friendly Architecture

A properly organized terminal interface makes field wiring easier to identify and inspect, helping technicians investigate connection-related faults more efficiently.

Industrial Automation Applications

The module can be used as part of appropriately configured automation systems for manufacturing machinery, packaging equipment, production cells, and material-handling applications.

Siemens System Compatibility

For facilities and machine builders using Siemens automation hardware, the terminal module provides a component-level solution for maintaining a consistent distributed I/O architecture.

Technical FAQs

1. What is the Siemens 6AG1193-4CE10-2AA0 Terminal Module used for?

The 6AG1193-4CE10-2AA0 is used as a terminal and connection interface within a compatible Siemens distributed I/O configuration. It provides the physical interface required for field wiring and the associated electronic module.

2. Is the 6AG1193-4CE10-2AA0 a PLC controller?

No. It is a terminal module rather than a PLC CPU or controller. PLC processing and automation logic are handled by the applicable Siemens controller.

3. Does the terminal module process field signals?

The terminal module itself primarily provides the physical connection interface. Signal processing functions are performed by the compatible electronic I/O module.

4. What should be verified before installation?

Engineers should verify the complete Siemens order number, associated electronic module, terminal assignment, mechanical arrangement, wiring requirements, and overall I/O station configuration.

5. Can another Siemens terminal module with the same width be used instead?

Not necessarily. Identical width does not guarantee electrical or mechanical compatibility. The complete hardware configuration should be checked before selecting an alternative.

6. What applications are suitable for this type of terminal module?

Compatible applications can include machine automation, factory automation, packaging systems, production equipment, material handling, and distributed I/O control cabinets.

7. How can a technician troubleshoot a suspected terminal connection problem?

The technician should inspect field wiring, terminal connections, the associated electronic module, power conditions, and controller diagnostics. Terminal assignments should also be compared with the system configuration.

8. Does the terminal module provide PLC communication?

No. The terminal module is not itself a communication processor. Communication and data processing are performed by the applicable electronic modules and controller.

9. Can the module be used in an existing Siemens control cabinet?

It can be used when the existing system is compatible with this exact terminal-module configuration. The complete I/O architecture should be checked before replacing an installed component.

10. Why is the exact model number important when ordering a replacement?
