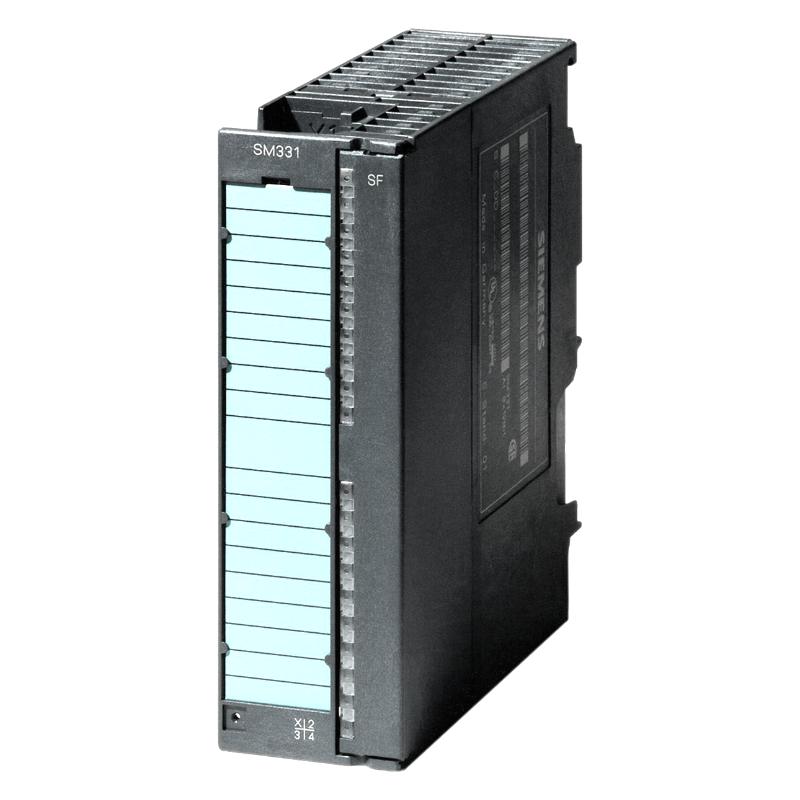

Siemens 6AG1331-7PF11-4AB0 Analog Input Module

Industrial Applications and Measurement Integration

The Siemens 6AG1331-7PF11-4AB0 Analog Input Module is designed for industrial automation systems that require dependable acquisition of analog process information. It provides a practical interface between compatible field instrumentation and the control system, allowing continuously changing electrical signals to be incorporated into PLC-based monitoring and control functions.

The module is suitable for manufacturing equipment, process automation, production lines, machine control, energy applications, and industrial measurement systems. In these environments, analog input capability allows controllers to work with actual process conditions rather than relying exclusively on discrete status signals.

For OEMs, system integrators, and maintenance teams, the 6AG1331-7PF11-4AB0 can be used when expanding compatible Siemens automation installations or replacing existing analog I/O hardware. Its compact construction also supports efficient control cabinet layouts.

Key Benefits for Industrial Automation

Dependable Analog Signal Acquisition
The module provides a structured interface for acquiring compatible analog field signals, helping the controller receive useful process information for monitoring and control.

Enhanced Process Monitoring
Continuous measurement values allow automation programs to track changing operating conditions and respond according to predefined control strategies.

Compact Cabinet Integration
Its 40 mm width helps engineers make efficient use of available installation space, particularly in control cabinets containing multiple I/O components.

Industrial SIPLUS Design
The module belongs to the SIPLUS product range, making it suitable for applications where automation equipment may encounter demanding industrial operating conditions.

Flexible Application Potential
The module can support machine automation, process monitoring, equipment supervision, and other applications requiring compatible analog signal acquisition.

Practical for Modernization
For industrial users maintaining established Siemens systems, the module can be considered for compatible expansion, replacement, and modernization projects.

Technical FAQs

1. What is the primary function of the 6AG1331-7PF11-4AB0?

The module is an analog input component used to acquire compatible electrical measurement signals from field devices and make the corresponding process information available to the automation controller.

2. Why are analog inputs important for industrial control?

Industrial processes often involve variables that change continuously. Analog inputs allow a PLC to receive these changing values and use them for monitoring, calculations, alarms, and appropriate control functions.

3. What types of field devices can be connected to an analog input module?

Depending on the module's specified input characteristics, compatible field instruments may include process transmitters and sensors used to measure variables such as temperature, pressure, flow, level, or other industrial conditions.

4. What must be verified before connecting a sensor?

Engineers should verify the sensor's output characteristics against the module's supported input configuration. Wiring, polarity, shielding, grounding, and PLC hardware configuration should also be checked.

5. What could cause an analog signal to fluctuate?

Potential causes include electromagnetic interference, inadequate shielding, grounding problems, unstable sensors, damaged signal cables, loose terminals, and incorrect channel configuration.

6. How should an engineer troubleshoot an incorrect analog value?

The actual field signal should first be checked with appropriate test equipment. Engineers can then inspect wiring, terminals, configuration, scaling parameters, diagnostic information, and the relevant I/O channel.

7. Why should analog signal cables be separated from power cables?

High-power electrical equipment can generate electromagnetic interference that affects sensitive analog signals. Appropriate cable routing and shielding can help reduce unwanted signal variations.

8. Can an analog measurement be used as PLC control feedback?

Yes. Once the input signal has been correctly configured and scaled, the resulting process value can be used by the PLC for suitable monitoring and closed-loop control functions.

9. What should be checked if the PLC receives no useful analog signal?

Check the field instrument, its associated supply where applicable, signal wiring, terminal connections, channel configuration, PLC hardware configuration, and diagnostic status. Testing the signal at the field and I/O sides can help isolate the problem.

10. How can maintenance teams improve analog I/O reliability?

Regular inspection of field instruments, wiring, terminals, shielding, grounding, and diagnostic information can help identify developing faults and reduce the risk of intermittent measurement problems.
