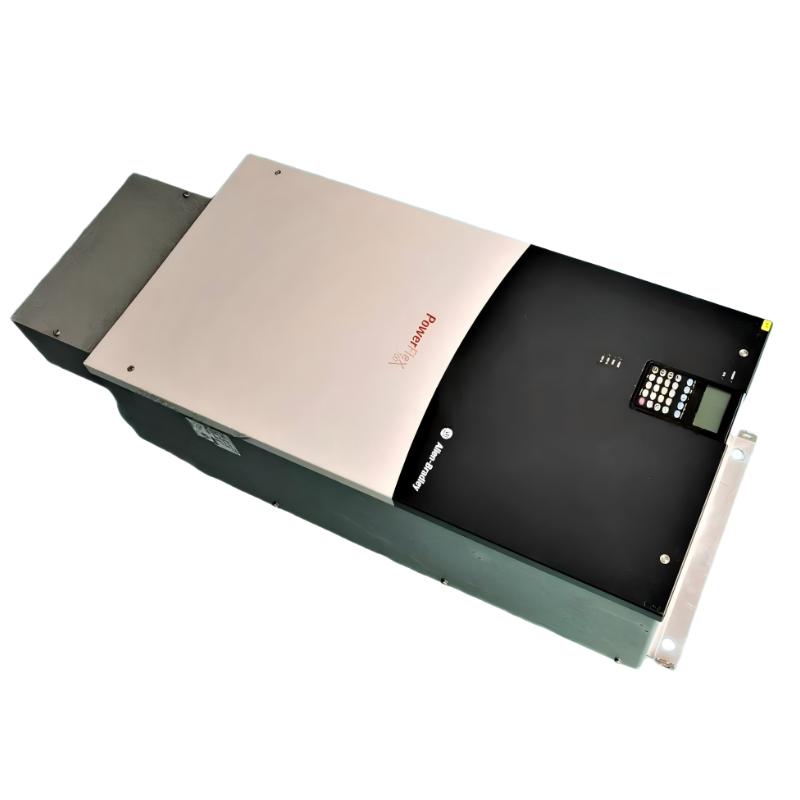

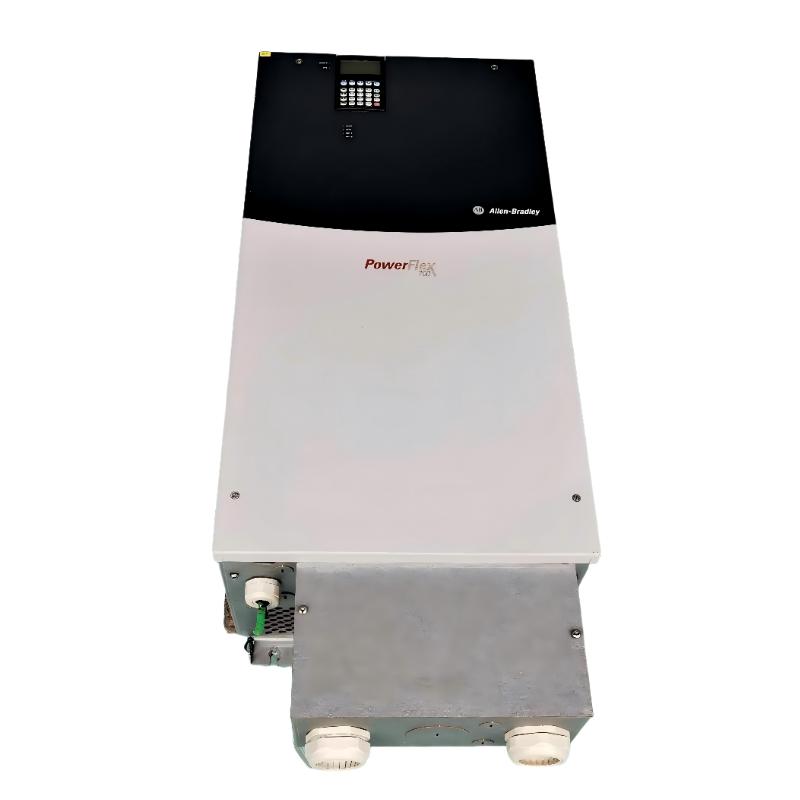

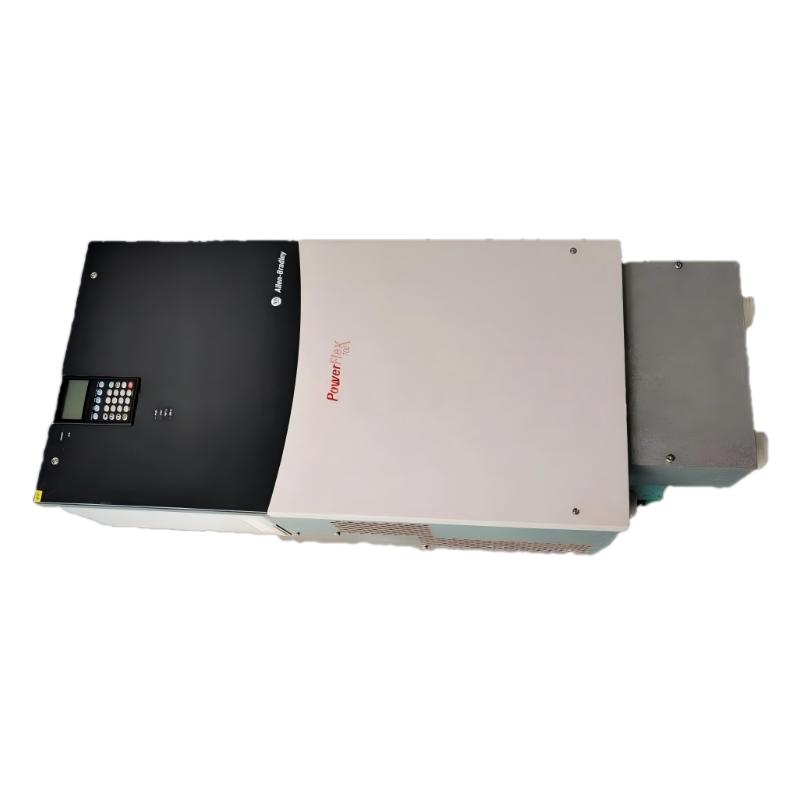

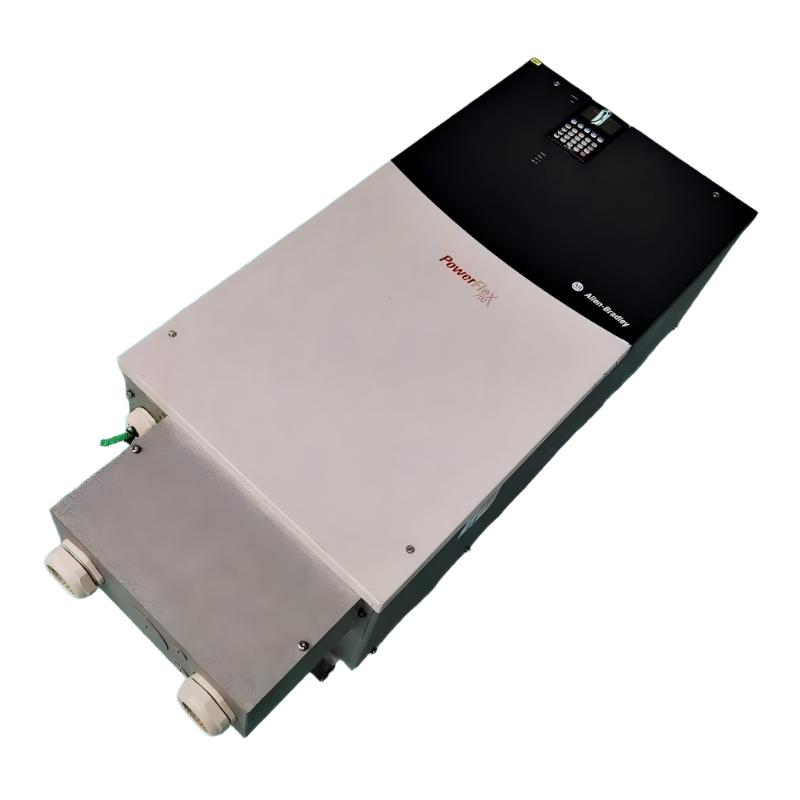

Allen Bradley 20BR156A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BR156A0ANNANC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BR156A0ANNANC0 Product Origin:USA Product Dimensions:976.3 x 403.9 x 275.5 mm Product Weight:71.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BR156A0ANNANC0 PowerFlex 700 AC Drive is an industrial variable-speed drive intended for applications where reliable AC motor control is an important part of the machine or production process.
The PowerFlex 700 platform is well suited to industrial automation environments that require controlled motor operation and integration with broader machine-control systems. The 20BR156A0ANNANC0 can be used in appropriately engineered applications to regulate motor speed, acceleration, and deceleration while supporting the operating requirements of industrial equipment.
With its larger physical configuration, this drive should be incorporated into a properly designed control cabinet or installation area with adequate clearance, ventilation, electrical protection, and maintenance access. For replacement applications, the existing drive configuration should always be compared with the replacement model before installation.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BR156A0ANNANC0
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
976.3 × 403.9 × 275.5 mm
Weight
71.44 kg (157.50 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20AD5P0A0AYYNNG0
AC Drive
PowerFlex 70
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
20P41AD100RA0NNN
DC Drive
PowerFlex DC
Popular Related Models
Model
Product Type
Series / Platform
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20AD5P0A0AYYNNG0
AC Drive
PowerFlex 70
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
20P21AD207RA0NNN
DC Drive
PowerFlex DC
The Allen Bradley 20BR156A0ANNANC0 PowerFlex 700 AC Drive is a practical industrial motor-control solution for applications requiring reliable variable-speed operation. Its PowerFlex 700 architecture makes it suitable for compatible automated machinery, production equipment, material handling systems, and industrial process applications. For replacement projects, verifying the complete model number and system requirements before installation is essential for achieving proper compatibility and reliable operation.
Industrial Applications
The Allen Bradley 20BR156A0ANNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications requiring dependable variable-speed operation, controlled acceleration and deceleration, and integration with automated production equipment. As part of the PowerFlex 700 family, it is suitable for a wide range of motor-driven industrial machinery.
Typical applications include conveyors, pumps, fans, compressors, material handling systems, production lines, processing machinery, and other equipment where AC motor speed needs to be controlled according to changing operating conditions.
The 20BR156A0ANNANC0 can also be considered for compatible maintenance, retrofit, and replacement projects involving PowerFlex 700 installations. Before replacing an existing drive, engineers should verify the complete catalog number and confirm the electrical and control requirements of the existing system.
Key Advantages
Reliable variable-speed motor control: Supports controlled operation of compatible industrial AC motors.
PowerFlex 700 platform: Built for industrial automation and motor-control applications.
Suitable for large machinery: Its physical configuration is appropriate for larger industrial drive installations.
Wide application flexibility: Can be applied to conveyors, pumps, fans, compressors, and process machinery.
Controlled motor operation: Allows machinery designers to manage motor speed and acceleration according to application requirements.
Practical retrofit option: Suitable for compatible PowerFlex 700 replacement and maintenance projects.
Industrial system integration: Can be incorporated into appropriately designed automation and motor-control architectures.
Consistent operation: Variable-frequency motor control can help production equipment achieve smoother speed transitions.
Maintenance identification: The complete catalog number helps engineers identify the required drive configuration when servicing an existing installation.
Technical FAQs
1. What is the Allen Bradley 20BR156A0ANNANC0?
The Allen Bradley 20BR156A0ANNANC0 is a PowerFlex 700 AC Drive designed for variable-speed control of compatible industrial AC motors.
2. What is the main function of the PowerFlex 700 AC Drive?
Its primary function is to regulate the electrical power supplied to an AC motor, allowing motor speed and operating behavior to be controlled according to the requirements of the machine.
3. What applications are suitable for this drive?
Typical applications include conveyors, pumps, fans, compressors, material handling equipment, production machinery, and industrial process systems requiring variable-speed motor control.
4. What should be verified before installing the 20BR156A0ANNANC0?
Engineers should verify the drive's electrical requirements, motor voltage and current, control configuration, installation environment, wiring, braking requirements, and compatibility with the existing automation system.
5. Why is the complete catalog number important when replacing a PowerFlex drive?
PowerFlex drive configurations can differ in ratings, options, and hardware characteristics. Matching the complete catalog number helps ensure that the replacement unit meets the requirements of the existing installation.
6. How should motor parameters be configured during commissioning?
Motor parameters should be entered according to the actual motor nameplate and application requirements. Important information may include rated voltage, current, frequency, speed, and other parameters required by the selected control method.
7. What can cause a PowerFlex 700 drive to trip during operation?
Potential causes include excessive motor load, unsuitable acceleration or deceleration settings, input power abnormalities, motor wiring problems, overheating, grounding issues, or incorrect drive parameters. The displayed fault condition should be investigated before corrective action.
8. How can acceleration and deceleration affect machinery?
Acceleration and deceleration settings determine how quickly the motor changes speed. Settings that are too aggressive can increase mechanical stress or cause overcurrent conditions, while excessively slow settings may reduce production efficiency.
9. Is this model suitable for existing PowerFlex 700 systems?
The 20BR156A0ANNANC0 can be considered for compatible PowerFlex 700 applications. However, the complete system configuration should be checked before replacement to confirm electrical, mechanical, and control compatibility.
10. What preventive maintenance is recommended for an industrial AC drive?
Maintenance should include inspecting electrical connections, ventilation and cooling paths, cabinet conditions, contamination, abnormal temperatures, and visible signs of component deterioration. Fault and alarm history should also be reviewed as part of preventive maintenance.
