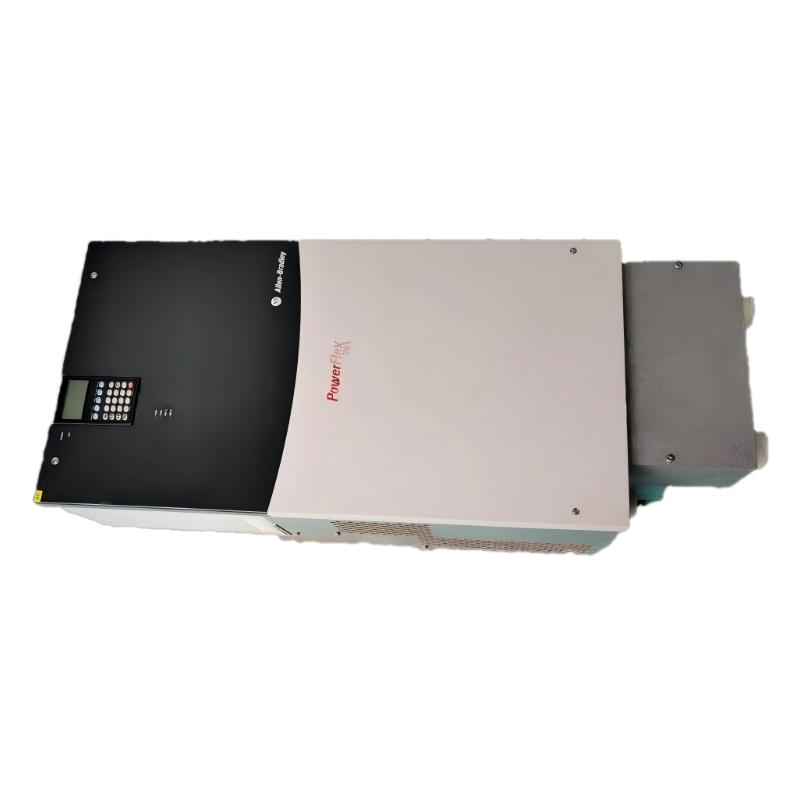

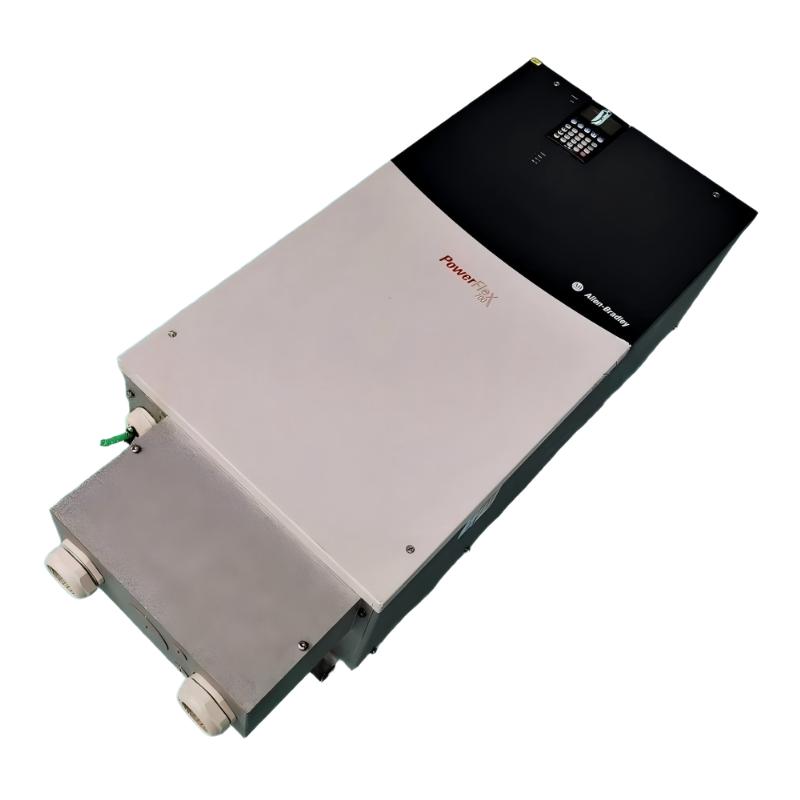

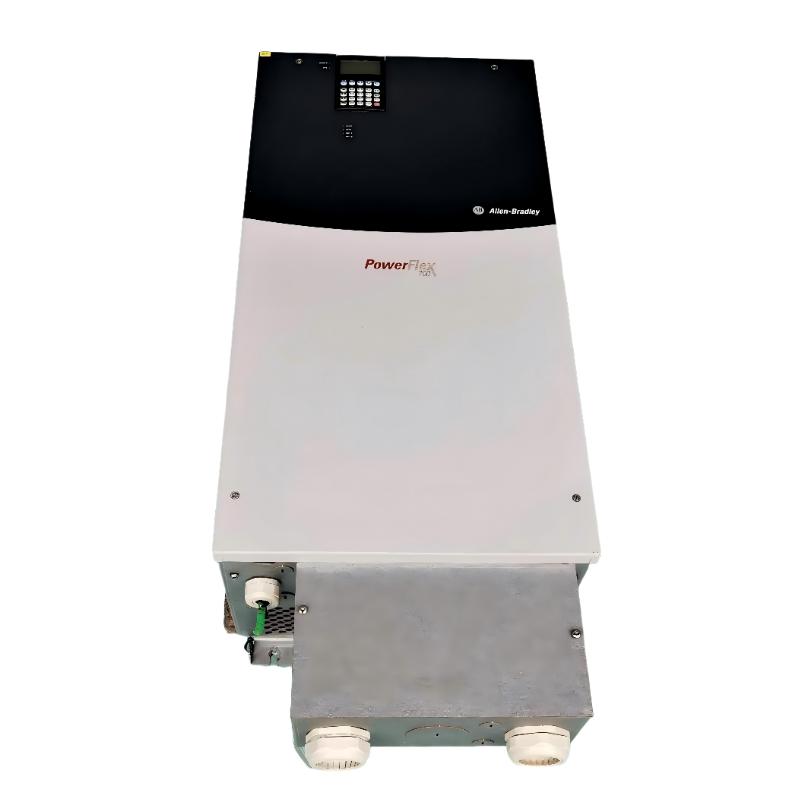

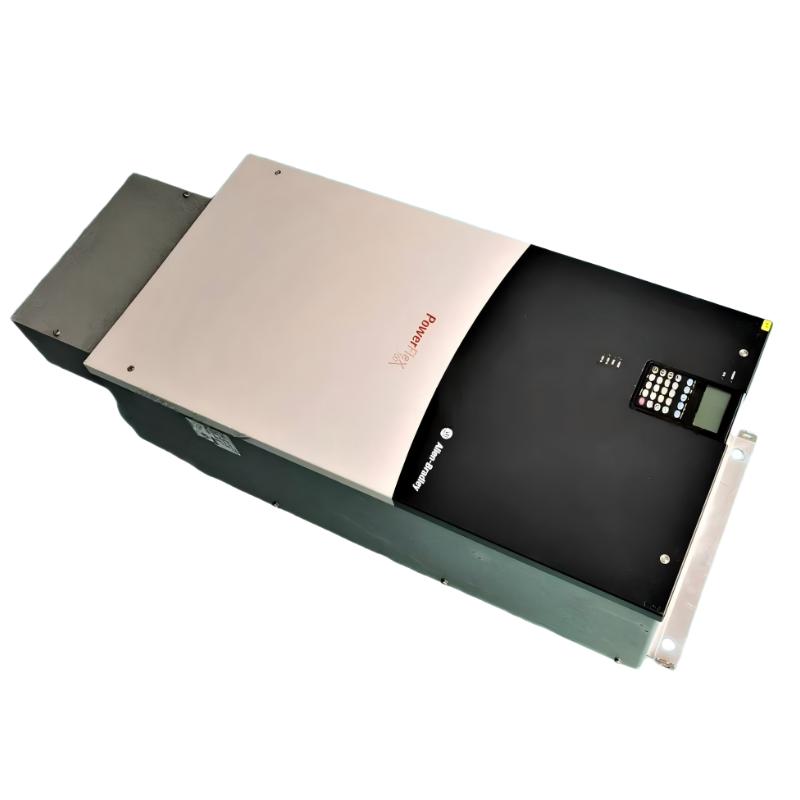

Allen Bradley 20BR180A0ANNANC1 PowerFlex 700 AC Drive
Allen Bradley 20BR180A0ANNANC1 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BR180A0ANNANC1 Product Origin:USA Product Dimensions:976.3 x 403.9 x 275.5 mm Product Weight:71.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BR180A0ANNANC1 PowerFlex 700 AC Drive is an industrial motor-control product designed for applications requiring variable-speed operation of compatible AC motors. It can serve as part of an automated machine, production line, material handling system, or industrial process.
Proper drive selection is important for achieving reliable motor performance. The connected motor and driven load should be evaluated together with the drive's electrical and control requirements. During commissioning, accurate motor data and suitable operating parameters are essential for stable performance.
The 20BR180A0ANNANC1 has a substantial cabinet footprint, making appropriate panel planning particularly important. Adequate electrical clearance, ventilation, cable routing, grounding, and maintenance access should be incorporated into the installation design.
For replacement applications, the existing PowerFlex drive's complete catalog number should be recorded before ordering. This provides a more reliable basis for determining whether the replacement configuration is appropriate.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BR180A0ANNANC1
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
976.3 × 403.9 × 275.5 mm
Weight
71.44 kg (157.50 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20AD5P0A0AYYNNG0
AC Drive
PowerFlex 70
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
Popular Related Models
Model
Product Type
Series / Platform
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20AD5P0A0AYYNNG0
AC Drive
PowerFlex 70
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20BR180A0ANNANC1 PowerFlex 700 AC Drive is suited to industrial motor-control applications where dependable variable-speed operation and controlled motor performance are required. With its PowerFlex 700 platform and substantial industrial configuration, it can be considered for compatible production machinery, material handling equipment, and process-control systems. Careful verification of the complete catalog number and application requirements is recommended before installation or replacement.
Industrial Applications
The Allen Bradley 20BR180A0ANNANC1 PowerFlex 700 AC Drive is designed for industrial variable-speed motor control applications where stable operation, controlled acceleration, and dependable motor management are important. As a member of the PowerFlex 700 family, this AC drive can be used in a variety of automated machinery and industrial production environments.
Typical applications include conveyors, pumps, fans, compressors, material handling equipment, production machinery, processing systems, and other motor-driven equipment. The drive can regulate motor speed according to process requirements, helping machinery operate with controlled and repeatable movement.
The 20BR180A0ANNANC1 can also be considered for suitable PowerFlex 700 maintenance and replacement projects. When replacing an existing drive, the complete catalog number, electrical characteristics, control configuration, and installation requirements should be checked before installation.
Key Advantages
Industrial variable-speed control: Provides controlled speed operation for compatible AC motor applications.
PowerFlex 700 architecture: Designed for industrial motor-control and automation environments.
Flexible application range: Suitable for material handling, conveyors, pumps, fans, compressors, and process machinery.
Controlled acceleration and deceleration: Helps machinery achieve smoother changes in motor speed.
Reliable motor management: Supports consistent motor operation when correctly configured for the application.
Retrofit potential: Can be considered for compatible PowerFlex 700 replacement and modernization projects.
Automation system integration: Suitable for appropriately engineered industrial control architectures.
Large-drive installation: Its physical dimensions are appropriate for larger cabinet-mounted industrial equipment.
Service identification: The complete catalog number provides an important reference when selecting equipment for maintenance or replacement.
Technical FAQs
1. What is the Allen Bradley 20BR180A0ANNANC1?
The 20BR180A0ANNANC1 is an Allen Bradley PowerFlex 700 AC Drive intended for variable-speed control of compatible industrial AC motors.
2. What does an AC drive do in a motor-control system?
An AC drive controls the electrical power delivered to the motor, allowing the motor's operating speed and acceleration characteristics to be adjusted according to machine requirements.
3. What types of industrial equipment can use this drive?
Applications can include conveyors, pumps, fans, compressors, material handling equipment, processing machinery, and other industrial systems that require controlled AC motor operation.
4. What information should be checked before commissioning the drive?
The motor nameplate information, drive ratings, input power, motor wiring, control configuration, acceleration and deceleration requirements, braking arrangement, and applicable protection settings should be verified before commissioning.
5. Why should the complete 20BR180A0ANNANC1 catalog number be matched during replacement?
The complete catalog number identifies the specific drive configuration. Different PowerFlex models and configurations can have different electrical ratings and options, so matching the full catalog number reduces the risk of selecting an incompatible replacement.
6. How do incorrect motor parameters affect drive operation?
Incorrect motor data can result in poor motor performance, excessive current, unstable operation, or drive faults. Motor parameters should therefore be configured according to the actual connected motor and application.
7. What are common causes of PowerFlex drive faults?
Potential causes include motor overload, excessive current, unsuitable acceleration or deceleration settings, input power problems, motor wiring faults, overheating, grounding problems, and incorrect configuration.
8. How should a drive fault be diagnosed?
The first step is to identify the displayed fault or alarm condition and review the operating circumstances when it occurred. Power, motor connections, load conditions, cooling, and relevant parameters should then be checked systematically.
9. Can the 20BR180A0ANNANC1 be used for PowerFlex 700 replacement projects?
It may be suitable for compatible PowerFlex 700 applications, but the existing system should be evaluated before replacement. Electrical ratings, control interfaces, options, mounting requirements, and application characteristics should all be compared.
10. What preventive maintenance is recommended for this type of AC drive?
Regular inspection should include electrical connections, cooling and ventilation paths, cabinet conditions, contamination, abnormal temperature, and visible component deterioration. Reviewing fault and alarm history can also help identify developing problems.
