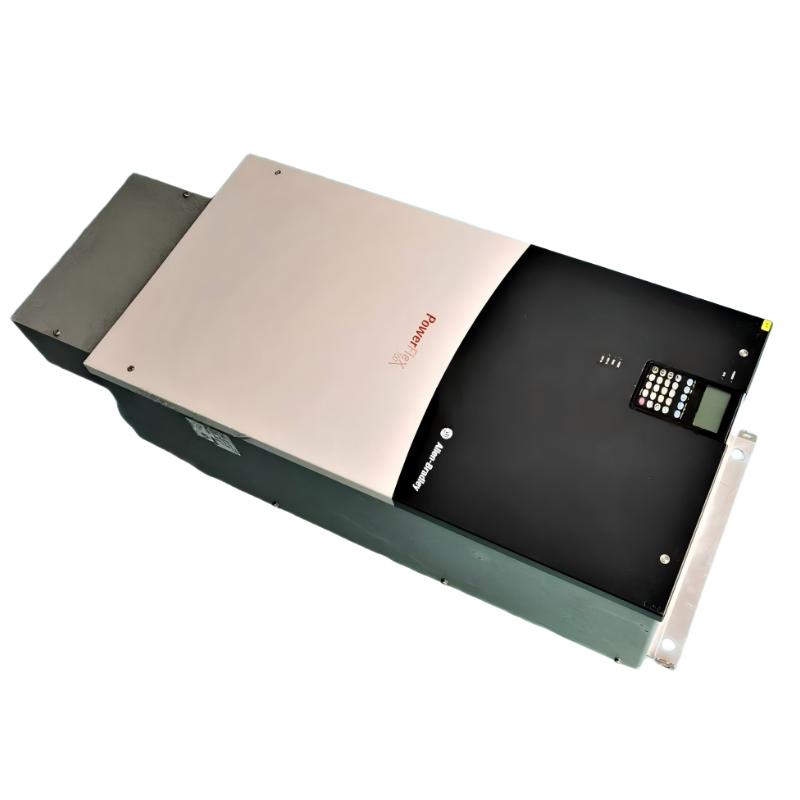

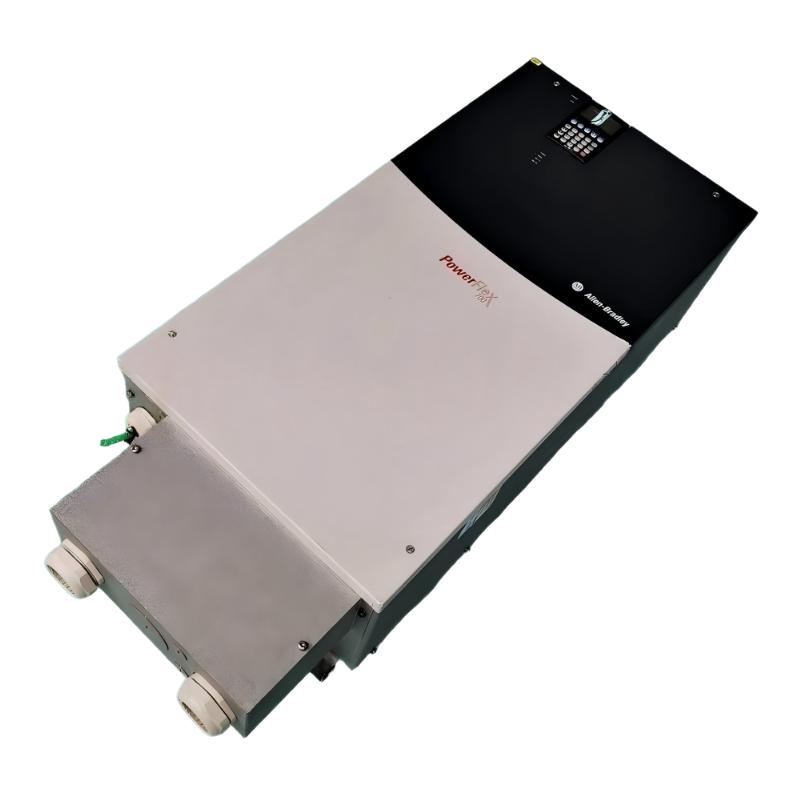

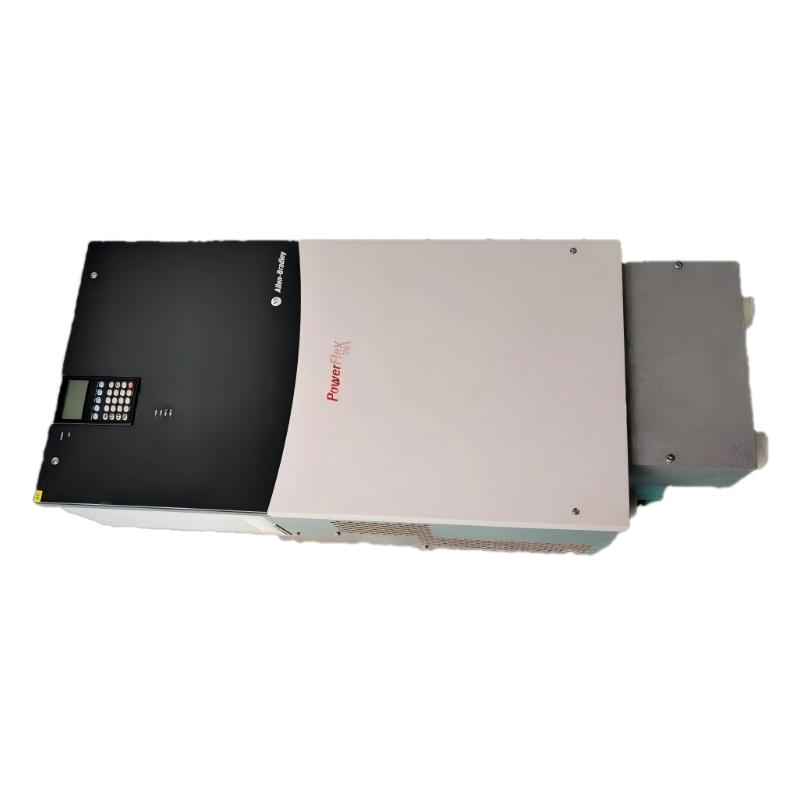

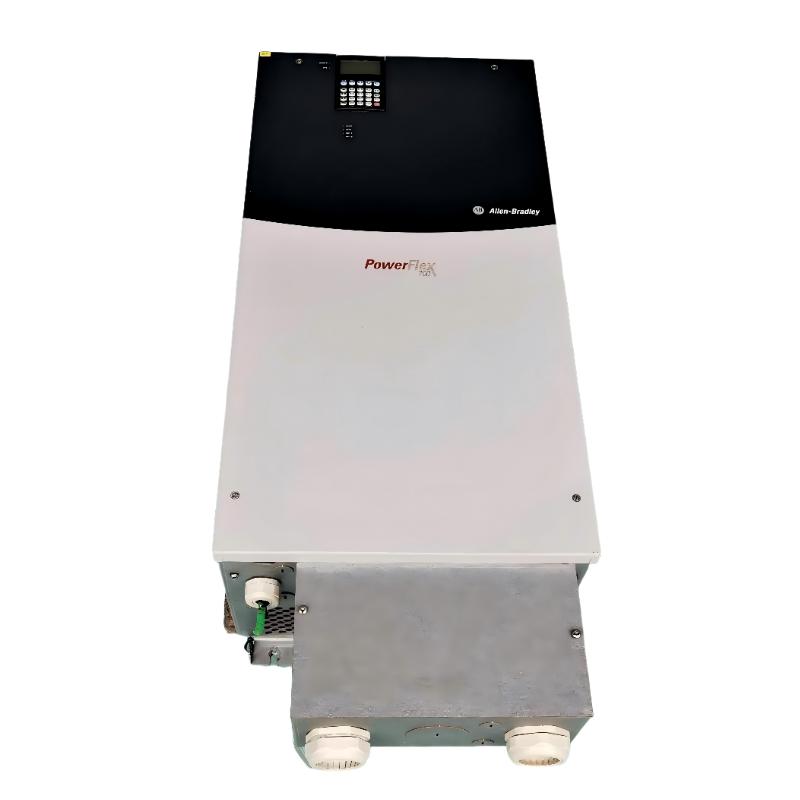

Allen Bradley 20BT144A0ANNAND0 PowerFlex 700 AC Drive
Allen Bradley 20BT144A0ANNAND0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BT144A0ANNAND0 Product Origin:USA Product Dimensions:976.3 x 403.9 x 275.5 mm Product Weight:71.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BT144A0ANNAND0 PowerFlex 700 AC Drive is an industrial variable-speed drive intended for applications where controlled AC motor operation is an essential part of machine performance. It can be incorporated into appropriately engineered production equipment, material handling systems, and industrial process applications.
Variable-speed control can provide greater flexibility than fixed-speed motor operation by allowing machine speed to be adjusted according to production requirements. Correct drive configuration is essential, however, and the motor, mechanical load, power supply, and control system should all be considered during system design.
The 20BT144A0ANNAND0 has a relatively large cabinet installation footprint. Control-panel designers should therefore provide sufficient space for electrical connections, ventilation, cable routing, inspection, and future maintenance.
For replacement applications, technicians should record the complete catalog number of the existing drive and compare its configuration with the replacement unit. This is especially important when the original installation includes additional control or application-specific hardware.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BT144A0ANNAND0
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
976.3 × 403.9 × 275.5 mm
Weight
71.44 kg (157.50 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20AD5P0A0AYYNNG0
AC Drive
PowerFlex 70
Popular Related Models
Model
Product Type
Series / Platform
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20BT144A0ANNAND0 PowerFlex 700 AC Drive is a practical solution for industrial applications requiring controlled variable-speed operation of compatible AC motors. Its PowerFlex 700 platform makes it suitable for appropriately configured machinery, production systems, material handling equipment, and process applications. For maintenance or replacement work, confirming the complete catalog number and matching the drive to the existing electrical and control configuration are important steps toward reliable system operation.
Industrial Applications
The Allen Bradley 20BT144A0ANNAND0 PowerFlex 700 AC Drive is designed for industrial motor-control systems that require reliable variable-speed operation and controlled motor performance. As part of the PowerFlex 700 family, it can be applied to a variety of automated machinery and continuous-duty industrial equipment.
Typical applications include conveyors, pumps, fans, compressors, material handling equipment, production machinery, processing lines, and other systems driven by compatible AC motors. Variable-frequency control allows the motor to operate at speeds appropriate for different production conditions while providing controlled acceleration and deceleration.
The 20BT144A0ANNAND0 can also be considered for suitable maintenance and replacement projects involving existing PowerFlex 700 installations. Before replacement, the complete catalog number and the electrical and control requirements of the existing system should be carefully checked.
Key Benefits
Dependable AC motor control: Designed for controlled variable-speed operation in industrial applications.
PowerFlex 700 platform: Part of the established PowerFlex family for industrial drive applications.
Versatile application capability: Suitable for conveyors, pumps, fans, compressors, and material handling systems.
Controlled speed changes: Supports managed acceleration and deceleration for compatible machinery.
Industrial automation integration: Can be incorporated into appropriately engineered machine and process-control systems.
Suitable for replacement projects: Provides an option for compatible PowerFlex 700 maintenance and retrofit requirements.
Consistent motor operation: Proper configuration can help maintain stable motor performance under changing operating conditions.
Cabinet installation: Its physical configuration allows engineers to plan dedicated industrial panel or cabinet space.
Easy model identification: The complete catalog number is useful for equipment selection, maintenance, and replacement work.
Technical FAQs
1. What is the Allen Bradley 20BT144A0ANNAND0?
The 20BT144A0ANNAND0 is an Allen Bradley PowerFlex 700 AC Drive designed to provide variable-speed control for compatible industrial AC motors.
2. What is the purpose of using a PowerFlex 700 AC Drive?
The drive regulates the power supplied to an AC motor, allowing motor speed and acceleration characteristics to be controlled according to the requirements of the connected machine.
3. What industrial applications can use this drive?
Suitable applications can include conveyors, pumps, fans, compressors, material handling systems, processing machinery, and other automated equipment requiring controlled AC motor operation.
4. What should be verified before installing this drive?
Engineers should check the available input power, motor voltage and current, drive configuration, control method, motor wiring, grounding, braking requirements, environmental conditions, and compatibility with the automation system.
5. Why is the complete catalog number important when selecting a replacement?
PowerFlex drives are available in different configurations and ratings. The complete catalog number helps identify the specific unit and reduces the possibility of selecting a drive that does not match the original system.
6. How should motor information be entered during commissioning?
Motor parameters should be based on the actual motor nameplate and application requirements. Correct voltage, current, frequency, speed, and other applicable motor data are important for proper drive operation.
7. What could cause the drive to trip during normal operation?
Possible causes include excessive load, motor overcurrent, unsuitable acceleration or deceleration settings, input power abnormalities, motor wiring problems, insufficient cooling, grounding issues, or incorrect parameters.
8. How can troubleshooting begin when a drive fault occurs?
The displayed fault or alarm should first be identified. Technicians can then check the motor and drive connections, load conditions, power supply, cooling system, and relevant parameters while following appropriate electrical safety procedures.
9. Can this model be used in an existing PowerFlex 700 installation?
It can be considered where the complete system requirements are compatible. Electrical ratings, control configuration, installed options, mechanical installation, and application requirements should be compared before replacement.
10. What preventive maintenance is useful for a PowerFlex 700 drive?
Maintenance can include inspecting terminals and connections, checking cooling and ventilation paths, removing accumulated contamination, monitoring operating temperature, examining the cabinet environment, and reviewing fault or alarm history.
