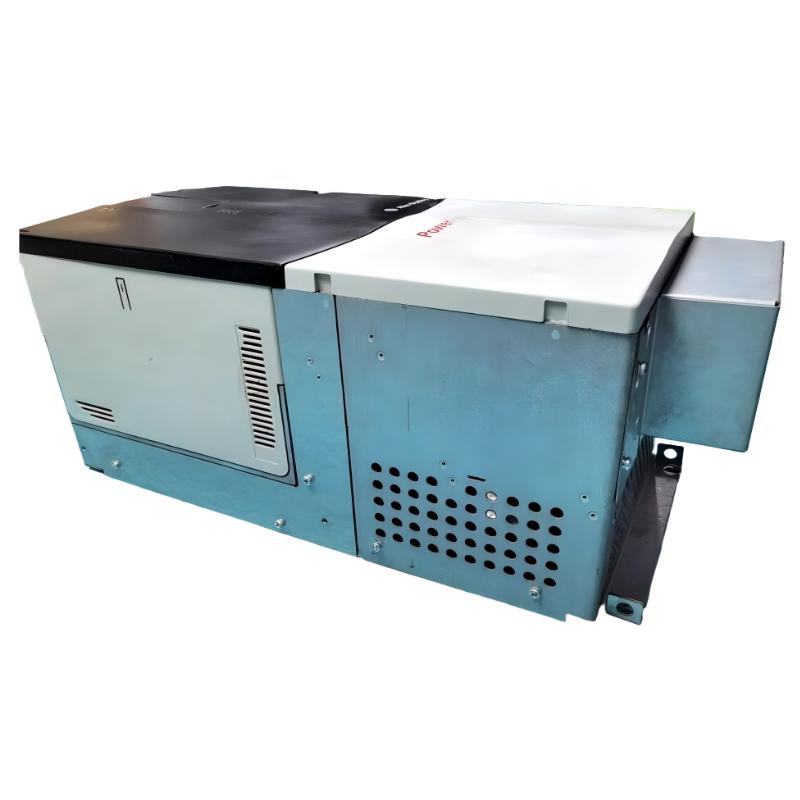

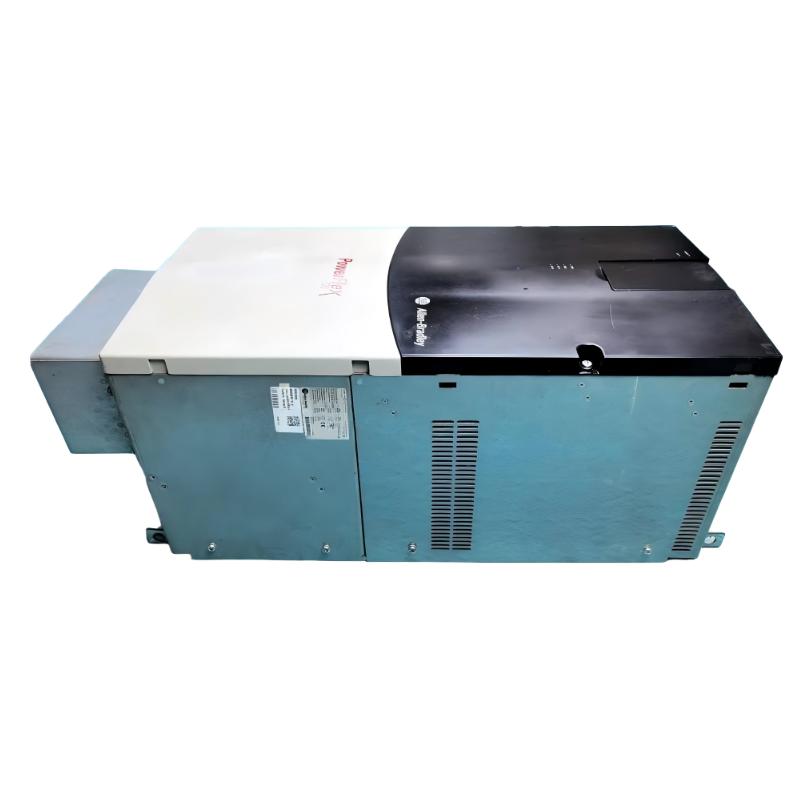

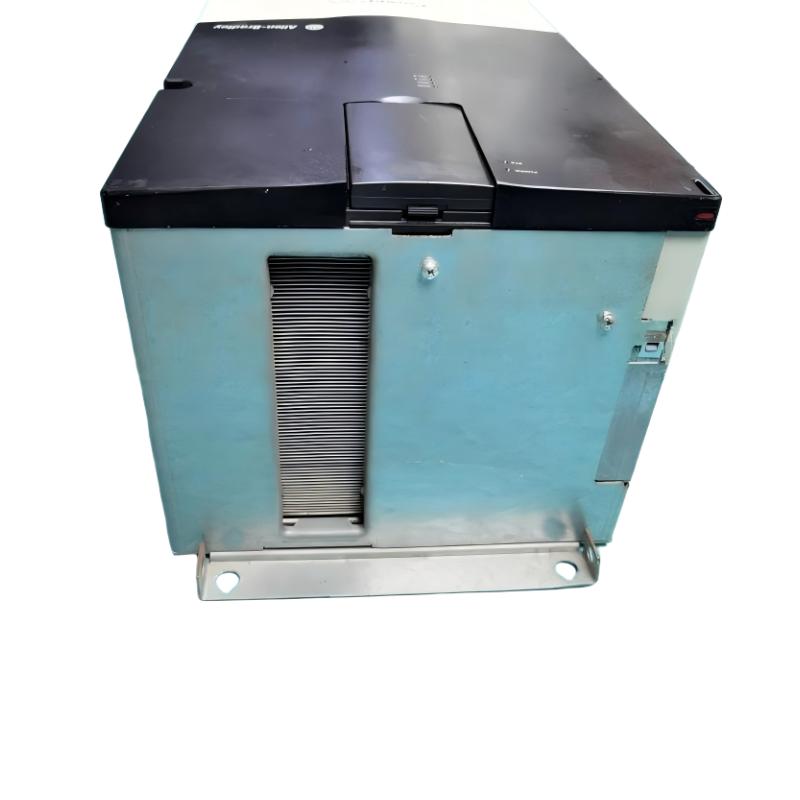

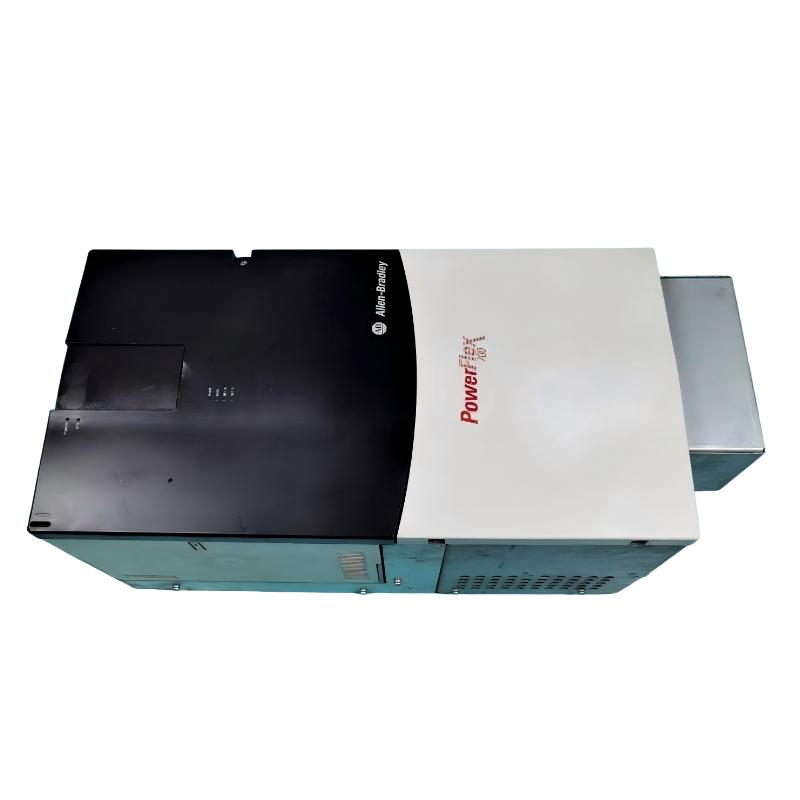

Allen Bradley 20BW052A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BW052A0ANNANC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BW052A0ANNANC0 Product Origin:USA Product Dimensions:689.6 x 308.9 x 275.4 mm Product Weight:37.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BW052A0ANNANC0 PowerFlex 700 AC Drive is an industrial variable-speed drive intended for applications where controlled AC motor operation is required. It can be incorporated into automated machinery, production equipment, material handling systems, and industrial process applications.
Variable-frequency motor control allows machine designers to adjust motor speed to match production requirements. This can be particularly useful in applications where different operating speeds, controlled starting, or managed stopping are required.
The 20BW052A0ANNANC0 has a compact cabinet footprint relative to larger PowerFlex 700 configurations, while still requiring appropriate consideration of electrical clearance, ventilation, cable routing, grounding, and service access during installation.
For maintenance and replacement work, technicians should verify the complete catalog number before ordering. Existing system requirements should also be reviewed to ensure that the selected drive is appropriate for the motor and application.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BW052A0ANNANC0
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
689.6 × 308.9 × 275.4 mm
Weight
37.19 kg (81.99 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
20BE125A0ANNAND0
AC Drive
PowerFlex 700
Popular Related Models
Model
Product Type
Series / Platform
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20BW052A0ANNANC0 PowerFlex 700 AC Drive is a practical solution for industrial motor-control applications requiring dependable variable-speed operation. It can support compatible automated machinery, production equipment, conveyors, pumps, fans, and process systems. For replacement projects, verifying the complete catalog number and matching the drive with the existing motor, power supply, control configuration, and application requirements are important steps toward reliable operation.
Industrial Applications
The Allen Bradley 20BW052A0ANNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications that require dependable variable-speed operation, controlled acceleration and deceleration, and consistent AC motor performance. As part of the PowerFlex 700 family, it can be integrated into a wide range of automated machinery and industrial production systems.
Typical applications include conveyor systems, pumps, fans, compressors, material handling equipment, processing machinery, packaging equipment, and production lines. By controlling motor speed according to the operating requirements of the equipment, the drive can provide greater flexibility than fixed-speed motor operation.
The 20BW052A0ANNANC0 can also be considered for compatible PowerFlex 700 maintenance and replacement projects. Before installation, the complete drive configuration and the electrical requirements of the existing system should be verified.
Key Benefits
Reliable variable-speed operation: Provides controlled speed management for compatible industrial AC motors.
PowerFlex 700 platform: Designed as part of the Allen Bradley PowerFlex 700 family.
Broad industrial applications: Suitable for conveyors, pumps, fans, compressors, and material handling machinery.
Controlled acceleration and deceleration: Helps manage motor speed transitions according to machine requirements.
Flexible automation integration: Can be incorporated into appropriately engineered industrial control systems.
Suitable for retrofit applications: Can be considered for compatible PowerFlex 700 replacement projects.
Stable motor performance: Proper configuration supports consistent operation under changing load conditions.
Industrial cabinet installation: The defined dimensions allow engineers to plan suitable panel and cabinet space.
Practical maintenance identification: The complete catalog number provides a useful reference for service and replacement work.
Technical FAQs
1. What is the Allen Bradley 20BW052A0ANNANC0?
The Allen Bradley 20BW052A0ANNANC0 is a PowerFlex 700 AC Drive designed for variable-speed control of compatible industrial AC motors.
2. What is the primary function of this AC drive?
The drive regulates the electrical power supplied to the motor, allowing motor speed, acceleration, and deceleration to be controlled according to the requirements of the connected equipment.
3. What types of equipment can use the 20BW052A0ANNANC0?
It can be considered for applications such as conveyors, pumps, fans, compressors, material handling equipment, production machinery, and industrial processing systems requiring variable-speed motor control.
4. What information should be checked before installing the drive?
The input power requirements, motor voltage and current, control configuration, motor wiring, grounding, braking requirements, environmental conditions, and automation-system interfaces should be reviewed before installation.
5. Why is the complete catalog number important for replacement applications?
PowerFlex drives are available in different configurations and ratings. Matching the complete catalog number helps technicians identify the intended drive configuration and select a more appropriate replacement.
6. How should motor parameters be configured?
Motor parameters should be entered according to the actual connected motor and its nameplate information. Accurate motor data is important for achieving reliable control and avoiding configuration-related faults.
7. What can cause an AC drive to trip during operation?
Possible causes include motor overload, excessive current, unsuitable acceleration or deceleration settings, input power abnormalities, motor wiring problems, overheating, grounding issues, or incorrect parameter settings.
8. What should a technician check after a drive fault occurs?
The fault indication should first be identified. The technician should then examine the power supply, motor connections, load conditions, cooling system, and relevant configuration parameters while observing appropriate electrical safety procedures.
9. Can the 20BW052A0ANNANC0 be used in a PowerFlex 700 retrofit?
It can be considered for compatible PowerFlex 700 retrofit or replacement applications. The existing drive's electrical characteristics, control configuration, options, and mechanical installation should be compared before replacement.
10. What preventive maintenance is recommended?
Regular maintenance should include checking electrical connections, ventilation and cooling paths, cabinet cleanliness, operating temperature, environmental conditions, and visible signs of component deterioration. Drive alarms and fault history should also be reviewed.
