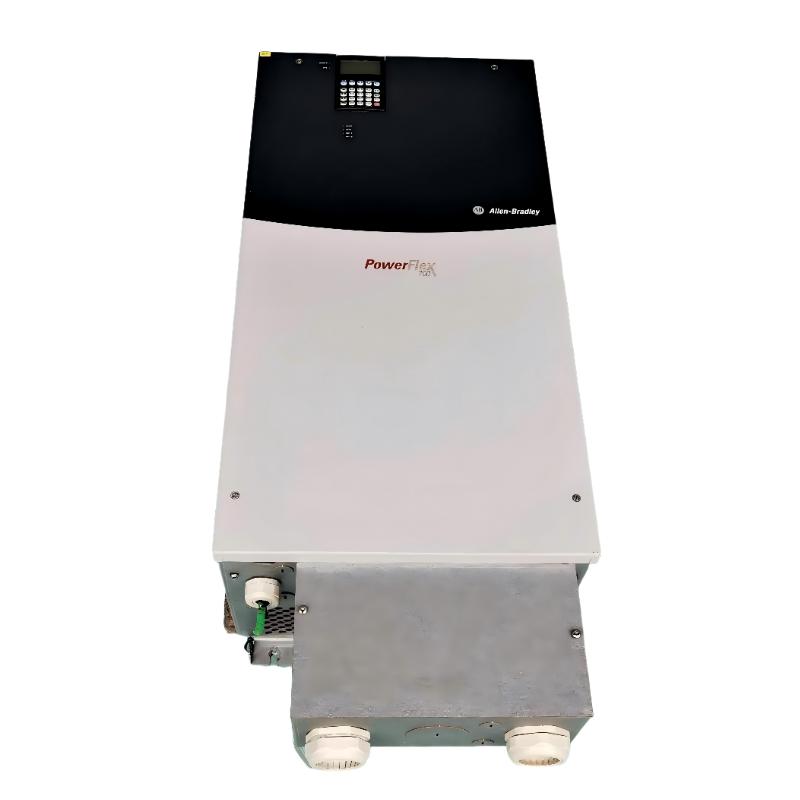

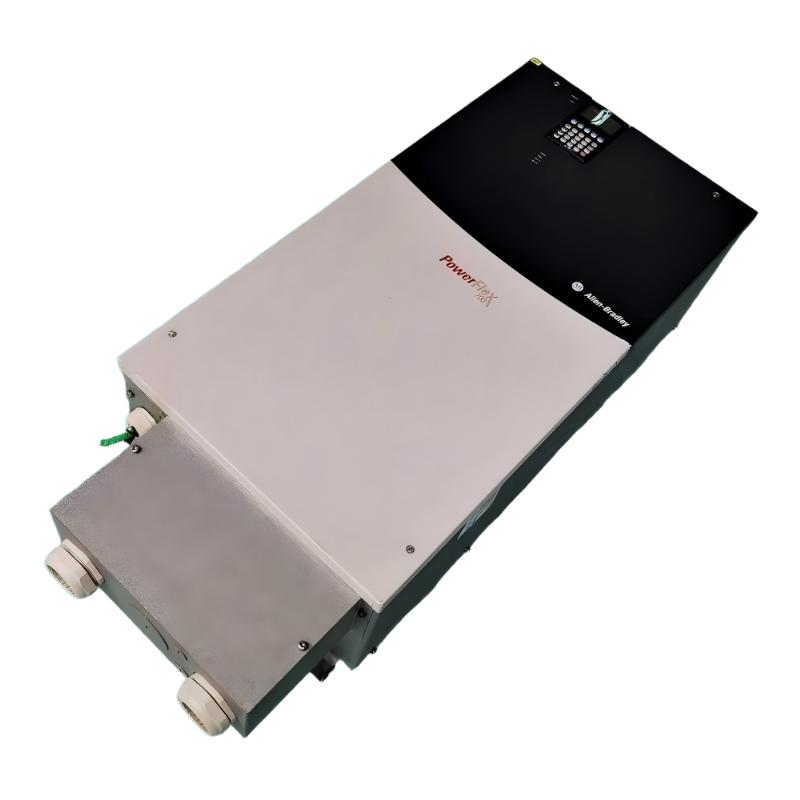

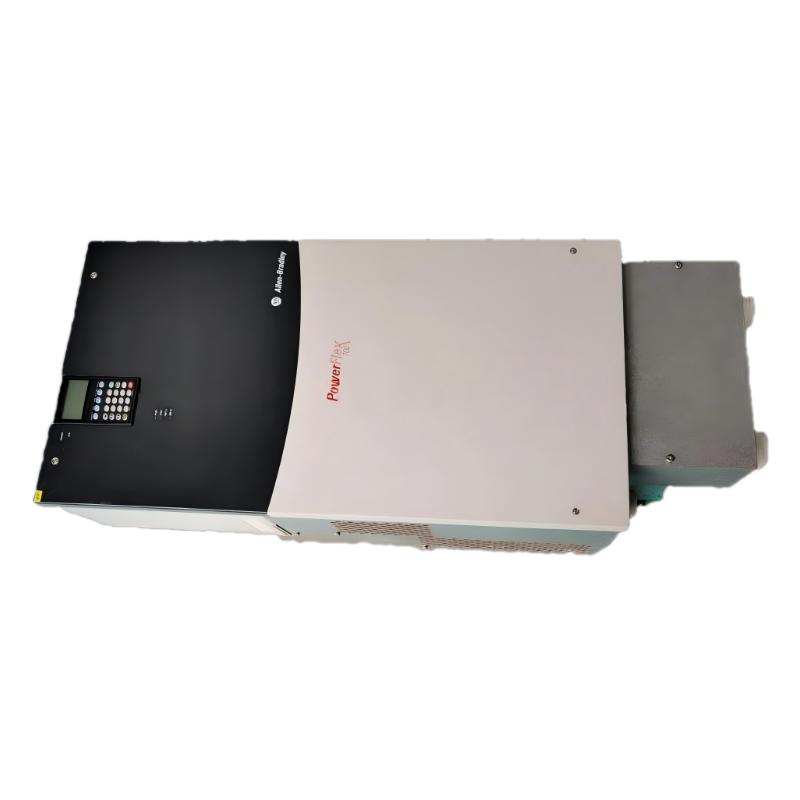

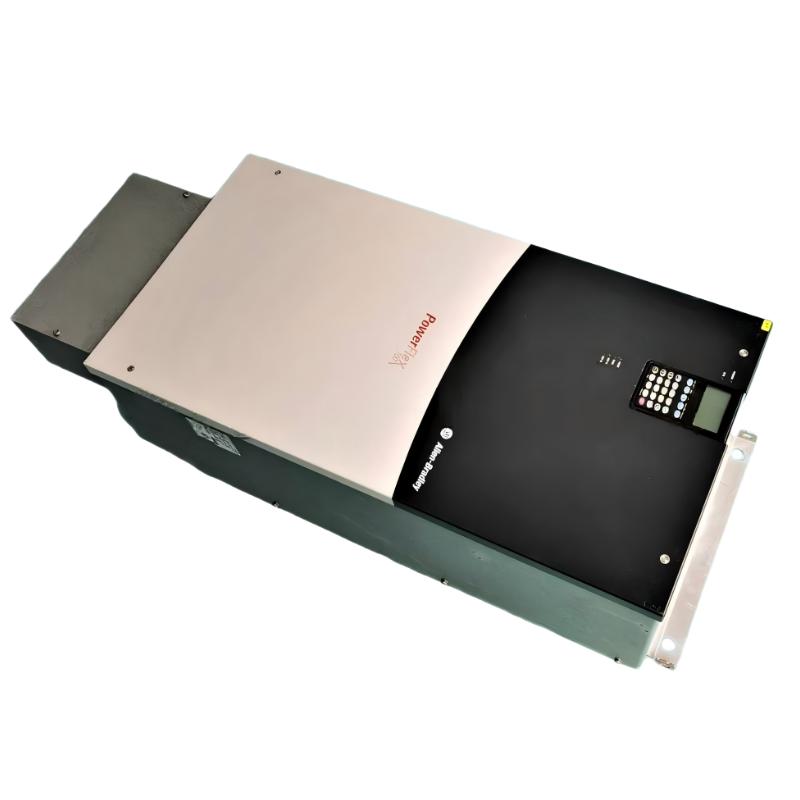

Allen Bradley 20BW098A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BW098A0ANNANC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BW098A0ANNANC0 Product Origin:USA Product Dimensions:976.3 x 403.9 x 275.5 mm Product Weight:71.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BW098A0ANNANC0 PowerFlex 700 AC Drive is an industrial variable-speed drive intended for motor-control applications where controlled and repeatable AC motor operation is important.
By regulating motor operating conditions, an AC drive can provide greater flexibility for machinery that needs different operating speeds or controlled acceleration and stopping. Proper selection and commissioning remain essential, and the drive should be matched to the motor, mechanical load, power system, and control architecture.
The 20BW098A0ANNANC0 has a substantial cabinet installation footprint. Panel designers should provide suitable space for power and control wiring, ventilation, electrical clearances, inspection, and maintenance access.
For replacement applications, checking the complete catalog number of the existing drive is an important first step. The motor and application requirements should then be compared with the replacement drive before commissioning.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BW098A0ANNANC0
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
976.3 × 403.9 × 275.5 mm
Weight
71.44 kg (157.50 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
20BW052A0ANNANC0
AC Drive
PowerFlex 700
Popular Related Models
Model
Product Type
Series / Platform
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20BW098A0ANNANC0 PowerFlex 700 AC Drive is a practical choice for industrial applications requiring controlled variable-speed operation of compatible AC motors. It can be incorporated into suitable production machinery, conveyors, pumps, fans, material handling equipment, and industrial process systems. For maintenance and replacement applications, verifying the complete catalog number and matching the drive with the existing motor and control-system requirements are essential for dependable operation.
Industrial Applications
The Allen Bradley 20BW098A0ANNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications where dependable variable-speed operation, controlled acceleration, and stable motor performance are required. As part of the PowerFlex 700 family, it can be used in automated machinery and industrial systems that rely on controlled AC motor operation.
Typical applications include conveyor systems, pumps, fans, compressors, material handling equipment, processing machinery, packaging systems, and production lines. Variable-frequency motor control allows operating speed to be adjusted to suit different machine and process requirements.
The 20BW098A0ANNANC0 can also be considered for compatible PowerFlex 700 maintenance and replacement projects. Before installation or replacement, the complete catalog number and the electrical, control, and mechanical requirements of the existing system should be verified.
Key Benefits
Reliable variable-speed control: Provides controlled operation for compatible industrial AC motors.
PowerFlex 700 platform: Designed for industrial motor-control and automation applications.
Versatile industrial use: Suitable for conveyors, pumps, fans, compressors, and material handling equipment.
Controlled speed transitions: Supports managed acceleration and deceleration according to application requirements.
Consistent motor operation: Proper configuration can help maintain stable performance under changing operating conditions.
Suitable for retrofit projects: Can be considered for compatible PowerFlex 700 replacement and modernization applications.
Industrial automation integration: Can form part of appropriately engineered machine and process-control systems.
Practical cabinet installation: The specified dimensions provide a clear basis for panel and enclosure planning.
Service-friendly identification: The complete catalog number helps maintenance teams identify the required drive configuration.
Technical FAQs
1. What is the Allen Bradley 20BW098A0ANNANC0?
The Allen Bradley 20BW098A0ANNANC0 is a PowerFlex 700 AC Drive intended for variable-speed control of compatible industrial AC motors.
2. What is the main function of this PowerFlex 700 drive?
It regulates the electrical power supplied to an AC motor, allowing motor speed and acceleration characteristics to be controlled according to the requirements of the connected machinery.
3. What applications are suitable for this drive?
Typical applications can include conveyors, pumps, fans, compressors, material handling systems, production machinery, and industrial processing equipment requiring variable-speed motor control.
4. What should be checked before commissioning the drive?
The connected motor's voltage, current, frequency, speed, and other applicable nameplate information should be verified. Input power, motor wiring, grounding, control configuration, braking requirements, and system compatibility should also be checked.
5. Why should the complete catalog number be verified before replacement?
The PowerFlex product family contains different configurations and ratings. Verifying the complete catalog number helps ensure that the selected replacement matches the requirements of the original installation.
6. How do motor parameters affect drive performance?
Accurate motor parameters allow the drive to apply appropriate control characteristics to the connected motor. Incorrect motor data can contribute to poor performance, excessive current, or drive faults.
7. What are common causes of drive trips?
Potential causes include motor overload, excessive current, inappropriate acceleration or deceleration settings, input power problems, motor wiring faults, overheating, grounding issues, and incorrect configuration parameters.
8. How should technicians approach a drive fault?
The displayed fault or alarm should first be identified and its operating conditions reviewed. Technicians can then inspect power connections, motor wiring, load conditions, cooling, and relevant parameters in a systematic manner.
9. Can the 20BW098A0ANNANC0 be used in an existing PowerFlex 700 system?
It can be considered where the electrical, control, mechanical, and application requirements are compatible. The existing drive configuration should be compared with the replacement unit before installation.
10. What preventive maintenance should be performed on the drive?
Recommended checks include electrical connections, ventilation and cooling paths, cabinet cleanliness, operating temperature, environmental conditions, and visible signs of component deterioration. Reviewing alarms and fault history can also help identify potential problems.
