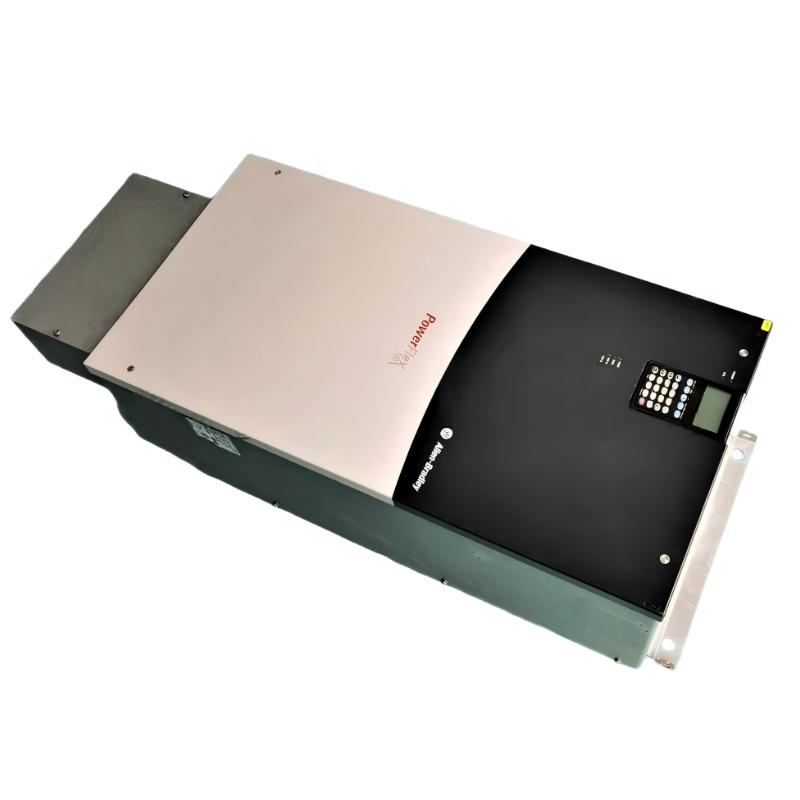

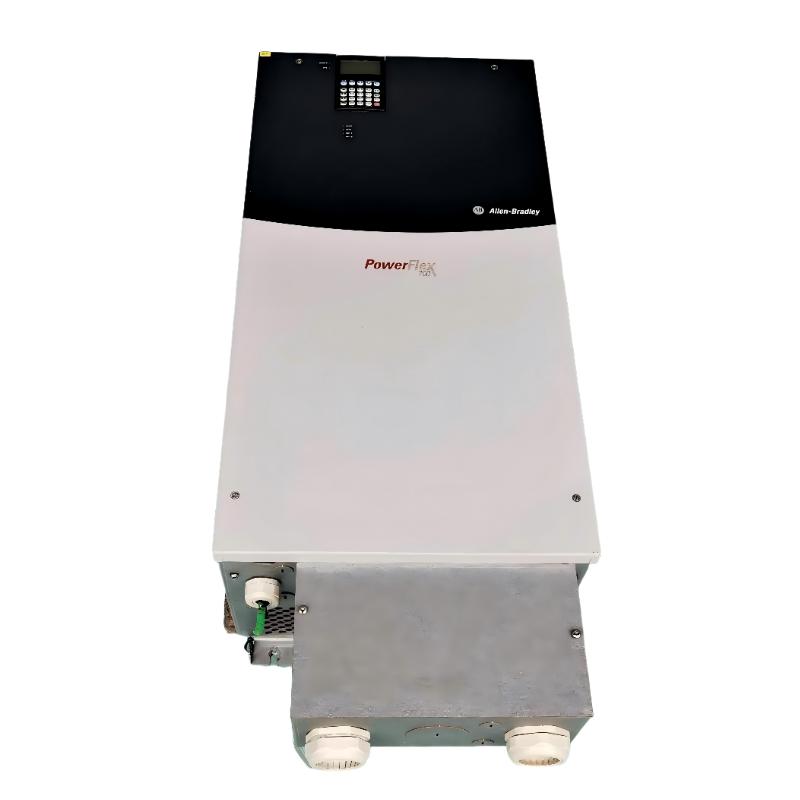

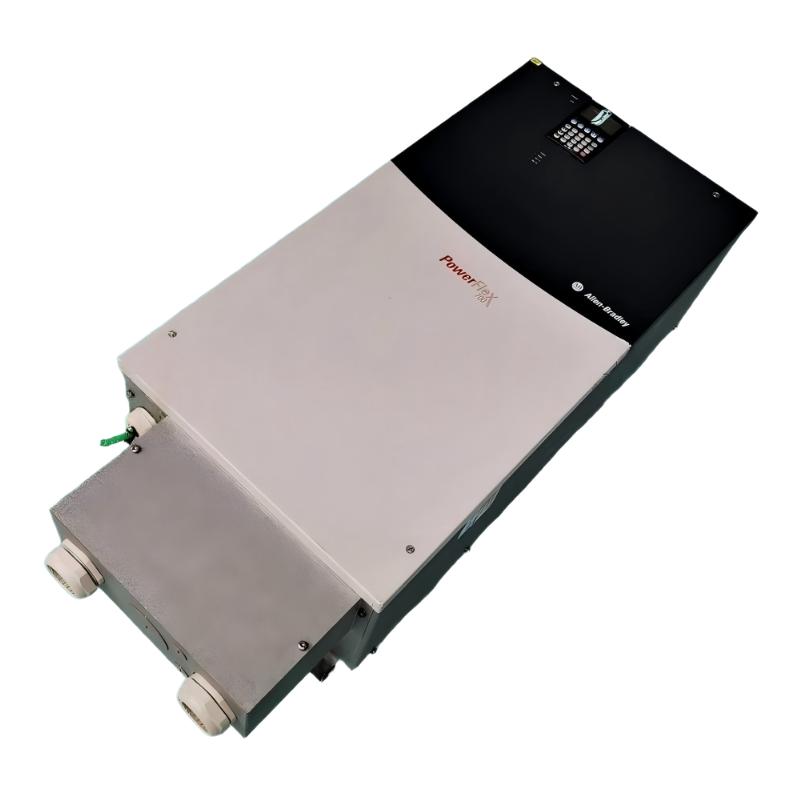

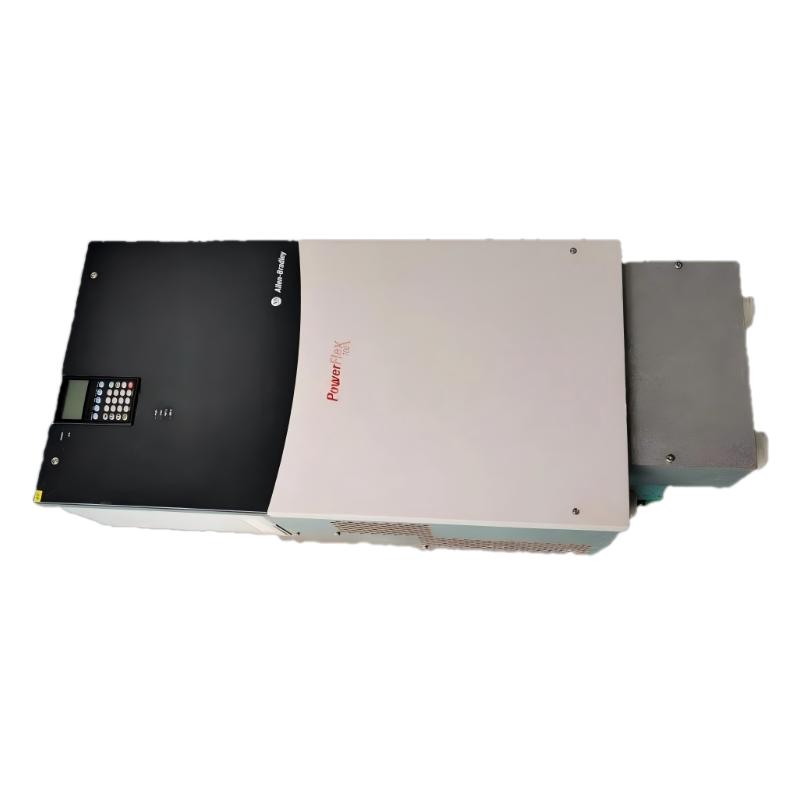

Allen Bradley 20BW142A0ANNANC0 PowerFlex 700 AC Drive
Allen Bradley 20BW142A0ANNANC0 PowerFlex 700 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20BW142A0ANNANC0 Product Origin:USA Product Dimensions:976.3 x 403.9 x 275.5 mm Product Weight:71.44 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20BW142A0ANNANC0 PowerFlex 700 AC Drive is an industrial variable-speed drive intended for applications where controlled AC motor operation is essential to machine performance.
Variable-frequency motor control allows operating speed to be adjusted according to production requirements and can provide controlled motor starting, stopping, acceleration, and deceleration. For reliable operation, the drive should be properly matched to the motor, mechanical load, power supply, and control architecture.
With dimensions of 976.3 × 403.9 × 275.5 mm, the 20BW142A0ANNANC0 requires appropriate cabinet planning. Installation designers should account for electrical clearances, ventilation, cable routing, grounding, inspection, and maintenance access.
For replacement and retrofit work, technicians should record the complete catalog number of the existing drive and compare the configuration before ordering. This is particularly important when the original system contains application-specific options or control interfaces.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700
Model
20BW142A0ANNANC0
Product Type
AC Drive
Drive Family
PowerFlex 700
Application
Industrial AC Motor Control
Control Function
Variable-Speed Motor Control
Dimensions
976.3 × 403.9 × 275.5 mm
Weight
71.44 kg (157.50 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Pumps, Fans, Compressors, Material Handling, Process Machinery
Recommended Related Models
Model
Product Type
Series
20BW052A0ANNANC0
AC Drive
PowerFlex 700
20BW098A0ANNANC0
AC Drive
PowerFlex 700
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
Popular Related Models
Model
Product Type
Series / Platform
20BW052A0ANNANC0
AC Drive
PowerFlex 700
20BW098A0ANNANC0
AC Drive
PowerFlex 700
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20BW142A0ANNANC0 PowerFlex 700 AC Drive is a practical solution for industrial applications requiring controlled variable-speed operation of compatible AC motors. It is suitable for appropriately engineered production machinery, conveyors, pumps, fans, material handling equipment, and process systems. For maintenance or replacement applications, verifying the complete catalog number and matching the drive to the existing motor, power supply, control configuration, and application requirements are essential for dependable operation.
Industrial Applications
The Allen Bradley 20BW142A0ANNANC0 PowerFlex 700 AC Drive is designed for industrial motor-control applications that require reliable variable-speed operation, controlled acceleration and deceleration, and consistent motor performance. As part of the PowerFlex 700 family, it can be integrated into a wide range of automated machinery and industrial production systems.
Typical applications include conveyors, pumps, fans, compressors, material handling equipment, processing machinery, packaging systems, and production lines. Variable-frequency control allows motor speed to be adjusted according to process conditions, helping equipment operate in a controlled and repeatable manner.
The 20BW142A0ANNANC0 can also be considered for compatible PowerFlex 700 maintenance, retrofit, and replacement applications. Before installation, the complete catalog number and the electrical and control requirements of the existing system should be verified.
Key Benefits
Dependable variable-speed control: Provides controlled operation for compatible industrial AC motors.
PowerFlex 700 platform: Designed for industrial motor-control and automation environments.
Broad application flexibility: Suitable for conveyors, pumps, fans, compressors, material handling systems, and processing machinery.
Controlled acceleration and deceleration: Helps manage motor speed changes according to machine requirements.
Consistent motor operation: Correct configuration supports stable performance under changing operating conditions.
Suitable for retrofit applications: Can be considered for compatible PowerFlex 700 replacement projects.
Industrial automation integration: Can be incorporated into appropriately engineered machine and process-control systems.
Practical cabinet planning: The specified dimensions provide a clear reference for control-panel design.
Useful for maintenance: The complete catalog number assists with equipment identification during service and replacement work.
Technical FAQs
1. What is the Allen Bradley 20BW142A0ANNANC0?
The Allen Bradley 20BW142A0ANNANC0 is a PowerFlex 700 AC Drive designed for variable-speed control of compatible industrial AC motors.
2. What is the primary function of this AC drive?
The drive controls the electrical power delivered to an AC motor, allowing motor speed, acceleration, and deceleration to be managed according to the requirements of the connected equipment.
3. What industrial equipment can use this PowerFlex 700 drive?
It can be considered for compatible conveyors, pumps, fans, compressors, material handling equipment, production machinery, and industrial processing systems.
4. What should be verified before commissioning?
Engineers should verify the motor nameplate information, input power, motor wiring, control configuration, grounding, braking requirements, protection settings, and overall compatibility with the machine-control system.
5. Why is the complete catalog number important when selecting a replacement drive?
PowerFlex drives are available in different configurations and ratings. Verifying the complete catalog number helps identify the specific unit required for the application and reduces the risk of selecting an unsuitable replacement.
6. How should motor parameters be configured?
Motor parameters should be entered according to the actual connected motor and its nameplate data. Accurate motor information is important for stable drive control and reliable motor performance.
7. What can cause the drive to trip during operation?
Potential causes include excessive motor load, overcurrent, unsuitable acceleration or deceleration settings, input power abnormalities, motor wiring problems, overheating, grounding issues, or incorrect parameters.
8. What is the recommended approach to troubleshooting a drive fault?
First identify the displayed fault or alarm and determine the operating conditions under which it occurred. Then inspect the power supply, motor connections, mechanical load, cooling conditions, and relevant parameters systematically.
9. Can the 20BW142A0ANNANC0 be used in an existing PowerFlex 700 system?
It can be considered where the existing system is compatible with the drive configuration. Electrical ratings, control interfaces, options, mechanical requirements, and application conditions should be compared before replacement.
10. What preventive maintenance is recommended for this drive?
Maintenance should include inspection of electrical connections, cooling and ventilation paths, cabinet cleanliness, operating temperature, environmental conditions, and visible component deterioration. Alarm and fault history should also be reviewed periodically.
