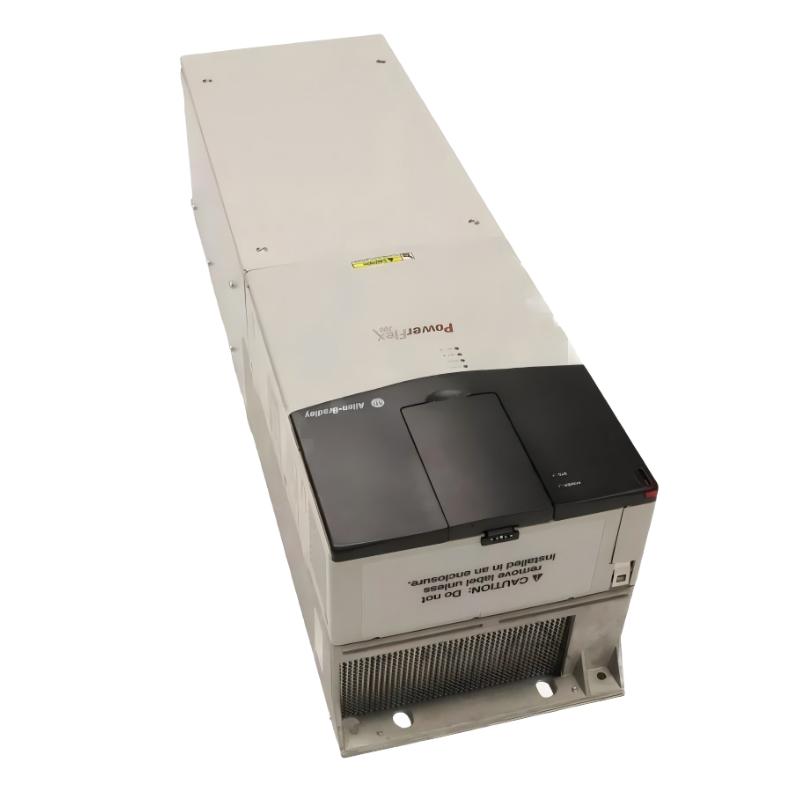

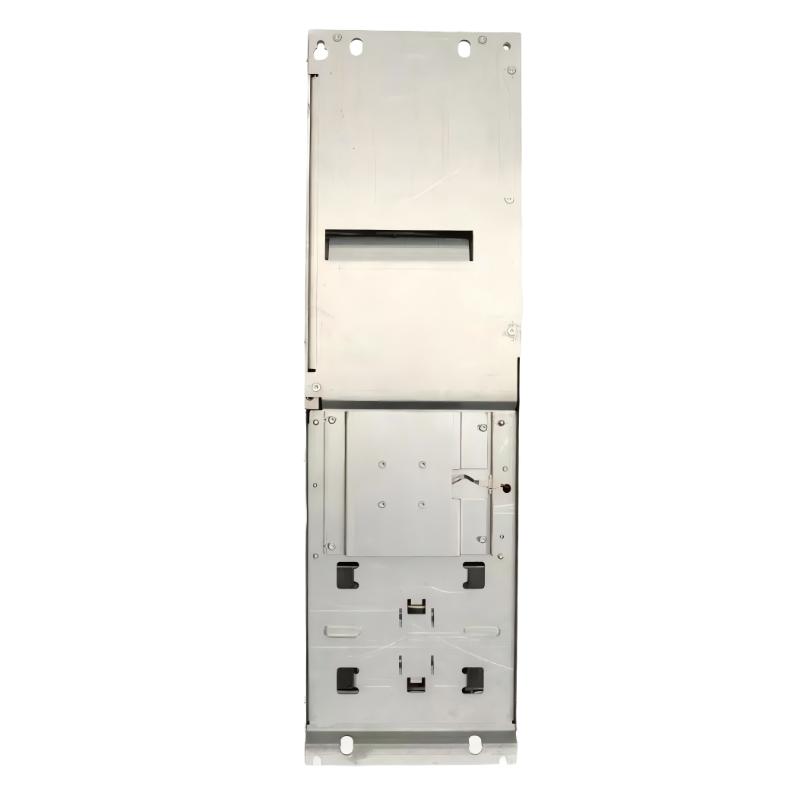

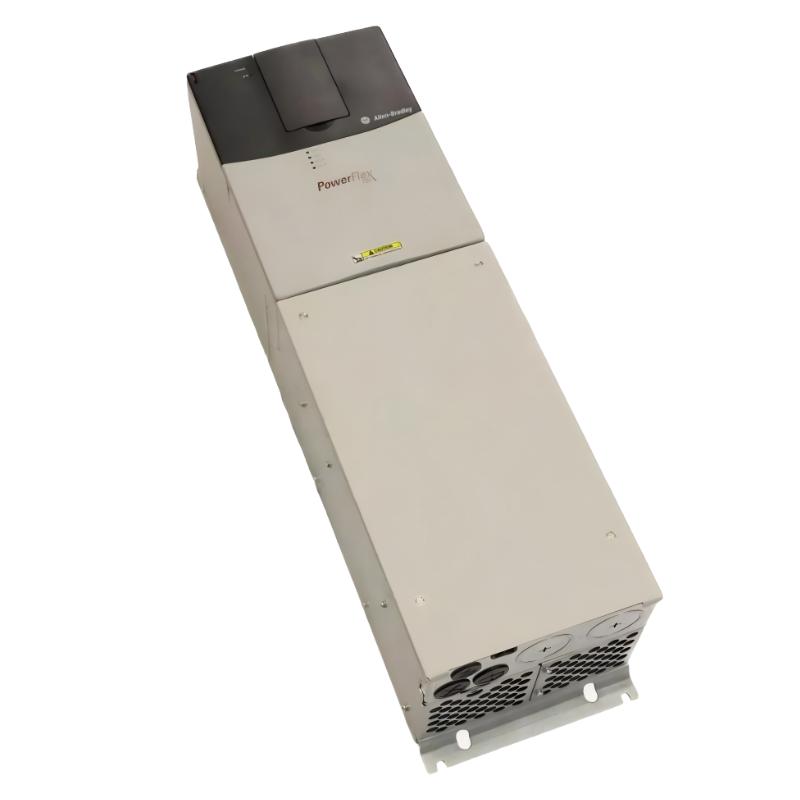

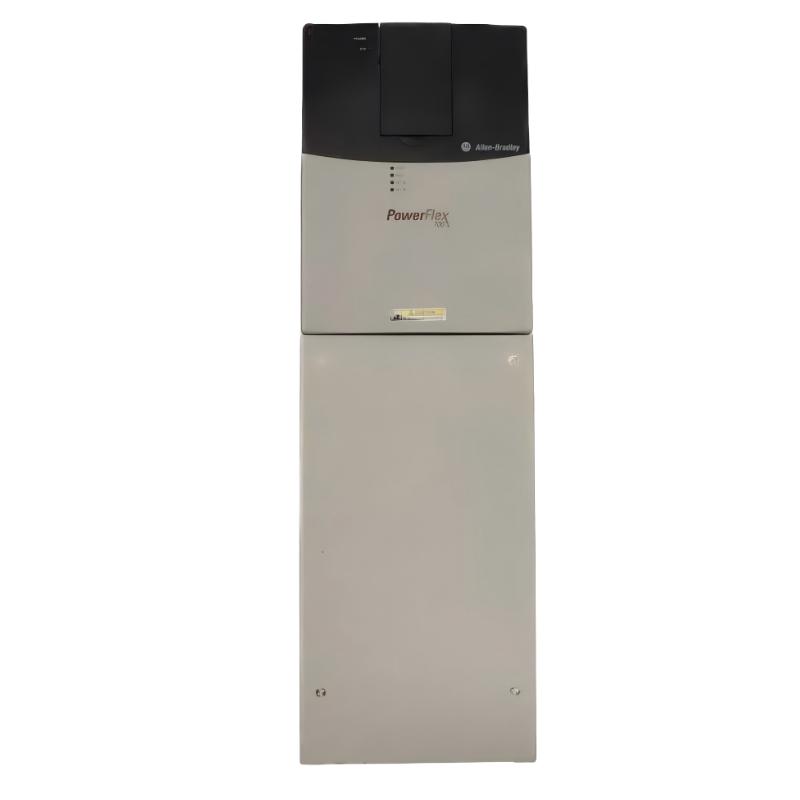

Allen Bradley 20DC085A0ENNANANE PowerFlex 700S AC Drive
Allen Bradley 20DC085A0ENNANANE PowerFlex 700S AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20DC085A0ENNANANE Product Origin:USA Product Dimensions:644.5 x 339.9 x 275.4 mm Product Weight:24.49 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20DC085A0ENNANANE PowerFlex 700S AC Drive is an industrial drive designed for applications where accurate and controlled AC motor operation is an important part of machine performance.
The PowerFlex 700S platform is suited to industrial systems that require advanced drive control and coordination with automation equipment. It can be incorporated into appropriately engineered machinery and process systems where motor speed and operating characteristics need to be managed according to production requirements.
With dimensions of 644.5 × 339.9 × 275.4 mm and a weight of 24.49 kg, the drive requires appropriate consideration during cabinet design and installation. Engineers should provide adequate space for electrical connections, cooling, cable routing, inspection, and maintenance.
For replacement applications, the complete 20DC085A0ENNANANE catalog number should be verified before procurement. The existing system configuration should also be reviewed to ensure that the replacement drive is appropriate for the motor, control system, and application.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700S
Model
20DC085A0ENNANANE
Product Type
AC Drive
Drive Family
PowerFlex 700S
Application
Industrial AC Motor Control
Control Function
Advanced Variable-Speed Motor Control
Dimensions
644.5 × 339.9 × 275.4 mm
Weight
24.49 kg (54.00 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Material Handling, Production Machinery, Process Equipment
Recommended Related Models
Model
Product Type
Series
20DC085A0ENNANANE
AC Drive
PowerFlex 700S
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BW052A0ANNANC0
AC Drive
PowerFlex 700
Popular Related Models
Model
Product Type
Series / Platform
20DC085A0ENNANANE
AC Drive
PowerFlex 700S
20BW098A0ANNANC0
AC Drive
PowerFlex 700
20BW142A0ANNANC0
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
20F1ANC205JA0NNNNN
AC Drive
PowerFlex 753
The Allen Bradley 20DC085A0ENNANANE PowerFlex 700S AC Drive is a suitable industrial motor-control solution for applications requiring advanced and controlled AC motor operation. Its PowerFlex 700S platform makes it appropriate for compatible production machinery, material handling systems, conveyors, and industrial process equipment. For retrofit or replacement projects, careful verification of the complete catalog number, motor requirements, control configuration, and installation conditions is recommended before commissioning.
Industrial Applications
The Allen Bradley 20DC085A0ENNANANE PowerFlex 700S AC Drive is designed for demanding industrial motor-control applications where precise speed regulation, controlled motor performance, and integration with automated equipment are important. The PowerFlex 700S platform is intended for applications requiring more advanced control capabilities than conventional general-purpose variable-frequency drive applications.
The drive can be used in industrial machinery such as conveyors, material handling systems, processing equipment, production machinery, pumps, fans, and other motor-driven systems where coordinated and controlled motor operation is required.
The 20DC085A0ENNANANE can also be considered for suitable maintenance and replacement projects involving PowerFlex 700S installations. Before replacing an existing unit, the complete catalog number, motor requirements, control architecture, and installed options should be carefully checked.
Key Advantages
Advanced motor-control platform: Designed for industrial applications requiring controlled and responsive AC motor operation.
PowerFlex 700S architecture: Developed for applications where precise drive control and system integration are important.
Flexible industrial use: Suitable for production machinery, conveyors, material handling, and process equipment.
Controlled speed performance: Supports applications where stable motor speed and coordinated machine operation are required.
Automation integration: Can be incorporated into appropriately engineered industrial control architectures.
Suitable for demanding applications: Designed for industrial systems where drive performance is an important part of overall machine operation.
Retrofit potential: Can be considered for compatible PowerFlex 700S replacement and modernization projects.
Practical installation footprint: The specified dimensions provide a useful reference for cabinet and panel planning.
Maintenance identification: The complete catalog number is important when sourcing a replacement or servicing an existing installation.
Technical FAQs
1. What is the Allen Bradley 20DC085A0ENNANANE?
The Allen Bradley 20DC085A0ENNANANE is a PowerFlex 700S AC Drive designed for advanced industrial AC motor-control applications.
2. What distinguishes the PowerFlex 700S from a general-purpose AC drive?
The PowerFlex 700S platform is intended for applications requiring advanced motor-control performance, coordinated operation, and integration with industrial automation systems.
3. What types of applications can use the 20DC085A0ENNANANE?
Potential applications include material handling equipment, conveyors, production machinery, process equipment, pumps, fans, and other compatible industrial motor-driven systems.
4. What should be verified before commissioning this drive?
The connected motor's electrical ratings, control requirements, feedback configuration where applicable, drive parameters, power connections, motor wiring, grounding, and overall system architecture should be checked before commissioning.
5. Why is the full catalog number important when replacing a PowerFlex 700S drive?
The complete catalog number identifies the specific drive configuration. PowerFlex products can differ in ratings, options, and application features, so the full model number should be matched carefully during replacement.
6. How do incorrect drive parameters affect motor performance?
Incorrect parameters can lead to unstable speed regulation, excessive current, poor acceleration or deceleration behavior, unexpected trips, or reduced system performance. Parameters should be configured according to the connected motor and application.
7. What can cause a PowerFlex 700S drive to fault?
Possible causes include excessive load, motor overcurrent, incorrect parameters, power-supply abnormalities, motor wiring problems, insufficient cooling, grounding issues, or problems associated with the control and feedback configuration.
8. How should a technician troubleshoot an unexpected drive trip?
The fault code and operating conditions should be identified first. The technician can then systematically inspect the power supply, motor circuit, mechanical load, cooling conditions, configuration parameters, and applicable control or feedback signals.
9. Can this model be used for PowerFlex 700S retrofit applications?
It can be considered for compatible PowerFlex 700S applications, provided that the electrical ratings, control architecture, installed options, motor requirements, and mechanical installation are properly matched.
10. What preventive maintenance is recommended for this type of drive?
Preventive maintenance should include inspection of electrical connections, cooling and ventilation paths, cabinet cleanliness, operating temperature, environmental conditions, and signs of component deterioration. Fault and alarm history should also be reviewed regularly.
