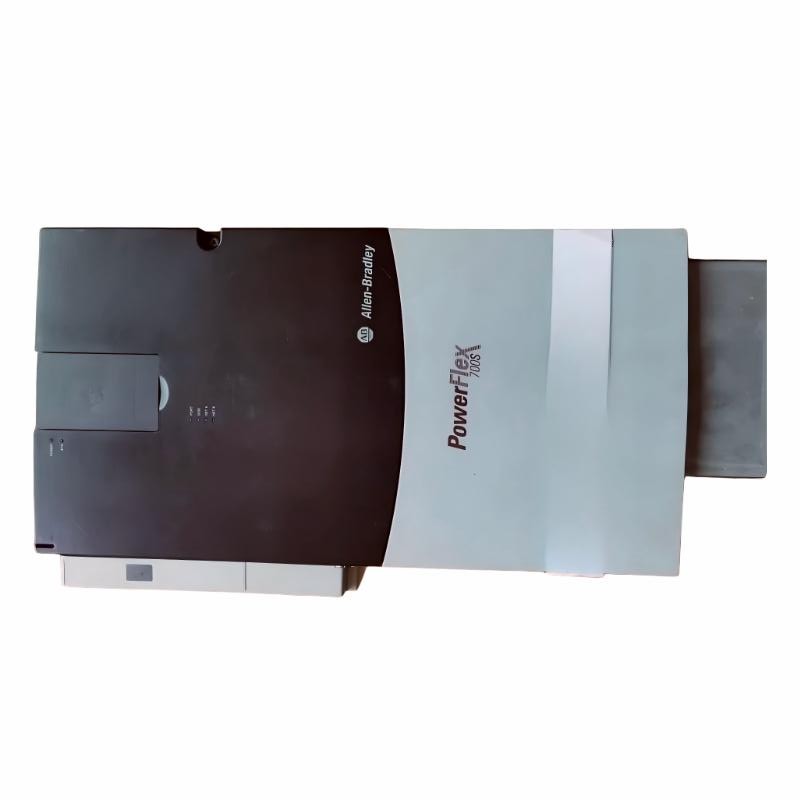

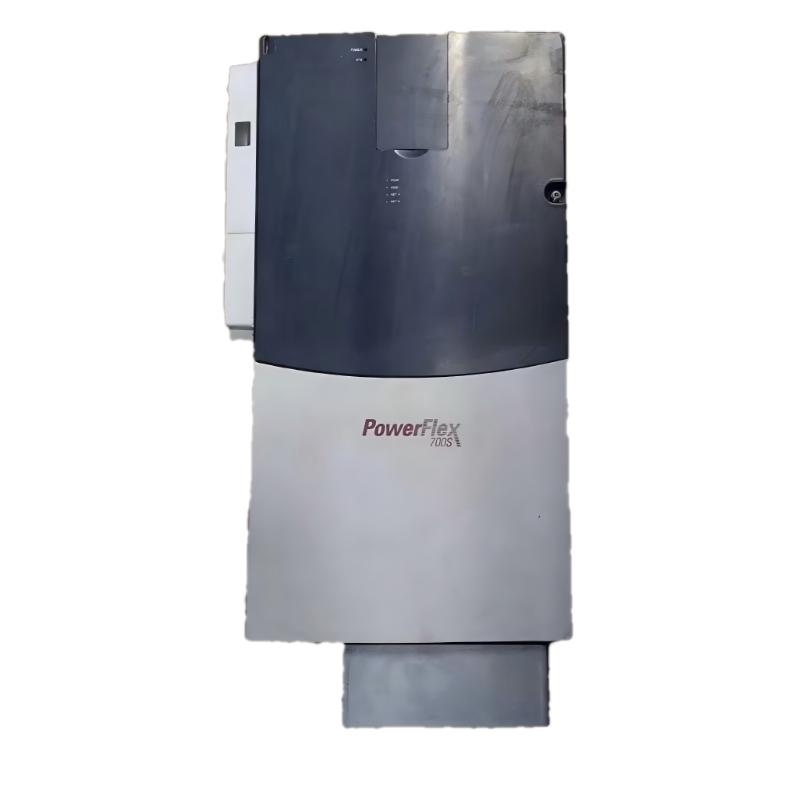

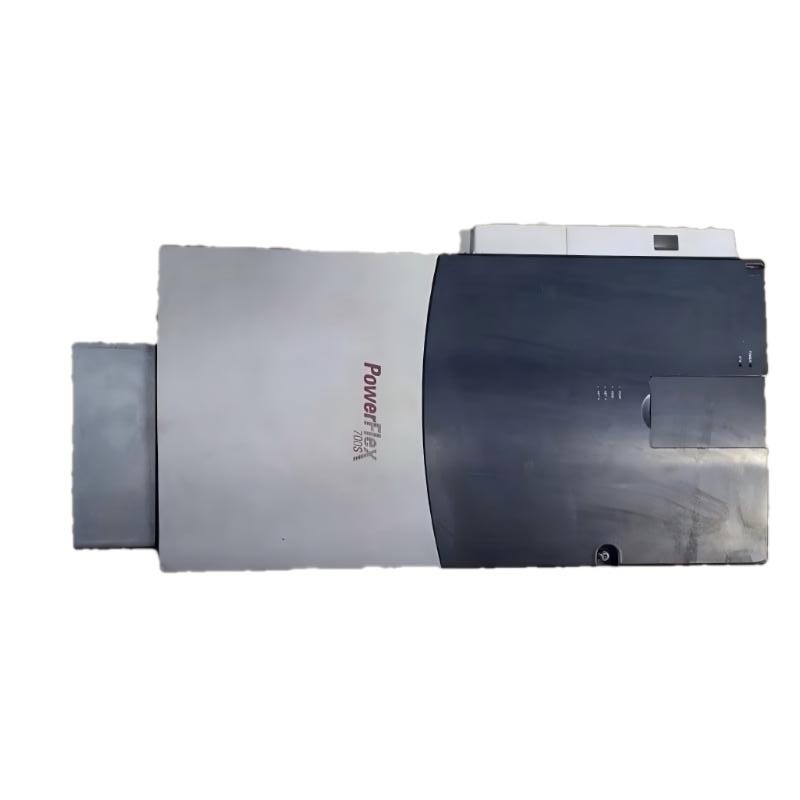

Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive
Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20DC125A0ENNANANE Product Origin:USA Product Dimensions:758.8 x 251.9 x 201.7 mm Product Weight:37.19 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive is an industrial variable-speed drive intended for applications requiring advanced control of compatible AC motors. It can be incorporated into automated machinery and industrial process systems where motor speed and operating behavior need to be carefully managed.
The PowerFlex 700S platform is particularly relevant to applications where drive control is an important part of overall machine performance. Proper configuration allows the drive and motor to operate according to the requirements of the mechanical load and production process.
With dimensions of 758.8 × 251.9 × 201.7 mm, the 20DC125A0ENNANANE requires appropriate consideration during cabinet and panel design. Adequate space should be provided for electrical connections, cooling, cable routing, inspection, and maintenance access.
For replacement applications, technicians should confirm the complete catalog number before ordering. The existing motor, drive configuration, control architecture, and application requirements should then be compared with the replacement unit.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Series
PowerFlex 700S
Model
20DC125A0ENNANANE
Product Type
AC Drive
Drive Family
PowerFlex 700S
Application
Industrial AC Motor Control
Control Function
Advanced Variable-Speed Motor Control
Dimensions
758.8 × 251.9 × 201.7 mm
Weight
37.19 kg (81.99 lb)
Installation
Industrial Control Cabinet / Panel
Typical Applications
Conveyors, Material Handling, Production Machinery, Processing Equipment
Recommended Related Models
Model
Product Type
Series
20DC085A0ENNANANE
AC Drive
PowerFlex 700S
20BR125A3ANNANC0
AC Drive
PowerFlex 700
20BR156A0ANNANC0
AC Drive
PowerFlex 700
20BR180A0ANNANC1
AC Drive
PowerFlex 700
20BW098A0ANNANC0
AC Drive
PowerFlex 700
Popular Related Models
Model
Product Type
Series / Platform
20DC085A0ENNANANE
AC Drive
PowerFlex 700S
20DC125A0ENNANANE
AC Drive
PowerFlex 700S
20BW052A0ANNANC0
AC Drive
PowerFlex 700
20BW142A0ANNANC0
AC Drive
PowerFlex 700
20BT144A0ANNAND0
AC Drive
PowerFlex 700
The Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive is designed for industrial applications requiring controlled and advanced AC motor operation. It can be used in compatible production machinery, conveyors, material handling systems, and industrial process equipment. For maintenance and retrofit projects, verifying the complete catalog number and matching the drive with the existing motor, control configuration, and application requirements are essential steps toward reliable operation.
Industrial Applications
The Allen Bradley 20DC125A0ENNANANE PowerFlex 700S AC Drive is designed for industrial motor-control applications where advanced variable-speed control, accurate motor regulation, and dependable machine operation are important. As part of the PowerFlex 700S family, it is intended for applications that require more sophisticated drive control than basic motor-speed regulation.
The drive can be used in industrial machinery, conveyors, material handling systems, production equipment, processing machinery, and other motor-driven applications where controlled speed and coordinated machine operation are required.
The 20DC125A0ENNANANE can also be considered for compatible PowerFlex 700S maintenance and replacement projects. Before installation, engineers should verify the complete catalog number, motor characteristics, control configuration, and requirements of the existing system.
Key Benefits
Advanced motor control: Designed for industrial applications requiring controlled and responsive AC motor operation.
PowerFlex 700S platform: Provides a drive architecture intended for advanced industrial automation applications.
Flexible application range: Suitable for production machinery, conveyors, material handling, and process equipment.
Controlled speed regulation: Helps machinery maintain the required motor operating speed.
Managed acceleration and deceleration: Supports controlled motor speed transitions for compatible applications.
Industrial automation integration: Can be incorporated into appropriately engineered control architectures.
Suitable for retrofit projects: Can be considered for compatible PowerFlex 700S replacement and modernization applications.
Practical cabinet installation: The specified dimensions provide an important reference for panel and enclosure planning.
Service-friendly identification: The complete catalog number assists with equipment selection and maintenance.
Technical FAQs
1. What is the Allen Bradley 20DC125A0ENNANANE?
The Allen Bradley 20DC125A0ENNANANE is a PowerFlex 700S AC Drive designed for advanced variable-speed control of compatible industrial AC motors.
2. What is the primary purpose of the PowerFlex 700S?
The PowerFlex 700S is intended to provide advanced control of AC motor operation in industrial applications where precise and coordinated drive performance is required.
3. What types of equipment can use this drive?
Applications can include conveyors, material handling systems, production machinery, processing equipment, and other compatible motor-driven industrial systems.
4. What should be checked before commissioning the 20DC125A0ENNANANE?
The motor's rated voltage, current, frequency, speed, control requirements, power connections, motor wiring, grounding, feedback configuration where applicable, and drive parameters should be verified.
5. Why is the complete catalog number important during replacement?
The complete catalog number identifies the specific drive configuration. Different PowerFlex models can vary in electrical ratings and available configurations, so the full catalog number should be checked before selecting a replacement.
6. How do motor parameters influence drive performance?
Accurate motor parameters allow the drive to apply suitable control characteristics to the connected motor. Incorrect parameters can contribute to unstable operation, excessive current, unexpected trips, or poor speed regulation.
7. What are common causes of a PowerFlex 700S fault?
Potential causes include excessive load, overcurrent, incorrect parameters, input power problems, motor wiring faults, overheating, grounding issues, and problems associated with control or feedback signals.
8. What is a logical troubleshooting sequence for a drive fault?
Technicians should first identify the fault or alarm condition and review when it occurred. The power supply, motor circuit, mechanical load, cooling system, drive parameters, and relevant control signals can then be checked systematically.
9. Can the 20DC125A0ENNANANE be used in a PowerFlex 700S retrofit?
It can be considered for compatible PowerFlex 700S retrofit applications. The existing system should be reviewed carefully to confirm electrical, mechanical, control, and application compatibility.
10. What preventive maintenance is recommended?
Routine maintenance should include inspection of power and control connections, cooling and ventilation paths, cabinet cleanliness, operating temperature, environmental conditions, and visible signs of component deterioration. Drive alarms and fault history should also be reviewed.
