Brand:Allen Bradley PLC Item No.:MPL-A1520U-HJ74AA Product Origin:USA Product Dimensions:Frame Size: 63 mm Product Weight:1.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

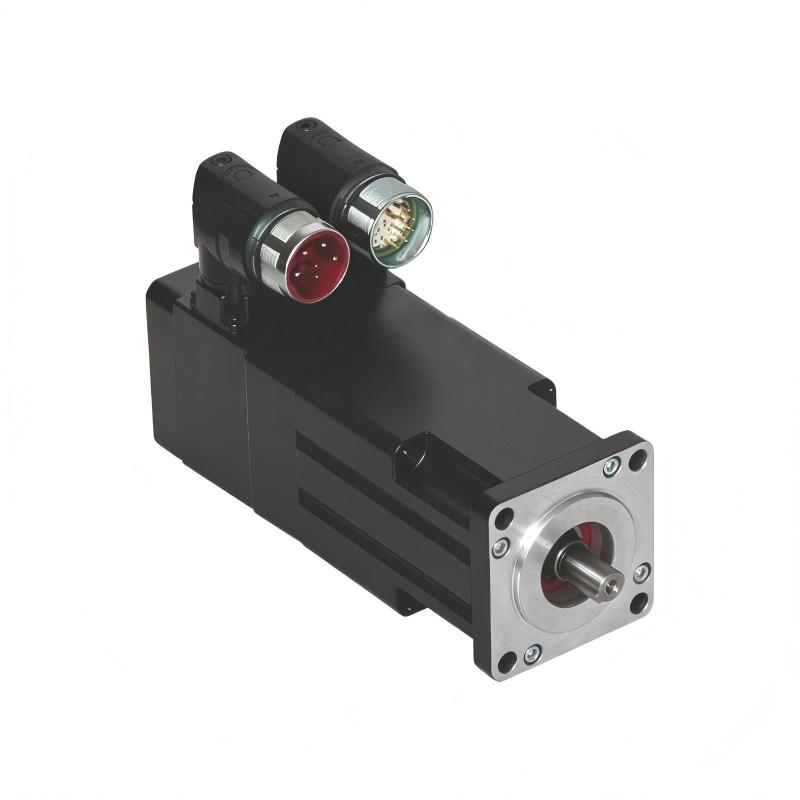

The Allen Bradley MPL-A1520U-HJ74AA is part of the Allen Bradley MPL family of servo motors developed for industrial automation and motion-control applications. Unlike a conventional motor intended primarily for continuous-speed operation, a servo motor is integrated with a drive and feedback system to provide controlled and repeatable machine movement.
Its 63 mm frame size makes the MPL-A1520U-HJ74AA suitable for compact machine designs. At 1.20 kg, it is also appropriate for applications where motor weight contributes to the total moving mass of the mechanism.
A complete servo axis normally consists of the motor, compatible servo drive, motion controller, feedback system, and mechanical transmission. The final performance of the axis therefore depends on correct component selection, motor sizing, parameter configuration, and mechanical installation.
For maintenance or replacement applications, the complete MPL-A1520U-HJ74AA model number should be compared with the existing motor. Particular attention should be given to the feedback arrangement, shaft and mounting configuration, electrical requirements, and servo-drive compatibility.
Technical Specifications
Specification
Details
Brand
Allen Bradley
Model
MPL-A1520U-HJ74AA
Product Family
MPL Series
Product Type
Servo Motor
Frame Size
63 mm
Application
Industrial motion control
Motor Type
Servo Motor
Weight
1.20 kg / 2.65 lb
The 63 mm frame size provides a compact mechanical footprint for motion-control equipment. The 1.20 kg weight should be included when calculating the total mass and dynamic requirements of the driven mechanism.
Recommended Related Models
The following Allen Bradley MPL series servo motors are relevant for related motion-control applications:
Model
Product Type
MPL-A1520U-HJ72AA
Servo Motor
MPL-A1520U-HJ74AA
Servo Motor
MPL-A420P-HK72AA
Servo Motor
MPL-B310P-HJ72AA
Servo Motor
Although these models belong to the same servo-motor family, they should not automatically be treated as interchangeable. Electrical characteristics, feedback, mechanical mounting, shaft configuration, and drive compatibility should be confirmed before selecting a replacement.
Popular Related Models
For Allen Bradley motion-control maintenance and automation applications, other MPL series servo motors may also be considered:
Model
Product Type
MPL-A1520U-HJ72AA
Servo Motor
MPL-A1520U-HJ74AA
Servo Motor
MPL-A420P-HK72AA
Servo Motor
MPL-B310P-HJ72AA
Servo Motor
The Allen Bradley MPL-A1520U-HJ74AA combines a compact 63 mm frame with a lightweight 1.20 kg design, making it suitable for precision motion applications where space, repeatability, and controlled motor response are important. For replacement projects, verifying the complete motor model and compatibility with the existing motion-control system is essential.
Industrial Applications
The Allen Bradley MPL-A1520U-HJ74AA is a compact servo motor designed for industrial motion-control systems where accurate movement, repeatable positioning, and responsive motor control are required. With a 63 mm frame size and a lightweight 1.20 kg construction, it is well suited to automated machinery where installation space and moving mass are important design considerations.
Typical applications include packaging machinery, automated assembly equipment, indexing systems, pick-and-place mechanisms, material-handling equipment, labeling machines, and compact positioning axes. The motor can also be used in multi-axis automation systems where several servo axes must operate together under coordinated control.
The MPL-A1520U-HJ74AA is intended for applications where the motor must respond accurately to changing speed, position, and torque commands. When properly paired with a compatible Allen Bradley servo drive and motion controller, it can provide the controlled movement required for repeatable machine cycles.
Key Benefits
Compact 63 mm frame size
The 63 mm frame provides a practical solution for machinery with limited mounting space. Its compact construction can simplify integration into smaller motion assemblies.
Lightweight 1.20 kg design
The low motor weight is advantageous for moving axes and compact mechanisms where reducing total mechanical mass can contribute to better dynamic performance.
Precise motion control
The MPL series is intended for closed-loop motion applications where accurate control of motor movement is more important than simple constant-speed operation.
Suitable for automated production equipment
The motor can be incorporated into packaging, assembly, indexing, positioning, and material-handling systems that require repeatable machine movement.
Compatible with industrial motion architectures
When used with the appropriate Allen Bradley servo drive and controller, the motor can operate as part of an integrated motion-control system.
Practical replacement option
The MPL-A1520U-HJ74AA can be considered for maintenance and replacement projects involving compatible Allen Bradley motion systems. The complete catalog number and system requirements should be checked before installation.
Technical FAQs
1. What is the Allen Bradley MPL-A1520U-HJ74AA used for?
The MPL-A1520U-HJ74AA is a servo motor for industrial motion-control applications. It is suitable for automated machinery requiring controlled speed, positioning, acceleration, and repeatable movement.
2. What types of machines can use this servo motor?
Typical applications include packaging machines, automated assembly equipment, indexing mechanisms, pick-and-place systems, conveyors, and compact positioning equipment.
3. Why is closed-loop control important in a servo system?
Closed-loop control allows the controller and drive to monitor actual motor operation and compare it with the commanded motion. This enables corrective action and supports accurate positioning and speed control.
4. Can this motor be used as one axis in a multi-axis system?
Yes. Servo motors are commonly used as individual axes within coordinated motion systems. The complete system must be configured according to the motor, drive, mechanical load, and required motion profile.
5. What should be verified before replacing an existing MPL servo motor?
Technicians should verify the complete catalog number, electrical characteristics, feedback configuration, mounting arrangement, shaft configuration, required torque and speed, and compatibility with the existing servo drive.
6. What can cause a servo motor to overheat during operation?
Excessive mechanical load, frequent high-torque operation, inappropriate acceleration settings, insufficient cooling, incorrect motor parameters, or mechanical resistance can contribute to excessive motor temperature.
7. What should be checked when the servo motor does not rotate?
Check the servo enable signal, drive status, active faults, motor power wiring, feedback connection, motion command, controller status, and mechanical restrictions. Drive diagnostic information should be reviewed before concluding that the motor itself has failed.
8. What causes servo positioning inaccuracies?
Positioning problems can be associated with incorrect control parameters, mechanical backlash, coupling problems, excessive load, feedback problems, unsuitable acceleration profiles, or incorrect drive configuration.
9. Why must the servo motor and drive be correctly matched?
The drive must be compatible with the motor's electrical and feedback characteristics. Correct matching allows the drive to apply appropriate control parameters and maintain stable motor operation.
10. What is important during commissioning of the MPL-A1520U-HJ74AA?
The motor wiring, feedback connection, drive configuration, motor data, mechanical installation, and motion parameters should all be verified. Initial testing should be performed at controlled speeds and loads before the machine is returned to full production.
