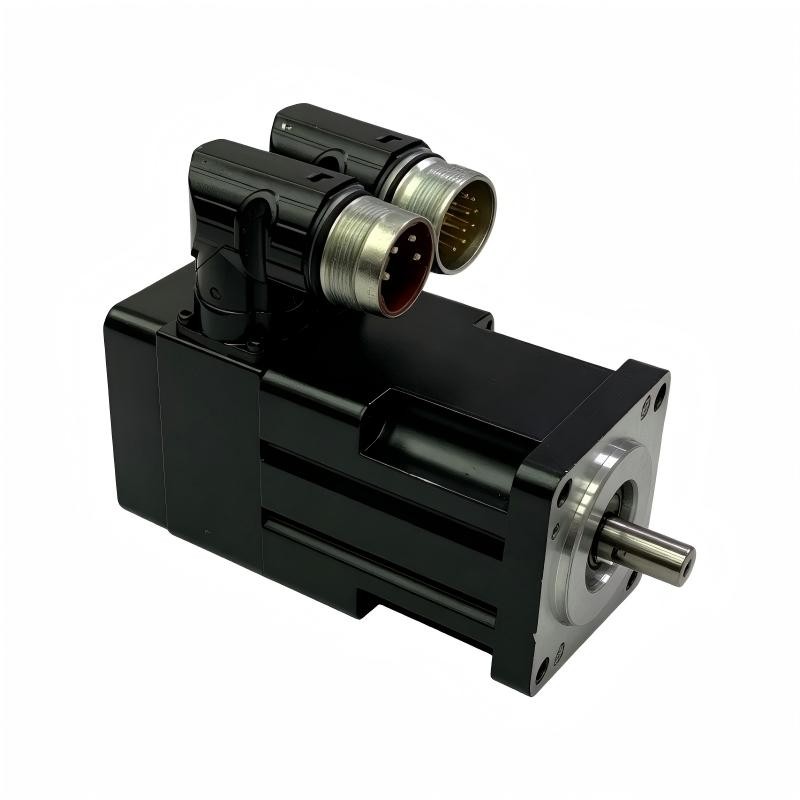

Allen Bradley MPL-A1520U-VJ42AA Servo Motor

Industrial Applications

The Allen Bradley MPL-A1520U-VJ42AA is a compact servo motor intended for industrial motion-control applications where accurate movement, repeatable positioning, and responsive speed control are required. With a 63 mm frame size and a 1.20 kg weight, it is well suited to compact machine axes where installation space and moving mass need to be carefully managed.

Typical applications include automated assembly equipment, packaging machinery, indexing systems, pick-and-place mechanisms, material-handling equipment, labeling systems, and compact positioning machines. The motor can also be incorporated into multi-axis automation equipment where individual axes need to operate according to coordinated motion commands.

For production machinery, a servo motor provides controlled movement rather than simple fixed-speed operation. When properly matched with a compatible Allen Bradley servo drive and motion controller, the MPL-A1520U-VJ42AA can support repeatable acceleration, deceleration, speed control, and positioning.

Key Performance Advantages

Compact 63 mm frame
The compact frame size makes the MPL-A1520U-VJ42AA practical for machines with restricted installation space and relatively small motion assemblies.

Lightweight construction
At 1.20 kg, the motor is suitable for applications where minimizing the mass of the moving axis is important to overall machine dynamics.

Designed for precision motion
The servo-motor architecture supports closed-loop motion control, making it suitable for applications requiring repeatable and accurately controlled movement.

Suitable for automated machinery
The motor can be used in packaging, assembly, indexing, positioning, and material-handling applications where predictable motion is important.

Integration with motion-control systems
When paired with compatible Allen Bradley control equipment, the motor can operate as part of a coordinated industrial motion system.

Useful for maintenance and replacement
The MPL-A1520U-VJ42AA can be considered for compatible Allen Bradley motion-system maintenance and replacement projects. The complete catalog number and system configuration should be verified before installation.

Technical FAQs

1. What is the Allen Bradley MPL-A1520U-VJ42AA used for?
The MPL-A1520U-VJ42AA is a servo motor designed for industrial motion-control applications. It can be used where controlled speed, torque, acceleration, and positioning are required.

2. What types of equipment can use this servo motor?
Suitable equipment may include automated assembly machines, packaging systems, indexing equipment, pick-and-place mechanisms, conveyors, and other machinery requiring controlled axis movement.

3. Why does a servo motor require feedback?
Feedback allows the motion-control system to determine the actual operating condition of the motor. The controller can then compare actual movement with the commanded position or speed and make corrections when necessary.

4. Can the MPL-A1520U-VJ42AA be used in a multi-axis application?
Yes. Servo motors can serve as individual axes in coordinated motion systems. The motor, drive, controller, mechanical load, and motion profile must be appropriately matched for the application.

5. What should be checked before replacing an existing servo motor?
The complete model number, motor electrical characteristics, feedback arrangement, shaft configuration, mounting requirements, required torque and speed, and compatibility with the existing servo drive should all be verified.

6. What can cause excessive servo motor temperature?
Possible causes include excessive load, high continuous torque demand, aggressive acceleration settings, mechanical resistance, inadequate cooling, or incorrect drive and motor configuration.

7. What should be checked if the servo axis will not move?
Check the drive status, servo enable signal, active faults, motor power connections, feedback wiring, controller commands, and mechanical restrictions. Diagnostic information from the servo drive should be reviewed during troubleshooting.

8. What can cause inaccurate positioning?
Positioning errors can result from incorrect motion parameters, mechanical backlash, coupling problems, excessive load, feedback issues, or unsuitable acceleration and deceleration settings.

9. Why is servo-drive compatibility important?
The servo drive must support the motor's electrical and feedback characteristics. Correct compatibility allows the drive to establish appropriate control parameters and operate the motor properly.

10. What should be verified during commissioning?
