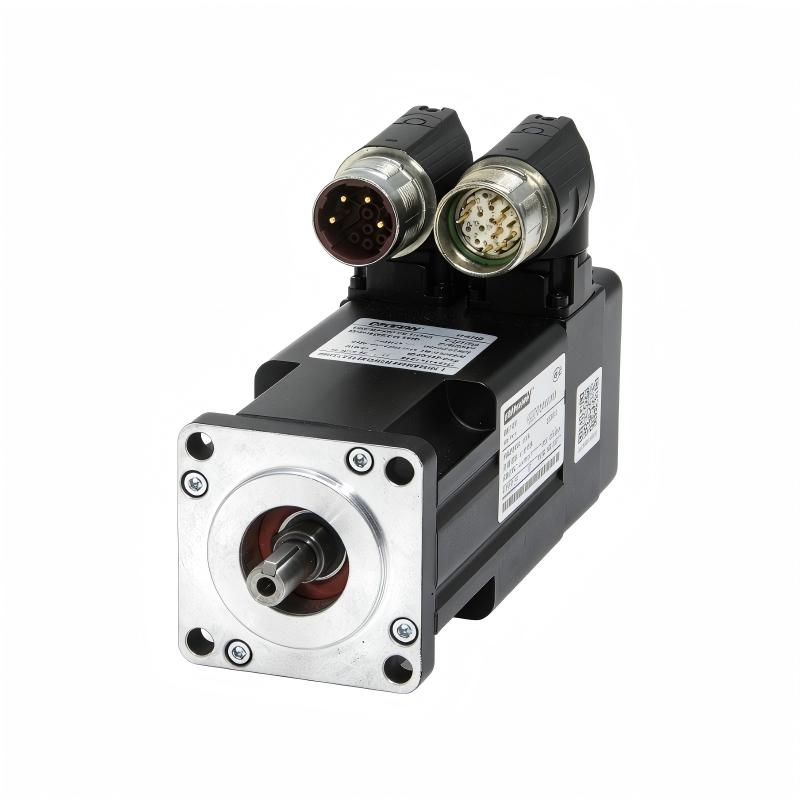

Allen Bradley MPL-A1530U-EJ72AA Servo Motor

Industrial Applications

The Allen Bradley MPL-A1530U-EJ72AA is a compact servo motor designed for industrial automation systems that require controlled motion, repeatable positioning, and reliable dynamic response. With a 63 mm frame size and a 1.60 kg weight, it is suitable for compact machine axes where both installation space and mechanical mass need to be considered.

The motor can be applied in automated assembly equipment, packaging machinery, indexing systems, material-handling equipment, pick-and-place mechanisms, labeling machines, and other automated production systems. It can also be used as part of a multi-axis motion platform where individual servo axes must respond accurately to coordinated commands.

When combined with a compatible Allen Bradley servo drive and motion controller, the MPL-A1530U-EJ72AA can support controlled acceleration, deceleration, speed regulation, and positioning. Proper motor sizing and system configuration are important for achieving stable performance under the actual machine load.

Key Performance Advantages

Compact 63 mm frame size
The compact frame makes the MPL-A1530U-EJ72AA suitable for machine designs where mounting space is limited and a smaller motor package is preferred.

Lightweight 1.60 kg construction
The motor's relatively low weight can be advantageous for moving axes, helping engineers account for motor mass when designing the mechanical system.

Designed for precision motion
Servo technology provides closed-loop control capabilities that are well suited to applications requiring repeatable movement and controlled positioning.

Responsive machine operation
The motor can support applications involving frequent changes in speed and position when the servo drive and motion profile are configured appropriately.

Suitable for automated equipment
The MPL-A1530U-EJ72AA can be incorporated into packaging, assembly, indexing, positioning, and material-handling systems.

Useful for maintenance and replacement
For compatible Allen Bradley motion systems, this motor can be considered during replacement or maintenance projects. The complete catalog number and system requirements should be verified before installation.

Technical FAQs

1. What is the Allen Bradley MPL-A1530U-EJ72AA used for?
The MPL-A1530U-EJ72AA is a servo motor intended for industrial motion-control applications where accurate, controlled, and repeatable movement is required.

2. What types of machinery are suitable for this servo motor?
Applications can include automated assembly machines, packaging equipment, indexing mechanisms, pick-and-place systems, material-handling equipment, and compact positioning machinery.

3. How does a servo motor differ from a conventional AC motor?
A servo system uses closed-loop feedback and a compatible drive to control motor operation more precisely. This allows the system to manage motion parameters such as position, speed, and torque according to the machine requirements.

4. Can the MPL-A1530U-EJ72AA be used in a multi-axis application?
Yes. Servo motors can operate as individual axes in coordinated motion systems. Proper coordination depends on the controller, servo drive, feedback system, mechanical load, and configured motion profile.

5. What should be checked before selecting this motor as a replacement?
Verify the complete catalog number, electrical characteristics, feedback configuration, mounting arrangement, shaft configuration, required torque and speed, and compatibility with the existing servo drive.

6. What can cause a servo motor to overheat?
Excessive load, prolonged high torque, aggressive acceleration settings, mechanical resistance, inadequate cooling, incorrect motor parameters, or unsuitable drive configuration can contribute to overheating.

7. What should be checked if the servo axis does not move?
Check the servo enable signal, drive status, active faults, motor power wiring, feedback connections, controller commands, and mechanical restrictions. Drive diagnostic information should be examined before replacing the motor.

8. What can cause inconsistent positioning?
Potential causes include incorrect motion parameters, mechanical backlash, coupling problems, excessive load, feedback problems, and unsuitable acceleration or deceleration settings.

9. Why must the servo drive be matched to the motor?
The drive must be compatible with the motor's electrical and feedback characteristics. Proper matching allows the drive to establish suitable control parameters and operate the motor within its intended operating range.

10. What should be checked during commissioning?
Verify motor wiring, feedback connections, drive configuration, motor data, controller settings, mechanical installation, and motion parameters. Initial operation should be tested under controlled conditions before the equipment is placed into normal production service.
