Brand:Allen Bradley PLC Item No.:MPL-B330P-HJ72AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

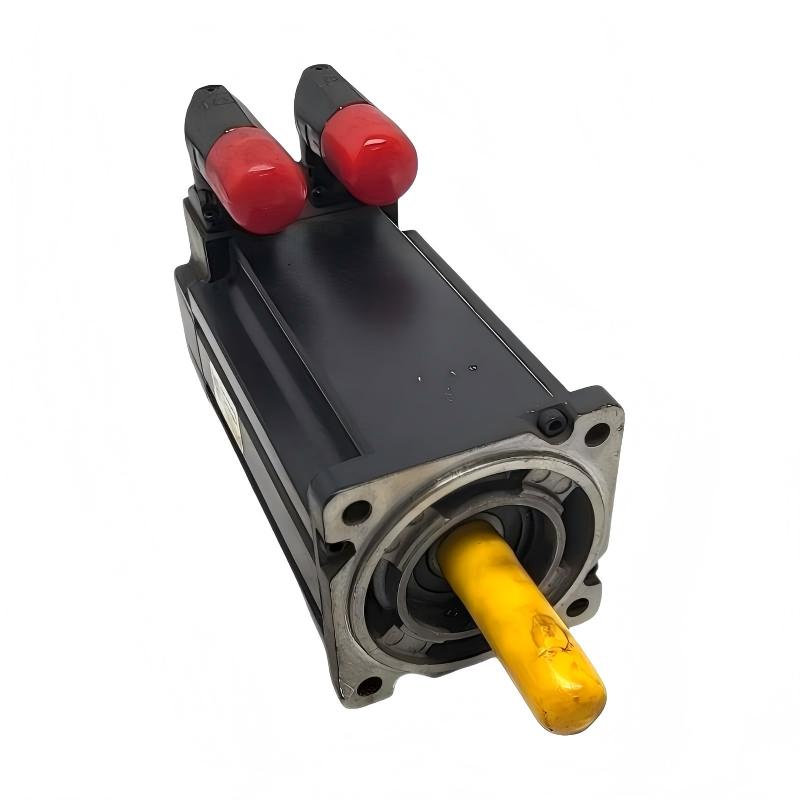

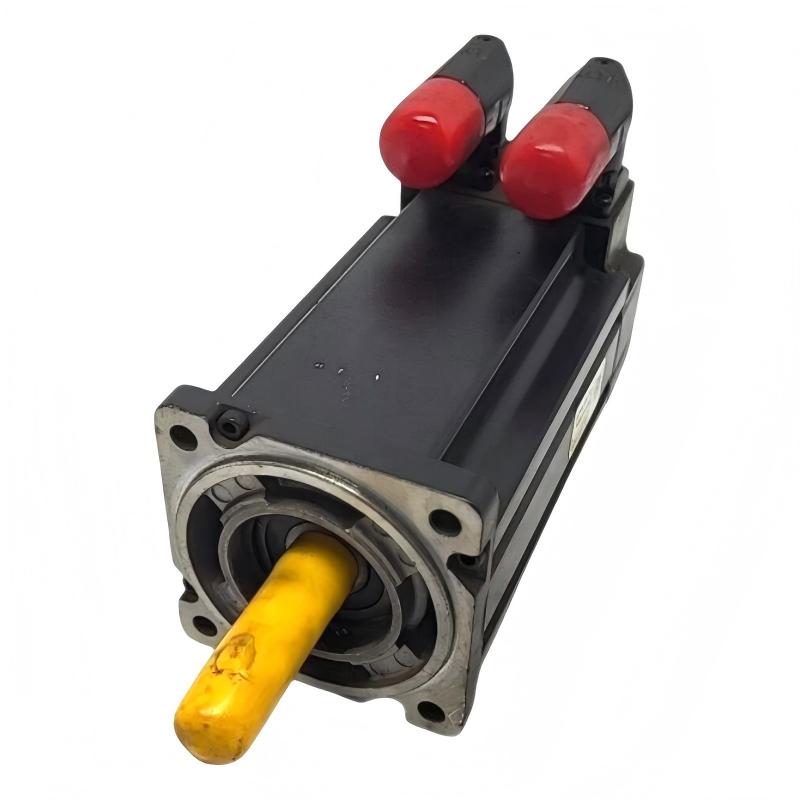

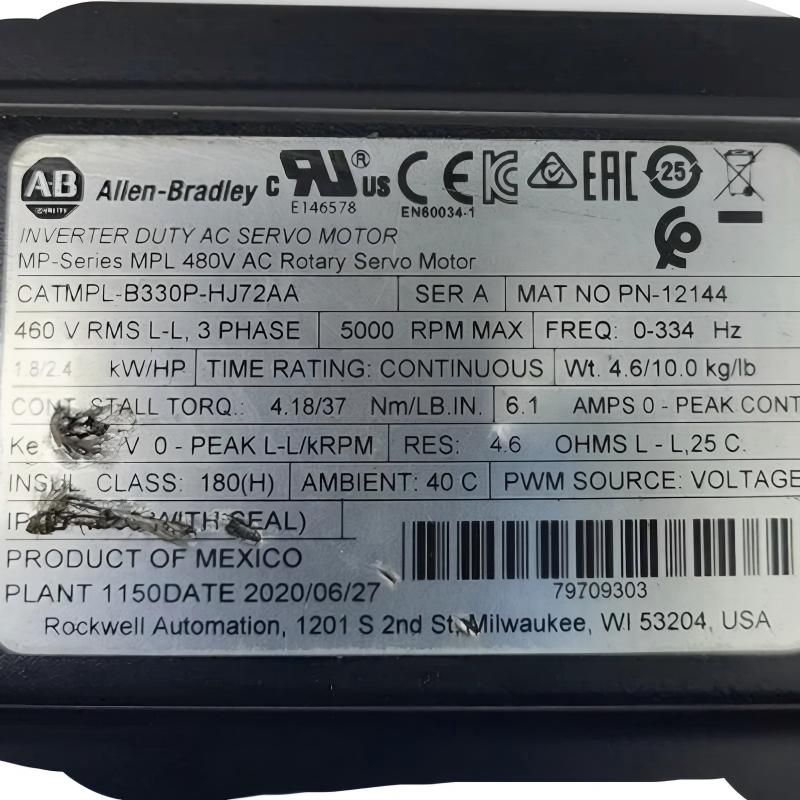

The Allen Bradley MPL-B330P-HJ72AA is part of the MP-Series MPL family of low-inertia brushless servo motors. Its 100 mm frame and 76.2 mm magnet stack provide a substantial mechanical configuration for industrial motion applications requiring controlled rotary movement.
The motor operates in the 460 V AC class and provides a 5000 RPM rated speed. Its 2000-line incremental encoder supplies feedback to the motion-control system, allowing the servo drive to regulate motor speed and position in a closed-loop configuration.

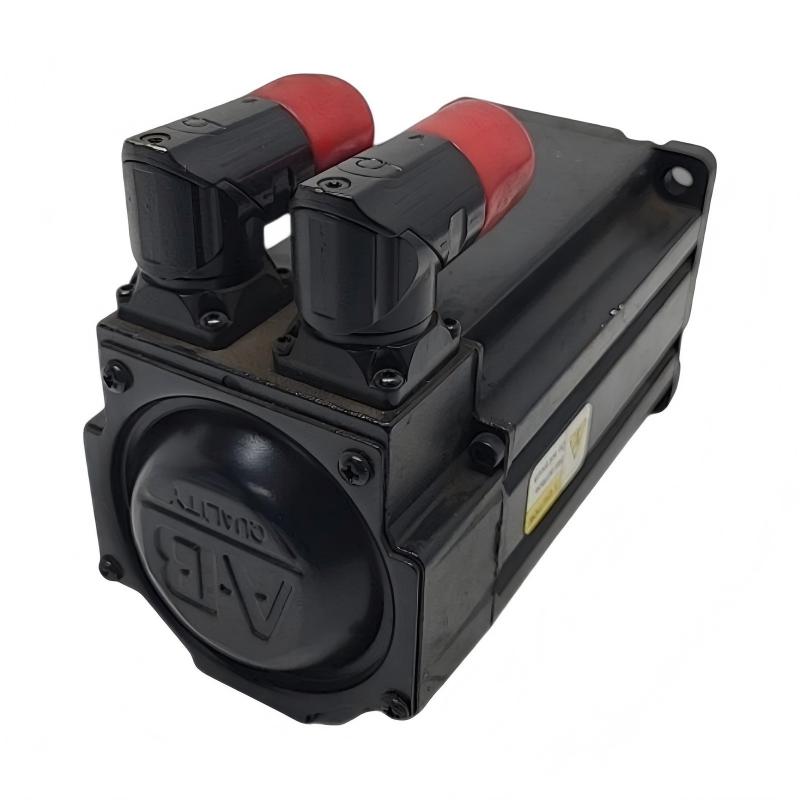

The keyed shaft extension provides a dependable mechanical connection, while the SpeedTEC DIN right-angle connector offers flexibility for cable routing. The HJ72AA configuration does not include a brake, which should be considered when evaluating the motor for vertical axes or other load-holding applications.
Rockwell Automation lists the MPL-B330P-HJ72AA as discontinued, with the MPL-B330P-SJ72AA identified as an engineering replacement. For existing equipment, the original HJ72AA remains useful as a maintenance and replacement reference, but the replacement should be evaluated for complete system compatibility.
Technical Specifications
Specification
MPL-B330P-HJ72AA
Brand
Allen Bradley
Product Family
MP-Series MPL
Product Type
Rotary Servo Motor
Model
MPL-B330P-HJ72AA
Armature Voltage
460 V AC
Voltage Class
400 V
Motor Type
Low-Inertia Brushless Servo Motor
Frame Size
100 mm
MP-Series Frame
Frame 3
Magnet Stack Length
76.2 mm
Stack Designation
30
Rated Speed
5000 RPM
Maximum Speed
5000 RPM
Feedback
2000-Line Incremental Encoder
Continuous Output Torque
4.18 Nm
Peak Output Torque
11.1 Nm
Continuous Rated Power
1.8 kW
Shaft Type
Keyed Shaft Extension
Shaft Seal
No Shaft Seal
Brake
No Brake
Connector
SpeedTEC DIN Connector
Connector Position
Right Angle
Connector Rotation
180° Rotatable
Mounting
IEC Metric Flange Mount
Approx. Dimensions
245 × 125 × 125 mm
Weight
4.60 kg / 10.14 lb
Lifecycle
Discontinued
Recommended Related Models
Model
Product Type
Relationship
MPL-B330P-SJ72AA
Servo Motor
Engineering replacement for MPL-B330P-HJ72AA
MPL-B330P-HJ74AA
Servo Motor
Related 100 mm, 76.2 mm stack configuration with brake
MPL-B330P-HK72AA
Servo Motor
Related 100 mm MP-Series configuration with different feedback arrangement
MPL-B330P-HK74AA
Servo Motor
Related 100 mm configuration with brake
MPL-B320P-SJ72AA
Servo Motor
Related MP-Series 480 V configuration with similar frame family
Popular Related Models
MPL-B330P-SJ72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HJ74AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HK72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HK74AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B320P-SJ72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B320P-SJ74AA — MP-Series MPL 480 V AC Rotary Servo Motor
When replacing the MPL-B330P-HJ72AA, the critical parameters are the 460 V AC voltage, 100 mm frame, 76.2 mm magnet stack, 5000 RPM rated speed, 2000-line incremental encoder, keyed shaft, and no-brake configuration. These characteristics should be matched with the existing servo drive and mechanical system before commissioning.
Industrial Motion Applications
The MPL-B330P-HJ72AA can be used in industrial machinery requiring reliable closed-loop rotary motion and repeatable positioning.
Typical applications include:
Automated assembly machinery
Packaging and processing equipment
Material handling systems
Conveyor positioning
Printing and converting machinery
Machine tools
Pick-and-place equipment
Automated inspection systems
Production-line machinery
Robotics and auxiliary motion axes
High-speed indexing systems
Industrial machine retrofits and maintenance
Its 5000 RPM operating capability and incremental encoder feedback make it suitable for applications requiring controlled speed and repeatable rotary positioning.
Key Performance Advantages
Low-Inertia Brushless Construction
The MPL-B330P-HJ72AA uses a low-inertia brushless servo design for responsive acceleration and deceleration. This is beneficial for machinery with frequent speed changes and repetitive positioning cycles.
5000 RPM Rated Speed
The motor is designed for a rated speed of 5000 RPM, providing a useful combination of rotational speed and servo control performance for industrial machinery.
2000-Line Incremental Encoder
The integrated 2000-line incremental encoder supplies motor feedback to the servo drive, supporting closed-loop speed and position control.
100 mm Frame Size
The 100 mm frame provides a larger mechanical platform than compact MPL motors, making this model suitable for applications requiring a higher-capacity servo motor configuration.
76.2 mm Magnet Stack
The 30-series stack length corresponds to a 76.2 mm magnet stack, providing the motor configuration required for its rated torque and power characteristics.
Keyed Shaft Extension
The keyed shaft allows compatible couplings, gears, pulleys, and other mechanical transmission components to be securely connected to the motor.
Flexible SpeedTEC DIN Connector
The right-angle SpeedTEC DIN connector can be rotated to accommodate different machine layouts and cable-routing requirements.
No-Brake Configuration
The HJ72AA configuration does not include an integrated holding brake. This makes it suitable for applications where a motor brake is not required.
Technical FAQs
1. What type of servo motor is the MPL-B330P-HJ72AA?
It is an Allen Bradley MP-Series MPL low-inertia brushless rotary servo motor designed for closed-loop industrial motion control.
2. What is the frame size of the MPL-B330P-HJ72AA?
The motor uses a 100 mm frame size, corresponding to MP-Series frame size 3.
3. What is the magnet stack length?
The motor has a 76.2 mm magnet stack, corresponding to the MP-Series stack length 30 designation.
4. What is the rated speed of this servo motor?
The MPL-B330P-HJ72AA has a rated speed of 5000 RPM.
5. What feedback system does the motor use?
It uses a 2000-line incremental encoder for position and speed feedback.
6. Does the MPL-B330P-HJ72AA have an integrated brake?
No. This is the no-brake HJ72AA configuration. A brake-equipped motor should be selected when the application requires shaft holding.
7. What type of shaft does this model use?
The motor has a keyed shaft extension for mechanical coupling with compatible machine components.
8. What connector is installed on the motor?
It uses a SpeedTEC DIN connector in a right-angle configuration. The connector can be rotated to provide greater installation flexibility.
9. Which servo drive families can be used with this motor?
The MPL-B330P-HJ72AA is associated with Allen Bradley Kinetix motion systems, including compatible Kinetix 5500, Kinetix 6000/6200/6500, Kinetix 7000, Kinetix 300/350, and Ultra 3000 drive families. Final compatibility should always be checked against the specific drive and application.
10. What should be checked when replacing this servo motor?
Verify the 460 V armature/voltage class, 100 mm frame, 76.2 mm stack, 5000 RPM rating, 2000-line incremental encoder, keyed shaft, connector configuration, and no-brake arrangement before selecting a replacement.
