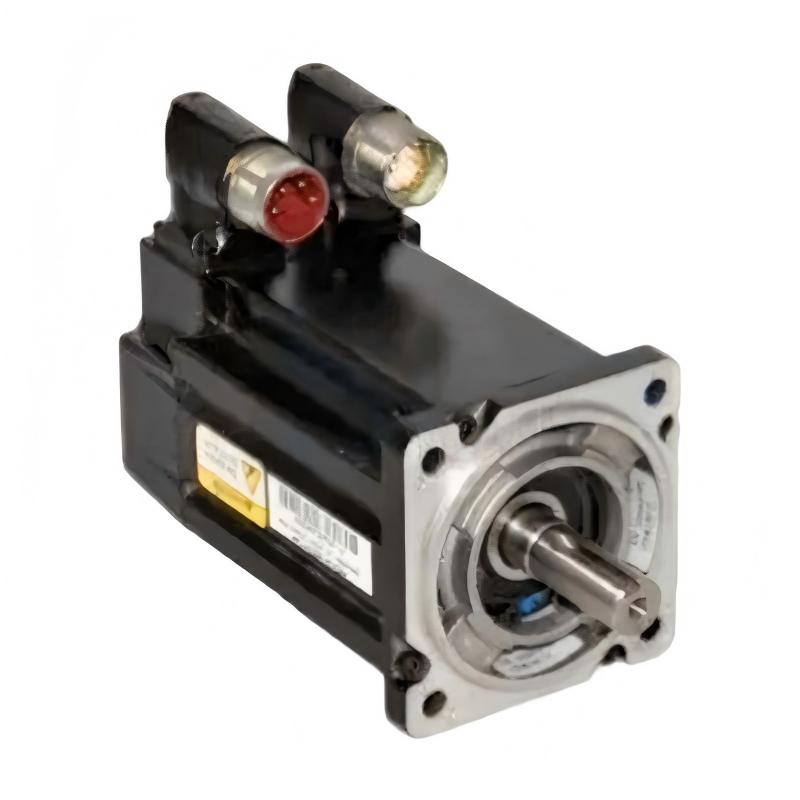

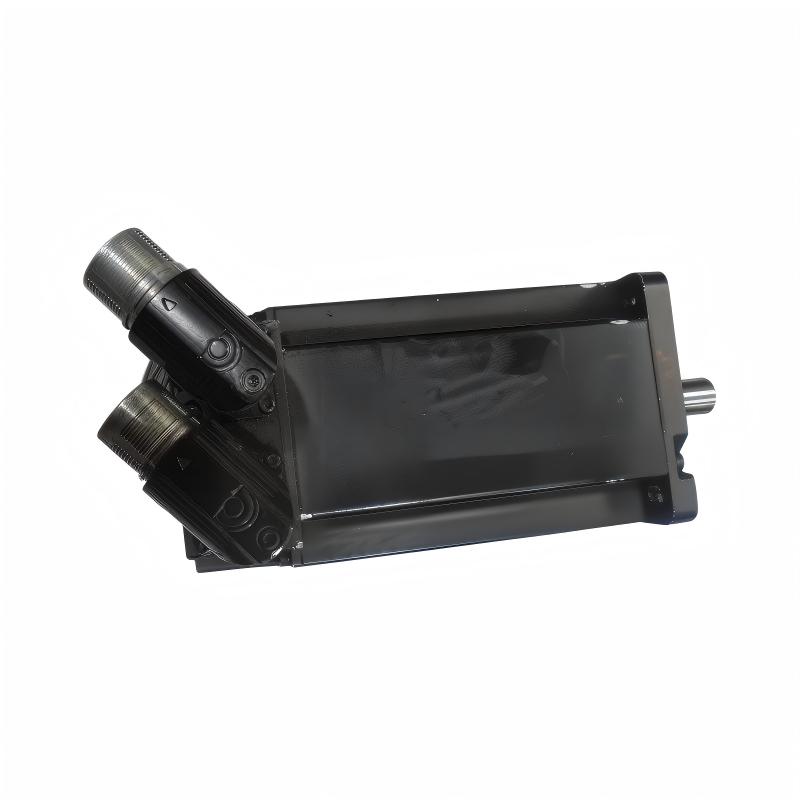

The Allen Bradley MPL-B330P-HK72AA belongs to the MP-Series MPL family of low-inertia brushless servo motors. Its 100 mm frame and 76.2 mm magnet stack provide a substantial configuration for industrial motion applications requiring accurate and repeatable rotary movement.
The motor operates in the 460 V AC class and has a 5000 RPM rated speed. A 2000-line incremental encoder provides feedback to the servo drive, allowing the control system to monitor motor movement and regulate speed and position.
A distinguishing feature of the HK72AA configuration is its keyless shaft extension. This differs from keyed-shaft MPL variants and should be considered carefully when selecting mechanical couplings or replacing an existing motor.
The motor also has no integrated brake. For applications that require shaft holding, a brake-equipped model such as the related HK74AA configuration should be evaluated.
The MPL-B330P-HK72AA has been discontinued by Rockwell Automation, with MPL-B330P-SK72AA identified as an engineering replacement. For legacy equipment, the original model remains relevant for maintenance and replacement purposes, but all electrical and mechanical characteristics should be checked before substitution.

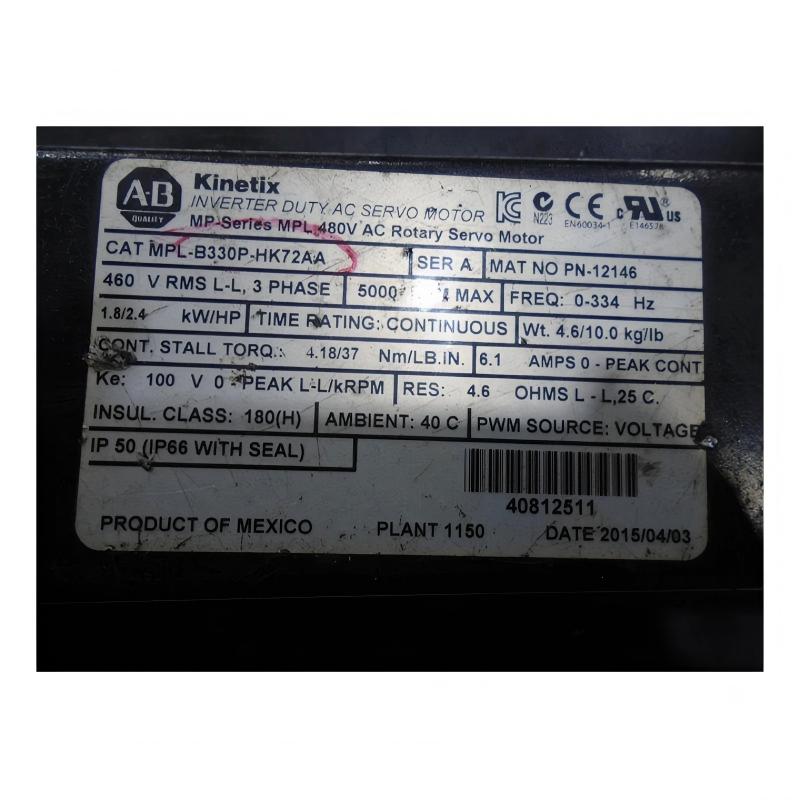

Technical Specifications
Specification
MPL-B330P-HK72AA
Brand
Allen Bradley
Product Family
MP-Series MPL
Product Type
Rotary Servo Motor
Model
MPL-B330P-HK72AA
Armature Voltage
460 V AC
Voltage Class
400 V
Motor Type
Low-Inertia Brushless Servo Motor
Frame Size
100 mm
MP-Series Frame
Frame 3
Magnet Stack Length
76.2 mm
Stack Designation
30
Rated Speed
5000 RPM
Feedback
2000-Line Incremental Encoder
Shaft Type
Keyless Shaft Extension
Shaft Seal
No Shaft Seal
Brake
No Brake
Connector
SpeedTEC DIN Connector
Connector Position
Right Angle
Connector Rotation
180° Rotatable
Mounting Standard
IEC Metric
Mounting Holes
Free Mounting Holes, Type FF
Approx. Dimensions
245 × 125 × 125 mm
Weight
4.60 kg / 10.14 lb
Lifecycle
Discontinued
Recommended Related Models
Model
Product Type
Relationship
MPL-B330P-SK72AA
Servo Motor
Engineering replacement for MPL-B330P-HK72AA
MPL-B330P-HK74AA
Servo Motor
Related 100 mm configuration with 24 V DC brake
MPL-B330P-HJ72AA
Servo Motor
Related 100 mm configuration with 2000-line incremental encoder
MPL-B330P-HJ74AA
Servo Motor
Related configuration with 24 V DC brake
MPL-B320P-HK72AA
Servo Motor
Related 100 mm frame configuration with shorter 50.8 mm stack
Popular Related Models
MPL-B330P-SK72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HK74AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HJ72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B330P-HJ74AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B320P-HK72AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B320P-HK74AA — MP-Series MPL 480 V AC Rotary Servo Motor
MPL-B320P-MK72AA — MP-Series MPL 480 V AC Rotary Servo Motor
When replacing the MPL-B330P-HK72AA, particular attention should be given to the 460 V AC voltage class, 100 mm frame, 76.2 mm magnet stack, 5000 RPM rating, 2000-line incremental encoder, keyless shaft, and no-brake configuration. These characteristics should match the existing motion-control and mechanical system before installation.
Industrial Motion Control Applications
The MPL-B330P-HK72AA is suitable for automated machinery where controlled rotary movement and repeatable positioning are essential.
Typical applications include:
Packaging and filling machinery
Automated assembly systems
Material handling equipment
Conveyor positioning
Printing and converting machinery
Machine tools
Pick-and-place systems
Automated inspection equipment
Electronics manufacturing
High-speed indexing machinery
Production-line automation
Industrial machine retrofits and maintenance
Its 5000 RPM operating capability and incremental encoder feedback make it suitable for applications requiring continuous closed-loop speed and position control.
Key Performance Advantages
Low-Inertia Brushless Construction
The MPL-B330P-HK72AA uses a low-inertia brushless servo design that supports rapid acceleration and deceleration. This is useful for machinery with frequent speed changes and repetitive motion cycles.
100 mm Frame Configuration
The 100 mm frame provides a robust mechanical platform for applications requiring a larger servo motor than compact MPL configurations.
76.2 mm Magnet Stack
The 30-series magnet stack provides a 76.2 mm active motor stack, forming part of the motor's torque and performance configuration.
5000 RPM Rated Speed
The motor is designed for a rated speed of 5000 RPM, supporting high-speed automated machinery and positioning applications.
2000-Line Incremental Encoder
The integrated 2000-line incremental encoder provides position and speed feedback to the associated servo drive for closed-loop control.
Keyless Shaft Extension
Unlike keyed MPL configurations, the HK72AA uses a keyless shaft extension. The mechanical coupling method should therefore be matched to the shaft design during machine integration or replacement.
No Integrated Brake
The HK72AA configuration does not include a holding brake. This is appropriate for applications where mechanical shaft holding is not required.

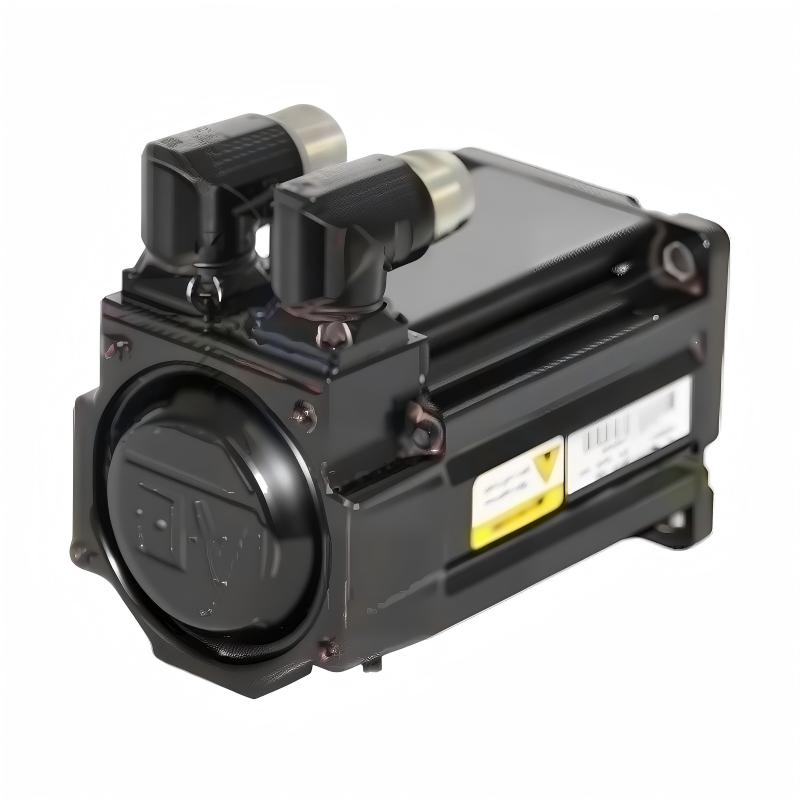

Flexible SpeedTEC DIN Connector
The right-angle SpeedTEC DIN connector can be rotated through 180 degrees, helping simplify cable routing and installation in confined machine spaces.
Technical FAQs
1. What type of servo motor is the MPL-B330P-HK72AA?
It is an Allen Bradley MP-Series MPL low-inertia brushless rotary servo motor for closed-loop industrial motion control.
2. What is the frame size of this motor?
The MPL-B330P-HK72AA uses a 100 mm frame, corresponding to MP-Series frame size 3.
3. What is the magnet stack length?
The motor has a 76.2 mm magnet stack, corresponding to the MP-Series 30 stack designation.
4. What is the rated speed of the MPL-B330P-HK72AA?
The motor has a rated speed of 5000 RPM.
5. What feedback system does this model use?
It uses a 2000-line incremental encoder for motor position and speed feedback.
6. Does the MPL-B330P-HK72AA include a holding brake?
No. The HK72AA configuration is supplied without an integrated brake.
7. Does this motor have a keyed shaft?
No. The MPL-B330P-HK72AA uses a keyless shaft extension. Compatible couplings should be selected according to the keyless shaft arrangement.
8. What connector is used on this servo motor?
It uses a right-angle SpeedTEC DIN connector with 180-degree rotational capability for flexible installation and cable routing.
9. What voltage class does the MPL-B330P-HK72AA use?
It belongs to the 400 V class and has a 460 V AC armature-voltage configuration.
10. What should be checked when replacing this motor?
The replacement should be checked for voltage class, frame and stack size, feedback type, shaft configuration, brake requirement, connector arrangement, mounting configuration, and servo-drive compatibility.
