Brand:Allen Bradley PLC Item No.:MPL-B330P-MJ74AA Product Origin:USA Product Dimensions:Frame Size: 100 mm Product Weight:4.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

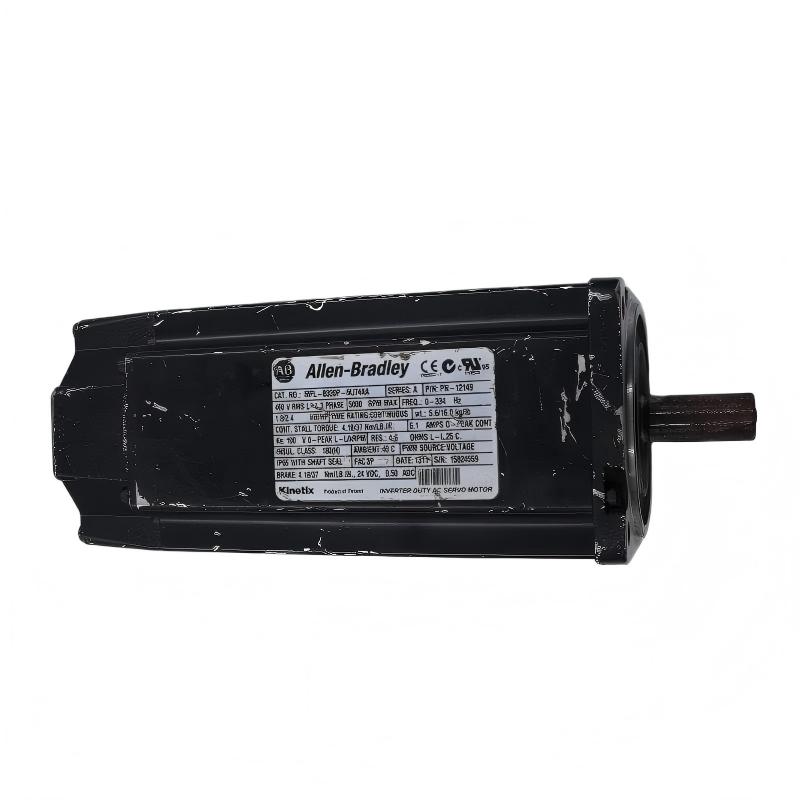

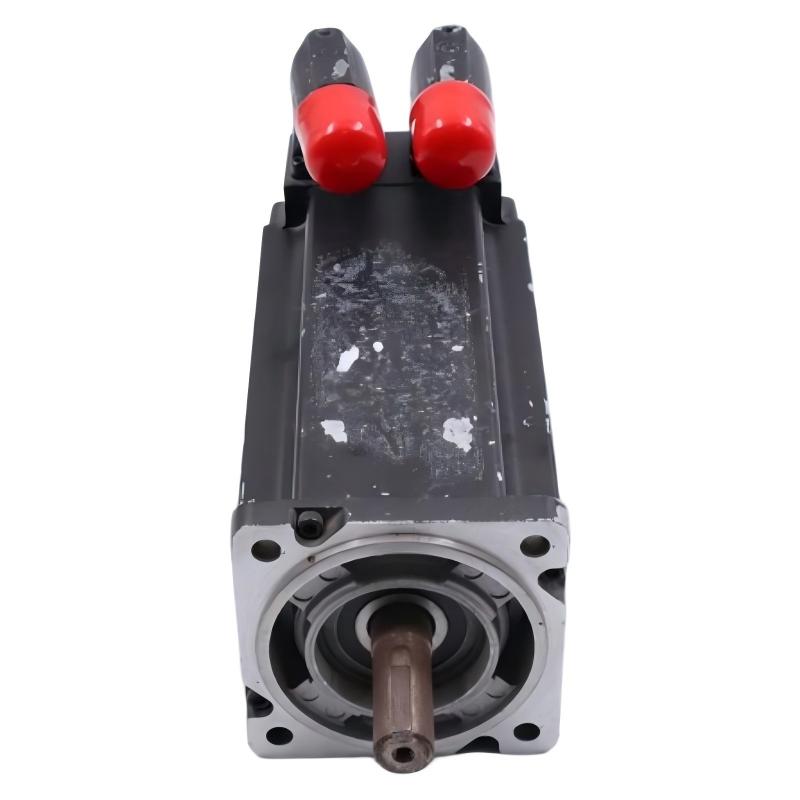

The MPL-B330P-MJ74AA combines a compact 100 mm frame with the high-speed performance expected from the MP-Series low-inertia servo family. Its 76.2 mm magnet stack, 1.8 kW continuous rated power, 4.18 Nm continuous torque, and 5000 RPM speed rating make it suitable for machines requiring responsive and repeatable axis movement.
The multi-turn absolute encoder is an important part of the motor's control architecture. It provides high-resolution position feedback and allows the servo system to monitor the motor's position across multiple revolutions.
The MJ74AA configuration is also clearly distinguished by its keyed shaft, multi-turn feedback, and 24 V DC brake. These details are important when selecting a replacement because closely related MPL-B330P models can have different shaft, feedback, and brake configurations.
Technical Specifications
Specification
MPL-B330P-MJ74AA
Manufacturer
Allen Bradley / Rockwell Automation
Product Series
MP-Series MPL
Product Type
Low-Inertia Brushless Servo Motor
Motor Type
Permanent-Magnet Rotary Servo Motor
Armature Voltage
460 V AC
Voltage Class
400 V AC
Frame Size
100 mm
Magnet Stack Length
76.2 mm (3.0 in.)
Rated Speed
5000 RPM
Maximum Speed
5000 RPM
Rated Power
1.8 kW
Continuous Torque
4.18 Nm
Peak Torque
11.1 Nm
Feedback
Multi-Turn High-Resolution Absolute Encoder
Feedback Resolution
Sin/Cos, 1024 cycles/rev
Feedback Protocol
Hiperface
Shaft
Keyed Shaft Extension
Shaft Seal
No Shaft Seal
Brake
24 V DC Holding Brake
Connector
SpeedTEC DIN, Right Angle
Connector Rotation
180° Rotatable
Mounting
IEC Metric Flange
Mounting Holes
Type FF, Free Mounting Holes
Rotor Inertia
0.00013 kg·m²
Weight
4.60 kg / 10.14 lb
Product Dimensions
Approx. 260 × 130 × 90 mm
Recommended Related Models
Model
Product Type
Main Configuration
MPL-B330P-MJ72AA
Servo Motor
Multi-turn absolute encoder, keyed shaft, no brake
MPL-B330P-MK74AA
Servo Motor
Multi-turn absolute encoder, keyless shaft, 24 V DC brake
MPL-B330P-MK72AA
Servo Motor
Multi-turn absolute encoder, keyless shaft, no brake
MPL-B330P-MJ22AA
Servo Motor
Multi-turn absolute encoder, keyed shaft, no brake
MPL-B330P-SJ74AA
Servo Motor
Single-turn high-resolution encoder, keyed shaft, 24 V DC brake
Popular Related Models
For MP-Series servo replacement, retrofit, and motion-control projects, the following models are useful comparison options:
MPL-B330P-MJ72AA — multi-turn absolute feedback, keyed shaft, no brake
MPL-B330P-MK74AA — multi-turn absolute feedback, keyless shaft, 24 V DC brake
MPL-B330P-MK72AA — multi-turn absolute feedback, keyless shaft, no brake
MPL-B330P-MJ22AA — multi-turn absolute feedback, keyed shaft, no brake
MPL-B330P-SJ74AA — single-turn high-resolution feedback, keyed shaft, 24 V DC brake
MPL-B320P-MJ74AA — related 100 mm-frame configuration with a shorter magnet stack
When selecting a replacement for the MPL-B330P-MJ74AA, the most important characteristics to match are the 460 V AC class, 100 mm frame, 76.2 mm magnet stack, 5000 RPM speed, multi-turn absolute feedback, keyed shaft, and 24 V DC holding brake.
Applications in Industrial Automation
The MPL-B330P-MJ74AA is suitable for a wide range of high-performance motion-control applications, including:
Packaging and filling machines
Material handling equipment
Automated assembly systems
Printing and converting machinery
Electronic manufacturing equipment
Machine tools
Pick-and-place equipment
High-speed indexing systems
Conveyor positioning systems
Automotive production equipment
Automated production lines
Vertical motion axes requiring shaft holding
The multi-turn absolute encoder is especially valuable where the control system requires detailed position feedback over multiple revolutions.
Key Performance Advantages
Low-inertia servo construction
The MP-Series low-inertia design helps the motor respond quickly to changes in speed and position commands, making it appropriate for dynamic machine axes.
Multi-turn absolute feedback
The high-resolution absolute encoder provides position information over multiple revolutions. This supports precise closed-loop motion control and repeatable positioning.
5000 RPM speed capability
The motor is rated for 5000 RPM, making it suitable for high-cycle machinery and applications where rapid axis movement is required.
4.18 Nm continuous torque
The MPL-B330P-MJ74AA provides 4.18 Nm of continuous torque and 11.1 Nm peak torque, giving the motor useful dynamic capability for demanding machine movements.
Integrated 24 V DC brake
The built-in holding brake provides mechanical shaft holding when required. It is particularly useful on vertical or gravity-loaded axes.
Keyed shaft extension
The keyed shaft provides a positive mechanical connection for compatible couplings and driven components.
Flexible connector arrangement

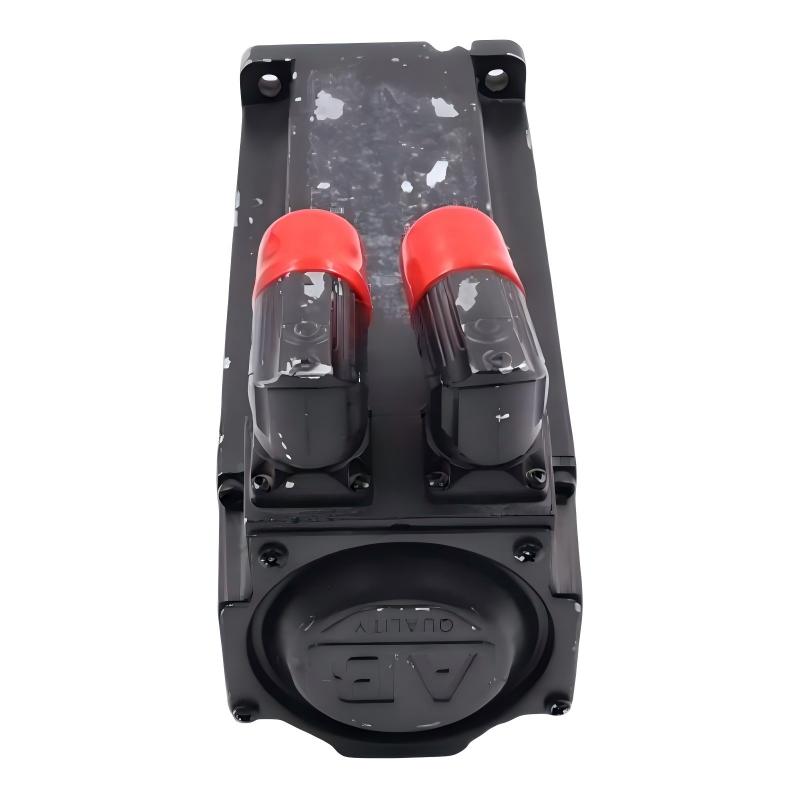

The SpeedTEC DIN right-angle connector can be rotated through 180 degrees, giving machine designers additional flexibility when routing motor cables.
Technical FAQs
1. What type of servo motor is the MPL-B330P-MJ74AA?
It is an Allen Bradley MP-Series low-inertia brushless rotary servo motor intended for closed-loop industrial motion control.
2. What is the voltage rating of the MPL-B330P-MJ74AA?
The motor has a 460 V AC armature-voltage rating and belongs to the 400 V AC voltage class.
3. What is the rated speed of this servo motor?
The MPL-B330P-MJ74AA has a rated speed of 5000 RPM. Its maximum listed speed is also 5000 RPM.
4. What feedback device is installed in the motor?
The motor uses a multi-turn high-resolution absolute encoder with Sin/Cos feedback and Hiperface protocol. This provides detailed position feedback for the servo-control system.
5. Does the MPL-B330P-MJ74AA have a holding brake?
Yes. It includes an integrated 24 V DC holding brake. The brake is intended primarily for holding the shaft/load rather than replacing the servo drive's normal controlled stopping function.
6. Does this model use a keyed shaft?
Yes. The MPL-B330P-MJ74AA has a keyed shaft extension and no shaft seal in its standard configuration.
7. What is the magnet stack length?
The motor has a 30-series magnet stack measuring 76.2 mm, or 3.0 inches.
8. Which servo drives are compatible with the MPL-B330P-MJ74AA?
Compatible Allen Bradley motion platforms include Kinetix 5500, Kinetix 6200/6500, Kinetix 6000, Kinetix 300, Kinetix 350, Kinetix 2000, Kinetix 7000, and Ultra 3000, subject to the complete motor and drive configuration.
9. What are the continuous and peak torque ratings?
The continuous torque rating is 4.18 Nm, while the peak torque rating is 11.1 Nm.
10. What should be checked before replacing an existing servo motor with the MPL-B330P-MJ74AA?
The voltage class, feedback technology, shaft configuration, brake option, frame size, magnet stack length, connector arrangement, speed rating, and servo-drive compatibility should all be verified. Matching only the frame size is not sufficient to establish electrical and control compatibility.
