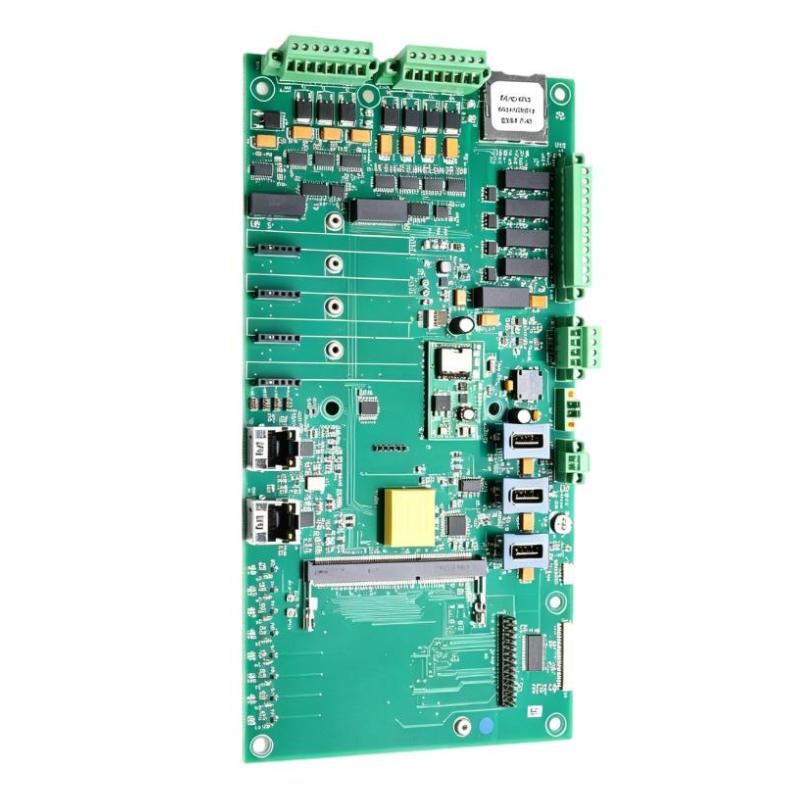

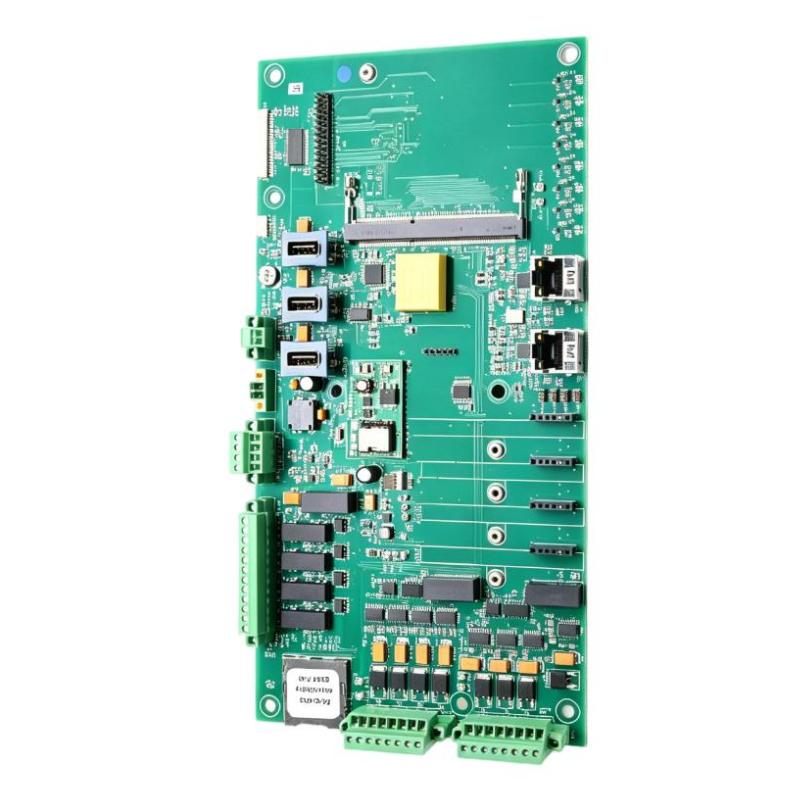

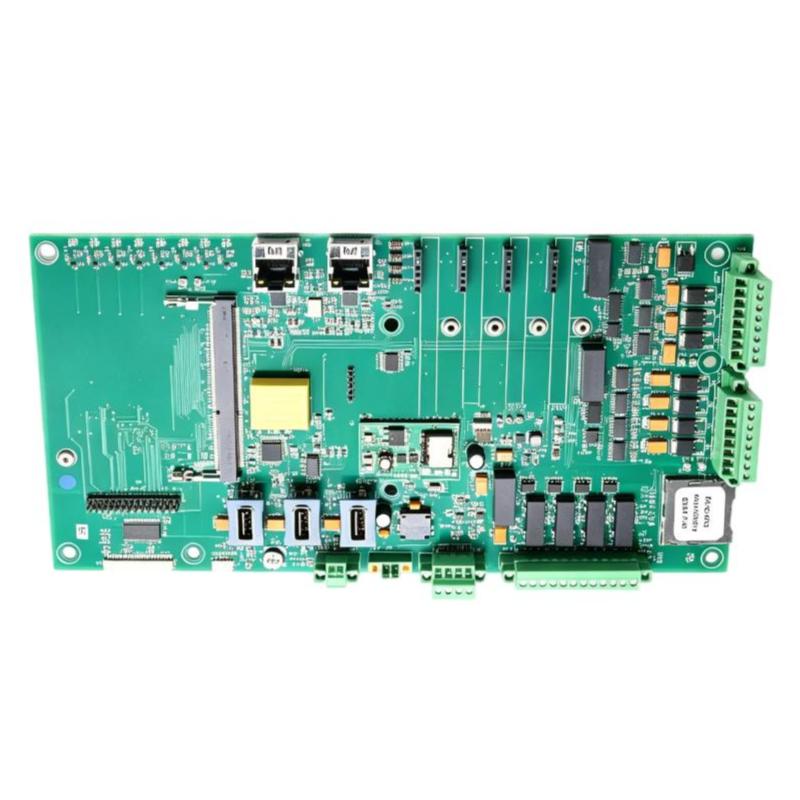

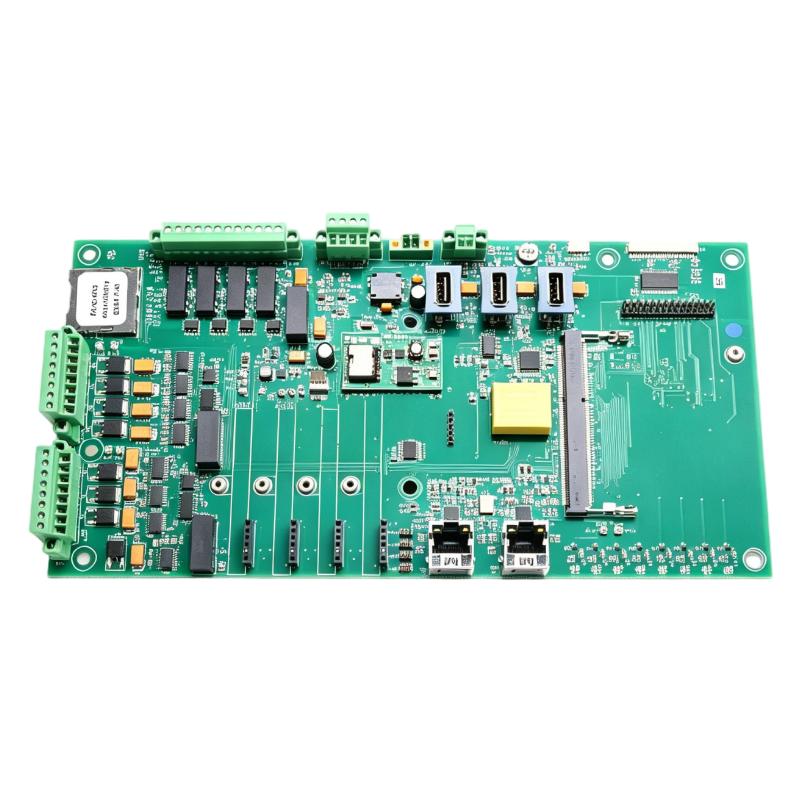

ABB 852A059-1 PCB Assemblies

Applications in Process Analysis and Industrial Automation

The ABB 852A059-1 can be used in PGC5000-based applications such as:

• Natural gas composition analysis
• Oil and gas processing
• Refinery process monitoring
• Petrochemical production
• Chemical processing
• Industrial gas analysis
• Continuous process monitoring
• Online gas chromatography
• Process instrumentation
• Industrial automation systems

As part of the SBC controller architecture, the board supports the electronic control functions required by the process gas chromatograph.

Key Advantages of the ABB 852A059-1

Dedicated SBC2 controller design
The 852A059-1 is purpose-built as an SBC2 controller PCB for compatible PGC5000 systems, providing a solution specifically matched to the analyzer's control architecture.

Central processing function
The controller PCB serves as an important processing element within the SBC assembly and coordinates system-level functions of the analyzer.

Modular architecture
The controller board works with the associated carrier PCB and CAN interface card, creating a structured and serviceable controller assembly.

Compact industrial construction
With dimensions of 230 × 30 × 120 mm, the board can be integrated into the available electronics space of the compatible PGC5000 equipment.

Suitable for replacement and maintenance
An exact PCB replacement can help maintenance teams restore an analyzer without unnecessarily replacing the complete controller assembly.

Clear part-number identification
Using the complete 852A059-1 designation helps distinguish the controller PCB from other related PGC5000 assemblies.

Technical FAQs

1. What is the ABB 852A059-1?
The ABB 852A059-1 is an SBC2 Controller PCB Assembly used in compatible ABB PGC5000 process gas chromatograph systems.

2. What is the primary function of the 852A059-1?
It functions as the controller PCB within the PGC5000 SBC architecture, providing the processing and control functions required by the analyzer.

3. Where is the 852A059-1 used?
The board is used in the controller architecture of ABB PGC5000 process gas chromatographs and related configurations with SBC electronics.

4. What is the difference between the 852A059-1 and 852A060-1?
The 852A059-1 is the SBC2 Controller PCB, while the 852A060-1 is the SBC2 Carrier PCB. They are associated components but perform different functions.

5. What is the function of the 852A061-1?
The 852A061-1 is the SBC2 CAN Interface Card. It provides the CAN communication interface within the controller architecture and is separate from the 852A059-1 controller board.

6. Can the 852A059-1 be used as a general-purpose automation controller?
No. It is a dedicated PCB assembly designed for the PGC5000 system architecture and should be selected according to the applicable analyzer configuration.

7. What should be checked before replacing the controller PCB?
The complete part number, PGC5000 system configuration, board revision, associated carrier PCB, CAN interface, software configuration, and connector arrangement should be checked before installation.

8. What problems can be associated with a defective controller PCB?
Possible symptoms include abnormal analyzer startup, controller communication problems, unexpected system faults, or loss of normal analyzer functions. Other components should be tested first because similar symptoms can result from power, communication, wiring, or software problems.

9. How should the 852A059-1 be handled during replacement?
Power should be isolated according to the equipment maintenance procedure, and appropriate ESD protection should be used when handling the PCB. Connectors should be identified and inspected before removal.

10. Why is the exact part number important when replacing this PCB?
The PGC5000 contains several different PCB assemblies that may have similar physical characteristics but perform different functions. Matching the complete 852A059-1 part number helps ensure that the replacement board is appropriate for the installed controller architecture.
