Product Introduction

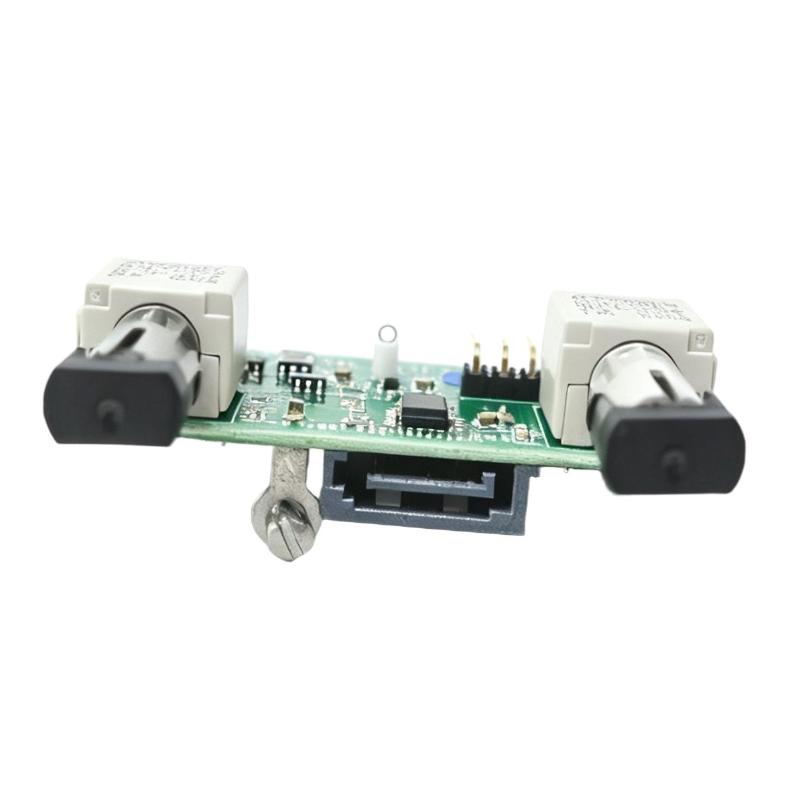

The ABB 852A061-1 PCB Assembly is a specialized communication board for ABB PGC5000 process gas chromatographs. It is identified as the SBC2 CAN Interface Card and forms part of the analyzer's controller electronics.

Modern process gas chromatographs depend on coordinated communication between their controller, analytical hardware, pressure-control systems, oven electronics, and other internal assemblies. The CAN interface provides an important communication path within this architecture, allowing compatible electronic components to exchange information required for coordinated system operation.

The 852A061-1 is normally considered together with the SBC2 controller and carrier boards. The 852A059-1 functions as the SBC2 Controller PCB, while the 852A060-1 provides the SBC2 Carrier PCB. The 852A061-1 adds the dedicated CAN interface capability to this controller group.

For maintenance and replacement projects, correct identification is essential. A communication fault does not necessarily mean that the CAN interface PCB itself has failed; connectors, wiring, controller hardware, power supplies, and connected devices should also be evaluated during troubleshooting.

Technical Specifications

Specification	Details
Brand	ABB
Model	852A061-1
Product Type	PCB Assembly
Board Type	SBC2 CAN Interface Card
Compatible Platform	ABB PGC5000 Process Gas Chromatograph
Communication Function	CAN Interface
Dimensions	110 × 25 × 85 mm
Weight	0.35 kg / 0.77 lb
Installation	Internal PCB Assembly
Application	Process Gas Analysis
Primary Use	Controller Communication and Replacement

The compact construction allows the 852A061-1 to be integrated into the PGC5000 controller architecture while providing the dedicated communication interface required by the SBC2 system.

Recommended Related Models

Model	Description
ABB 852A059-1	SBC2 Controller PCB
ABB 852A060-1	SBC2 Carrier PCB
ABB 857Z047-1	SBC2 SD Card
ABB 852A009-1	PGC5000 Front Panel PCB
ABB 852A023-1	AC Power Distribution PCB
ABB 852A024-1	EPC Electronic Pressure Control PCB

Popular Related Models

Model	Product Description
ABB 852A001-1	PGC5000 Master Controller PCB
ABB 852A002-1	PGC5000 Oven Controller PCB
ABB 852A025-1	PGC5000 Oven Indicator PCB
ABB 852A027-1	DTC Analog PCB Assembly
ABB 852A028-1	DTC Digital PCB Assembly
ABB 852A031-1	PGC5000 Fiber Optic CAN Converter PCB Assembly
ABB 852A045-1	PGC5000 DTC Standard Model PCB Assembly

The ABB 852A061-1 is best suited to maintenance and replacement applications involving compatible PGC5000 SBC2 controller configurations. Before installation, verify the complete part number and existing analyzer architecture to ensure the replacement board matches the installed system.

Applications in PGC5000 Process Analysis

The ABB 852A061-1 is designed for compatible PGC5000 configurations where the SBC2 controller architecture is installed. Its primary role is associated with the CAN communication interface used by the analyzer's control electronics.

Typical applications include:

ABB PGC5000 process gas chromatographs
Continuous process gas analysis
Natural gas analysis
Refinery and petrochemical processing
Chemical production facilities
Hydrocarbon composition monitoring
Industrial process control
Analyzer controller communication
PGC5000 maintenance and PCB replacement

The board is particularly relevant to PGC5000 systems equipped with the integrated controller architecture. During replacement, the installed controller configuration and exact part number should be verified to ensure proper compatibility.

Communication and Integration Advantages

Dedicated SBC2 CAN Interface
The 852A061-1 is specifically identified as the SBC2 CAN Interface Card, providing the communication interface required within the PGC5000 controller architecture.

Designed for PGC5000 Integration
Rather than serving as a general-purpose CAN board, this assembly is intended for integration into compatible PGC5000 process gas chromatograph systems.

Compact Industrial Construction
At 110 × 25 × 85 mm, the board occupies limited internal space while providing the dedicated communication functionality required by the controller architecture.

Works With the SBC2 Controller Group
The PCB operates together with the SBC2 controller and carrier assemblies, allowing the analyzer's processing and communication hardware to function as an integrated system.

Useful for Maintenance Replacement
Replacing a failed communication PCB can help restore controller-side communication when troubleshooting indicates a problem within the CAN interface hardware.

Supports System-Level Communication
Reliable communication between the analyzer's controller and associated electronics is important for coordinated operation, diagnostics, configuration, and process measurement functions.

Technical FAQs

1. What is the ABB 852A061-1 used for?
The 852A061-1 is an SBC2 CAN Interface Card used in compatible ABB PGC5000 process gas chromatographs. It provides the CAN communication interface within the SBC2 controller architecture.

2. What does SBC2 refer to in the 852A061-1 designation?
SBC2 refers to the second-generation Single Board Computer controller architecture used within compatible PGC5000 systems. The 852A061-1 functions as the CAN interface card within this architecture.

3. Which PGC5000 boards work with the 852A061-1?
The principal related SBC2 boards are the 852A059-1 SBC Controller PCB and 852A060-1 SBC Carrier PCB. The three assemblies form part of the PGC5000 controller architecture.

4. What type of communication does the 852A061-1 provide?
The board provides a CAN interface for communication within the PGC5000 control system. CAN communication allows compatible electronic assemblies to exchange control and system information over the analyzer's internal network.

5. What symptoms may indicate a CAN interface problem?
Possible symptoms include communication errors between controller-side assemblies, unexpected system diagnostics, loss of communication with connected devices, or abnormal analyzer functions. Troubleshooting should confirm the communication path before replacing the PCB.

6. Can a faulty 852A061-1 affect the operation of the PGC5000?
Yes. Because the board provides a communication interface within the controller architecture, a hardware failure can interfere with communication between the SBC system and connected analyzer electronics.

7. What should be checked before replacing the 852A061-1?
Technicians should verify the complete part number, analyzer generation, installed SBC configuration, connectors, cabling, and related controller hardware. Power and communication wiring should also be inspected before replacing the PCB.

8. Does replacing the CAN interface board require checking the controller and carrier board?
Yes. The 852A061-1 works as part of the SBC2 assembly. If communication problems remain after replacement, the 852A059-1 controller, 852A060-1 carrier, connectors, cables, and associated power circuits should also be checked.

9. What precautions should be taken when handling the PCB?
The analyzer should be placed in the appropriate maintenance condition and power isolated according to site procedures. Appropriate ESD protection should be used, and connectors should be carefully identified before removing the existing board.

10. Is the 852A061-1 interchangeable with every CAN interface PCB?
No. The 852A061-1 is designed for the specific PGC5000 SBC2 architecture. A general-purpose CAN board should not be considered an equivalent replacement without confirming the required electrical, mechanical, and system-level compatibility.
