Brand:ABB PLC Item No.:WS FAN 230 Product Origin:Sweden (SE) Product Dimensions:330 × 150 × 310 mm Product Weight:6.2 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

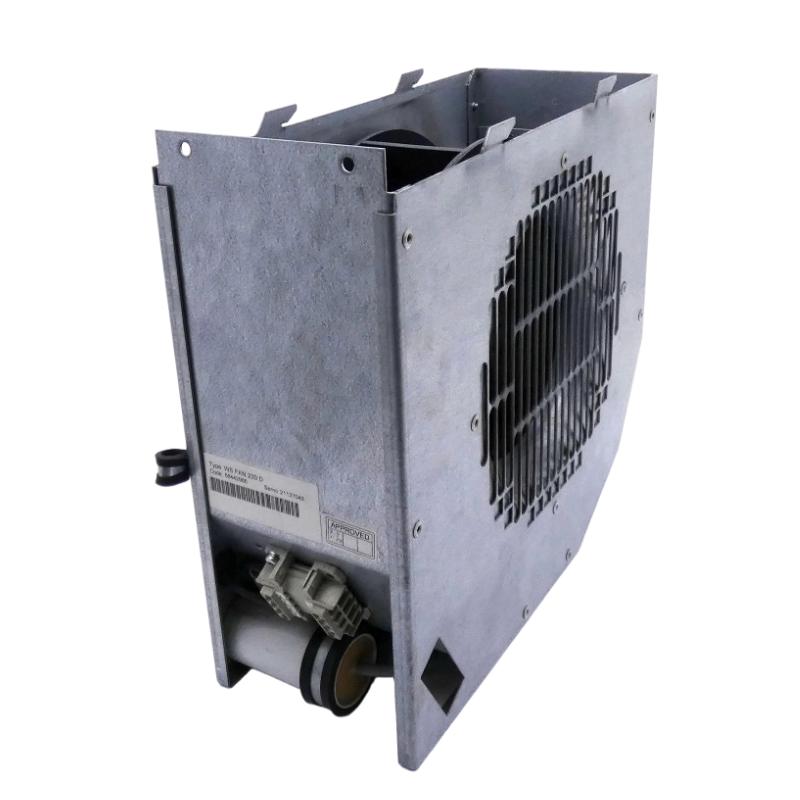

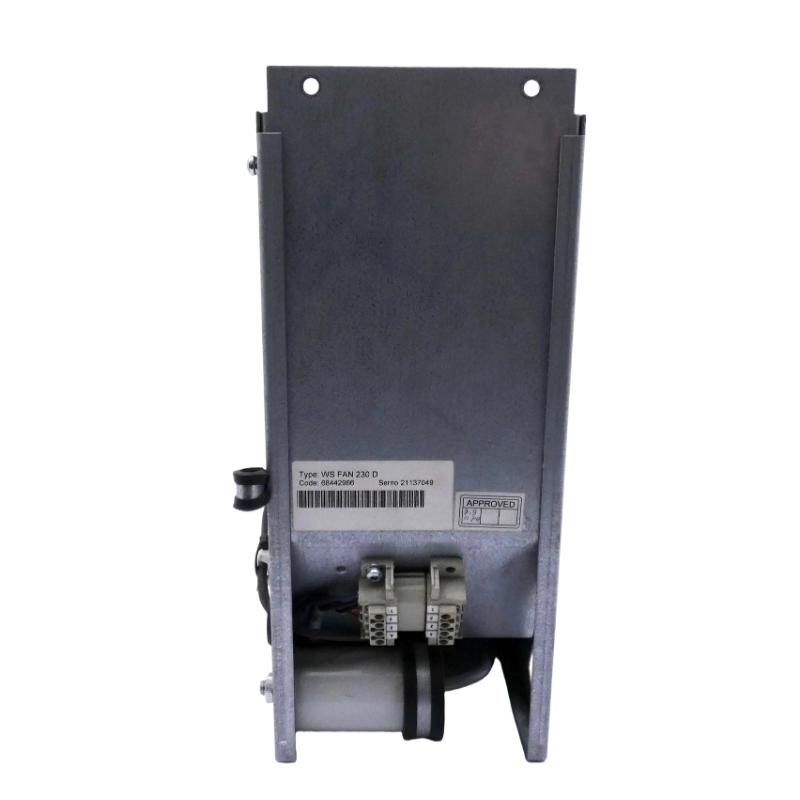

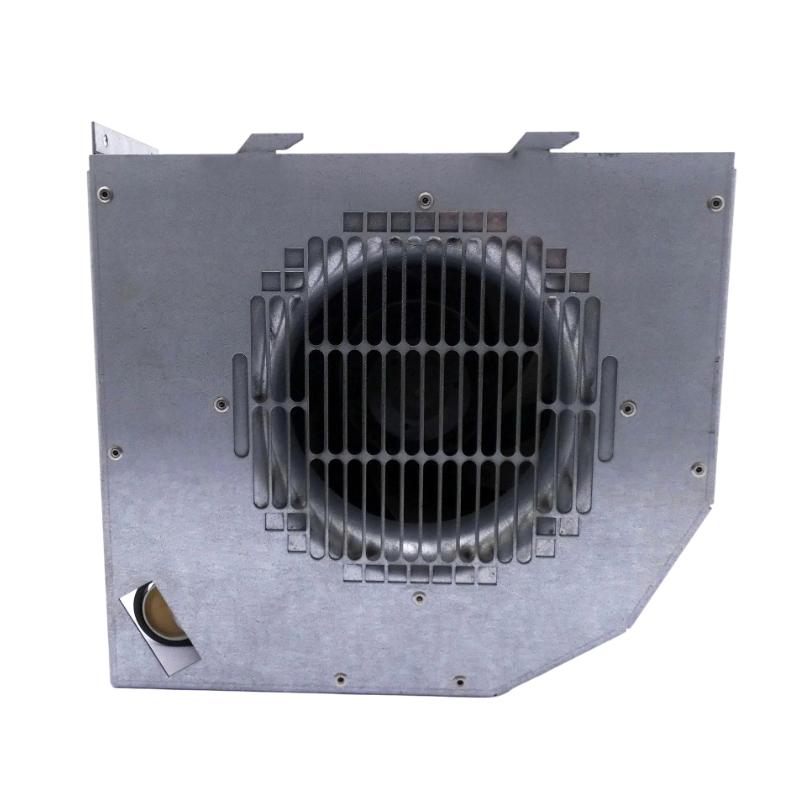

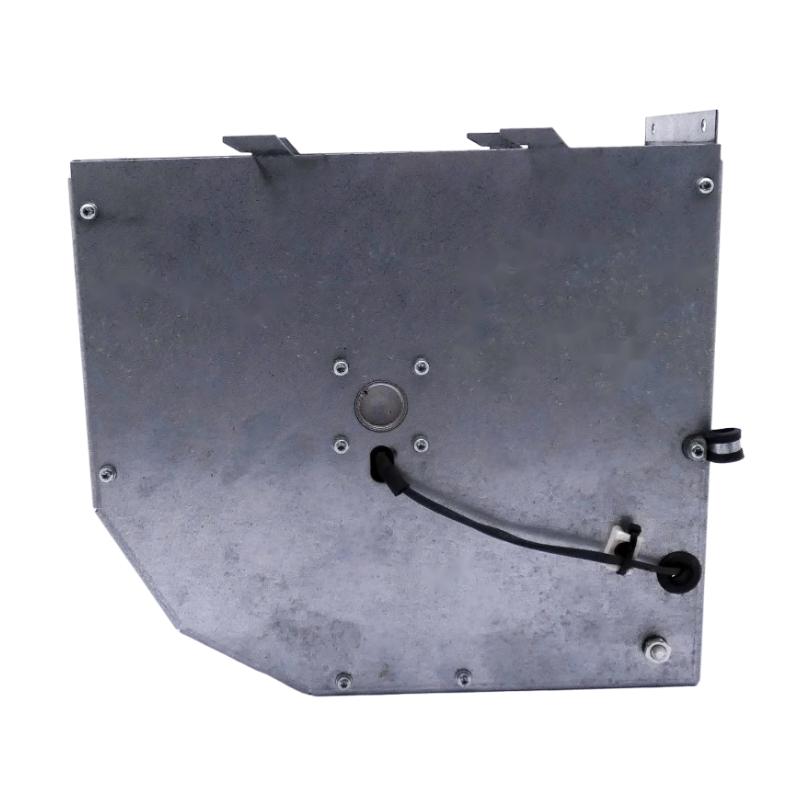

The ABB WS FAN 230 68442966 is a dedicated industrial fan kit intended for thermal management in compatible ABB equipment. It is particularly valuable in power-electronics applications where heat generated by high-power switching devices must be continuously removed.
Industrial drives typically operate with significant electrical loads, and their cooling systems are an essential part of overall equipment reliability. A cooling fan that has lost performance can result in rising internal temperatures even before a direct cooling-system fault is detected. For this reason, fan condition is an important consideration during preventive maintenance.
The 68442966 is supplied as a fan kit, allowing maintenance personnel to replace the relevant cooling assembly rather than attempting to repair individual fan components. This can simplify service work and help restore the designed airflow path of compatible equipment.
For replacement applications, the 230 V designation and mechanical installation configuration should be verified carefully. Fan assemblies that appear physically similar may have different electrical ratings, airflow characteristics, connectors, or mounting arrangements.
Technical Specifications
Specification
Details
Brand
ABB
Model
WS FAN 230
Product ID
68442966
Product Type
Fan Kit
Fan Configuration
230 V
Application
Industrial Equipment Cooling
Function
Forced-Air Ventilation
Dimensions
330 × 150 × 310 mm
Weight
6.20 kg / 13.67 lb
Installation
Equipment Cooling Assembly
Typical Application
ABB Drive and Power-Electronics Equipment
Maintenance Type
Replacement / Preventive Maintenance
The relatively large physical size and 6.20 kg weight reflect its use as an industrial equipment cooling assembly rather than a small cabinet ventilation fan.
Recommended Related Models
Model
Description
ABB 68442966
WS FAN 230 Fan Kit
ABB 64664565
Panel Cooling Fan
ABB 3AUA0000070398
Axial Main Fan
ABB 3AXD50000260355
ACS800 ALCL Fan Kit
ABB 3AXD50001102197
Axial Main Fan Kit
ABB 3AXD50001102198
Drive Cooling Fan Assembly
Popular Related Models
Model
Product Description
ABB 68460221
ACS800 LCL Filter Capacitor
ABB 3BHB0000104530
ABB Drive Power Module
ABB 3AUA0000021460
ACS800 Drive Cooling Component
ABB 3AUA0000031523
ACS800 Auxiliary Fan
ABB 3AUA0000106751
Fan Kit / Fan Plate
ABB 3AUA0000070398
Axial Main Fan
The ABB WS FAN 230 68442966 is a dedicated industrial cooling assembly for compatible ABB equipment. Before replacement, verify the complete part number, 230 V configuration, mounting arrangement, connectors, and the specific ABB equipment model to ensure correct installation.
Industrial Cooling Applications
The ABB WS FAN 230 is designed for forced-air cooling in industrial electrical equipment. It is especially relevant to applications where power semiconductors, drives, converters, and other high-load components generate significant heat during operation.
Typical applications include:
ABB industrial drive systems
Power electronics cooling
ACS800-related equipment
Electrical cabinets and enclosures
Industrial automation systems
Converter and inverter equipment
Motor drive installations
Continuous-duty industrial machinery
Preventive maintenance programs
Replacement of failed cooling assemblies
Adequate ventilation is essential in high-power electrical equipment because excessive internal temperature can accelerate component aging and contribute to drive faults. Replacing a worn or failed fan assembly can therefore be an important part of preventive maintenance.
Cooling Performance and Maintenance Advantages
Dedicated ABB Fan Kit
The 68442966 is identified as the WS FAN 230 fan kit, providing a purpose-built cooling solution for compatible ABB equipment.
Designed for Equipment-Level Cooling
Rather than being a general room-ventilation fan, the assembly is intended to support cooling inside or around industrial electrical equipment.
230 V Fan Configuration
The WS FAN 230 designation corresponds to the 230 V fan configuration, making correct supply-voltage matching essential when selecting a replacement.
Supports Thermal Management
Continuous forced-air circulation helps remove heat generated by power components and supports stable operating temperatures.
Suitable for Preventive Maintenance
Fans are mechanical components subject to bearing wear, contamination, and aging. Scheduled inspection and replacement can help reduce unexpected cooling-related downtime.
Useful as a Replacement Assembly
The complete fan kit can be used when an existing 68442966 assembly has developed abnormal noise, reduced airflow, mechanical wear, or electrical failure.
Technical FAQs
1. What is the ABB 68442966 used for?
The ABB 68442966 is a WS FAN 230 fan kit used for forced-air cooling of compatible industrial electrical and automation equipment.
2. What does “WS FAN 230” mean?
“WS FAN 230” is ABB's type designation for this fan kit. The 230 designation identifies the corresponding 230 V fan configuration.
3. What equipment can use the 68442966?
The part is associated with ABB industrial drive and power-electronics cooling applications, including equipment in the ACS800 family. Exact compatibility should be confirmed against the specific drive or equipment configuration.
4. Why is cooling important in an industrial drive?
Power semiconductors, DC-link components, reactors, motors, and other electrical components generate heat during operation. Effective forced-air cooling helps keep these components within their intended thermal operating range.
5. What symptoms indicate that a cooling fan may be failing?
Typical warning signs include abnormal bearing noise, vibration, reduced airflow, intermittent fan operation, overheating alarms, increased equipment temperature, or drive faults associated with excessive temperature.
6. Can a failed fan cause an ABB drive to trip?
Yes. If insufficient airflow causes internal temperatures to rise beyond acceptable limits, the drive's thermal monitoring and protection functions may generate alarms or protective trips.
7. What should be checked before replacing the 68442966?
The complete part number, fan voltage, equipment model, mounting arrangement, connectors, airflow direction, and existing fan assembly should be checked before installation.
8. How should the fan be maintained?
Maintenance should include inspection for dust accumulation, blocked airflow, abnormal noise, vibration, damaged wiring, and mechanical deterioration. The surrounding air path should also remain unobstructed.
9. Should a fan be replaced when it becomes noisy even if it is still running?
Abnormal noise can indicate bearing wear or mechanical deterioration. Continued operation of a degraded fan can eventually result in loss of airflow, so replacement should be considered according to the equipment maintenance procedure.
10. What precautions are required when replacing the fan kit?
The connected equipment should be shut down and electrically isolated according to the applicable maintenance procedure. Stored electrical energy and rotating mechanical components must be considered before the fan assembly is removed.
