Brand:Ingersoll Rand Item No.: 47604751001 49032709 Product Origin:USA Product Dimensions:202 × 21 × 261 mm Product Weight:0.36 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Ingersoll Rand 47604751001 maintenance kit is associated with the RS200-250N/NE contact-cooled rotary screw compressor family and is intended for the scheduled 6-month/4,000-hour maintenance interval. It provides a structured basis for routine service activities and helps maintenance personnel organize compressor upkeep around defined operating-hour requirements.

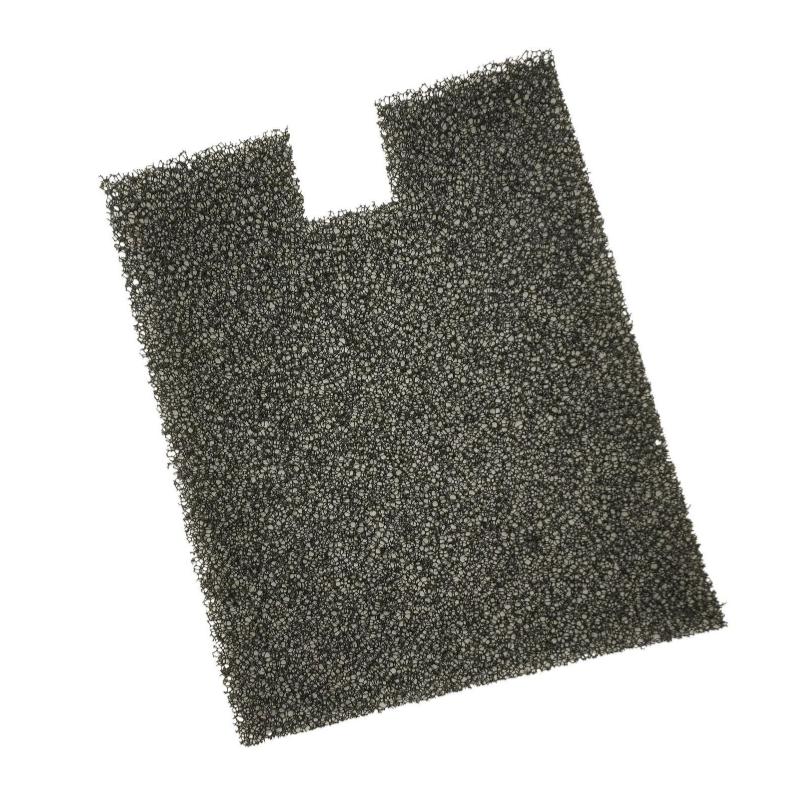

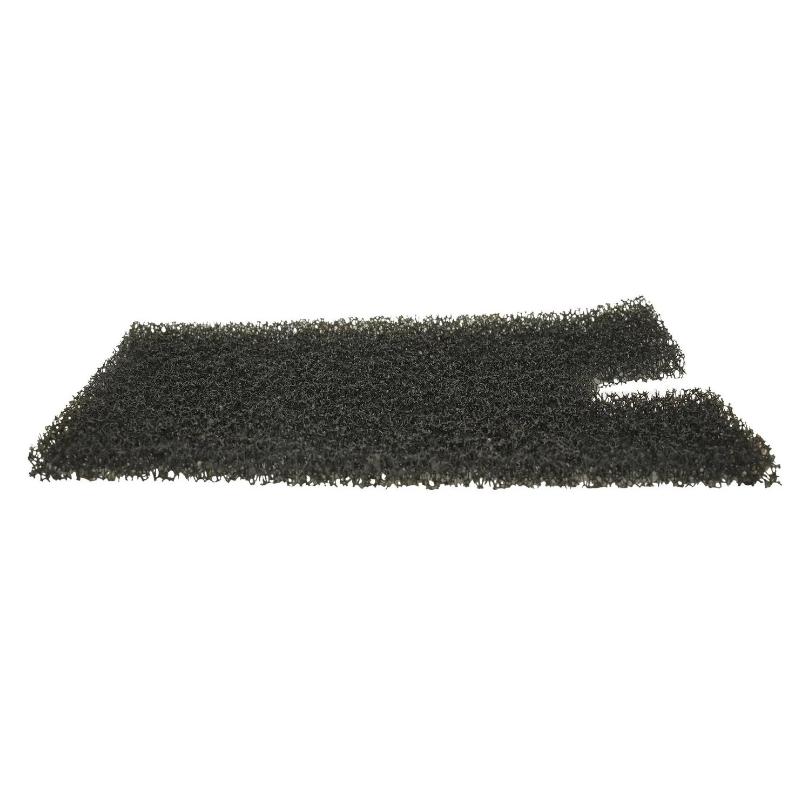

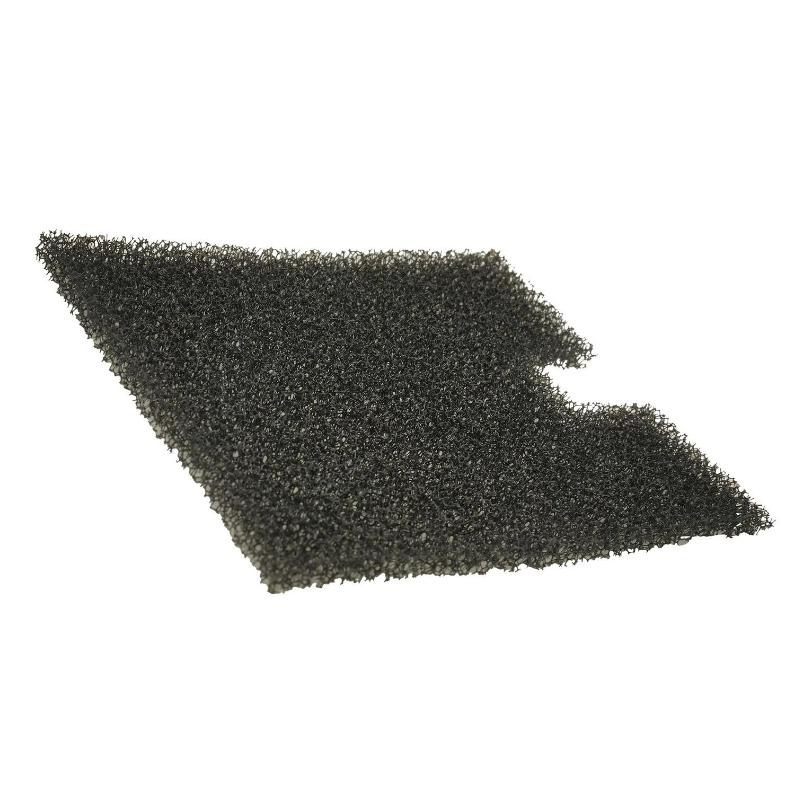

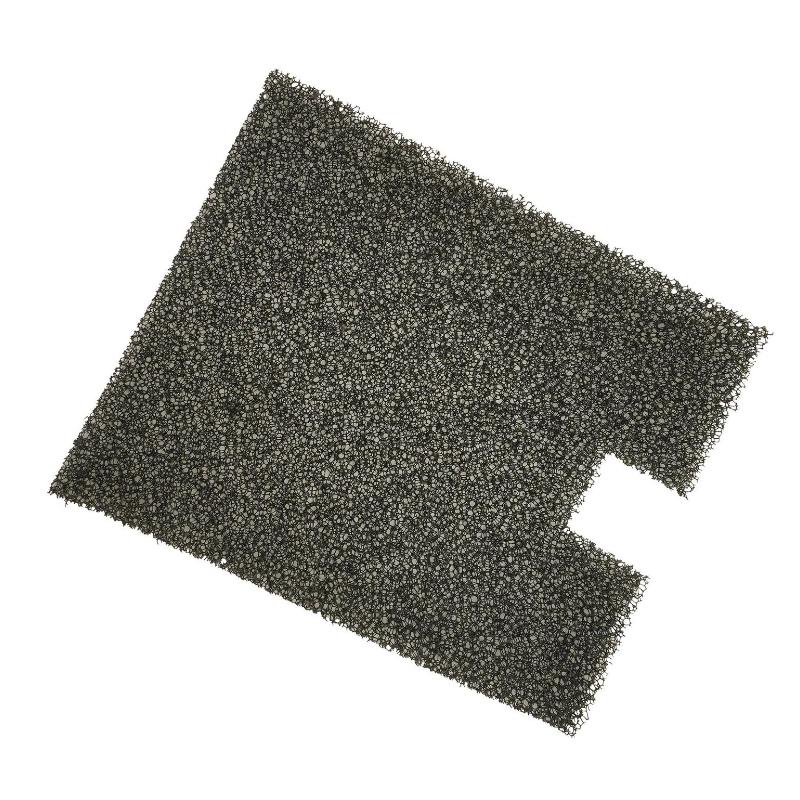

Part number 49032709 is identified as an AC/WC pre-filter pad used in the applicable air pre-filtration arrangement. When considered alongside the maintenance kit, it addresses an important supporting aspect of compressor care: keeping the intake pre-filtration stage in suitable condition. This can help limit the amount of airborne contamination reaching the primary intake filter and maintain a cleaner airflow path.
Technical Specifications
Specification
Details
Manufacturer
Ingersoll Rand
Primary Part Number
47604751001
Associated Part Number
49032709
47604751001 Type
Maintenance service kit
Service Interval
6 months / 4,000 hours
Applicable Compressor Family
RS200-250N/NE
49032709 Type
Pre-filter pad
Pre-Filter Application
AC/WC
System
Compressor air pre-filtration / intake system
Service Function
Scheduled maintenance and pre-filtration support
Installation
Replacement/service component; verify machine configuration before installation
Dimensions
Not separately specified for the complete 47604751001/49032709 configuration
Weight
Not separately specified for the complete service configuration
Compatibility Verification
Confirm compressor model, serial number, cooling arrangement, and current parts documentation
Recommended Companion Models
Product Name
Model / Family
Recommended Role
Ingersoll Rand RS250N
RS250N
N-series compressor platform for corresponding service planning
Ingersoll Rand RS200NE
RS200NE
NE-series compressor platform
Ingersoll Rand RS250NE
RS250NE
Higher-capacity NE-series platform
Ingersoll Rand RS200N
RS200N
N-series platform within the applicable family
Frequently Selected Alternatives
Product Name
Part Number
Typical Use
Ingersoll Rand RS185-260I/IE Standard 6-Month Maintenance Kit
Extended scheduled maintenance for N/NE configurations
Where It Excels in Industrial Use
• Designed for scheduled maintenance support on applicable Ingersoll Rand RS200-250N/NE contact-cooled rotary screw compressors.
• 47604751001 corresponds to the 6-month/4,000-hour maintenance service for the applicable N/NE platform, while 49032709 is a pre-filter pad used within the compressor's air pre-filtration arrangement.
• Particularly suitable for industrial plants where airborne contamination can place additional demands on compressor intake filtration.
• The combination gives maintenance teams a practical way to coordinate scheduled servicing with inspection and renewal of an upstream pre-filtration component.
Key Strengths at a Glance
• Service-interval focused: 47604751001 provides a defined maintenance reference for the applicable 6-month/4,000-hour service cycle.
• Pre-filter support: 49032709 is identified as an AC/WC pre-filter pad used in the applicable intake-air filtration arrangement.
• Reduced contaminant loading: Maintaining the pre-filter stage can help intercept airborne debris before it reaches downstream filtration components.
• Maintenance-friendly configuration: The two references address complementary service requirements, making them useful for planned compressor maintenance programs.
Technical FAQs
1. Which compressor family is associated with 47604751001? 47604751001 is associated with applicable Ingersoll Rand RS200-250N/NE contact-cooled rotary screw compressors for the 6-month/4,000-hour maintenance interval.
2. What is the function of 49032709? 49032709 is a pre-filter pad used in the applicable compressor air pre-filtration arrangement to provide upstream protection against airborne contaminants.
3. Is 49032709 the same as the primary intake-air filter? No. 49032709 serves as a pre-filter component and is used upstream of the primary compressor air-filter element.
4. What is the benefit of maintaining the pre-filter stage? A clean pre-filter can capture larger airborne particles and reduce the contaminant burden placed on the downstream air-filter element.
5. Is 49032709 applicable to both air-cooled and water-cooled machines? It is identified as an AC/WC pre-filter pad, although machine-specific compatibility should still be confirmed using the compressor model and serial number.
6. Is 49032709 automatically included with 47604751001? The two references should be treated as associated maintenance components unless the specific compressor configuration or current bill of materials confirms that 49032709 is supplied with the maintenance kit.
7. What should be inspected during pre-filter replacement? The pre-filter housing, sealing surfaces, retaining arrangement, intake path, and primary filter should be checked for contamination, deterioration, and possible air leakage around the filtration stage.
8. Can a contaminated pre-filter affect compressor operation? Yes. Accumulated contamination can increase intake restriction and may contribute to higher pressure drop through the filtration system.
9. Should 49032709 be replaced strictly according to the 4,000-hour interval? Its service frequency should follow the applicable maintenance recommendations while also considering actual dust loading, ambient conditions, operating hours, and observed filter condition.
10. What information should be checked before ordering these parts? The compressor model, serial number, cooling configuration, current parts documentation, and applicable part-number revision should be verified before ordering.
