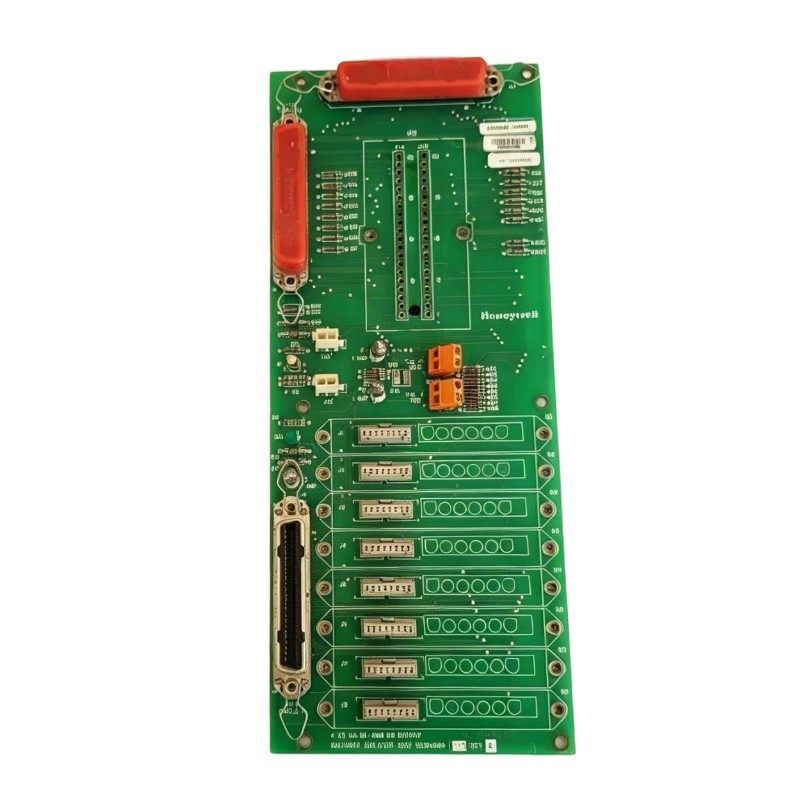

Honeywell MU-GAOX12 51304638-325 Analog Output Module

Applications

The Honeywell MU-GAOX12, part number 51304638-325, is an analog output module designed for use in industrial automation and process control environments. It is suited to systems where a controller must send stable analog signals to field devices such as control valves, actuators, signal converters, and other analog instrumentation.

In a Honeywell control architecture, an analog output module provides the interface between the control strategy and the physical process. The module receives an output command from the control system and delivers the corresponding analog signal to the connected field circuit.

Typical applications include:

• Process control and industrial automation systems
• Analog control valve positioning
• Actuator and final control element interfaces
• Continuous process regulation
• Chemical and petrochemical plants
• Power generation and utility systems
• Oil and gas processing facilities
• Industrial instrumentation systems
• DCS input/output cabinets
• Replacement and maintenance of existing Honeywell I/O hardware

For maintenance teams, the MU-GAOX12 51304638-325 can also be considered as a replacement or spare component when maintaining compatible Honeywell control-system installations.

Advantages

The value of an analog output module is not simply the ability to produce an analog signal. In an industrial control system, dependable signal transmission, predictable operation, cabinet integration, and maintainability are equally important.

The Honeywell MU-GAOX12 51304638-325 offers several practical advantages for industrial applications:

Direct interface with analog field devices
The module is intended for applications where continuous control signals are required rather than simple discrete ON/OFF commands.

Compact I/O hardware
With a supplied size of 185 × 30 × 116 mm, the module can be integrated into control cabinets where installation space is limited.

Suitable for continuous process control
Analog outputs are commonly used when a process variable needs to be adjusted gradually, such as changing valve position or actuator demand.

Useful for system maintenance
Keeping a correctly identified 51304638-325 module available as a spare can reduce downtime when an existing I/O channel develops a hardware problem.

Designed for industrial control environments
The module belongs to the Honeywell industrial automation product family and is intended for integration into control-system applications rather than general-purpose electronic equipment.

Technical FAQs

1. What is the Honeywell MU-GAOX12 51304638-325 used for?
The MU-GAOX12 51304638-325 is an analog output module used to provide analog control signals from a Honeywell automation or process-control system to compatible field devices.

2. What types of equipment can an analog output module control?
Depending on the specific system configuration and signal type, analog outputs may be connected to control valves, actuators, signal converters, motor control interfaces, and other devices requiring continuous control signals.

3. Why is an analog output preferable to a digital output for some applications?
A digital output normally provides a discrete state, such as ON or OFF. An analog output can represent a continuously variable command, making it more appropriate for applications such as valve positioning and proportional process control.

4. Can the 51304638-325 be used as a direct replacement for another Honeywell analog output module?
Replacement should be based on the exact system configuration, hardware revision, I/O architecture, wiring, and engineering database. Similar physical appearance or signal functionality does not automatically guarantee interchangeability.

5. What should be checked before installing the module?
Verify the complete part number, system compatibility, mounting arrangement, terminal wiring, field-device requirements, engineering configuration, and applicable power and signal specifications before installation.

6. What can cause an analog output channel to behave incorrectly?
Potential causes include incorrect configuration, wiring problems, field-device faults, grounding issues, power problems, communication faults, or failure within the I/O hardware itself. Troubleshooting should isolate the controller, module, wiring, and field device systematically.

7. Can wiring problems damage an analog output module?
Incorrect wiring can potentially cause abnormal operation or hardware damage, depending on the circuit design and electrical conditions. Wiring should therefore be checked carefully against the approved system documentation before energizing the circuit.

8. How can an unstable analog output be diagnosed?
Start by checking the control-system command and configuration. Then inspect the module status, field wiring, termination points, grounding, power conditions, and connected device. Comparing the affected channel with a known-good channel can help identify whether the problem is in the module or the field circuit.

9. Is configuration required after replacing the 51304638-325?
A replacement may require verification or restoration of the system configuration. Whether additional engineering or commissioning work is necessary depends on the Honeywell control-system architecture and how the original module was configured.

10. What is the recommended approach when a 51304638-325 module fails?
Record the module identification and system fault information first, isolate the affected equipment according to site procedures, verify the field wiring and power conditions, and replace the module only after confirming that the hardware is the likely source of the fault.
