Introduction

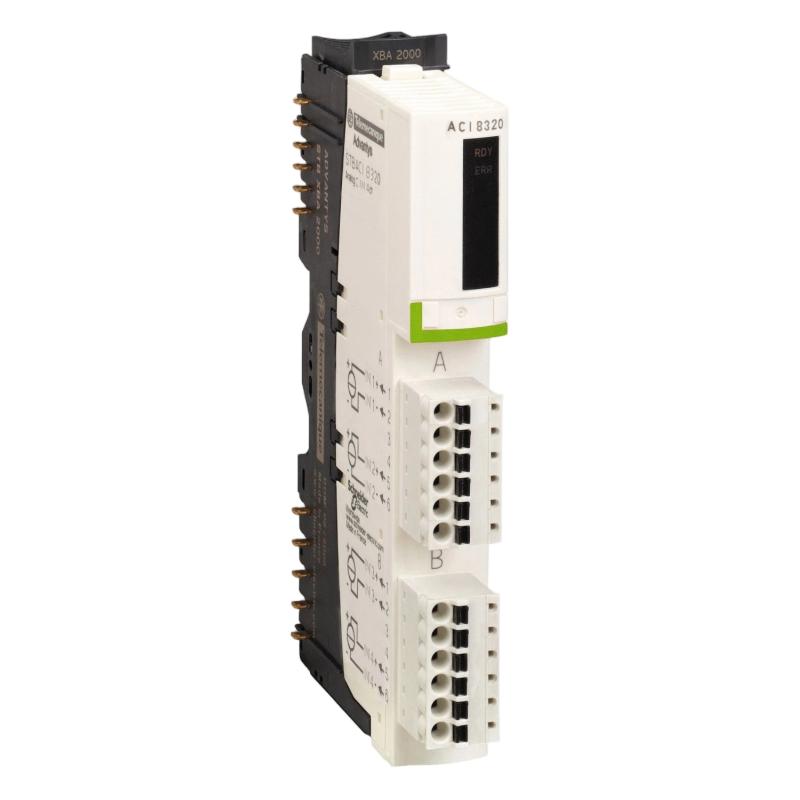

The Schneider STBACI8320 Standard Analog Input Module provides an interface between field instrumentation and a distributed automation system. Instead of treating every field device as a simple binary signal, an analog input module allows the control system to work with continuously changing measurements.

This capability is important in both machine automation and process control. A controller may need to monitor a temperature transmitter, pressure signal, flow measurement, level instrument, or another analog process variable before making a control decision. The I/O module provides the necessary connection between the field signal and the automation architecture.

As part of the Modicon STB family, the STBACI8320 is intended for distributed I/O applications. Positioning I/O closer to field equipment can help organize cabinet wiring and simplify the physical structure of an automation installation.

For maintenance teams, accurate part-number identification is especially important. The complete designation STBACI8320 should be checked against the existing hardware and system documentation before purchasing or installing a replacement module.

Technical Specifications

Parameter	Specification
Brand	Schneider Electric
Model	STBACI8320
Module Type	Standard Analog Input Module
Product Family	Modicon STB
Application	Industrial Automation / Distributed I/O
Function	Analog Signal Acquisition
Dimensions	70 × 18.4 × 128.3 mm
Weight	0.07 kg (0.15 lb)
Installation	Modicon STB Distributed I/O System
Typical Application	Process Measurement and Machine Automation

The supplied module dimensions are 70 × 18.4 × 128.3 mm. The listed product weight is 0.07 kg (0.15 lb).

The exact electrical input characteristics, supported signal ranges, channel configuration, terminal assignments, and system requirements should be verified against the applicable STBACI8320 hardware documentation and the configuration of the existing automation system before commissioning.

Recommended Related Models

For a Modicon STB installation, related hardware should be selected according to the complete I/O island architecture and application requirements. Useful categories for system planning and maintenance include:

Modicon STB analog input modules
Modicon STB analog output modules
Modicon STB digital input modules
Modicon STB digital output modules
Modicon STB power distribution modules
Modicon STB network interface modules
Modicon STB terminal and connection components

When replacing an STBACI8320, the existing island configuration should be checked to ensure that the replacement module is appropriate for its intended position and field wiring.

Popular Related Models

Frequently used components within Schneider Electric distributed automation environments include:

Modicon STB I/O modules
Modicon STB analog I/O modules
Modicon STB digital I/O modules
Modicon STB network interface modules
Modicon STB power distribution components
Modicon STB terminal assemblies

For industrial spare-parts procurement, the exact STBACI8320 model designation should remain the primary reference. Physical dimensions alone are not sufficient to determine electrical or system compatibility.

Applications

The Schneider STBACI8320 Standard Analog Input Module is designed to acquire continuous analog signals from field instruments and make those process values available to an automation controller. It is part of the Modicon STB distributed I/O family and is intended for industrial control applications where reliable analog measurement is required.

Typical applications include:

Process monitoring and control
Factory automation systems
Machine monitoring
Temperature and pressure measurement
Flow and level monitoring
Instrumentation systems
Distributed I/O architectures
Packaging and material-handling equipment
Water and wastewater automation
Manufacturing production lines

The STBACI8320 is particularly useful where analog field signals need to be collected close to the equipment and transferred through a distributed I/O architecture rather than routing every field connection directly to a central controller.

Advantages

Distributed analog signal acquisition
The STBACI8320 allows analog field signals to be collected within a Modicon STB distributed I/O station, helping organize field-level wiring and control-system connections.

Compact installation footprint
With supplied dimensions of 70 × 18.4 × 128.3 mm, the module is suitable for applications where control cabinet space is limited.

Suitable for process instrumentation
Analog input modules are essential for applications that require measurement rather than simple ON/OFF status detection. This makes the STBACI8320 useful for monitoring continuously changing process variables.

Practical for machine and process automation
The module can be used in automation systems where sensor and instrumentation signals need to be integrated into a distributed control architecture.

Convenient maintenance replacement
For facilities operating Modicon STB installations, keeping correctly identified I/O modules available as spare parts can simplify maintenance and reduce recovery time following an I/O fault.

Technical FAQs

1. What is the Schneider STBACI8320 used for?
The STBACI8320 is a standard analog input module used to acquire analog signals from compatible field instruments and make the measured values available to the automation system.

2. What is the difference between an analog input and a digital input?
A digital input normally represents discrete states such as ON/OFF or 0/1. An analog input is used to measure continuously variable electrical signals representing process conditions such as temperature, pressure, flow, or level.

3. Where is the STBACI8320 normally installed?
It is intended for installation as part of a Modicon STB distributed I/O island. The complete island architecture determines how the module communicates with the controller and how its field signals are integrated into the automation system.

4. What should be checked before replacing an STBACI8320?
Verify the complete part number, I/O configuration, island architecture, field wiring, sensor requirements, terminal arrangement, and controller configuration. A module should not be replaced solely because another unit has a similar physical appearance.

5. Can the STBACI8320 be used for process instrumentation?
Yes. Analog input modules are commonly used for process instrumentation where continuously varying measurement signals must be acquired by a control system.

6. What can cause an incorrect analog measurement?
Possible causes include incorrect sensor wiring, signal problems, grounding issues, configuration errors, field-instrument faults, terminal connection problems, or an issue with the I/O module itself. Troubleshooting should isolate each part of the signal path.

7. How should an analog input fault be diagnosed?
First verify the field instrument and its power supply where applicable. Then check wiring and terminals, inspect the I/O station status, verify the configured input channel, and compare the affected channel with a known-good channel when practical.

8. Does replacing the module automatically restore the original configuration?
Not necessarily. The automation system may require configuration verification after replacement. The exact procedure depends on the Modicon STB island and controller configuration.

9. Can a sensor be connected directly to the STBACI8320?
The suitability of a sensor depends on its electrical output characteristics and the specific input requirements of the module. The sensor signal type, wiring method, and system configuration should be verified before connection.

10. Why is correct module identification important during maintenance?
Industrial I/O modules that appear similar can have different electrical characteristics, channel configurations, or system compatibility. Using the exact STBACI8320 part number helps reduce the risk of an incorrect replacement.
