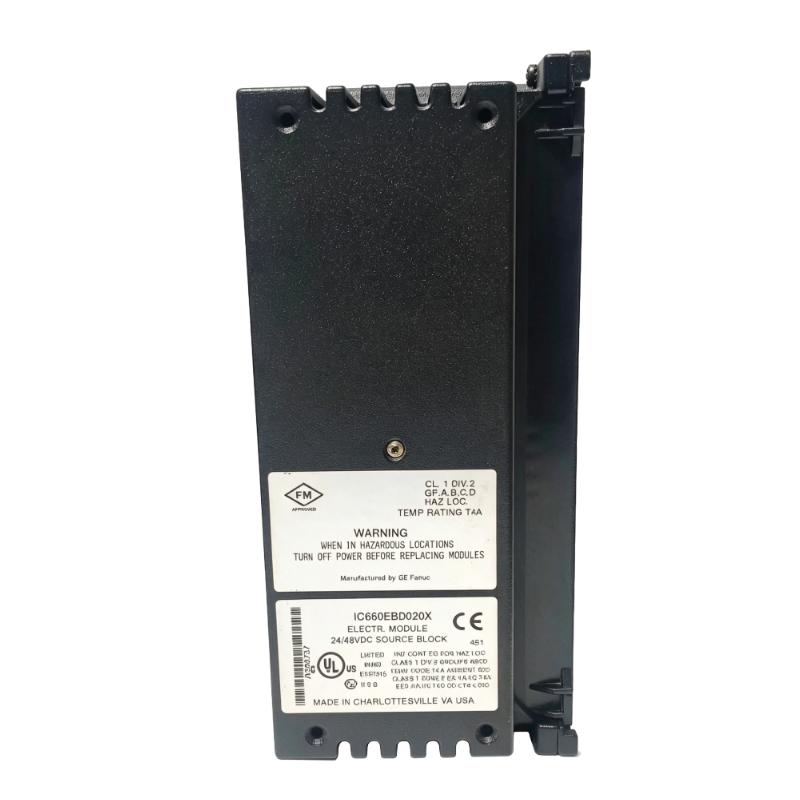

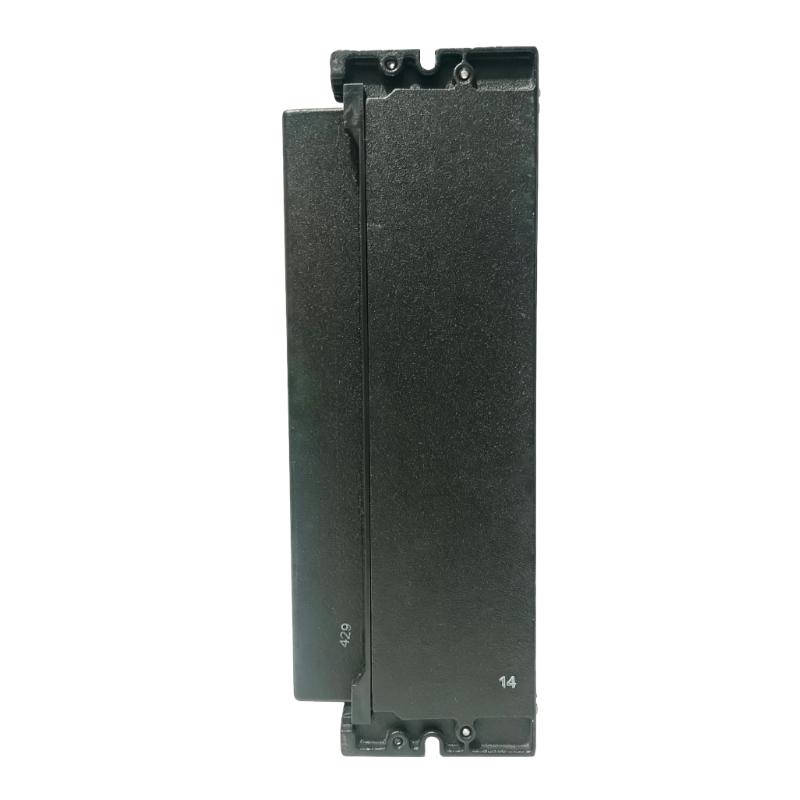

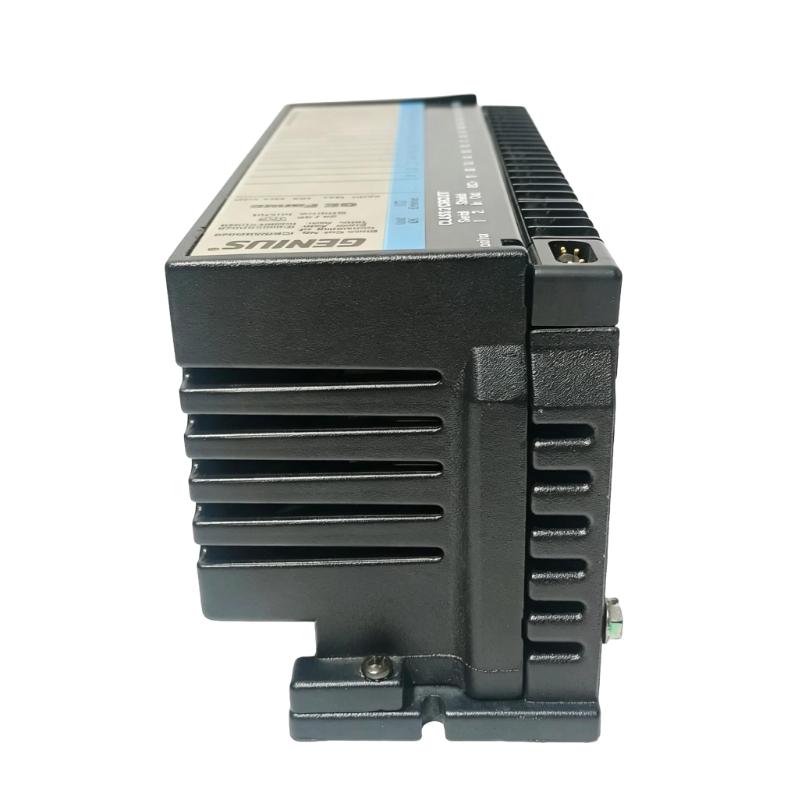

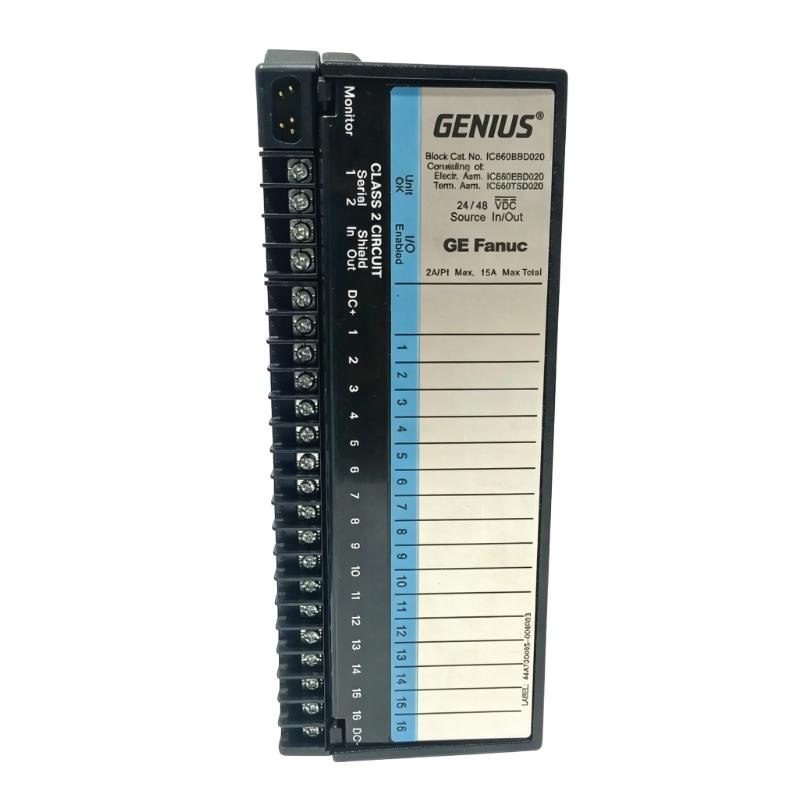

GE IC660EBD020X I/O Block Electronic Assembly

Applications

The GE IC660EBD020X I/O Block Electronic Assembly is an industrial automation component associated with GE Fanuc distributed I/O systems. It is intended for applications where field-level I/O signals need to be interfaced with a larger control system in a distributed architecture.

An I/O block electronic assembly performs an important role between field devices and the controller. Depending on the specific block configuration, it can support the acquisition or control of field signals while allowing I/O functions to be distributed closer to the equipment being controlled.

Typical applications include:

• Factory automation
• Machine control systems
• Distributed I/O installations
• Process monitoring and control
• Manufacturing equipment
• Material-handling systems
• Packaging machinery
• Production-line automation
• Legacy GE Fanuc control systems
• Industrial equipment maintenance and refurbishment

The IC660EBD020X is particularly relevant for plants maintaining established GE Fanuc automation equipment where reliable replacement hardware is required for existing I/O infrastructure.

Advantages

Designed for distributed I/O architectures
The electronic assembly is intended for industrial I/O applications in which field-level signals are handled through distributed blocks rather than being concentrated entirely inside a central PLC rack.

Suitable for legacy automation systems
The IC660 family remains relevant to maintenance teams supporting older industrial control installations. Correctly identifying replacement hardware can be important when maintaining equipment that has been operating for many years.

Supports field-level signal management
An I/O block provides a practical interface between the automation controller and connected field devices, helping separate field wiring from the main controller hardware.

Industrial construction
The supplied dimensions of 224.4 × 88.9 × 100 mm and listed weight of 1.8 kg indicate a substantial industrial hardware assembly rather than a small plug-in electronic component.

Useful as maintenance inventory
Keeping an appropriate spare electronic assembly available can shorten troubleshooting and replacement time when an existing I/O block experiences an electronic failure.

Practical for system refurbishment
For older automation installations, maintaining the original I/O architecture can sometimes be more efficient than redesigning an entire control system. A correctly matched IC660-series replacement can therefore be valuable during refurbishment projects.

Technical FAQs

1. What is the GE IC660EBD020X used for?
The IC660EBD020X is an I/O block electronic assembly associated with GE Fanuc distributed I/O systems. It provides electronic hardware for field-level I/O functionality within a compatible automation architecture.

2. What is the purpose of a distributed I/O block?
Distributed I/O allows field signals to be handled closer to the equipment being controlled. This can simplify field wiring and provide a more flexible architecture than routing every field connection directly to a central controller.

3. Is the IC660EBD020X suitable for a modern PLC system?
Compatibility depends on the specific controller, I/O architecture, communication interface, and installed system. The fact that two systems are both PLC-based does not automatically make their I/O hardware interchangeable.

4. What should be checked before replacing an IC660EBD020X?
Check the complete part number, existing I/O block configuration, controller architecture, wiring, communication arrangement, and system documentation. The replacement should match the requirements of the installed system.

5. What can cause an I/O block to stop operating correctly?
Possible causes include power problems, wiring faults, communication issues, field-device failures, environmental conditions, loose connections, or failure of the electronic assembly itself.

6. How can an I/O block fault be isolated?
Start by checking the block's power and status indications where available. Then inspect field wiring, communication connections, controller diagnostics, and connected devices. Comparing the affected block with a known-good section of the system can help identify the source of the fault.

7. Can incorrect field wiring damage an I/O electronic assembly?
Incorrect wiring can potentially cause abnormal operation or electrical damage depending on the circuit and connected devices. Wiring should always be verified against the applicable system documentation before energizing or replacing hardware.

8. Why is the complete IC660EBD020X part number important?
GE Fanuc I/O hardware can have similar physical characteristics while providing different functions or electrical configurations. The complete model designation helps ensure that the replacement matches the original application.

9. Is configuration required after replacing an I/O block electronic assembly?
The need for configuration or commissioning depends on the architecture of the installed system and the nature of the replacement. After hardware replacement, the associated I/O configuration, communications, and field operation should be verified.

10. What is a good troubleshooting approach for an IC660-series I/O problem?
Separate the problem into controller, communication, I/O block, field wiring, and field-device sections. Check power and status first, then verify communication and wiring before concluding that the electronic assembly itself has failed.
