Brand:Foxboro Module Item No.:FBM217 Product Origin:USA Product Dimensions:216 x 80 x 125 mm Product Weight:0.42 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
Reliable field wiring is fundamental to the performance of any distributed control system. Even when the active I/O hardware is functioning correctly, poor termination, loose connections, incorrect wiring, or poorly organized cabinet layouts can create difficult-to-diagnose signal problems.

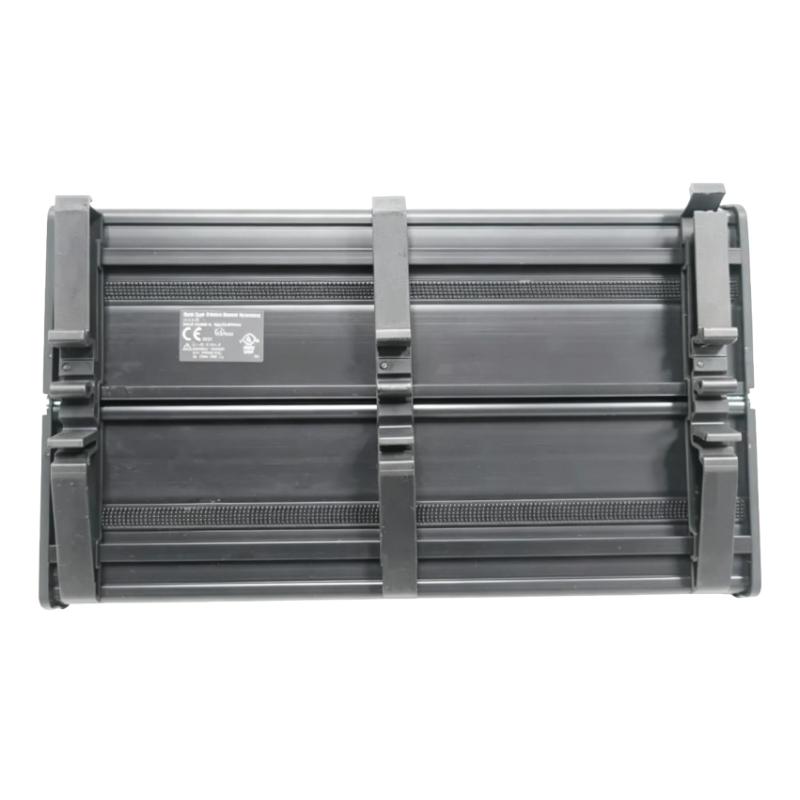

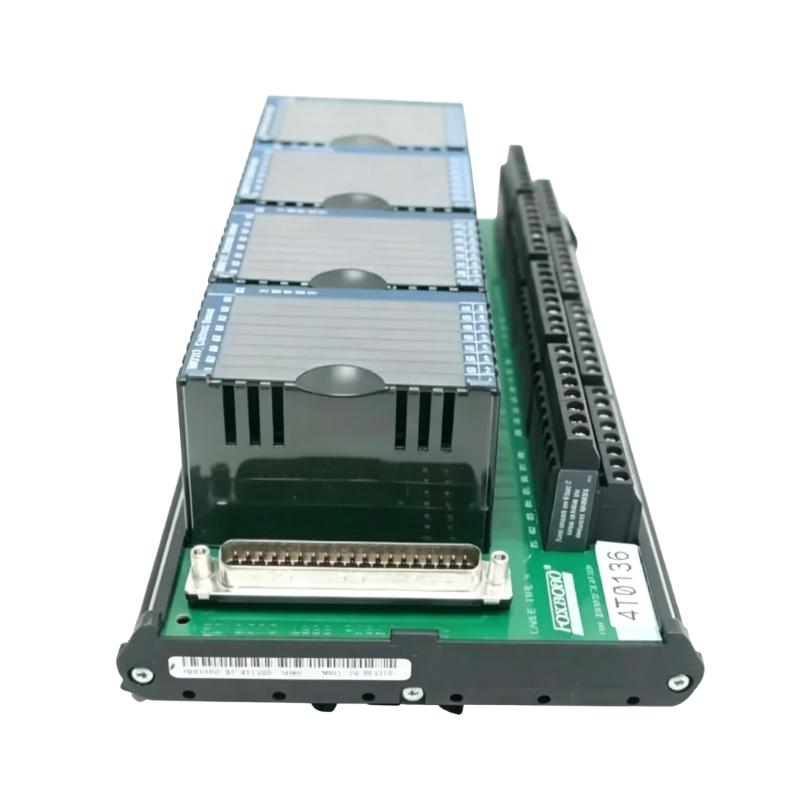

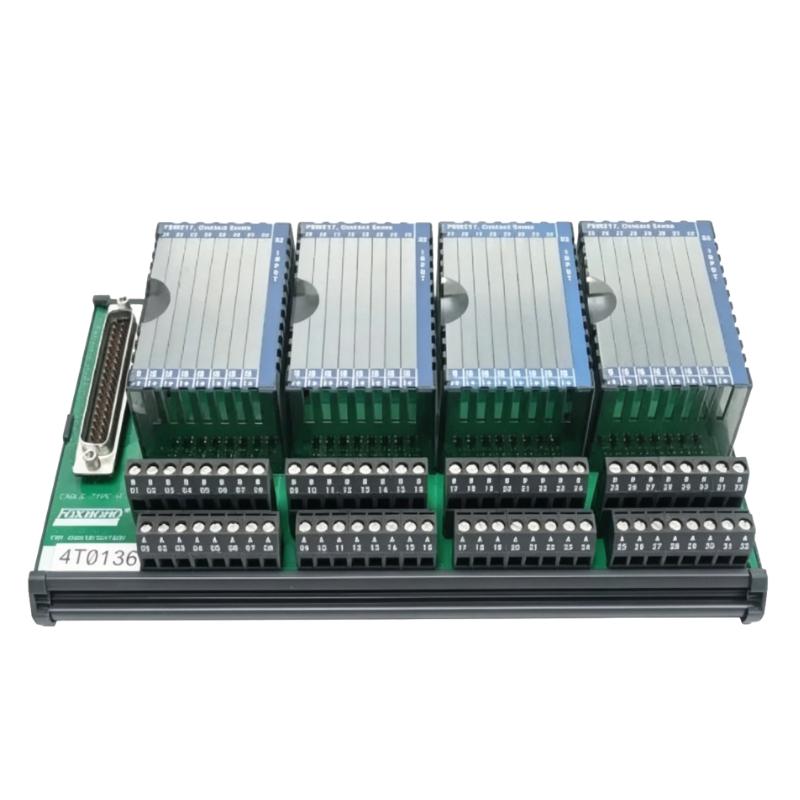

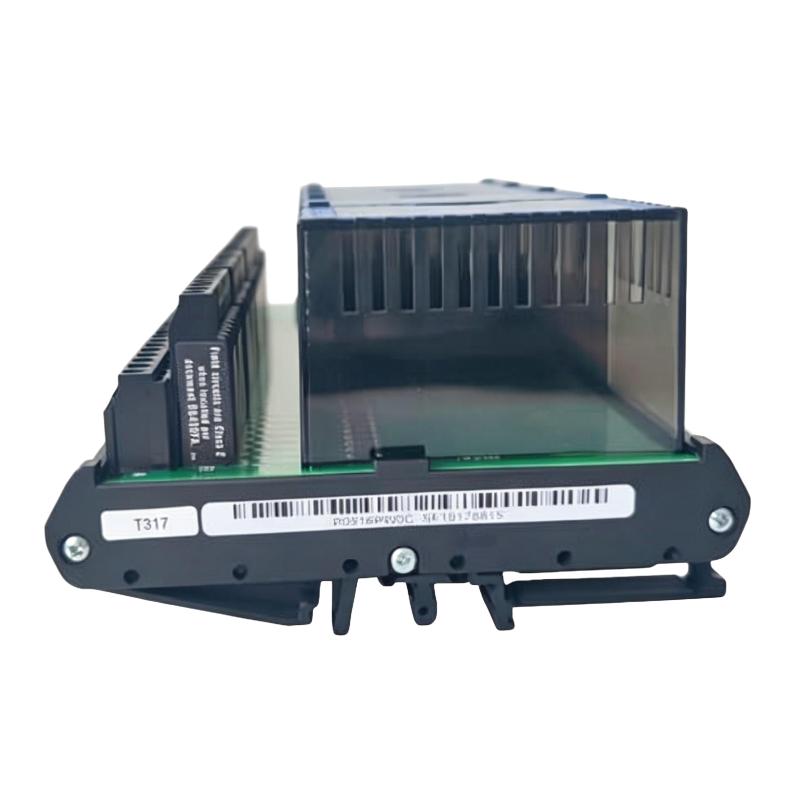

The Foxboro FBM217 P0916PW Compression Termination Assembly provides a dedicated termination solution for compatible FBM217 installations. Rather than treating field wiring as an afterthought, a properly designed termination arrangement establishes a structured connection between field circuits and the DCS I/O architecture.
This is especially valuable in large process facilities, where control cabinets may contain hundreds or thousands of individual field connections. Organized termination makes it easier to identify circuits, perform loop checks, investigate faults, and carry out future modifications.
The P0916PW can therefore contribute to a more maintainable DCS installation. For system integrators, the assembly can support consistent cabinet construction, while maintenance teams can benefit from clearly defined connection points when troubleshooting field circuits.
In modernization projects, correct termination hardware is equally important. Replacing an active I/O module without verifying the associated termination arrangement can result in compatibility or wiring problems. For this reason, the P0916PW should be evaluated as part of the complete FBM217 interface architecture.
Technical Specifications
Parameter
Specification
Brand
Foxboro
Model
FBM217
Part Number
P0916PW
Product Type
Compression Termination Assembly
Associated System
Foxboro I/A Series
Application
DCS Field Wiring Termination
Interface Function
Field Signal Termination
Installation
Control Cabinet / Distributed I/O System
Dimensions
216 × 80 × 125 mm
Weight
0.42 kg (0.93 lb)
The Foxboro FBM217 P0916PW has supplied dimensions of 216 × 80 × 125 mm. Its specified weight is 0.42 kg (0.93 lb).
Because the P0916PW is a termination assembly rather than an active I/O module, its selection should focus on hardware compatibility, field wiring requirements, termination arrangement, cabinet layout, and the associated FBM217 configuration.
Recommended Related Models
For Foxboro DCS projects involving FBM217 and related field-interface hardware, the following models can be considered as part of the wider system architecture:
Model
Product Type
Typical Application
Foxboro FBM217
Discrete Input Interface Module
Discrete field signal acquisition
Foxboro FBM216b
HART Communication Input Module
HART-enabled analog instrumentation
Foxboro FBM201
Analog Input Module
Process measurement acquisition
Foxboro FBM202
Analog Output Module
Analog control signals
Foxboro FBM204
Discrete Output Module
Discrete field-device control
The correct termination hardware should always be matched to the specific FBM module and field-wiring architecture rather than selected solely according to physical appearance.
Popular Related Models
The following Foxboro products are relevant to DCS I/O and field-interface projects:
Model
Product Type
Typical Application
Foxboro FBM217
Discrete Input Interface Module
Discrete field-status acquisition
Foxboro FBM216b
HART Communication Input Module
Intelligent process instrumentation
Foxboro FBM201
Analog Input Module
Analog process signals
Foxboro FBM202
Analog Output Module
Analog control-loop output
Foxboro FBM203
Discrete Input Module
Binary field signal monitoring
Foxboro FBM204
Discrete Output Module
Discrete control applications
The Foxboro FBM217 P0916PW Compression Termination Assembly is a practical component for building an organized and maintainable field-wiring interface around compatible Foxboro DCS hardware. Its dedicated termination role, compact industrial design, and suitability for structured cabinet wiring make it a useful choice for system installation, expansion, and maintenance projects.
Applications
The Foxboro FBM217 P0916PW Compression Termination Assembly is designed to provide a practical field-wiring interface for Foxboro distributed control system installations. It is used to organize and terminate field connections associated with compatible FBM217 I/O hardware, helping establish a clear electrical path between field devices and the DCS interface.
Termination assemblies play an important role in industrial automation cabinets because reliable signal transmission begins with properly organized field wiring. The P0916PW is suitable for process industries where large numbers of field signals must be brought into a control system in an orderly and maintainable manner.
Typical environments include oil and gas, petrochemical, chemical processing, power generation, water treatment, and other industrial facilities using Foxboro control-system equipment.
For system integrators and maintenance teams, the P0916PW provides a convenient termination solution that can simplify cabinet wiring, commissioning, inspection, and future maintenance work.
Practical Benefits for DCS Wiring
Organized Field Termination
The P0916PW provides a structured termination point for field wiring, helping keep individual signal connections organized inside the control cabinet.
Designed for FBM217 Applications
Its association with the FBM217 platform makes it suitable for projects where compatible discrete I/O hardware requires an appropriate termination arrangement.
Cleaner Cabinet Wiring
A dedicated termination assembly can reduce unnecessary wiring congestion and make signal paths easier to identify during commissioning and maintenance.
Simplified Troubleshooting
Clearly arranged field connections can make it easier for technicians to trace individual circuits, inspect terminals, and isolate wiring-related problems.
Efficient Installation
The assembly provides a dedicated hardware solution rather than requiring installers to develop an improvised termination arrangement, helping create a more consistent cabinet design.
Useful for System Expansion
When additional FBM217-related field connections are required, an appropriate termination assembly can help maintain an orderly and serviceable DCS cabinet layout.
Industrial Maintenance Friendly
A well-organized termination interface can reduce maintenance effort by giving technicians a defined point for checking field wiring and signal continuity.
Technical FAQs
1. What is the purpose of the Foxboro FBM217 P0916PW?
The P0916PW is a compression termination assembly associated with the Foxboro FBM217 interface. Its purpose is to provide an organized termination point for compatible field wiring.
2. Is the P0916PW an I/O module?
No. The P0916PW is a termination assembly rather than an active signal-processing I/O module. It provides the physical and electrical termination interface associated with the applicable control-system hardware.
3. Why is a termination assembly important in a DCS installation?
A termination assembly provides an organized connection point between field wiring and the control-system I/O architecture. Proper termination improves wiring organization and can make commissioning and maintenance more efficient.
4. Can the P0916PW be used with any Foxboro FBM module?
Compatibility should be verified before installation. Termination assemblies are designed for specific hardware arrangements, so the FBM model, part number, wiring configuration, and system architecture should be checked.
5. What does compression termination mean?
Compression termination uses a mechanical connection method to secure conductors or wiring within the termination assembly. The exact connection procedure should follow the applicable hardware installation requirements.
6. Can the P0916PW improve troubleshooting efficiency?
Yes. A dedicated termination point provides a defined location for inspecting field connections and tracing signal circuits, which can simplify continuity checks and fault isolation.
7. What should be checked if a field signal is missing?
Technicians should inspect the field device, cable continuity, termination points, connection integrity, polarity where applicable, and the corresponding FBM channel. The termination assembly should also be checked for loose or incorrectly installed conductors.
8. Is the P0916PW responsible for processing field signals?
No. Signal processing is performed by the associated active I/O hardware. The termination assembly primarily provides the physical interface required to connect the field wiring to the appropriate control-system circuitry.
9. What should be verified before replacing a P0916PW?
Verify the complete part number, associated FBM hardware, termination configuration, field wiring arrangement, connector or terminal requirements, and cabinet installation scheme. Similar-looking termination hardware should not be assumed to be interchangeable.
10. What is important during installation?
Correct conductor identification, secure termination, proper wiring separation, accurate circuit documentation, and verification of each connection are important. A point-to-point check should be performed before the associated control loop or discrete signal is placed into normal operation.
