Product Introduction

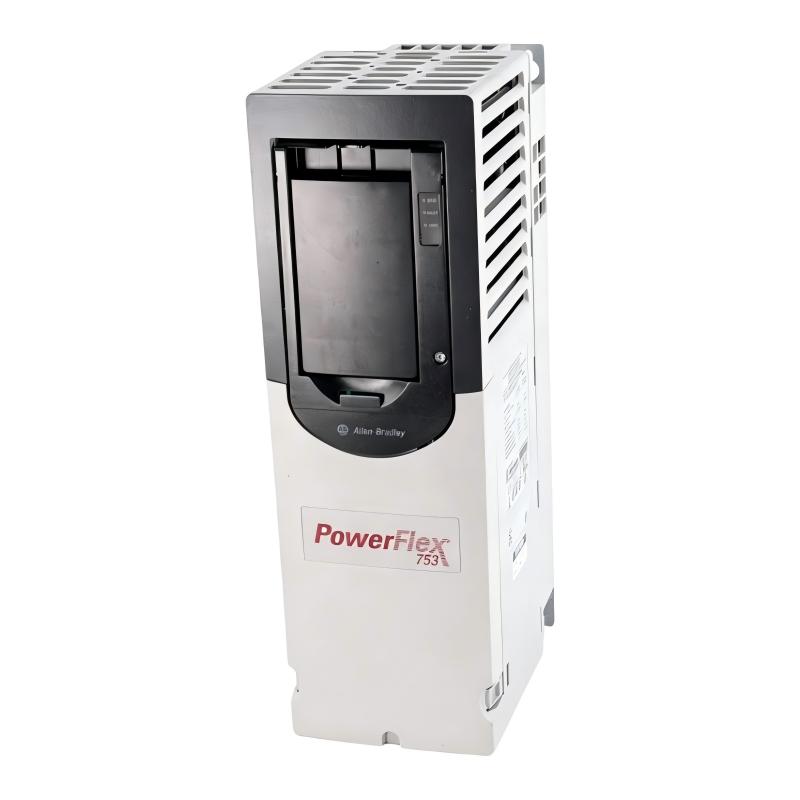

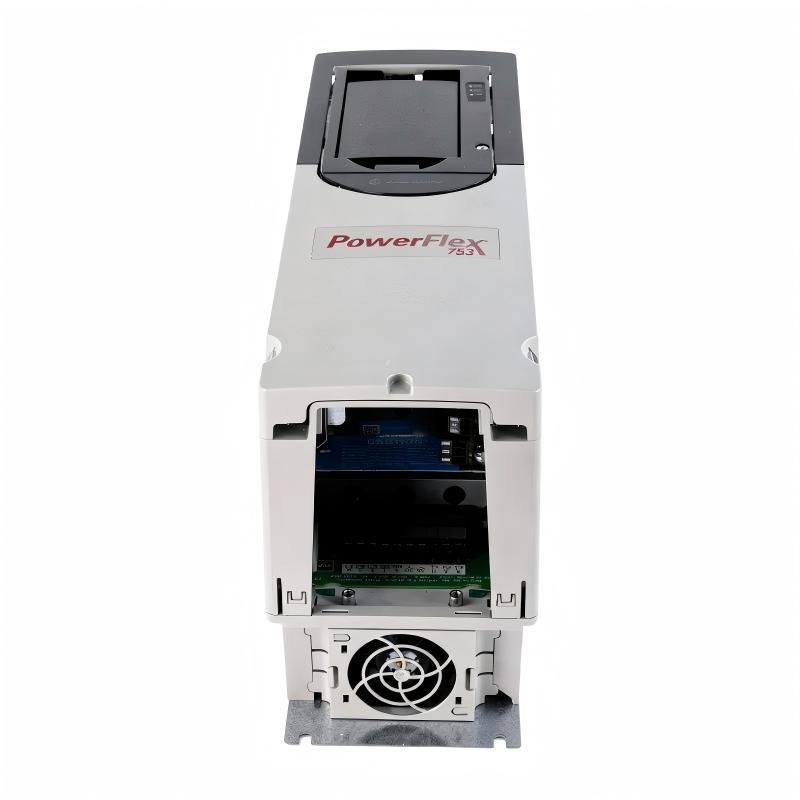

The Allen-Bradley 20F11ND5P0JA0NNNNN PowerFlex 753 AC Drive is a compact Frame 2 variable-frequency drive intended for industrial motor control. Its configuration combines a 5 A output rating, 480 VAC three-phase operation, embedded I/O, forced-air cooling, EMC filtering, and an internal dynamic braking transistor.

The PowerFlex 753 architecture is intended for applications where a standard VFD needs to fit into a broader automation system rather than operate as an isolated motor controller. Its modular architecture provides opportunities for adding communication, feedback, safety, and other functional capabilities as system requirements evolve.

The 20F11ND5P0JA0NNNNN is supplied without a HIM, making it a practical choice for installations where local operator-interface hardware is not required or where drive operation is managed primarily through the automation control system.

For cabinet applications, the open-type enclosure allows the drive to be integrated into a properly designed control panel. Installation should account for power wiring, ventilation, heat dissipation, control wiring, and maintenance access.

Technical Specifications

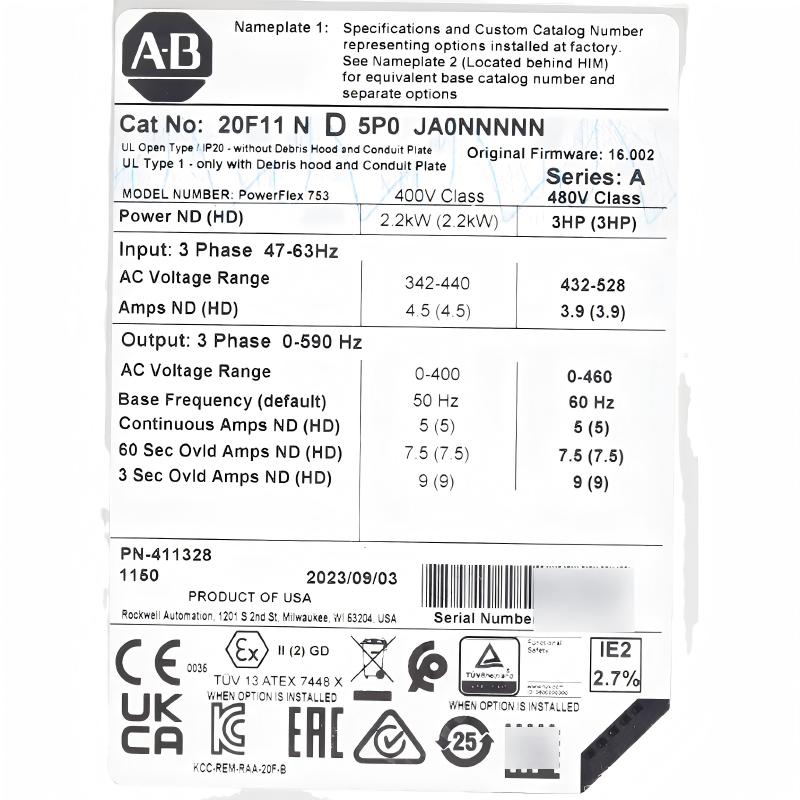

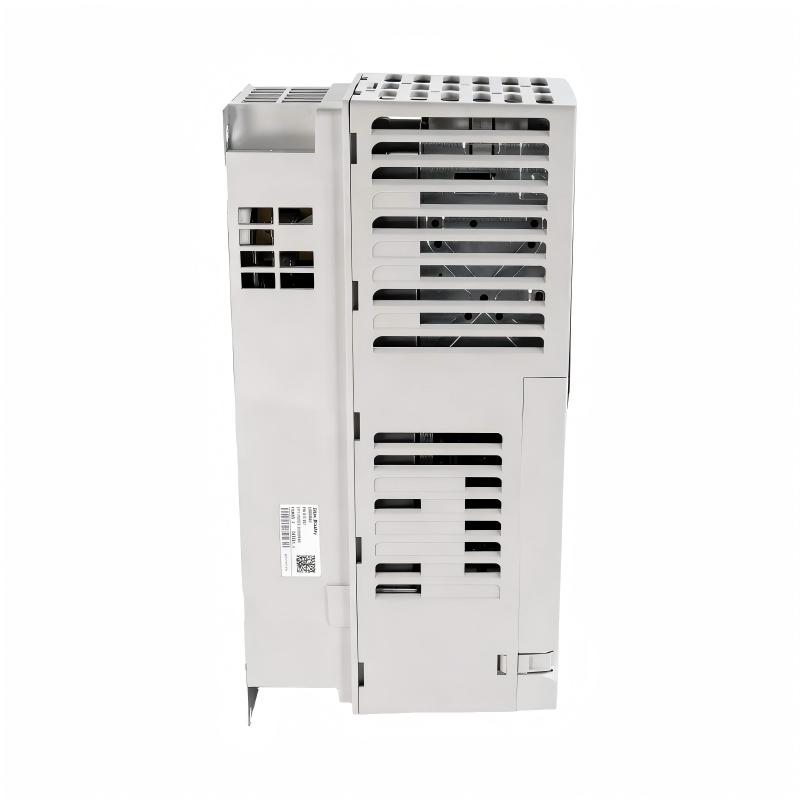

Specification	Details
Brand	Allen-Bradley
Manufacturer	Rockwell Automation
Model	20F11ND5P0JA0NNNNN
Product Family	PowerFlex 753
Product Type	AC Drive / Variable Frequency Drive
Bulletin	20F
Input Voltage	480 VAC Class
Input Phase	3 Phase
Output Current	5 A
Normal-Duty Rating	3 HP
Heavy-Duty Rating	3 HP
Approx. Motor Power	2.2 kW
Frame Size	Frame 2
Cooling	Forced Air
Enclosure	IP20/IP00, NEMA/UL Open Type
Input Configuration	AC Input with DC Terminals
EMC Filtering	Filtered
CM Jumper	Installed
Dynamic Braking	Internal DB Transistor
Embedded I/O	Yes
HIM	Blank / No HIM
Approx. Dimensions	424.2 × 134.5 × 212 mm
Approx. Weight	7.80 kg (17.20 lb)

The approximate dimensions are 424.2 mm high × 134.5 mm wide × 212 mm deep. The approximate drive weight is 7.80 kg (17.20 lb). Cabinet designers should reserve additional space beyond the physical drive envelope for wiring, airflow, terminal access, and service clearance.

Recommended Related Models

Model	Product Type	Typical Relationship
20F11ND3P0JA0NNNNN	PowerFlex 753 AC Drive	Lower-current PowerFlex 753 configuration
20F11ND5P0JA0NNNNN	PowerFlex 753 AC Drive	5 A Frame 2 configuration
20F11ND8P0JA0NNNNN	PowerFlex 753 AC Drive	Higher-current configuration
20F11ND011P0JA0NNNNN	PowerFlex 753 AC Drive	Higher-power Frame 2 configuration
20F11ND015P0JA0NNNNN	PowerFlex 753 AC Drive	Higher-capacity PowerFlex 753 configuration

Popular Related Models

Model	Product Family	Application
20F11ND5P0JA0NNNNN	PowerFlex 753	5 A, 480 VAC, Frame 2 AC drive
20F11ND8P0JA0NNNNN	PowerFlex 753	Industrial motor control
20F11NC015JA0NNNNN	PowerFlex 753	Higher-power motor applications
20G11ND5P0JA0NNNNN	PowerFlex 755	Advanced PowerFlex drive applications
20G11ND8P0JA0NNNNN	PowerFlex 755	Higher-performance industrial drive systems
20F1ANC1P0JA0NNNNN	PowerFlex 753	Alternative PowerFlex 753 configuration

The Allen-Bradley 20F11ND5P0JA0NNNNN PowerFlex 753 AC Drive is a strong fit for industrial control panels requiring a compact 480 VAC three-phase drive with embedded I/O, forced-air cooling, EMC filtering, and integrated dynamic braking capability. Its PowerFlex 753 architecture also provides a practical foundation for applications that may later require additional automation, communication, feedback, or safety functions.

Applications

The Allen-Bradley 20F11ND5P0JA0NNNNN is a PowerFlex 753 AC Drive designed for three-phase industrial motor control applications. It is a Frame 2, air-cooled drive rated at 5 A, with a 480 VAC class input and an open IP20/IP00 enclosure.

With embedded I/O, integrated dynamic braking transistor, and factory-installed EMC filtering, the drive is suitable for applications where reliable speed control, cabinet integration, and flexible automation connectivity are required.

Typical applications include:

Conveyor and material handling systems
Pumps and fans
Packaging machinery
Process equipment
Machine tools
Industrial production lines
HVAC and auxiliary machinery
General-purpose motor speed control
Automated material handling equipment
PLC-based machine control systems

The 20F11ND5P0JA0NNNNN is particularly suitable for control panels where the drive will be installed inside a suitable electrical cabinet or enclosure.

Key Advantages and Drive Features

5 A PowerFlex 753 platform
The drive provides a 5 A output rating with a normal-duty rating of 3 HP. It uses the PowerFlex 750-Series architecture for industrial motor control and automation integration.

480 VAC three-phase operation
The drive is designed for 480 VAC, three-phase systems, making it suitable for common industrial power distribution environments.

Embedded I/O
Built-in I/O reduces the need for additional interface hardware and can simplify control-panel design for machine and process applications.

Integrated dynamic braking transistor
The internal DB transistor supports applications requiring controlled motor deceleration and dynamic braking hardware.

Factory-installed filtering
The 20F11ND5P0JA0NNNNN uses the filtered configuration with the CM jumper installed, helping support applications with EMC considerations.

Forced-air cooling
Air-cooled construction provides thermal management for continuous industrial operation when the drive is installed with the required cabinet ventilation and clearances.

Open-type enclosure
The IP20/IP00, NEMA/UL Open Type construction is intended for installation within an appropriate electrical enclosure rather than direct exposure to the plant environment.

PowerFlex 753 expandability
The PowerFlex 753 family supports a range of communication, feedback, I/O, safety, and control options, allowing the drive architecture to be adapted to different automation requirements.

Technical FAQs

1. What is the Allen-Bradley 20F11ND5P0JA0NNNNN?
It is a PowerFlex 753 three-phase air-cooled AC drive with embedded I/O, designed for industrial motor speed and control applications.

2. What is the input voltage of the 20F11ND5P0JA0NNNNN?
The drive is designed for a 480 VAC class, three-phase input system. The applicable operating input range should be confirmed against the installation requirements before commissioning.

3. What is the output current rating?
The catalog configuration has a 5 A output current rating.

4. What motor power can this drive handle?
The published configuration is rated for 3 HP normal duty and 3 HP heavy duty in the Frame 2 configuration.

5. Does the drive include embedded I/O?
Yes. The 20F11ND5P0JA0NNNNN is configured with embedded I/O, reducing the need for separate basic I/O interface hardware.

6. Does this model have dynamic braking capability?
Yes. An internal dynamic braking transistor is included in this catalog configuration. An external braking resistor may still be required depending on the application and braking requirements.

7. Does the 20F11ND5P0JA0NNNNN include a HIM?
No. This catalog number is configured with a blank/no HIM option. Drive setup can therefore be performed through the available control and communication interfaces or by installing a compatible interface where required.

8. What type of cooling does the PowerFlex 753 use?
This model uses forced-air cooling. Proper cabinet ventilation and installation clearances are important for maintaining acceptable operating temperatures.

9. What enclosure rating does this drive have?
The drive uses an IP20/IP00, NEMA/UL Open Type construction. It should be installed inside an enclosure appropriate for the surrounding industrial environment.

10. Can the 20F11ND5P0JA0NNNNN be integrated into a PLC-based automation system?
Yes. The PowerFlex 753 platform is designed for integration with industrial automation systems and can be expanded with suitable communication and control options according to the application.
