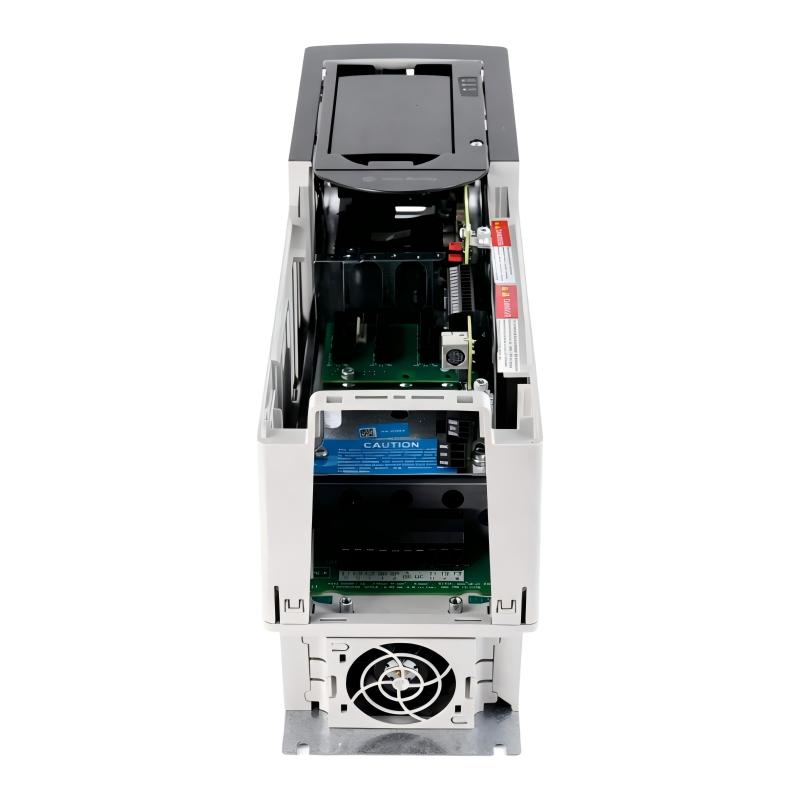

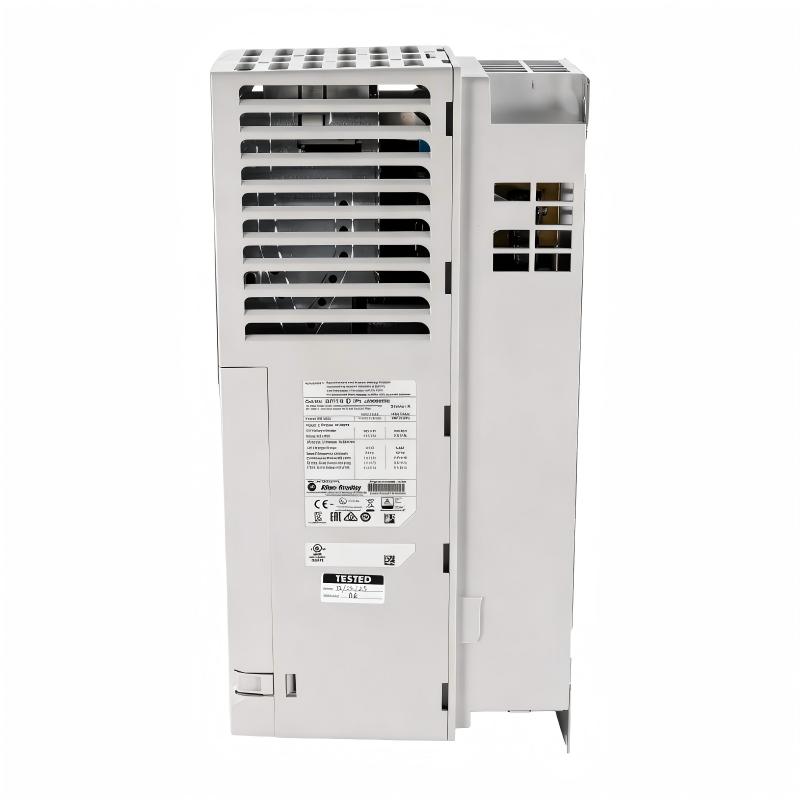

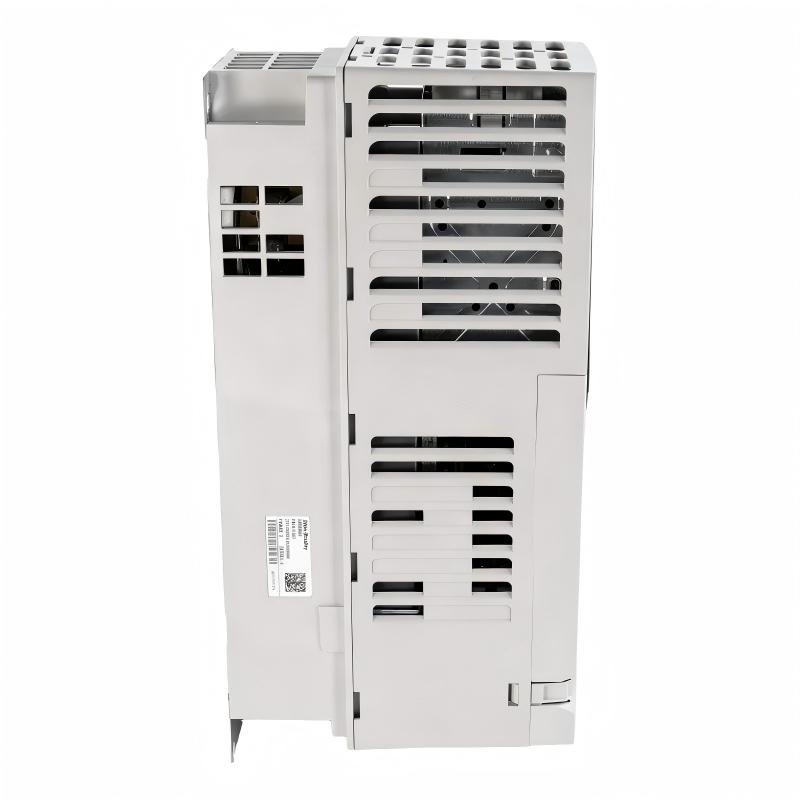

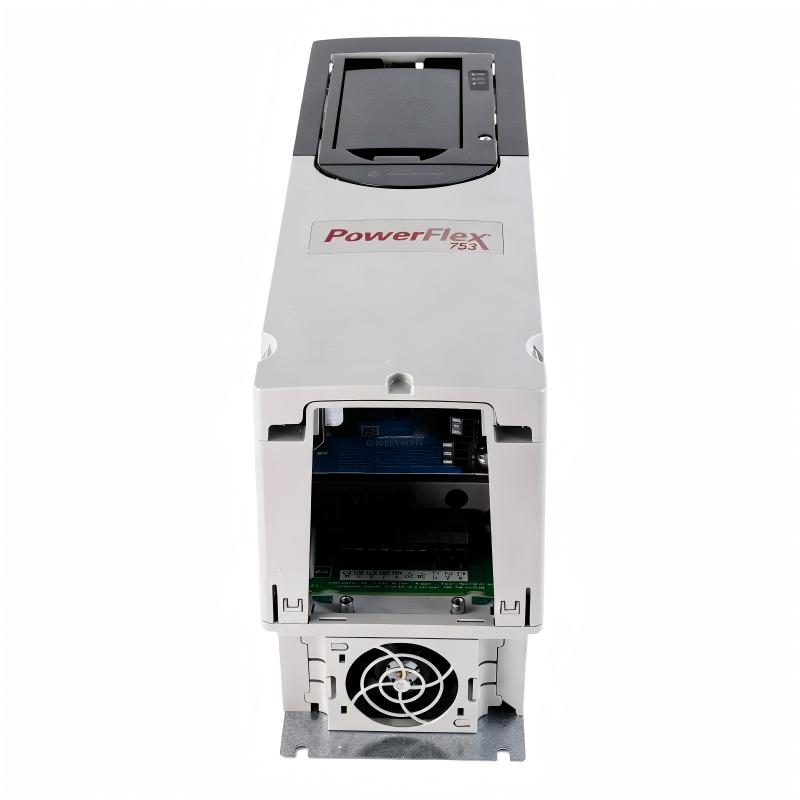

Allen Bradley 20F11NE011AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11NE011AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NE011AA0NNNNN Product Origin:USA Product Dimensions:454 x 190 x 212 mm Product Weight:11.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20F11NE011AA0NNNNN PowerFlex 753 AC Drive is an industrial variable-frequency drive designed to provide controlled speed and operation of AC motors. Its 11 A configuration provides additional capacity for motor-control applications that exceed the requirements of lower-current PowerFlex 753 models.
The PowerFlex 753 family is built around a modular architecture intended for integration into larger automation systems. Depending on the application, users can incorporate communication, feedback, safety, and other functional options to create a drive system suited to the machine or process.
The 20F11NE011AA0NNNNN is appropriate for centralized control cabinets used in manufacturing and process industries. Correct cabinet design should account for heat dissipation, ventilation, wiring separation, grounding, electromagnetic compatibility, and maintenance access.
During commissioning, motor nameplate data and application-specific control parameters should be entered carefully. Proper tuning of acceleration, deceleration, current limits, motor protection, and control mode can help achieve stable motor performance and reduce unnecessary drive trips.
Technical Specifications
Specification
Details
Brand
Allen-Bradley
Manufacturer
Rockwell Automation
Model
20F11NE011AA0NNNNN
Product Family
PowerFlex 753
Product Type
AC Drive / Variable Frequency Drive
Bulletin
20F
Input Voltage Class
480 VAC
Input Phase
Three Phase
Output Current
11 A
Frame Size
Frame 2
Cooling Method
Forced Air
Enclosure Type
Open Type
Control Architecture
PowerFlex 753
Embedded I/O
Yes
Dynamic Braking Support
Yes
Dimensions
454 × 190 × 212 mm
Weight
11.80 kg (26.01 lb)
The supplied physical dimensions are 454 × 190 × 212 mm, and the specified product weight is 11.80 kg (26.01 lb). When designing a cabinet, additional clearance should be allowed for power cables, control wiring, ventilation, terminal access, and future maintenance.
Recommended Related Models
Model
Product Type
Typical Application
20F11ND5P0JA0NNNNN
PowerFlex 753 AC Drive
Lower-current industrial motor control
20F11ND8P0JA0NNNNN
PowerFlex 753 AC Drive
8 A motor-control applications
20F11NE011AA0NNNNN
PowerFlex 753 AC Drive
11 A industrial motor control
20F11ND015P0JA0NNNNN
PowerFlex 753 AC Drive
Higher-capacity motor applications
20F11ND018P0JA0NNNNN
PowerFlex 753 AC Drive
Larger industrial motor loads
Popular Related Models
Model
Product Family
Product Role
20F11ND5P0JA0NNNNN
PowerFlex 753
Compact industrial AC drive
20F11ND8P0JA0NNNNN
PowerFlex 753
8 A variable-frequency drive
20F11NE011AA0NNNNN
PowerFlex 753
11 A variable-frequency drive
20F11ND015P0JA0NNNNN
PowerFlex 753
Higher-power AC motor control
20G11ND5P0JA0NNNNN
PowerFlex 755
Advanced AC drive applications
20G11ND8P0JA0NNNNN
PowerFlex 755
Industrial high-performance drive systems
The Allen-Bradley 20F11NE011AA0NNNNN PowerFlex 753 AC Drive is designed for industrial motor-control systems requiring an 11 A drive configuration within the PowerFlex 753 platform. Its flexible architecture, automation integration capabilities, and cabinet-oriented design make it suitable for conveyors, pumps, fans, production machinery, and a wide range of PLC-controlled industrial equipment.
Applications
The Allen-Bradley 20F11NE011AA0NNNNN is a PowerFlex 753 AC Drive designed for industrial motor speed control and automation applications. With a higher-power configuration than smaller Frame 2 PowerFlex 753 models, it is suitable for machinery and process systems that require dependable variable-frequency control, controlled acceleration and deceleration, and integration with PLC-based automation.
Typical applications include:
Industrial conveyors and material handling
Pumps and pumping systems
Fans and blowers
Packaging machinery
Machine tools
Production and assembly equipment
Process machinery
Industrial HVAC systems
Automated manufacturing lines
General-purpose AC motor control
Its cabinet-oriented construction makes the drive well suited to industrial control panels where motor control needs to be combined with PLC, HMI, and other automation equipment.
Performance Advantages and Design Features
PowerFlex 753 industrial platform
The 20F11NE011AA0NNNNN uses the PowerFlex 753 architecture, providing a flexible foundation for industrial motor control and automation integration.
Higher-current motor control
The 11 A configuration provides greater output capacity than lower-rated PowerFlex 753 models, making it appropriate for applications with larger motor loads.
480 VAC class operation
The drive is designed for three-phase industrial power systems in the 480 VAC class, supporting common plant power architectures.
Flexible automation integration
The PowerFlex 753 family can be configured with communication, feedback, I/O, safety, and other options to match different machine and process requirements.
Integrated I/O architecture
Embedded I/O helps simplify connections between the drive and the machine control system, reducing the need for some external interface components.
Dynamic braking support
The PowerFlex 753 platform supports dynamic braking for applications requiring faster or more controlled motor deceleration when properly configured with suitable braking equipment.
Forced-air thermal management
Forced-air cooling helps manage drive heat during continuous industrial operation. Cabinet airflow and environmental conditions should be considered during installation.
Robust cabinet installation
The open-type drive construction is intended for installation in a properly engineered electrical enclosure, providing a practical solution for centralized industrial control panels.
Technical FAQs
1. What is the Allen-Bradley 20F11NE011AA0NNNNN?
It is a PowerFlex 753 AC Drive designed for variable-speed control of industrial three-phase motors.
2. What is the output current rating of this model?
The 20F11NE011AA0NNNNN is an 11 A PowerFlex 753 drive configuration.
3. What input power system is required?
The model is designed for a 480 VAC class, three-phase industrial power supply.
4. What types of motors can be controlled?
The drive is intended for industrial AC motor applications including conveyors, pumps, fans, machine tools, packaging machinery, and process equipment.
5. Does the PowerFlex 753 support PLC communication?
Yes. The PowerFlex 753 platform is designed for integration with PLC and other industrial automation systems using appropriate communication options.
6. Can dynamic braking be used with this drive?
Yes. Dynamic braking can be implemented for applications requiring controlled deceleration. The braking resistor and associated components must be correctly selected for the motor and load.
7. Does the drive provide embedded I/O?
The PowerFlex 753 architecture provides integrated I/O functionality for machine and process control applications.
8. What cooling method does the drive use?
The drive uses forced-air cooling. Adequate ventilation and appropriate cabinet clearances are important for reliable operation.
9. Is the 20F11NE011AA0NNNNN suitable for continuous-duty applications?
Yes, when the motor, load, ambient conditions, installation, and drive parameters remain within the applicable operating specifications.
10. What should be checked during commissioning?
Engineers should verify incoming power, grounding, motor nameplate information, motor wiring, overload and protection parameters, acceleration/deceleration settings, control signals, braking requirements, and communication configuration before starting the motor.
