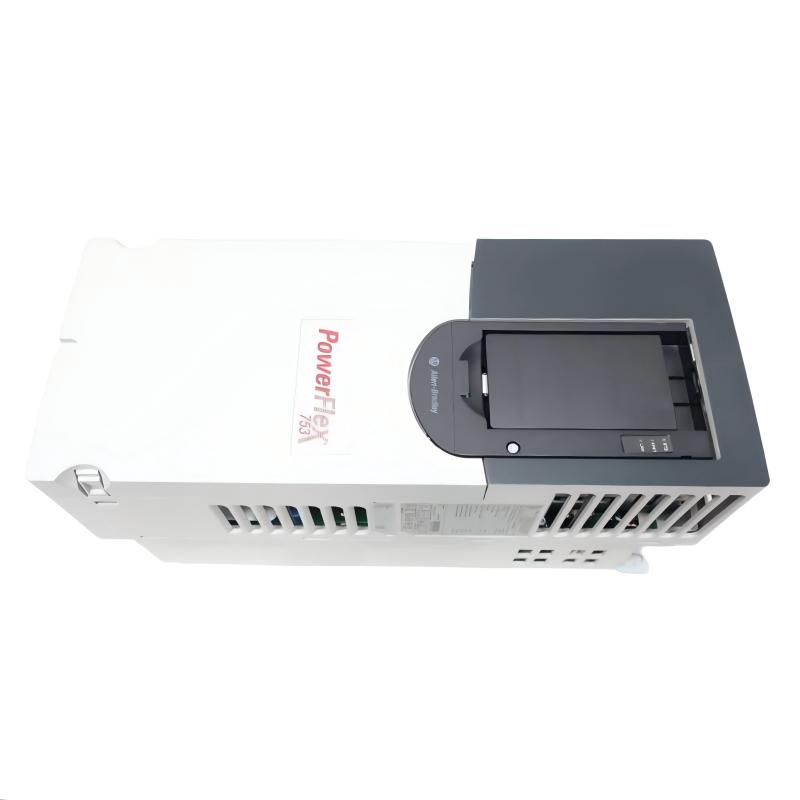

Allen Bradley 20F11NE011JA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11NE011JA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NE011JA0NNNNN Product Origin:USA Product Dimensions:454 x 190 x 212 mm Product Weight:11.8 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20F11NE011JA0NNNNN PowerFlex 753 AC Drive is an industrial variable-frequency drive designed to provide controlled speed and operation of AC motors. Its 11 A configuration is intended for motor-control applications requiring greater current capacity within the PowerFlex 753 family.
The PowerFlex 753 platform is built around a modular architecture that allows the drive to be adapted to different automation requirements. Depending on the system design, additional communication, feedback, safety, and control functions can be incorporated into the drive architecture.
The 20F11NE011JA0NNNNN is particularly suitable for industrial control cabinets. The installation should provide adequate space for power and control wiring, ventilation, grounding, electromagnetic compatibility considerations, and routine maintenance.
The JA0 configuration is an important part of the complete catalog number and should be retained when specifying or replacing the drive. When ordering a replacement, the complete catalog number should be compared with the existing installation to ensure that the electrical and option configuration is appropriate.
Technical Specifications
Specification
Details
Brand
Allen-Bradley
Manufacturer
Rockwell Automation
Model
20F11NE011JA0NNNNN
Product Family
PowerFlex 753
Product Type
AC Drive / Variable Frequency Drive
Bulletin
20F
Input Voltage Class
480 VAC
Input Phase
Three Phase
Output Current
11 A
Frame Size
Frame 2
Cooling Method
Forced Air
Enclosure Type
Open Type
Control Platform
PowerFlex 753
Embedded I/O
Yes
Dynamic Braking Support
Yes
Dimensions
454 × 190 × 212 mm
Weight
11.80 kg (26.01 lb)
The specified dimensions are 454 × 190 × 212 mm, and the supplied product weight is 11.80 kg (26.01 lb). For cabinet design, additional clearance should be provided around the drive for ventilation, cable routing, terminal access, inspection, and maintenance.
Recommended Related Models
Model
Product Type
Typical Application
20F11ND5P0JA0NNNNN
PowerFlex 753 AC Drive
Lower-current motor control
20F11ND8P0JA0NNNNN
PowerFlex 753 AC Drive
8 A industrial motor control
20F11NE011AA0NNNNN
PowerFlex 753 AC Drive
11 A motor control
20F11NE011JA0NNNNN
PowerFlex 753 AC Drive
11 A industrial AC drive
20F11ND015P0JA0NNNNN
PowerFlex 753 AC Drive
Higher-capacity motor applications
Popular Related Models
Model
Product Family
Product Role
20F11ND5P0JA0NNNNN
PowerFlex 753
Compact industrial AC drive
20F11ND8P0JA0NNNNN
PowerFlex 753
8 A variable-frequency drive
20F11NE011AA0NNNNN
PowerFlex 753
11 A AC drive
20F11NE011JA0NNNNN
PowerFlex 753
11 A AC drive
20F11ND015P0JA0NNNNN
PowerFlex 753
Higher-power motor control
20G11ND8P0JA0NNNNN
PowerFlex 755
Advanced industrial drive applications
The Allen-Bradley 20F11NE011JA0NNNNN PowerFlex 753 AC Drive is a practical solution for industrial motor-control systems requiring an 11 A, 480 VAC class drive with the flexible architecture of the PowerFlex 753 family. Its combination of embedded I/O, automation integration, dynamic braking support, and cabinet-friendly construction makes it suitable for conveyors, pumps, fans, process machinery, and other PLC-controlled industrial equipment.
Applications
The Allen-Bradley 20F11NE011JA0NNNNN is a PowerFlex 753 AC Drive designed for industrial variable-frequency motor control. With an 11 A output configuration and 480 VAC class three-phase operation, it is suitable for machinery and process systems requiring reliable speed regulation, controlled acceleration and deceleration, and integration with industrial automation platforms.
Typical applications include:
Conveyor and material handling systems
Pumps and pumping equipment
Fans and blowers
Packaging machinery
Machine tools
Production and assembly lines
Process equipment
Industrial HVAC systems
Automated manufacturing machinery
General-purpose AC motor control
The drive's cabinet-oriented construction also makes it suitable for centralized motor-control panels where the VFD operates alongside PLCs, HMIs, communication modules, and other industrial control equipment.
Industrial Drive Benefits
11 A motor-control capacity
The 20F11NE011JA0NNNNN provides an 11 A output configuration for applications requiring more capacity than smaller PowerFlex 753 models.
480 VAC three-phase operation
The drive is designed for 480 VAC class three-phase industrial power systems, making it suitable for a wide range of plant and machine installations.
PowerFlex 753 modular architecture
The PowerFlex 753 platform supports a flexible approach to drive configuration, allowing suitable communication, feedback, I/O, safety, and other options to be incorporated according to system requirements.
Embedded I/O
Integrated I/O functionality can simplify connections between the drive and machine-control system while helping reduce additional interface hardware.
Dynamic braking capability
The PowerFlex 753 platform supports dynamic braking applications where controlled or rapid motor deceleration is required. External braking components should be selected according to the application.
Automation-system integration
The drive can operate as part of a larger PLC-based control architecture, exchanging commands, status information, and diagnostic data through appropriate interfaces.
Forced-air cooling
Forced-air cooling provides thermal management during operation. Proper cabinet ventilation, ambient temperature control, and installation clearances are important for dependable service.
Industrial enclosure integration
The open-type construction is intended for installation in a suitable electrical enclosure designed to protect the drive from environmental conditions.
Technical FAQs
1. What is the Allen-Bradley 20F11NE011JA0NNNNN?
It is a PowerFlex 753 AC Drive designed for variable-speed control of industrial three-phase AC motors.
2. What is the output current rating?
The 20F11NE011JA0NNNNN is configured with an 11 A output rating.
3. What input voltage is required?
This model is intended for a 480 VAC class, three-phase industrial power supply.
4. What types of applications can use this drive?
It can be used for conveyors, pumps, fans, blowers, packaging machinery, machine tools, process equipment, and other industrial motor-control applications.
5. Can the 20F11NE011JA0NNNNN communicate with a PLC?
Yes. The PowerFlex 753 family is designed for integration with PLC and other industrial automation systems through suitable communication configurations.
6. Does the PowerFlex 753 support dynamic braking?
Yes. The platform supports dynamic braking applications. The required braking resistor and associated hardware must be properly sized for the motor and load.
7. Does this drive have integrated I/O?
Yes. The PowerFlex 753 architecture provides embedded I/O functionality for machine and process control.
8. What cooling method is used?
The drive uses forced-air cooling. Adequate airflow must be maintained to prevent excessive internal temperature.
9. Is the drive suitable for continuous industrial operation?
Yes, provided that the motor load, ambient temperature, power supply, ventilation, installation, and drive parameters remain within the applicable operating limits.
10. What parameters should be checked during commissioning?
Incoming voltage, grounding, motor nameplate data, motor wiring, motor protection, acceleration and deceleration times, current limits, control mode, braking requirements, and communication settings should all be verified before normal operation.
