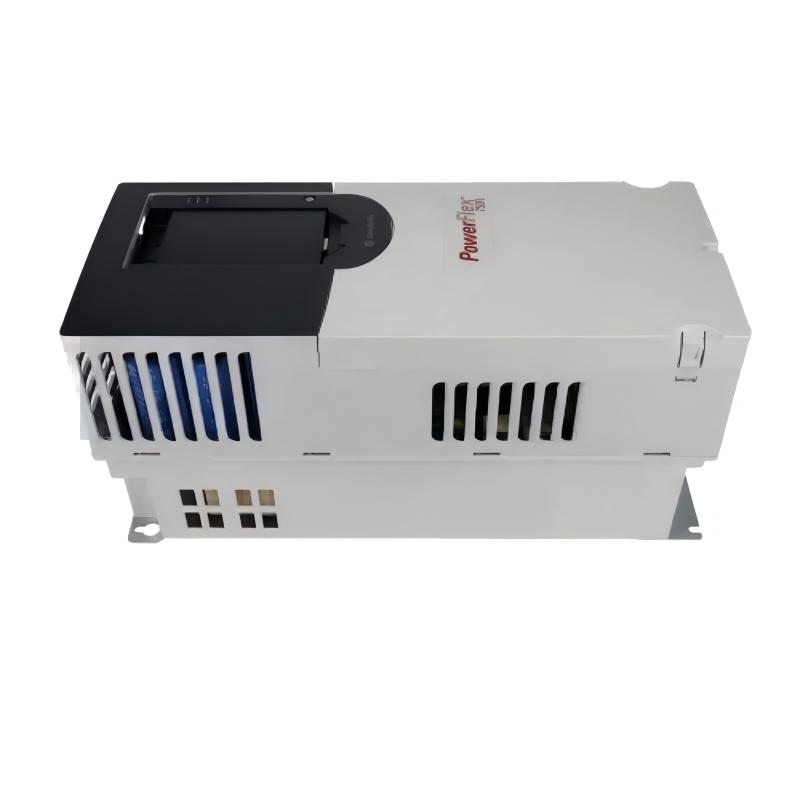

Allen Bradley 20F11NE032AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11NE032AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NE032AA0NNNNN Product Origin:USA Product Dimensions:474 x 212 x 222 mm Product Weight:13.6 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20F11NE032AA0NNNNN PowerFlex 753 AC Drive is a higher-current industrial variable-frequency drive designed for controlled operation of three-phase AC motors. Its 32 A configuration provides increased current capacity for applications with larger motor loads.
The PowerFlex 753 family uses a modular architecture designed for integration into larger industrial automation systems. Depending on the application, communication, feedback, safety, I/O, and other functional capabilities can be incorporated into the overall drive system.
The 20F11NE032AA0NNNNN is suitable for centralized control cabinets used in manufacturing and process industries. Installation should account for incoming power, motor cable routing, grounding, heat dissipation, ventilation, electromagnetic compatibility, ambient temperature, and maintenance access.
The complete catalog number should be checked carefully when selecting a replacement drive. A drive with a similar current rating is not necessarily a direct replacement because option codes can affect its electrical and functional configuration.
During commissioning, accurate motor nameplate data and properly configured operating parameters are essential. Motor protection, acceleration and deceleration, current limits, control mode, braking, and communication settings should be adjusted according to the actual motor and load.
Technical Specifications
Specification
Details
Brand
Allen-Bradley
Manufacturer
Rockwell Automation
Model
20F11NE032AA0NNNNN
Product Family
PowerFlex 753
Product Type
AC Drive / Variable Frequency Drive
Bulletin
20F
Input Voltage Class
480 VAC
Input Phase
Three Phase
Output Current
32 A
Cooling Method
Forced Air
Enclosure Type
Open Type
Control Platform
PowerFlex 753
Embedded I/O
Yes
Dynamic Braking Support
Yes
Dimensions
474 × 212 × 222 mm
Weight
13.60 kg (29.98 lb)
The specified physical dimensions are 474 × 212 × 222 mm, with a product weight of 13.60 kg (29.98 lb). Additional cabinet clearance should be provided for ventilation, power connections, control wiring, inspection, and maintenance.
Recommended Related Models
Model
Product Type
Typical Application
20F11NE017AA0NNNNN
PowerFlex 753 AC Drive
17 A industrial motor control
20F11NE022AA0NNNNN
PowerFlex 753 AC Drive
22 A industrial motor control
20F11NE027AA0NNNNN
PowerFlex 753 AC Drive
27 A industrial motor control
20F11NE032AA0NNNNN
PowerFlex 753 AC Drive
32 A higher-current motor control
20F11NE037AA0NNNNN
PowerFlex 753 AC Drive
Higher-current industrial applications
Popular Related Models
Model
Product Family
Product Role
20F11ND8P0JA0NNNNN
PowerFlex 753
8 A variable-frequency drive
20F11NE011AA0NNNNN
PowerFlex 753
11 A AC drive
20F11NE017AA0NNNNN
PowerFlex 753
17 A AC drive
20F11NE022AA0NNNNN
PowerFlex 753
22 A AC drive
20F11NE027AA0NNNNN
PowerFlex 753
27 A AC drive
20F11NE032AA0NNNNN
PowerFlex 753
32 A AC drive
The Allen-Bradley 20F11NE032AA0NNNNN PowerFlex 753 AC Drive is a higher-current solution for industrial motor-control systems requiring a 32 A configuration. Its flexible PowerFlex 753 architecture, integrated I/O, dynamic braking support, and automation-system compatibility make it suitable for conveyors, pumps, fans, packaging equipment, process machinery, and other demanding PLC-controlled applications.
Applications
The Allen-Bradley 20F11NE032AA0NNNNN is a PowerFlex 753 AC Drive designed for industrial variable-frequency motor control. With a 32 A output configuration and 480 VAC class three-phase operation, it is suitable for machinery and process systems that require dependable motor speed regulation, controlled acceleration and deceleration, and integration with PLC-based automation systems.
Typical applications include:
Conveyor and material handling systems
Pumps and pumping equipment
Industrial fans and blowers
Packaging and converting machinery
Machine tools
Production and assembly lines
Process-control equipment
Industrial HVAC systems
Automated manufacturing machinery
General-purpose AC motor control
Its compact industrial form factor makes it practical for centralized control cabinets where the drive is installed together with PLCs, HMIs, circuit protection, and other automation equipment.
High-Current PowerFlex 753 Performance
32 A output configuration
The 20F11NE032AA0NNNNN provides a 32 A output rating for industrial motor applications requiring higher current capacity within the PowerFlex 753 family.
480 VAC class operation
The drive is designed for three-phase industrial power systems in the 480 VAC class, making it suitable for common plant electrical architectures.
Flexible PowerFlex 753 architecture
The PowerFlex 753 platform provides a modular foundation for industrial motor control. Communication, feedback, safety, I/O, and other functions can be configured according to system requirements.
Integrated I/O
Embedded I/O helps simplify connections between the drive and machine-control system and can reduce the requirement for additional interface components.
Dynamic braking support
The PowerFlex 753 platform supports dynamic braking applications where controlled motor deceleration is required. External braking components should be correctly selected for the motor and load.
Industrial automation integration
The drive can be integrated into PLC-based automation systems for coordinated motor operation, status monitoring, diagnostics, and parameter management.
Forced-air cooling
Forced-air cooling provides thermal management during operation. Proper cabinet ventilation and sufficient airflow should be maintained to support reliable performance.
Cabinet-friendly construction
The open-type design is intended for installation inside a suitable electrical enclosure that provides the required environmental protection.
Technical FAQs
1. What is the Allen-Bradley 20F11NE032AA0NNNNN?
It is a PowerFlex 753 AC Drive designed for variable-speed control of industrial three-phase AC motors.
2. What is the output current rating?
The 20F11NE032AA0NNNNN has a 32 A output current configuration.
3. What input voltage is required?
This model is designed for a 480 VAC class, three-phase industrial power supply.
4. What applications are suitable for this drive?
Typical applications include conveyors, pumps, fans, blowers, packaging equipment, machine tools, process machinery, and automated production systems.
5. Can the drive be integrated with a PLC?
Yes. The PowerFlex 753 platform is designed for integration with PLCs and other industrial automation controllers using suitable communication and I/O configurations.
6. Does the drive support dynamic braking?
Yes. Dynamic braking can be used where controlled or faster motor deceleration is required. The braking resistor and associated equipment must be appropriately sized.
7. Does the PowerFlex 753 provide embedded I/O?
Yes. The PowerFlex 753 architecture incorporates integrated I/O for machine and process-control applications.
8. What cooling method does the drive use?
The drive uses forced-air cooling. Adequate airflow and cabinet ventilation are important for maintaining acceptable operating temperatures.
9. Is the 20F11NE032AA0NNNNN suitable for continuous industrial operation?
Yes, when the motor load, ambient conditions, power supply, ventilation, installation, and drive parameters remain within the applicable operating limits.
10. What should be verified before commissioning?
Incoming power, grounding, motor wiring, motor nameplate information, protection settings, acceleration and deceleration parameters, current limits, control signals, braking requirements, and communication settings should be checked before normal operation.
