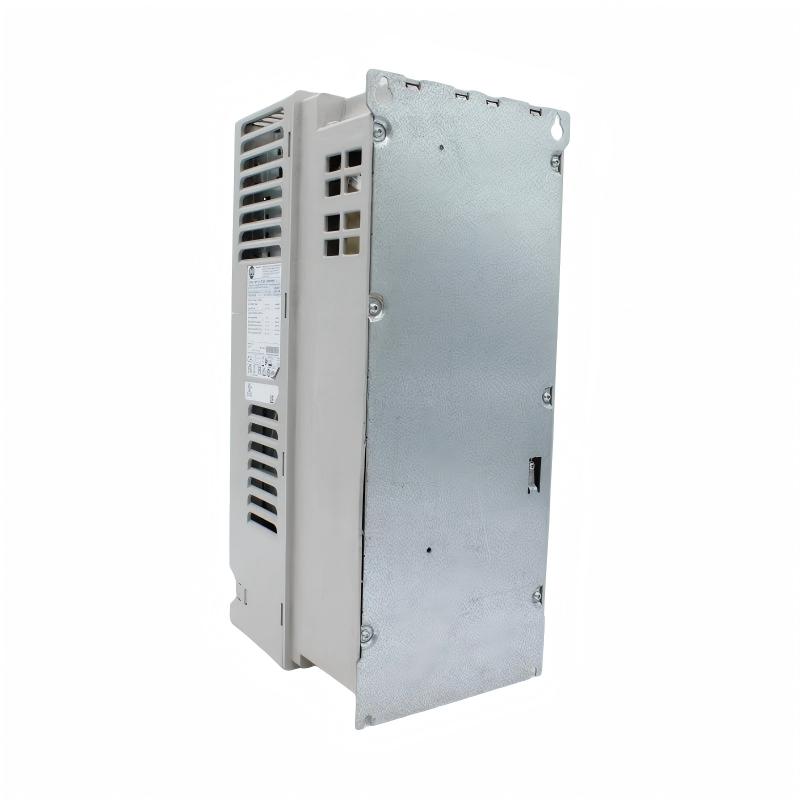

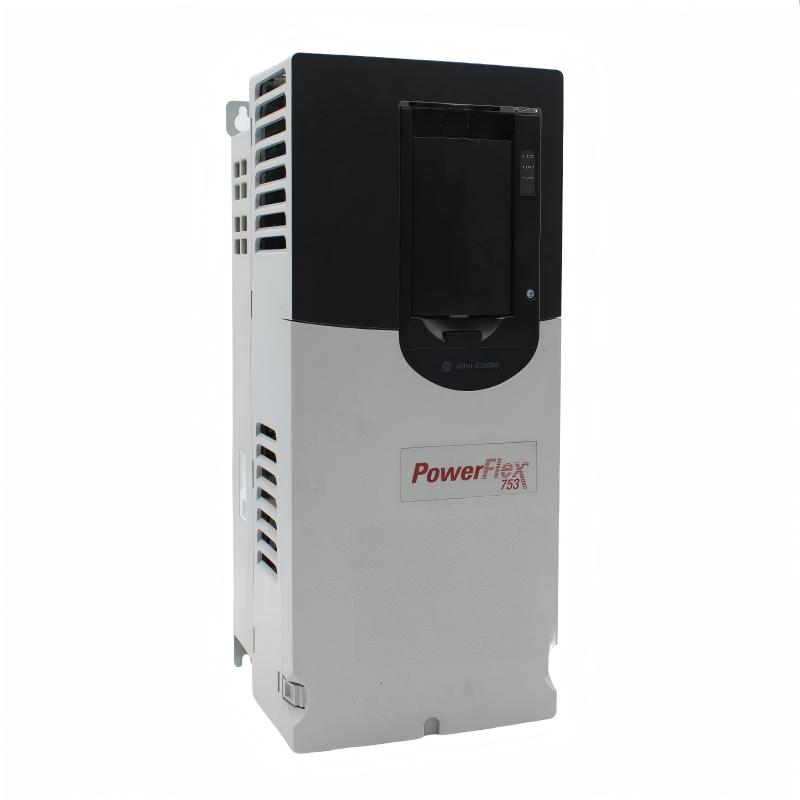

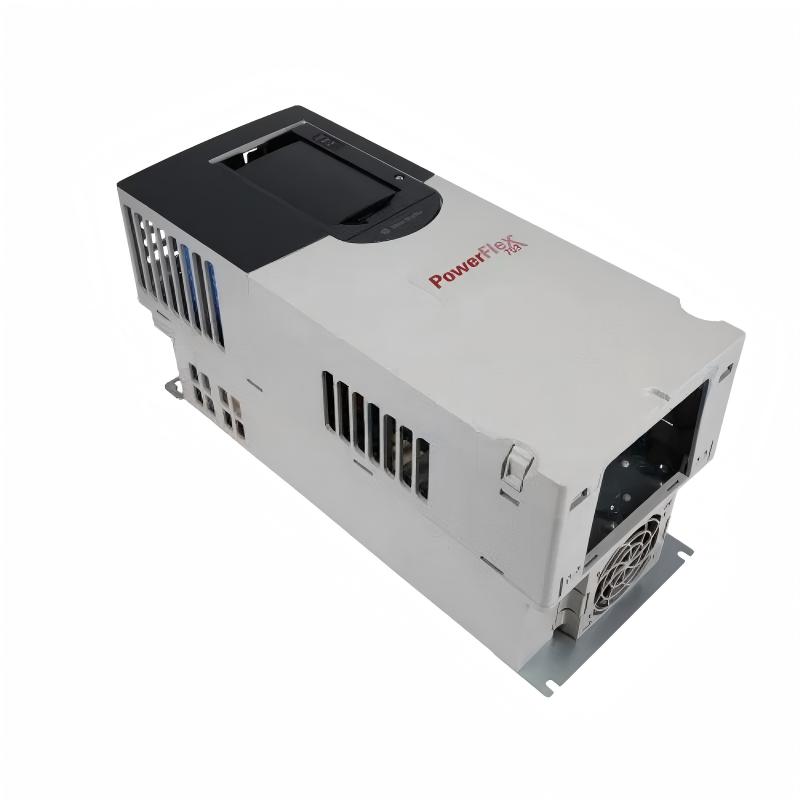

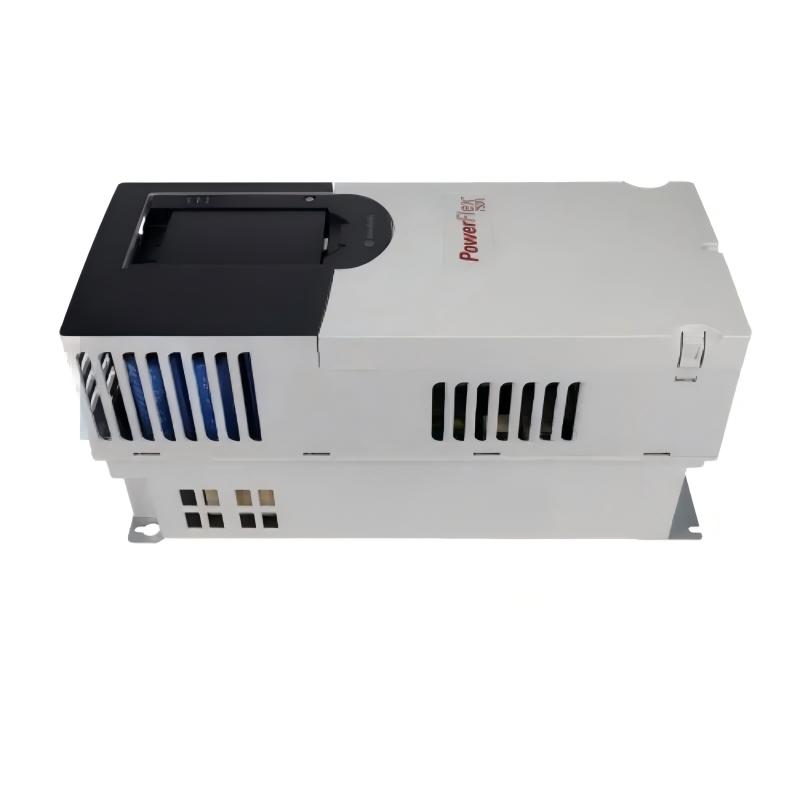

Allen Bradley 20F11NE041AA0NNNNN PowerFlex 753 AC Drive
Allen Bradley 20F11NE041AA0NNNNN PowerFlex 753 AC Drive
0.0
Points
Brand:Allen Bradley PLC Item No.:20F11NE041AA0NNNNN Product Origin:USA Product Dimensions:550 x 212 x 270 mm Product Weight:20.4 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO
The Allen-Bradley 20F11NE041AA0NNNNN PowerFlex 753 AC Drive belongs to the PowerFlex 750-Series family of industrial variable frequency drives. It is engineered for applications that require more than basic motor speed adjustment, offering a configurable platform that can be adapted to different machine architectures.
The PowerFlex 753 is commonly considered for applications involving conveyors, pumps, fans, material-handling machinery, process equipment, and automated production systems. Its modular design provides flexibility when an installation requires additional I/O, communications, feedback, or other drive functions.
The 20F11NE041AA0NNNNN configuration is particularly suitable for industrial users who want a scalable AC drive platform rather than a fixed-function motor controller. During installation, engineers should verify the complete catalog-number configuration, motor rating, incoming power requirements, enclosure requirements, braking requirements, and selected option modules before commissioning.
For replacement projects, retaining the complete catalog number is important because PowerFlex 753 catalog numbers contain configuration information that can affect the electrical and functional characteristics of the drive.
Technical Specifications
Specification
Details
Brand
Allen-Bradley
Product Series
PowerFlex 753
Model
20F11NE041AA0NNNNN
Product Type
PowerFlex 753 AC Drive
Drive Type
Variable Frequency AC Drive
Rated Current
41 A
Application
Industrial AC Motor Control
Control Platform
PowerFlex 750-Series
Configuration
20F11NE041AA0NNNNN
Cooling
Forced-air cooling architecture
Installation
Industrial control cabinet / suitable enclosure
Dimensions
550 × 212 × 270 mm
Weight
20.40 kg (44.97 lb)
The stated dimensions and weight are important for cabinet layout, transportation, mounting, and replacement planning. Installation engineers should also allow sufficient clearance for ventilation, cable routing, service access, and cooling airflow.
Recommended Related Models
For users working with the PowerFlex 753 product family, the following models may also be relevant depending on motor rating and system configuration:
Model
Product Family
Typical Use
20F11ND5P0JA0NNNNN
PowerFlex 753
Lower-power AC drive applications
20F11ND8P0JA0NNNNN
PowerFlex 753
Variable-speed motor control
20F11NE011AA0NNNNN
PowerFlex 753
Industrial AC motor control
20F11NE017AA0NNNNN
PowerFlex 753
Higher-current motor applications
20F11NE022AA0NNNNN
PowerFlex 753
Industrial drive systems
20F11NE027AA0NNNNN
PowerFlex 753
Higher-capacity motor control
20F11NE032AA0NNNNN
PowerFlex 753
Industrial variable-frequency applications
Popular Related Models
Other Allen-Bradley PowerFlex models frequently considered for industrial drive and automation projects include:
Model
Product Type
20F11NE032JA0NNNNN
PowerFlex 753 AC Drive
20F11NE041AA0NNNNN
PowerFlex 753 AC Drive
20F11NE041JA0NNNNN
PowerFlex 753 AC Drive
20F11NE052AA0NNNNN
PowerFlex 753 AC Drive
20F11NE060AA0NNNNN
PowerFlex 753 AC Drive
20F11ND5P0JA0NNNNN
PowerFlex 753 AC Drive
20F11ND8P0JA0NNNNN
PowerFlex 753 AC Drive
Applications
The Allen-Bradley 20F11NE041AA0NNNNN is suitable for many industrial motor-control systems where dependable variable-speed operation is required.
Application
Typical Function
Conveyor Systems
Adjustable motor speed and controlled acceleration
Material Handling
Smooth starting, stopping, and speed regulation
Pumps
Variable-speed flow and pressure control
Fans and Blowers
Energy-conscious speed control
Machine Tools
Motor speed adjustment and process control
Packaging Equipment
Coordinated motor operation
Process Machinery
Continuous-duty motor control
Industrial Automation
Integration into larger control architectures
Its flexible PowerFlex 753 architecture makes it particularly useful in systems where drive parameters, I/O, feedback, communications, and control functions may need to be adapted to different machine requirements.
Key Advantages
Flexible industrial motor control
The PowerFlex 753 family is designed to provide accurate and responsive AC motor control for a wide variety of industrial machines.
Expandable architecture
The drive can be configured with suitable I/O, communication, feedback, and other option modules, allowing the control system to be adapted to application requirements.
Suitable for automation systems
The drive can work as part of an integrated Allen-Bradley control environment, making it suitable for applications involving PLC-based machine control and plant-level automation.
Robust industrial design
The PowerFlex 750-Series is intended for demanding industrial environments where reliable operation and serviceability are important.
Convenient maintenance
The modular architecture helps simplify troubleshooting, replacement, and system expansion compared with less flexible drive platforms.
Good fit for retrofit projects
The 20F11NE041AA0NNNNN can be considered when upgrading older motor-control equipment while maintaining compatibility with established industrial automation practices.
Technical FAQs
1. What type of equipment is the Allen-Bradley 20F11NE041AA0NNNNN?
It is an Allen-Bradley PowerFlex 753 AC drive used for variable-speed control of industrial AC motors.
2. What is the main purpose of a PowerFlex 753 drive?
Its primary function is to regulate AC motor speed, torque, acceleration, and deceleration according to the requirements of the machine or process.
3. Can the 20F11NE041AA0NNNNN be integrated with PLC control systems?
Yes. PowerFlex 753 drives are designed for integration into industrial automation architectures and can exchange control and diagnostic information with suitable PLC and network systems.
4. Does the PowerFlex 753 support communication options?
Yes. The PowerFlex 753 architecture supports optional communication modules that can be selected according to the required industrial network.
5. Can additional I/O be added to the drive?
The PowerFlex 753 platform supports optional I/O expansion, allowing additional control signals to be incorporated when the standard configuration is insufficient.
6. Does the drive support motor feedback?
The PowerFlex 753 architecture can support feedback functionality through appropriate feedback option modules for applications requiring enhanced speed or position control.
7. What motors can be controlled by the PowerFlex 753?
The appropriate PowerFlex 753 configuration can be used with compatible three-phase AC motors. Motor type and control mode should be matched to the specific application and drive configuration.
8. What parameters should be configured during commissioning?
Important parameters normally include motor nameplate data, motor control mode, acceleration and deceleration times, minimum and maximum speed, current limits, command sources, reference sources, and protection settings.
9. What should be checked if the drive trips during operation?
Check the displayed fault or alarm information first. Then inspect motor current, input power, motor wiring, mechanical load, acceleration settings, temperature, and configured protection parameters.
10. Can the 20F11NE041AA0NNNNN be used for demanding industrial applications?
Yes. The PowerFlex 753 platform is intended for industrial applications requiring configurable and reliable variable-frequency motor control. The exact suitability depends on motor ratings, load characteristics, environmental conditions, and the complete drive configuration.
