Brand:Allen Bradley PLC Item No.:MPL-B420P-HJ72AA Product Origin:USA Product Dimensions:Frame Size: 115 mm Product Weight:4.3 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

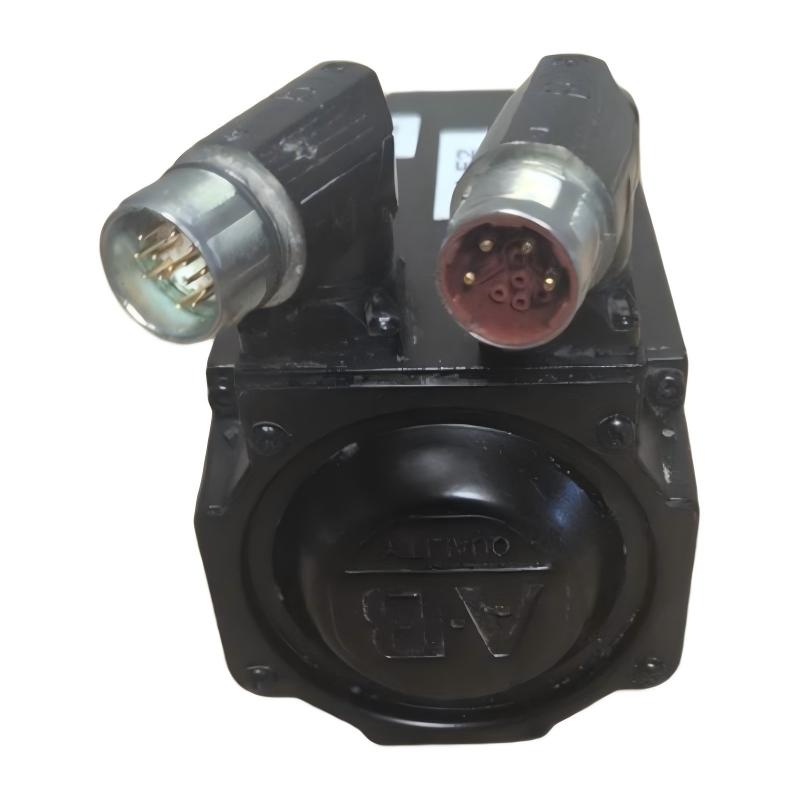

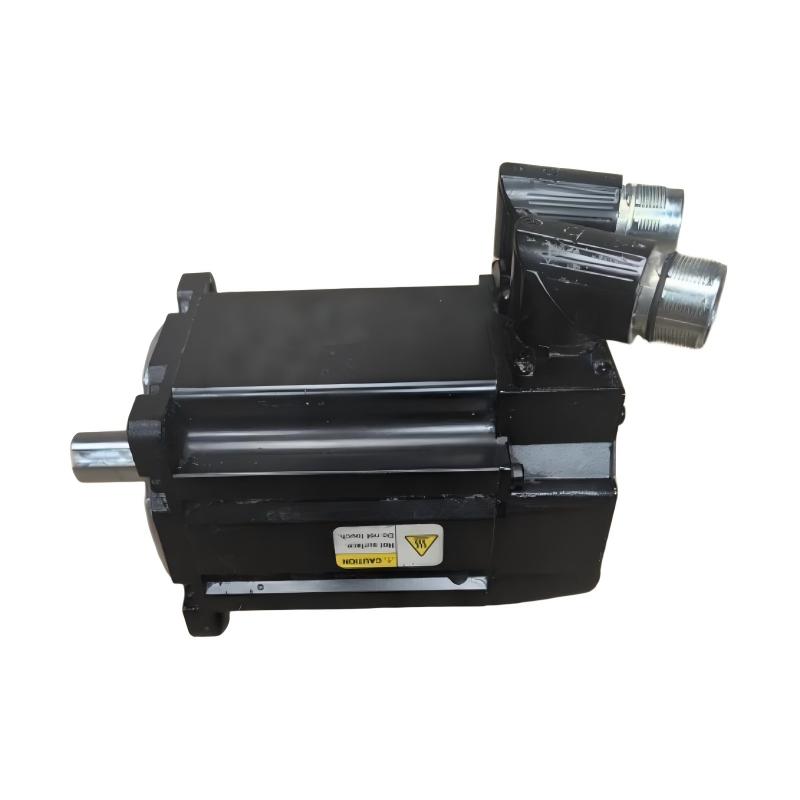

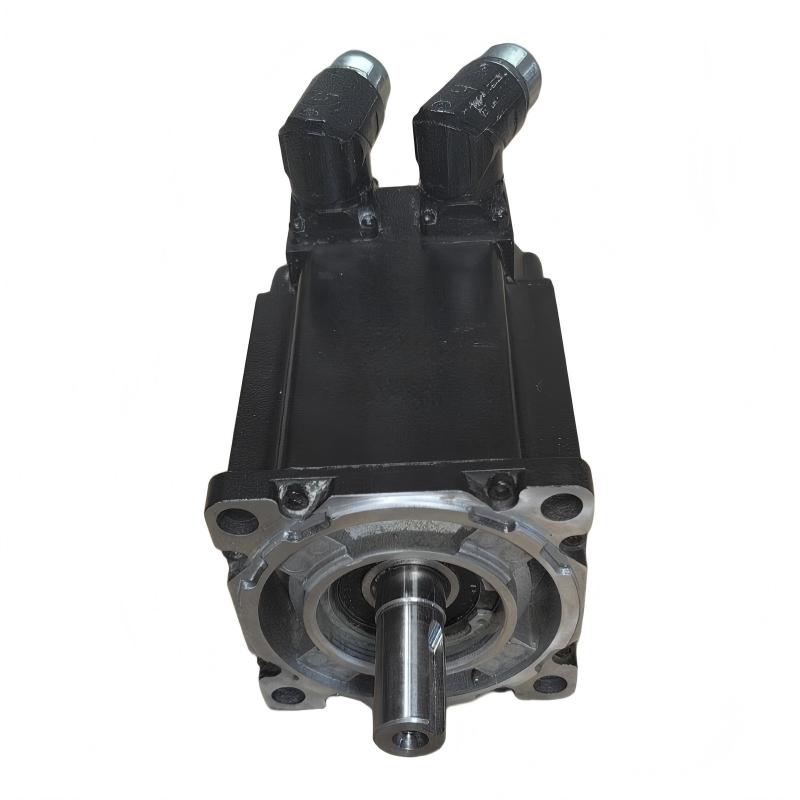

The Allen-Bradley MPL-B420P-HJ72AA Servo Motor is part of the MP-Series family of industrial servo motors developed for automated motion-control systems. It is intended for machines where precise and repeatable movement is required rather than basic constant-speed motor operation.
The MPL-B420P-HJ72AA has a 115 mm frame size and a specified weight of 4.30 kg (9.48 lb). These mechanical specifications are important when designing or replacing a motor within an automated machine.
Servo motors in this class can be used for packaging, assembly, material handling, machine tools, robotics, printing, and automated production equipment. When combined with an appropriate servo drive and motion controller, the motor can provide controlled speed, torque, and position response.
For replacement projects, the complete catalog number should be verified before installation. Similar-looking servo motors can have different electrical characteristics, feedback configurations, shaft arrangements, and mounting requirements.
Technical Specifications
Specification
Details
Brand
Allen-Bradley
Product Series
MP-Series
Model
MPL-B420P-HJ72AA
Product Type
Servo Motor
Motor Family
MPL-B Series
Frame Size
115 mm
Application
Industrial Motion Control
Feedback
Servo feedback system
Installation
Machine-mounted servo axis
Weight
4.30 kg (9.48 lb)
The 115 mm frame size should be checked against the machine's mounting interface and available installation space. The specified 4.30 kg weight should also be considered when calculating mechanical loads and support requirements.
Recommended Related Models
Model
Product Type
Frame Size
MPL-B320P-HJ72AA
MP-Series Servo Motor
100 mm
MPL-B320P-HJ74AA
MP-Series Servo Motor
100 mm
MPL-B320P-HK72AA
MP-Series Servo Motor
100 mm
MPL-B320P-HK74AA
MP-Series Servo Motor
100 mm
MPL-B320P-MJ72AA
MP-Series Servo Motor
100 mm
MPL-B320P-MJ74AA
MP-Series Servo Motor
100 mm
MPL-B320P-MK72AA
MP-Series Servo Motor
100 mm
MPL-B330P-SK74AA
MP-Series Servo Motor
100 mm
Popular Related Models
Model
Product Type
MPL-B310P-SJ74AA
Allen-Bradley Servo Motor
MPL-B310P-SK72AA
Allen-Bradley Servo Motor
MPL-B310P-SK74AA
Allen-Bradley Servo Motor
MPL-B320P-HJ72AA
Allen-Bradley Servo Motor
MPL-B320P-HJ74AA
Allen-Bradley Servo Motor
MPL-B320P-HK72AA
Allen-Bradley Servo Motor
MPL-B320P-HK74AA
Allen-Bradley Servo Motor
MPL-B420P-HJ72AA
Allen-Bradley Servo Motor
Applications
The MPL-B420P-HJ72AA can be applied to a range of industrial motion-control systems:
Application
Typical Function
Packaging Machinery
Indexing and synchronized movement
Assembly Machines
Precise positioning and repetitive motion
Material Handling
Controlled acceleration and positioning
Machine Tools
Servo-controlled axis movement
Robotics
Automated axis control
Printing Equipment
Speed and registration control
Automated Production Lines
Coordinated multi-axis motion
Special-Purpose Machinery
Closed-loop positioning
It is particularly useful for machines where repeatable positioning and controlled acceleration or deceleration are required.
Key Advantages
Accurate motion control
The MPL-B420P-HJ72AA is designed for servo applications where precise speed, torque, and position control are required.
115 mm frame size
The specified 115 mm frame provides a balance between motor capability and machine installation requirements.
Responsive dynamic performance
The servo design supports motion profiles involving acceleration, deceleration, indexing, stopping, and direction changes.
Integration with industrial automation systems
The motor can be incorporated into a suitable Allen-Bradley motion-control architecture with a compatible servo drive and controller.
Suitable for repetitive machine cycles
Servo motors are well suited to automated equipment that performs frequent and accurately controlled movements.
Practical maintenance option
The MPL-B420P-HJ72AA can be considered for replacement and maintenance applications after confirming the electrical and mechanical requirements of the existing system.
Technical FAQs
1. What is the Allen-Bradley MPL-B420P-HJ72AA?
It is an Allen-Bradley MP-Series servo motor designed for industrial motion-control applications.
2. What is the frame size of the MPL-B420P-HJ72AA?
The specified frame size is 115 mm.
3. What is the main purpose of this servo motor?
It provides controlled rotary motion for automated equipment requiring accurate speed, torque, and positioning.
4. Can the MPL-B420P-HJ72AA be used for precision positioning?
Yes. When paired with a compatible servo drive and feedback/control system, it can be used for repeatable positioning and coordinated machine movement.
5. Why does a servo system require feedback?
Feedback provides the drive and controller with information about motor position and speed, allowing the control system to regulate motion accurately.
6. Is this motor suitable for frequent acceleration and deceleration?
Servo motors are designed for dynamic motion profiles involving acceleration, deceleration, stopping, and direction changes, provided the operating conditions remain within the applicable ratings.
7. How should the compatible servo drive be selected?
The drive should be matched to the motor's electrical characteristics, feedback configuration, control requirements, and mechanical load.
8. What should be checked before replacing this servo motor?
Verify the complete catalog number, frame size, mounting arrangement, shaft configuration, electrical characteristics, feedback interface, cables, and compatible servo drive.
9. What can cause servo motor faults?
Possible causes include incorrect wiring, feedback errors, excessive mechanical loading, mechanical interference, overheating, improper tuning, and incorrect drive parameters.
10. Does the motor require commissioning after installation?
Yes. The motor and drive should be configured correctly, tested, and tuned as necessary to achieve stable performance with the connected mechanical system.
