Brand:Siemens Item No.:6AG1193-6BP00-7BU0 Product Origin:Germany Product Dimensions:20 × 117 × 35 mm Product Weight:0.047 kg Payment:T/T, Western Union, Credit Card Goods_stock:15 Shipping Port:Xiamen, China Lead Time:1-3 Days Condition:Brand New And Original Warranty:1 Year Certificate:COO

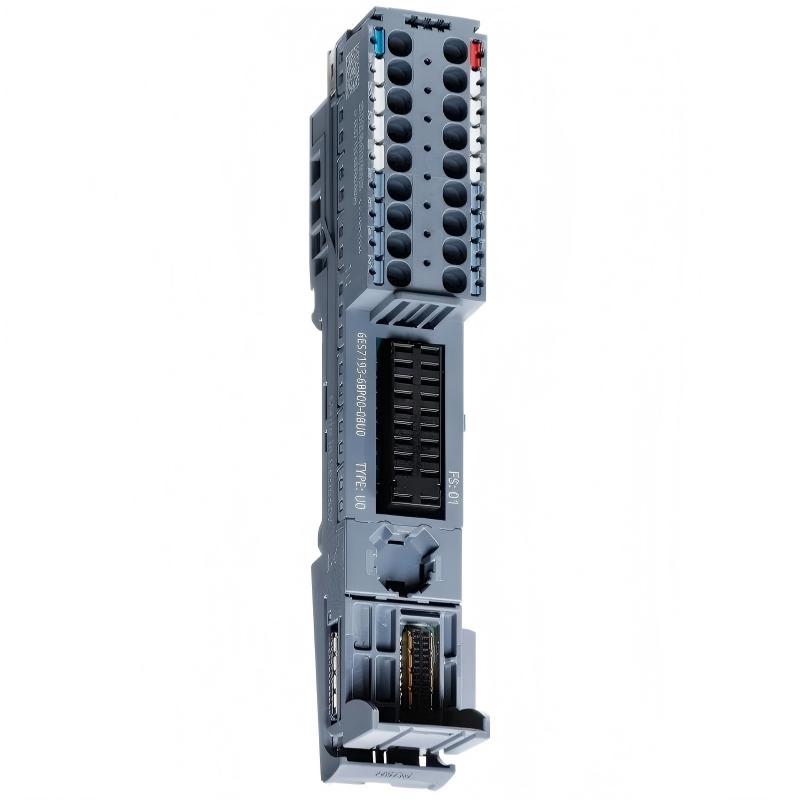

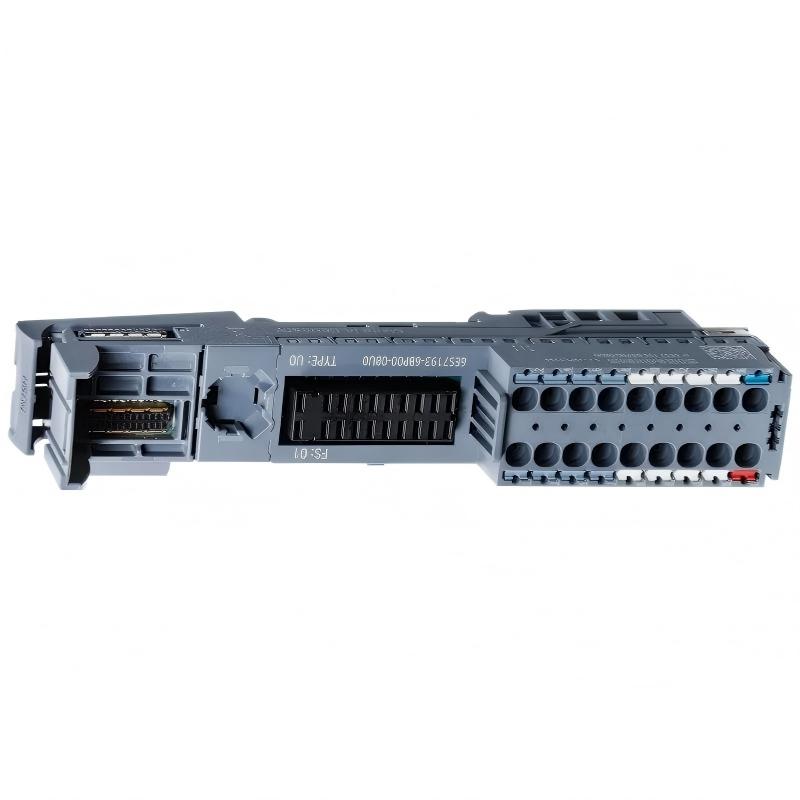

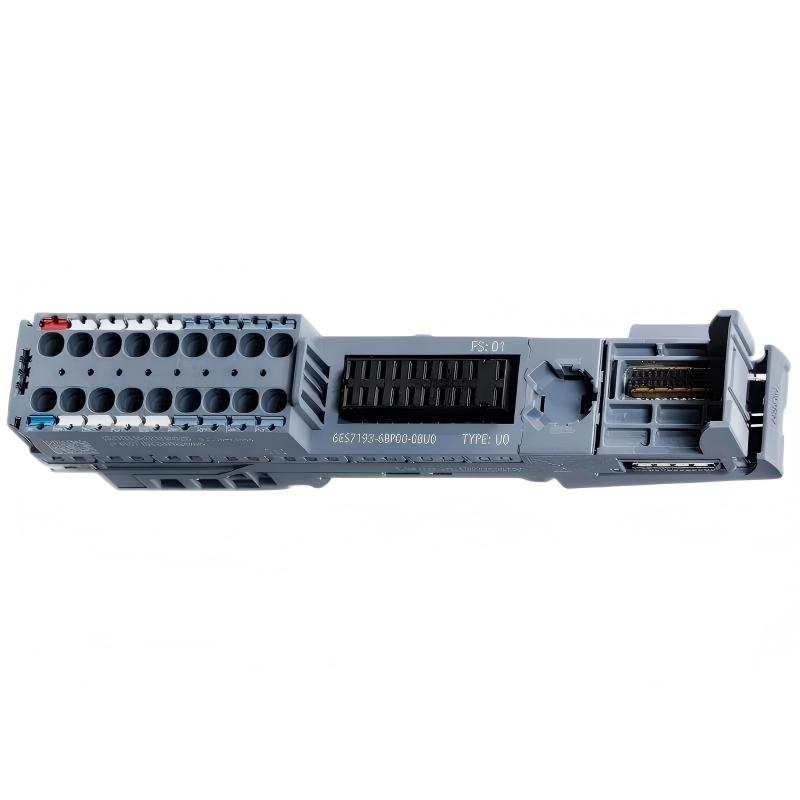

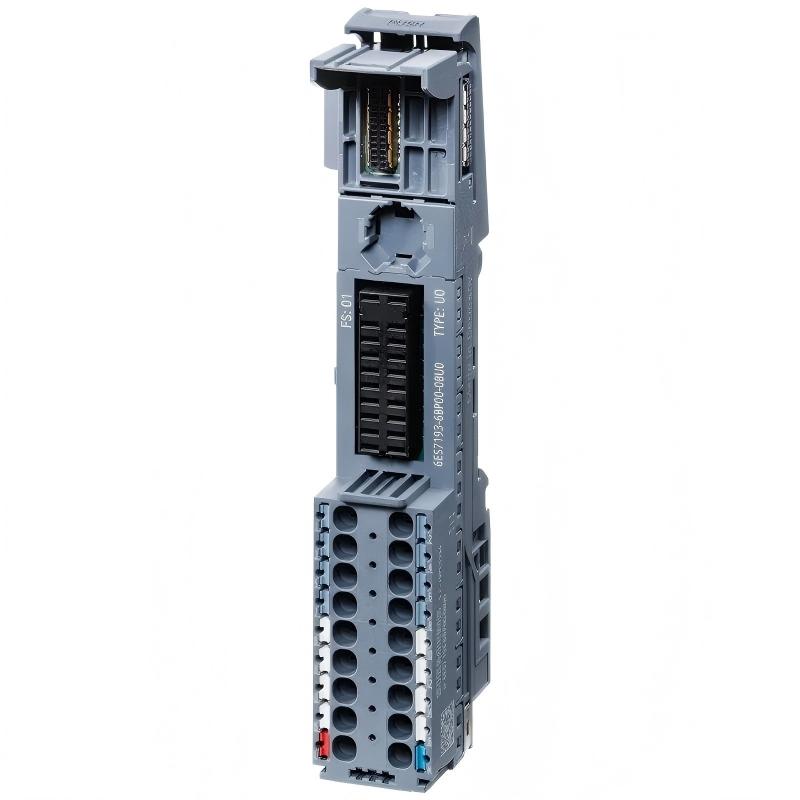

The Siemens 6AG1193-6BP00-7BU0 Basic Unit is a compact component intended for modular industrial automation installations. Basic Units provide the foundation required to assemble compatible automation components into a structured modular system.
The 6AG1193-6BP00-7BU0 measures 20 × 117 × 35 mm and weighs 0.047 kg (0.10 lb). Its narrow form factor is particularly useful for automation cabinets and machine enclosures where installation density is an important consideration.
For replacement, maintenance, or expansion projects, the complete Siemens order number should be verified before installation. The mechanical dimensions of a component alone are not sufficient to establish system compatibility.
Technical Specifications
Specification
Details
Brand
Siemens
Model
6AG1193-6BP00-7BU0
Product Type
Basic Unit
Product Family
Siemens Modular Automation
Dimensions
20 × 117 × 35 mm
Weight
0.047 kg (0.10 lb)
Installation
Modular Automation System
Application
Industrial Automation
Design
Compact Modular Component
Dimensions: 20 × 117 × 35 mm Weight: 0.047 kg (0.10 lb)
The compact dimensions make the unit suitable for dense automation layouts. Installation planning should also account for connected modules, wiring, ventilation, and service access.
Recommended Related Models
Model
Product Type
Typical Application
6AG1193-6BP00-7BA1
Basic Unit
Modular Automation
6AG1193-6BP00-7BD0
Basic Unit
Modular Automation
6AG1193-6BP00-7BU0
Basic Unit
Modular Automation
6AG1193-6BP00-0AA0
Basic Unit
Modular System
6AG1193-6BP00-0BA0
Basic Unit
Modular System
For replacement selection, the exact order number should be checked against the existing system configuration.
Popular Related Models
Model
Product Type
Application
6AG1193-6BP00-7BU0
Basic Unit
Modular Automation
6AG1193-6BP00-7BD0
Basic Unit
Modular Automation
6AG1193-6BP00-7BA1
Basic Unit
Modular Automation
Siemens ET 200SP Basic Units
Basic Unit
Distributed I/O
Siemens ET 200SP I/O Modules
I/O Module
Industrial Control
The Siemens 6AG1193-6BP00-7BU0 Basic Unit provides a compact solution for modular automation installations. Its 20 × 117 × 35 mm dimensions and 0.047 kg (0.10 lb) weight make it suitable for space-conscious control-panel designs where compatible Siemens modular components are required.
Applications
The Siemens 6AG1193-6BP00-7BU0 is a compact Basic Unit for modular industrial automation systems. With a 20 mm width and lightweight construction, it is well suited to control cabinets and machine enclosures where efficient use of installation space is important.
Typical applications include:
Distributed I/O installations
Factory automation systems
Machine control equipment
Industrial control cabinets
Production and assembly machinery
Process automation systems
Modular automation architectures
Control-system expansion projects
Replacement and maintenance applications
The Basic Unit is intended to form part of a compatible Siemens modular system. The associated modules and system architecture should be verified before installation.
Advantages
Compact 20 mm profile
The 20 mm width helps reduce the space required for modular automation equipment and supports high-density cabinet layouts.
Lightweight design
At only 0.047 kg (0.10 lb), the Basic Unit adds very little weight to the overall modular assembly.
Modular integration
The unit is designed for use within a modular automation architecture, allowing compatible system components to be organized efficiently.
Efficient cabinet installation
Its compact footprint can be beneficial in machine control panels where available DIN-rail or cabinet space is limited.
Suitable for maintenance projects
The 6AG1193-6BP00-7BU0 can be considered for replacement or system expansion when the complete order number and module compatibility are confirmed.
Technical FAQs
1. What is the Siemens 6AG1193-6BP00-7BU0?
It is a Siemens Basic Unit intended for use in a compatible modular industrial automation system.
2. What is the function of a Basic Unit?
A Basic Unit provides the physical foundation for integrating compatible modules into a modular automation configuration.
3. Is the 6AG1193-6BP00-7BU0 a PLC CPU?
No. It is a Basic Unit rather than an independent PLC CPU or programmable controller.
4. What types of systems can use this component?
It is intended for compatible Siemens modular automation installations, including distributed I/O and machine-control systems.
5. Why must compatible modules be checked?
Modular automation components can have specific mechanical and electrical interfaces. A Basic Unit must match the modules and system platform for which it is intended.
6. Can the Basic Unit be used when expanding an existing system?
It can be used for system expansion when the additional modules and the existing automation architecture are compatible with the selected Basic Unit.
7. What information should be checked before procurement?
Verify the complete Siemens order number, product family, intended module configuration, mounting requirements, and system compatibility.
8. Can a similar-looking Basic Unit be used as a direct replacement?
Not necessarily. Similar dimensions do not guarantee identical functionality or compatibility, so the complete catalog number should be compared.
9. What problems can result from incorrect installation?
Incorrect module selection, mechanical installation, wiring, or system configuration can lead to communication, I/O, or system-level faults.
10. What should be checked during commissioning?
Check the physical assembly, module arrangement, wiring, system configuration, and operation of the connected automation modules before production use.
